Factory Good Price Chengli 40cbm Fuel Tank Delivery Semi Trailer

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

Chengli manufactures the 40cbm fuel tank delivery semi trailer in China. This tanker carries 40 cubic meters of liquid fuel. The mono block cylinder tank body uses 5mm carbon steel Q235 plates. End plates are 6mm carbon steel Q235.

The factory supplies this unit at a competitive price point. The tanker features five compartments for separate fuel delivery. Each compartment has its own bottom valve and discharging system.

Key Features.

The Chengli fuel tanker includes several standard features for safe fuel transport.

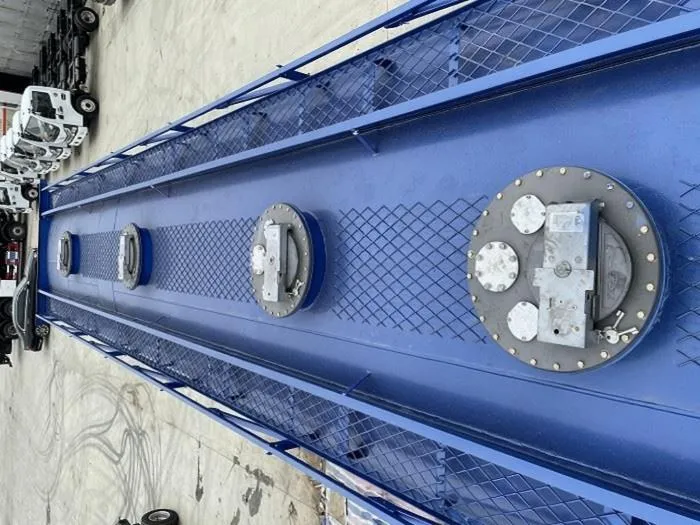

• 5 sets of 500mm aluminum alloy API manhole covers with breather and anti-spillage valves.
• 5 sets of DN100 pneumatic bottom valves with individual compartment control.

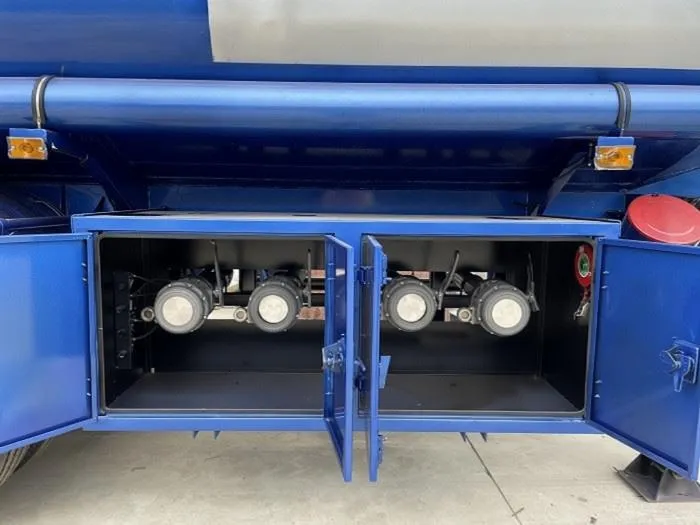

• 5 sets of DN100 API discharging valves with 4-inch rubber hoses.
• JOST brand landing gear and interchangeable 2 or 3.5-inch bolt-in king pin.
• WABCO RE 6 relay valve with T30/30 plus T30 spring brake chambers and 45L air tanks.
• Heavy duty leaf spring suspension with BPW brand front axle air bag.
• ABS system fitted as standard.
• Epoxy coated tank interior suitable for JET A1 fuel.

Performance and Configuration.

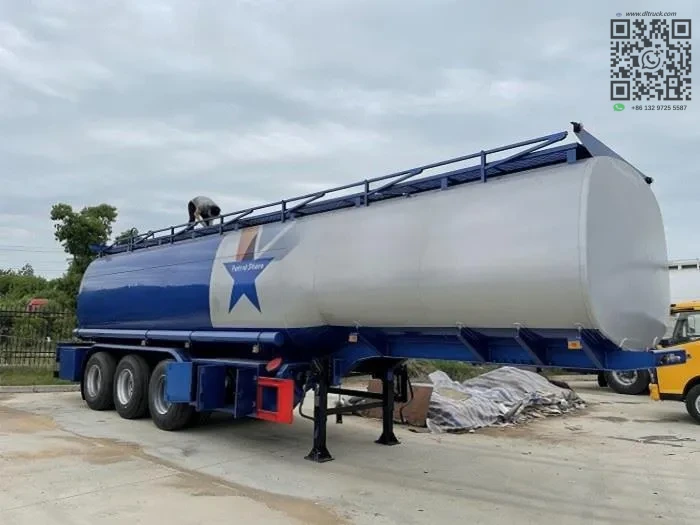

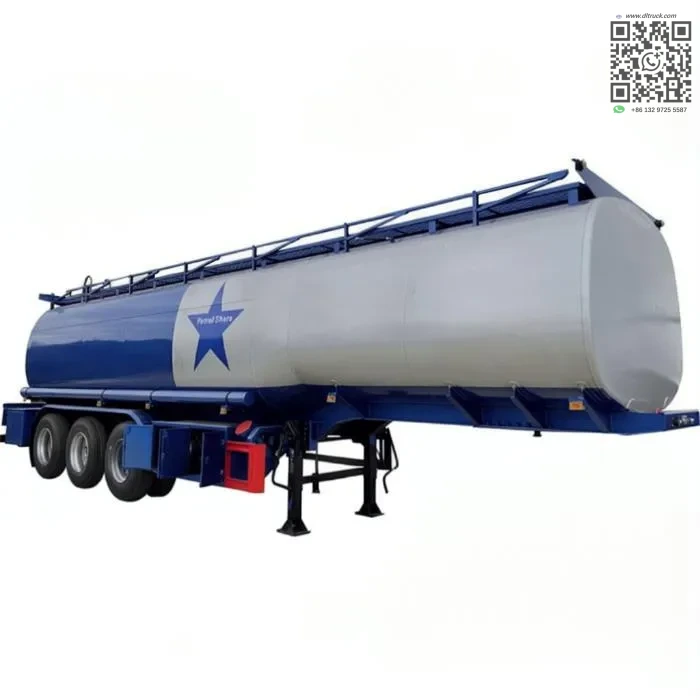

The tanker body measures approximately 11800mm in overall length. The width is 2500mm and height is approximately 3650mm. Tare weight is approximately 10900KGS. The vehicle runs on nine 385/65R22.5 tubeless Single Tri-angle Brand tires with one spare.

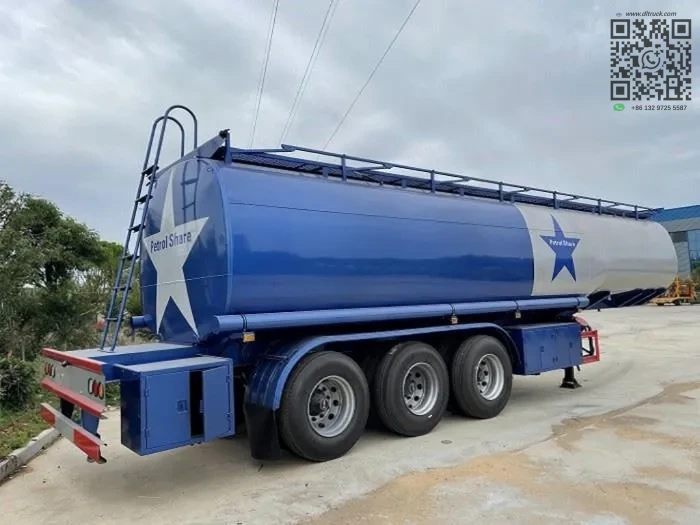

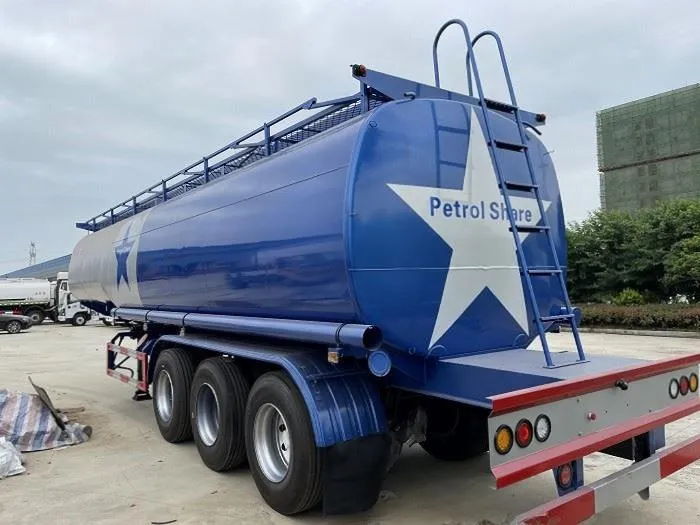

Three axles support the chassis. The front axle is liftable for better maneuverability. Main beams use a special design I beam with eight steel saddle supports on each side. The rear ladder provides top access and links to an automatic handrail lifting mechanism.

Safety equipment includes two 9KG fire extinguishers in mounted holders. A drip collecting system directs liquid to an on/off tap. Four brass earthing plots are placed at the front left, front right, rear left, and rear right positions. Yellow 5cm wide reflective safety lines run along both sides of the tank shell.

Applications.

This semi trailer is designed for fuel delivery operations. The five-compartment tank allows simultaneous delivery of different fuel grades. The aluminum alloy pipeline is suitable for transporting JET A1 aviation fuel. The epoxy interior coating protects against fuel contamination.

Why Choose This Truck.

Chengli is a direct manufacturer based in China. Buying from the factory removes middleman costs. The 40cbm tanker combines a durable carbon steel construction with essential safety systems. Key components such as the JOST landing gear and WABCO braking system are from recognized brands.
