China 3-Axle 48cbm Fuel Tank Semi Trailer – Good Price – Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

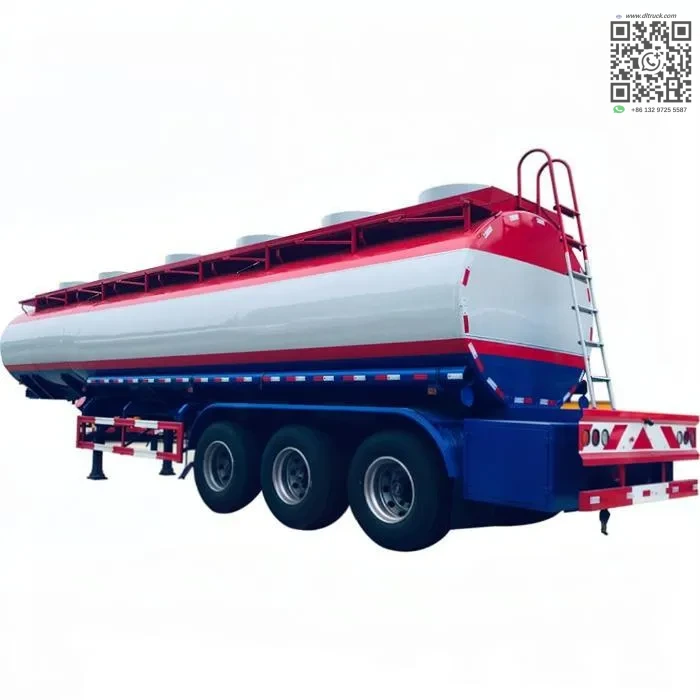

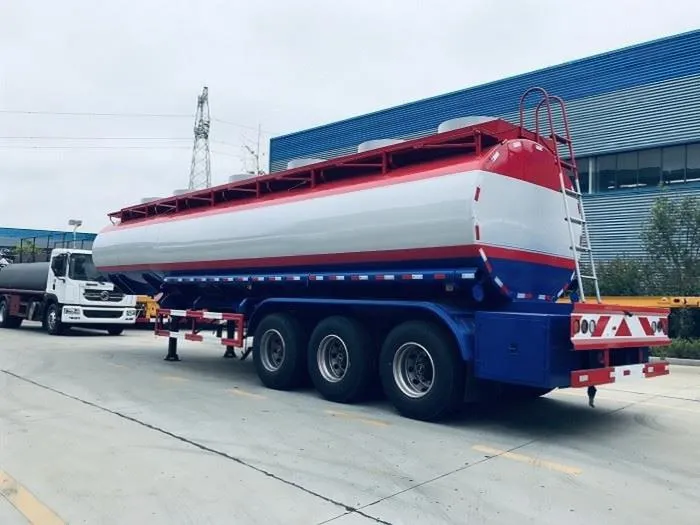

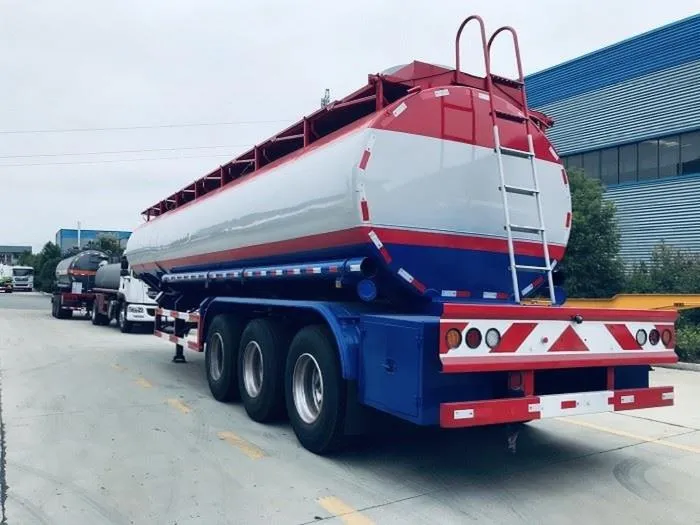

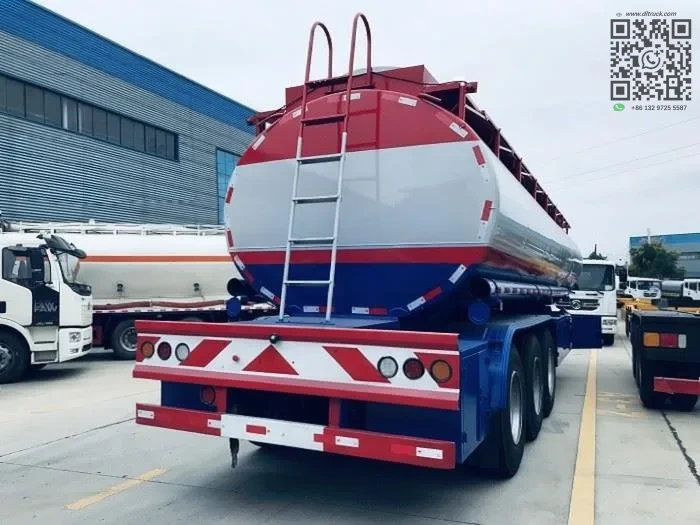

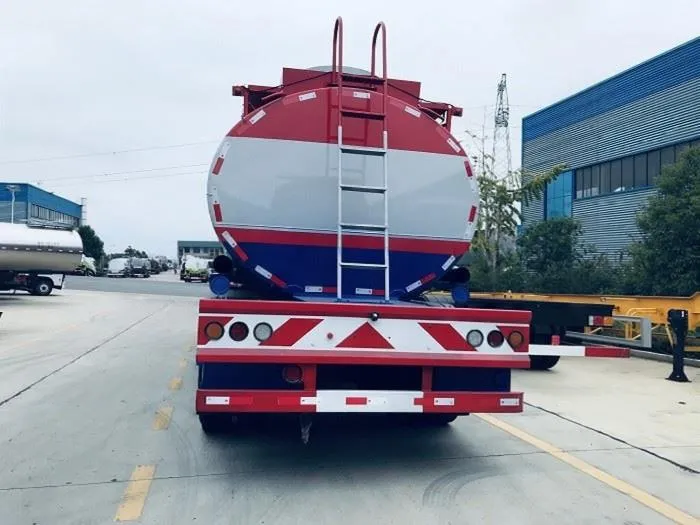

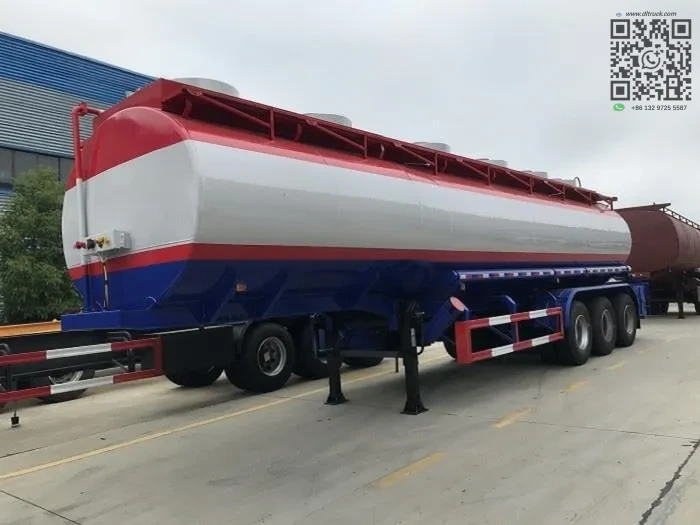

Chengli is a known manufacturer of 3-axle 48cbm fuel tank semi trailers in China. The factory produces these tankers at competitive prices for international buyers. Each unit features a mono block cylinder tank body built from 5mm carbon steel Q235. The total tank volume reaches 48CBM. The approximate tare weight is 10900KGS.

This fuel tank semi trailer carries a loading capacity of 48m3. The overall length measures approximately 11800mm. The width is 2500mm and the overall height is approximately 3650mm. The end plate uses 6mm carbon steel Q235 for added durability.

Key Features.

The tanker body incorporates several operational and safety components designed for fuel transport.

• Mono block cylinder shape with epoxy coating inside the tank.
• Five sets of aluminum alloy API manhole covers at ∮500mm with breather and anti-spillage valves.
• Five sets of DN100 pneumatic bottom valves with individual compartment control.
• Five sets of DN100mm API discharging valves with 4-inch rubber hoses.
• Aluminum alloy pipeline suitable for JET A1 transport.
• ABS system for enhanced braking safety.
• Brass earthing plots at four positions around the tank.
• Anti-skid design across all available walking surfaces.
• Yellow reflective safety line placed 5cm wide along both sides of the tank shell.

Performance and Configuration.

The chassis is built around a special design I beam main structure. Each side carries eight steel saddle supports. Three axles carry the load and the front axle is liftable. The suspension combines heavy duty leaf springs with BPW brand air bags on the front axle.

The landing gear is a JOST brand unit. The king pin is also JOST branded and available in 2-inch or 3.5-inch bolt-in sizes. These two sizes are interchangeable on site.

The pneumatic braking system uses a WABCO RE 6 relay valve. It pairs with T30/30 plus T30 spring brake chambers and 45L air tanks. Nine pieces of 385/65R22.5 tubeless Single Tri-angle brand tires are fitted. One spare tire is included.

The lighting system routes electrical wires inside leak tight sheaths. Back lights are inserted inside the rear bumper for protection. Additional LED stop lighting is provided. Turn, reverse and stop lights are repeated on the top left and right sides. Rear indicators are mounted on the rear side.

Applications.

This fuel tank semi trailer is designed for bulk liquid fuel transportation. The aluminum alloy pipeline and JET A1 compatible internals make it suitable for aviation fuel distribution. The five-compartment layout allows separation of different fuel grades during a single run.

The drip collecting system directs residual liquid to an on/off tap. This minimizes spillage during unloading. The 48CBM volume supports regional and long-haul fuel delivery operations.

Why Choose This Truck.

Chengli operates as both manufacturer and supplier. This means buyers receive factory direct pricing without middleman markup. The factory good price Chengli offers keeps the total cost competitive for export orders.

Every trailer ships with practical accessories already fitted. A dust board covers the tires. A rear ladder provides safe access to the top walkway. The foldable handrail is air operated. A tool box and double winch-type spare tire carrier are included. Two 9KG fire extinguishers are mounted in holders. The complete package reduces additional outfitting costs for new buyers.
