China 3 Axle 42M3 5454 Aluminum Alloy Fuel Tank Trailer – Chengli
The 42000L aluminum alloy fuel tank semi trailer meets ADR standards. It has 3 axles, BPW air suspension, and top/bottom loading. Suitable for diesel, gasoline, and aviation fuel transport.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

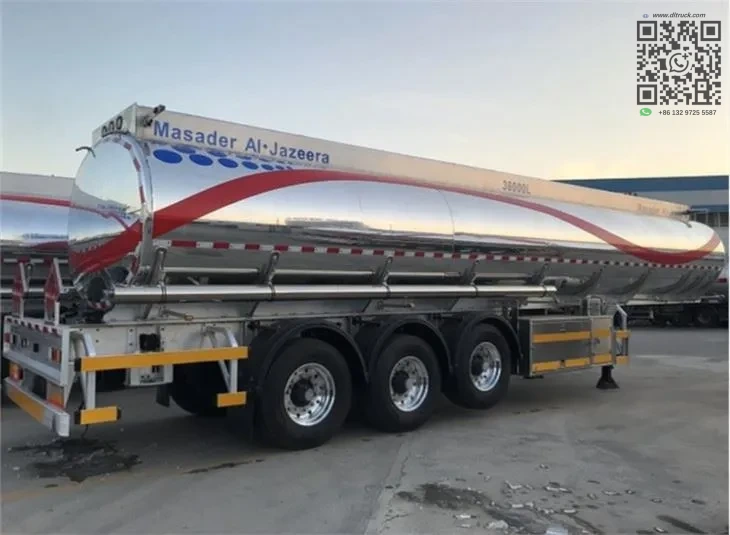

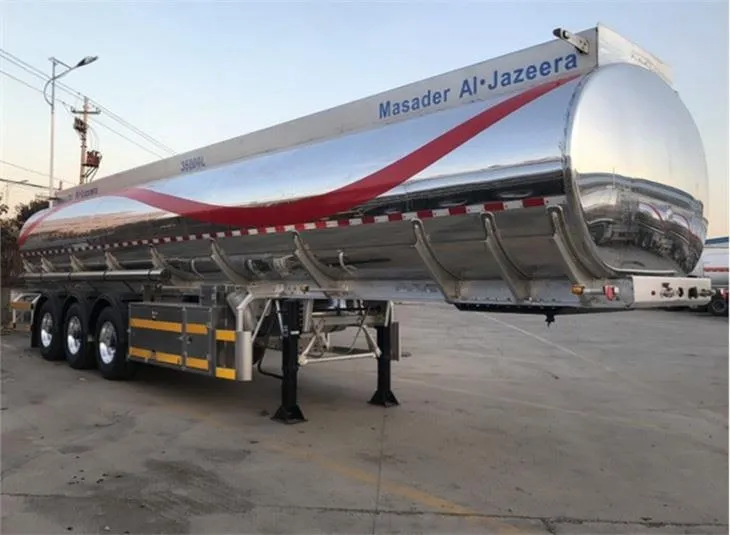

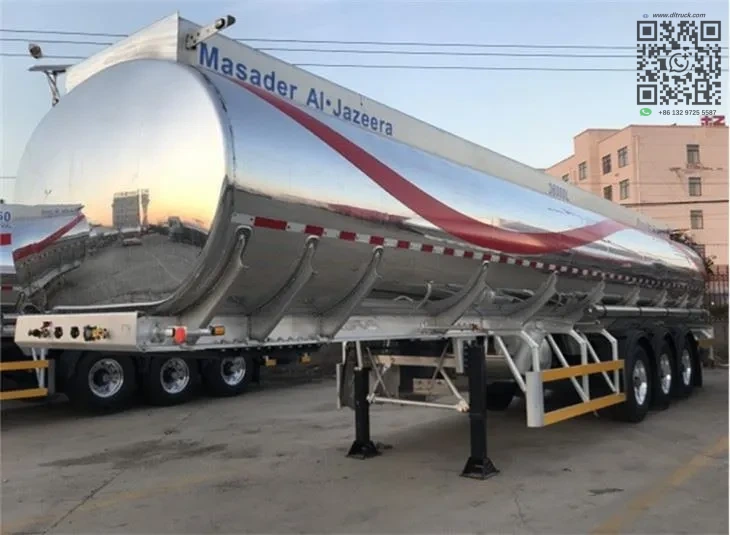

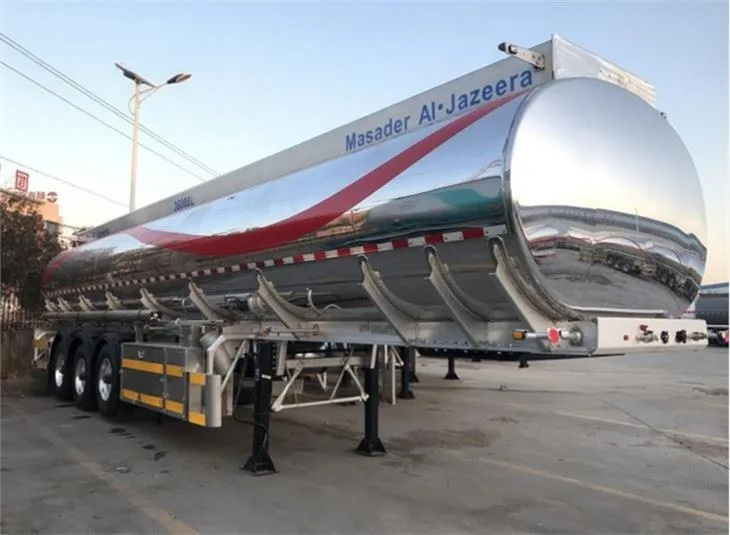

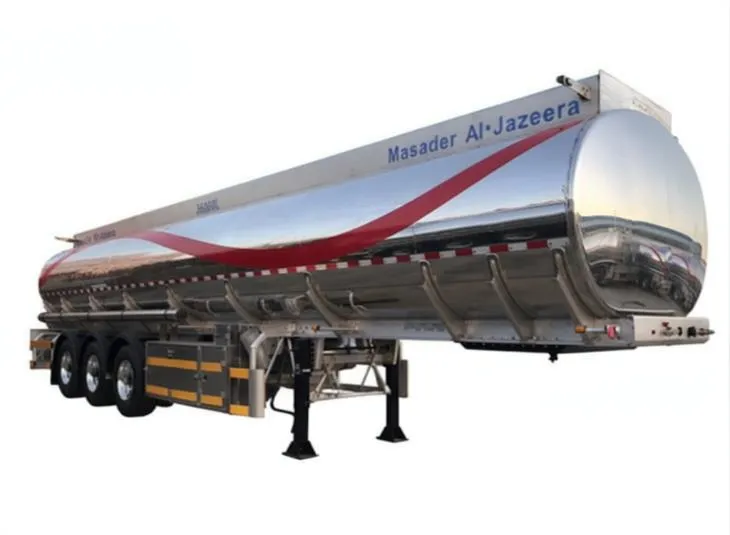

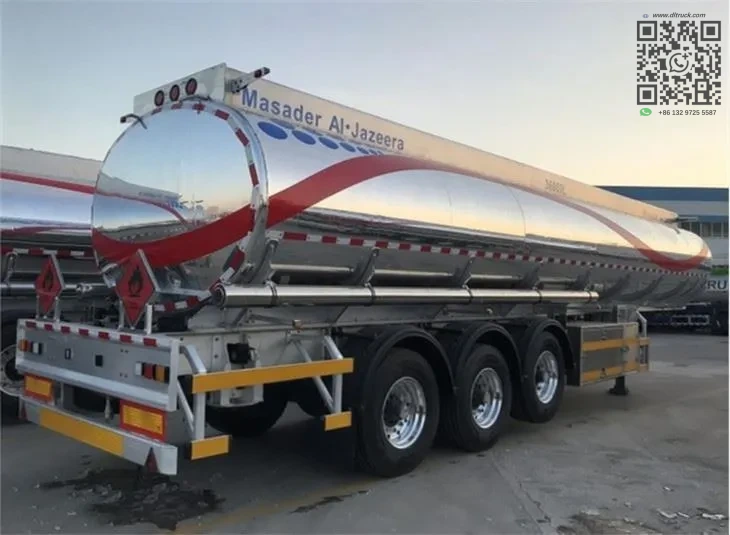

The Chengli factory produces a 42000-liter aluminum alloy fuel tank semi trailer. This vehicle complies with ADR design standards. It is built for transporting diesel, kerosene, gasoline, and aviation fuel.
Key Features.
- Tank material: Aluminum alloy 5454 confirming ADR.
- Tank thickness: 5.28mm (section), 6mm (end, spurnwater).
- Axles: 3 pcs BPW 9Tons axles, first axle lift.
- Suspension: BPW air bag suspension.
- Tires: 7 pcs Michelin 385/65R22.5.
- Loading system: Top loading and bottom unloading.
- Safety: Anti-overflow system, oil and gas recovery system.
- Lighting: 24V system, LED lamps, explosion-proof junction box.
.
Performance and Configuration.
The overall dimensions are 12210x2490x3310 mm. Gross vehicle weight is 40000 kg. Curb weight is 5980 ± 3%. Rated loading is 31000 kg. Actual loading capacity is 42000 liters (volume filled with water).
The tank section is square circle (goose neck). Manhole quantity is 2 pcs complying with EN norms. Breather valve is aluminum alloy, 2 sets. Discharging port is bottom unloading via 4” API coupling single line free discharge collector pipe.
Accessories include stainless steel hose case on left and right. Unloading hose length is Not provided in source, 3-inch steel wire discharge pipe. Tank climbing ladder includes interior and external options. Tool box and mudguard, side guard, rear bumper are aluminum alloy. Fire control unit has 8 kg fire extinguisher, 6 pcs. Antistatic device includes conductive electrostatic trawl and connection disk. Others: dip stick for leveling, water tank 50 L.
Applications.
This fuel tank trailer is designed for liquid cargo transport. It can carry diesel, kerosene, gasoline, and aviation fuel. The ADR standard ensures safe handling of hazardous materials. The anti-overflow and oil gas recovery systems enhance operational safety.
Why Choose This Truck.
The Chengli factory offers this trailer at a competitive price. Direct factory supply reduces cost. The aluminum alloy construction provides durability and lightweight performance. BPW axles and air suspension deliver reliable road performance. Customized painting, nameplate, and logo are available.
