China 2 Axle Bitumen Asphalt Tank Trailer With Insulation Layer and Burner – Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

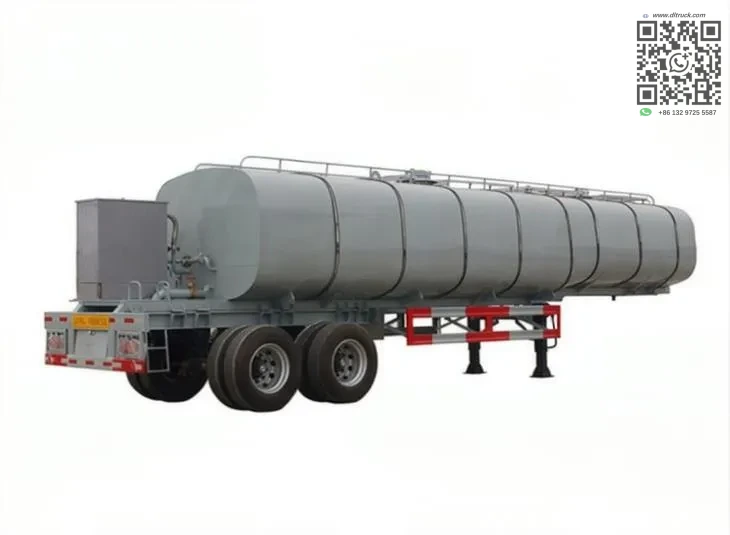

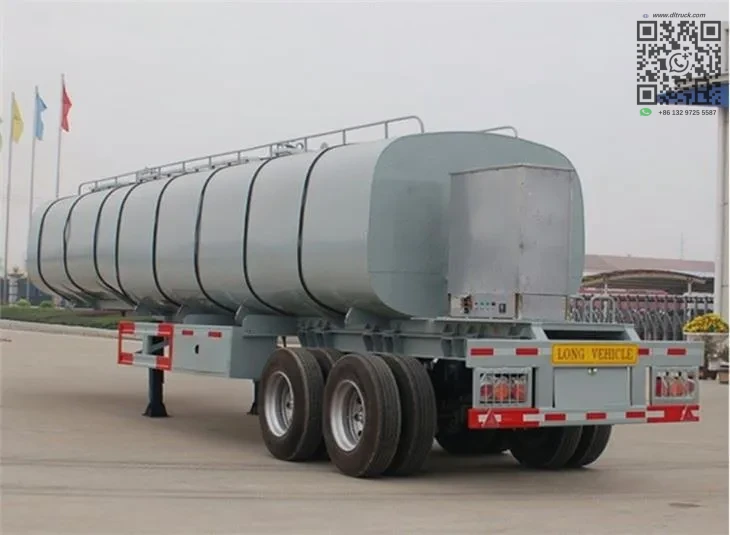

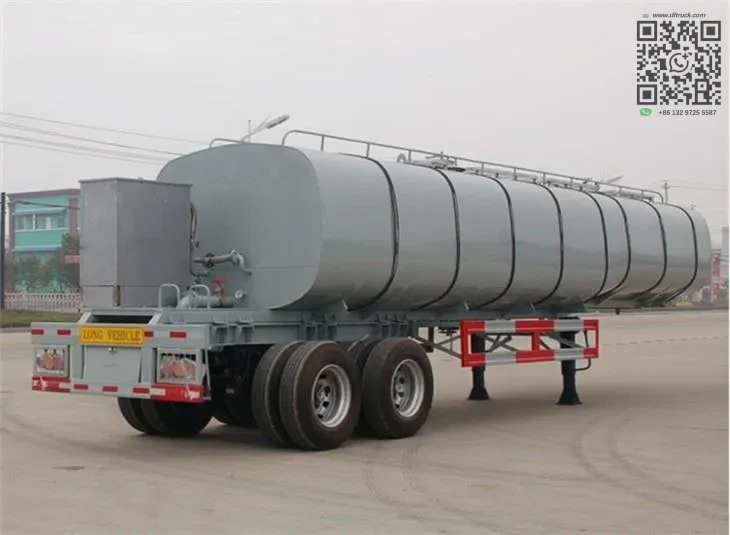

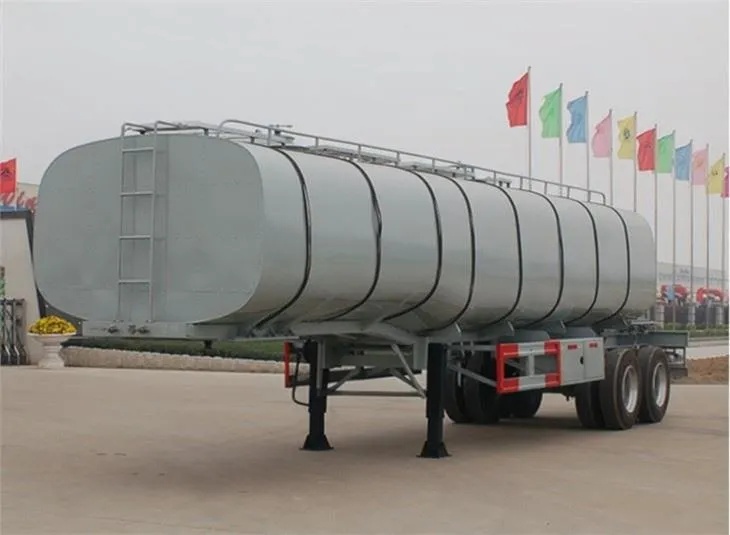

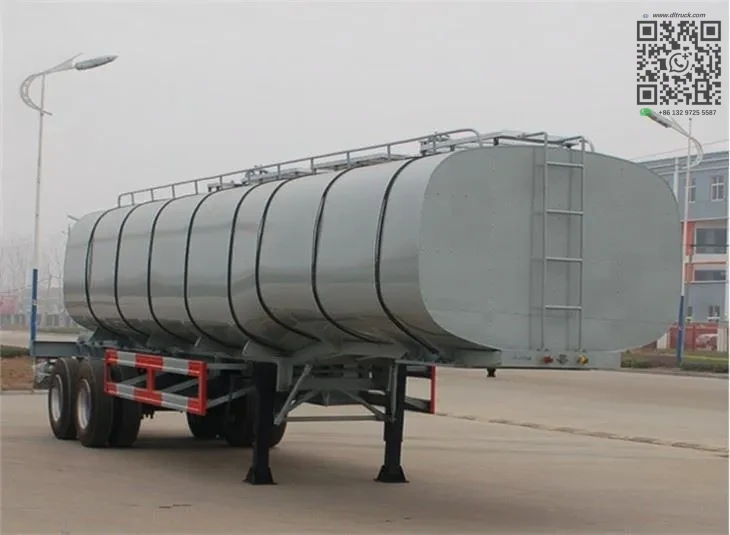

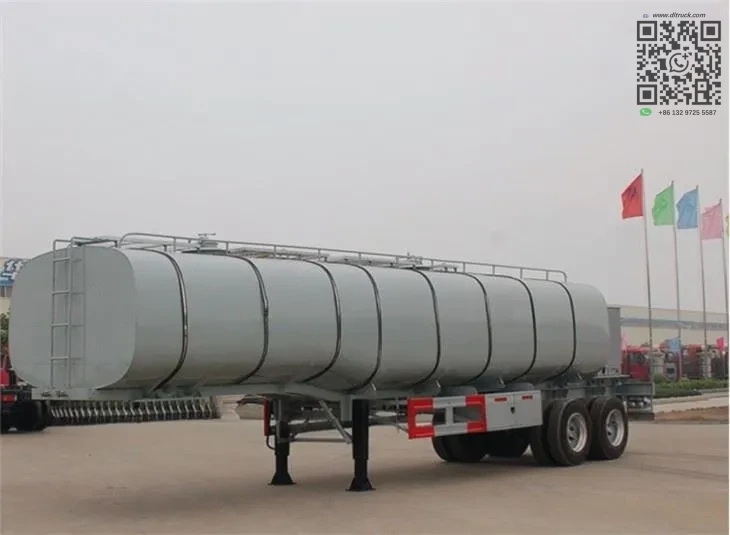

This 2 axle bitumen and asphalt tank trailer comes with an insulation layer and integrated burner. The tank body has an ellipse shape. Total volume reaches 31.5 cubic meters. Valid volume is 30 cubic meters. Chengli manufactures this unit at competitive factory prices.

Key Features.

• Ellipse shaped tank made from Q235A material with 6mm thickness.
• Italy Riello brand burner for heating bitumen and asphalt.
• Anti-static electricity system with wire carrier and copper sheets.
• Zinc galvanizing net guard on top of the tank.
• Box type work tank deck with front ladder access.
• Sand blasting surface preparation with anti-corrosive and urethane paint coats.
• Oil hose box on each side with black rubber hoses.
• Fire extinguisher boxes on both rear sides.

Performance and Configuration.

The trailer uses heavy duty main beams made from high tensile Q345B steel. Welding is done by automatic Submerged-Arc processes. It carries a pay load of 35000 with overall width of 2490 and overall height of 3520.

Two units of BPW 13 ton axles are fitted. FUWA and L1 brand axles are available as options. Suspension uses German style mechanical tandem design with 11mm x 100mm 13 leaf springs.

The pneumatic braking system includes a WABCO RE 6 relay valve. Four T30/30 chambers provide reliable stopping force. A local brand 40L air tank and copper connectors complete the system.

Three outlets sit at the bottom of the tank. Two sets of DN80 unloading valves control discharge. A 4 inch seamless steel tube pipeline with 100mm diameter runs along the tank base. Three manhole covers of 500mm each are fixed on top. Each manhole has a breather valve. The spurn water plate is 508mm with a 20 inch opening.

JOST two speed manual landing gear rated at 28 ton and 19 inch is fitted. One 2 inch bolt-in king pin connects the trailer to the prime mover. Nine pieces of 11R22.5 tubeless tires are used. Eight 8.25-22.5 rims plus one spare complete the wheel set.

Lighting uses a 24V system. Seven coil wiring handles parking reverse instruction head lamp and end lamp functions. Side guards use a cross bar structure. Rear button guard is fixed type. Wheel rims are 8.25-22.5 with nine pieces including one spare.

Applications.

This trailer is built for hauling heated bitumen and asphalt in road construction projects. The insulation layer and burner keep the material at working temperature during transport. Oil type indication labeling helps operators identify the cargo easily.

The tank design suits bitumen distribution companies and road maintenance contractors. Fast unloading through multiple outlets speeds up project cycles.

Why Choose This Truck.

Chengli produces this unit directly from its factory. This approach keeps the price competitive without sacrificing build quality. The combination of a certified Italian burner and durable steel tank gives operators confidence on every job.

All major components come from established suppliers. BPW axles JOST landing gear and WABCO brake parts are industry recognized. The painting process includes sand blasting and multiple protective coats for long service life.
