Factory Good Price Chengli 30cbm Concrete Mixer Trailer

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

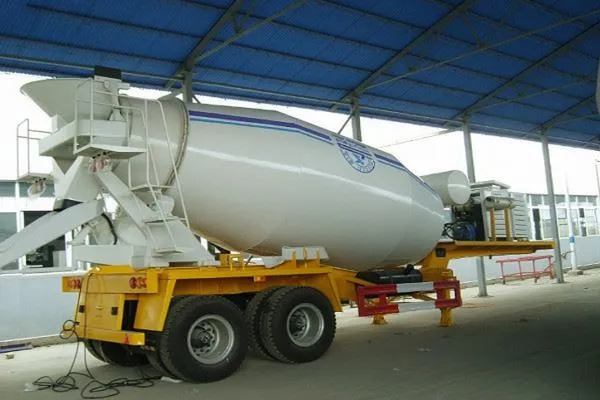

Chengli manufactures this 30cbm concrete mixer trailer for construction use. The unit combines a robust skeletal chassis with a 12CBM mixing tank. It provides reliable transport and mixing for ready-mixed concrete. The factory offers this model at a competitive price point.

Key Features.

The trailer integrates several core components for durable operation.

• 12CBM mixing tank with sloping angles of 14, 12, and 10 degrees.
• Revolving speed adjustable between 12 and 20 revolutions per minute.
• Thickness of 6mm for the tank construction.
• TD226B-6 Weichai diesel engine delivering 127KW of power.
• American Eaton hydraulic pump (ACA6023) and hydraulic motor (HHD6033).
• PMB7BSP gearbox from PMB Brand.
• Skeletal chassis with special I-beam main beam using Q345B high-tensile steel.
• Two axles with mechanical suspension and 8-piece leaf springs.
• JOST 2-inch bolt-in king pin and heavy-duty two-speed manual landing gear.
• WABCO braking system with spring brake chambers and 45L air tanks.

.

Performance and Configuration.

The chassis features a welded I-beam design. The top flange measures 14mm thick and 140mm wide. The middle flange is 6mm thick. The bottom flange is 16mm thick with a 140mm width. The entire structure uses automatic submerged-arc welding for strength.

The trailer carries nine wheels with 8.25-22.5 rims. It uses nine 11R22.5 tires plus one spare tire on a carrier. Sandblasting cleans the chassis before painting. One coat of anticorrosive primer and two coats of final paint protect the surface. Color selection is available upon request.

Operating the mixer requires connecting the hydraulic system to the truck power take-off. The engine drives the hydraulic pump. The pump supplies pressure to the motor. The motor rotates the mixing tank. The sloping angle controls discharge flow. The revolving speed adjusts mixing intensity.

Applications.

This trailer serves construction sites that require frequent concrete delivery. It transports ready-mixed concrete from batch plants to job locations. The mixing function maintains concrete consistency during transit. Contractors use it for building projects, road construction, and infrastructure work.

Why Choose This Truck.

The factory provides this Chengli trailer at a good price. The component selection uses recognized brands like Weichai and Eaton. The chassis construction emphasizes durability for heavy loads. The design simplifies maintenance and ensures long service life.
