43000L Aluminum Alloy Edible Oil Tanker Trailer – Factory Direct

factory good price chengli Overview.

Introduction.

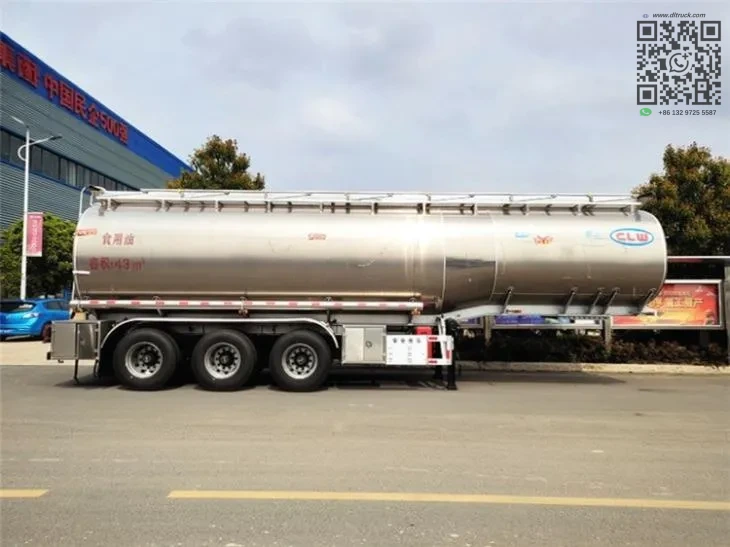

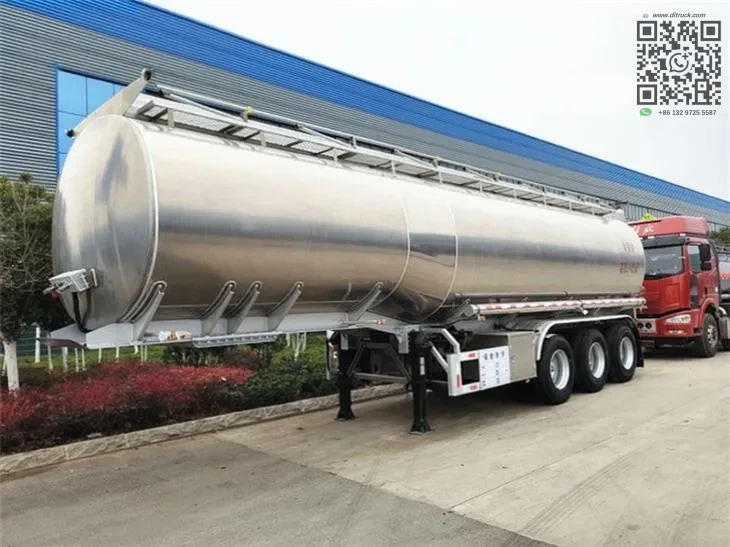

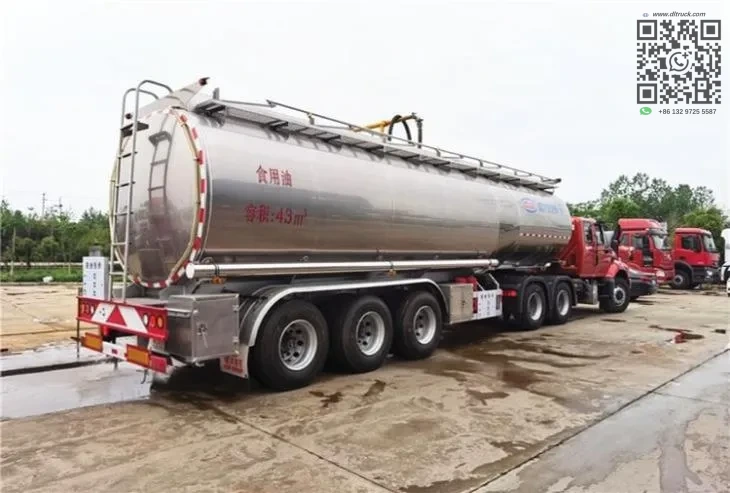

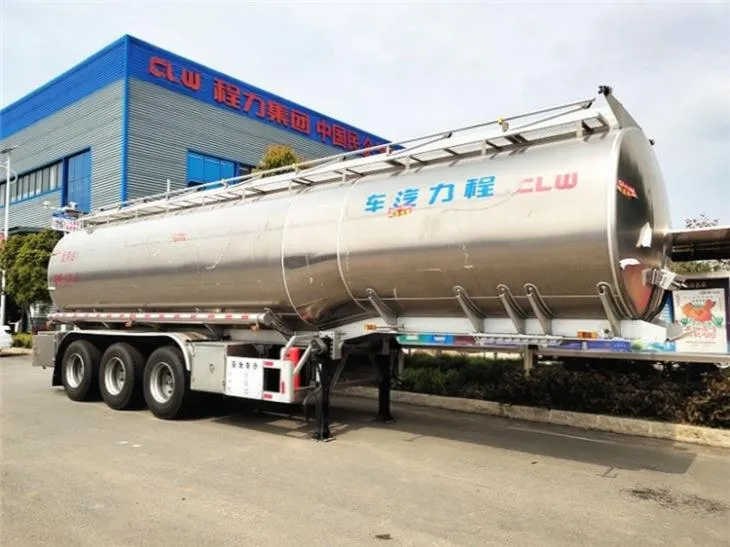

The factory good price Chengli 43000L aluminum alloy edible oil tanker trailer is built for bulk liquid transport. This semi-trailer uses a mono-block cylinder tank constructed from 6mm aluminum alloy 5083. End plates are 7mm thick and baffles are 5mm thick, both from the same aluminum alloy 5083 grade. The total volume reaches 43 CBM.

The tanker is manufactured as a dedicated food-grade transport solution. Aluminum alloy construction resists corrosion and maintains product purity during shipment.

Key Features.

• 6mm aluminum alloy 5083 tank body with 7mm end plates.
• 43 CBM mono-block cylinder tank capacity.
• Three FUWA/BPW axles rated at 13 tons each.
• JOST brand two-speed manual landing gear.
• WABCO RE 6 relay valve pneumatic braking system.
• Six aluminum alloy API manhole covers with breather valves.
• Aluminum API pneumatic bottom discharging valves.
• Two 6-meter 4-inch rubber discharge hoses included.
• Optional compartment configurations available.
• Tool box, 600L water tank, and two 8kg fire extinguishers.

Performance and Configuration.

The overall dimensions are 12500mm long, 2500mm wide, and 3900mm tall. Tare weight stands at 7100KGS. The chassis uses a special design I-beam connected by bolts and nuts to the tanker body. Main beams are Q345 carbon steel with optional aluminum alloy upgrade.

Suspension can be mechanical type, German or American style, or air bag suspension. Tire options include 12R22.5, 315/80R22.5, 11.00R20, or 12.00R20. Wheel rims are 9.00-22.5 with 13 pieces including one spare. ABS is available as an optional add-on.

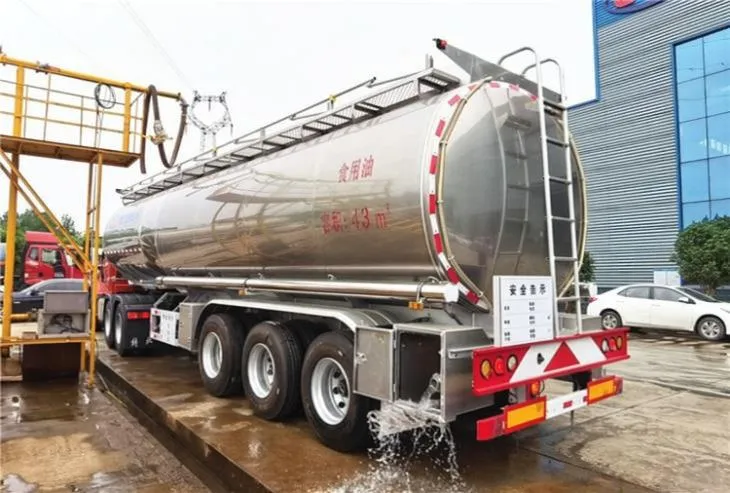

Manhole covers measure 500mm diameter and six sets come with six breather valves. The lifting ladder includes a top walkway and backside steel construction. Painting can feature the buyer logo as required.

Applications.

This tanker is designed for transporting edible oils and other food-grade liquids. The aluminum alloy tank surface prevents contamination and preserves liquid quality during transit.

Custom compartment arrangements allow separation of different product types within a single trailer. Operators can specify the number of compartments according to their cargo requirements.

Why Choose This Truck.

Buying directly from the factory gives you competitive pricing without middleman markups. Chengli manufactures this trailer to meet export standards for commercial liquid transport fleets.

Multiple configuration choices let buyers select axle brands, tire sizes, suspension types, and compartment layouts. The aluminum alloy construction offers long service life with minimal maintenance over years of operation.
