40000 Liters 3-Axles Fuel Tanker Semi Trailer – Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

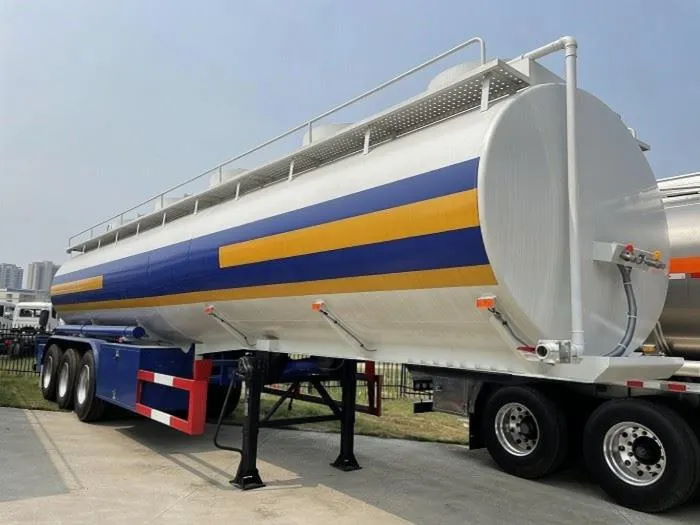

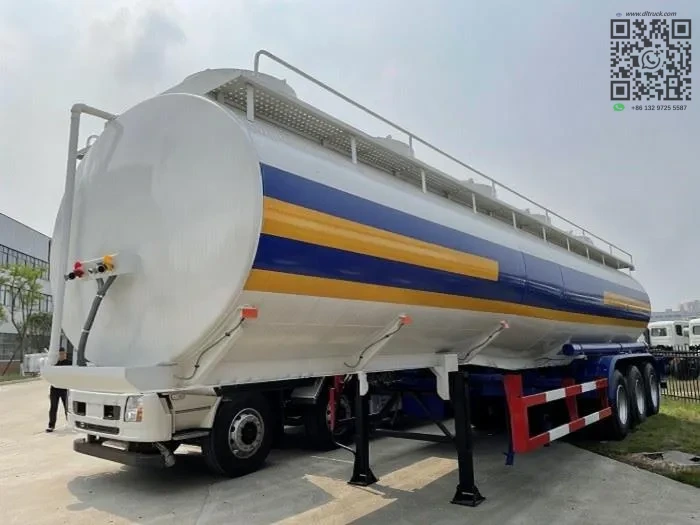

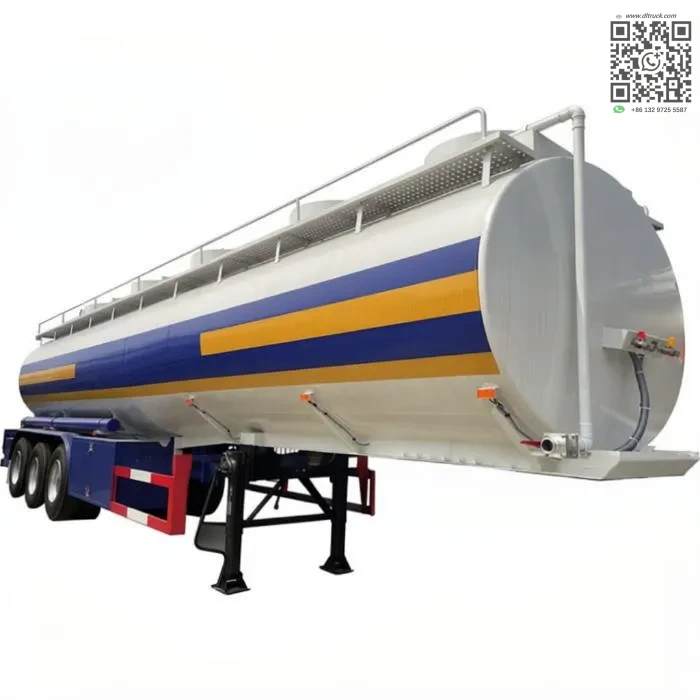

We supply the 40000 liters 3-axles fuel tanker semi trailer from our factory. The unit carries 40 cubic meters of liquid fuel. It uses a mono block cylinder shape for strength.

The tanker body is made from 5mm carbon steel Q235. The end plates are 6mm thick. Each compartment has its own pneumatic control. The factory good price Chengli makes this unit accessible for bulk buyers.

Key Features.

The tanker includes a complete set of operating components and safety features.

• Mono block cylinder shape with 40CBM total volume.
• 5 sets of DN100 pneumatic bottom valves with API discharging valves.
• Aluminum alloy API manhole covers, 500mm diameter with breather and anti-spillage valves.
• 3 axles with a front liftable axle.
• JOST brand landing gear and bolt-in king pin (2 or 3.5 inch).
• Heavy duty leaf spring suspension with BPW air bag on front axle.
• WABCO pneumatic braking with spring brake chambers and 45L air tanks.
• 9 pieces of 385/65R22.5 triangle brand tubeless tires plus one spare.

Performance and Configuration.

The overall dimensions are approximately 11800mm in length, 2500mm in width, and 3650mm in height. The tare weight is approximately 10900kg. The tank interior is epoxy coated. An aluminum alloy pipeline is fitted for JET A1 fuel transport.

The lighting system uses leak-tight sheaths for all electrical wires. Back lights are inserted inside rear bumpers. Additional LED stop lights and turn repeaters are mounted on the top left and right sides. A rear indicator is also included.

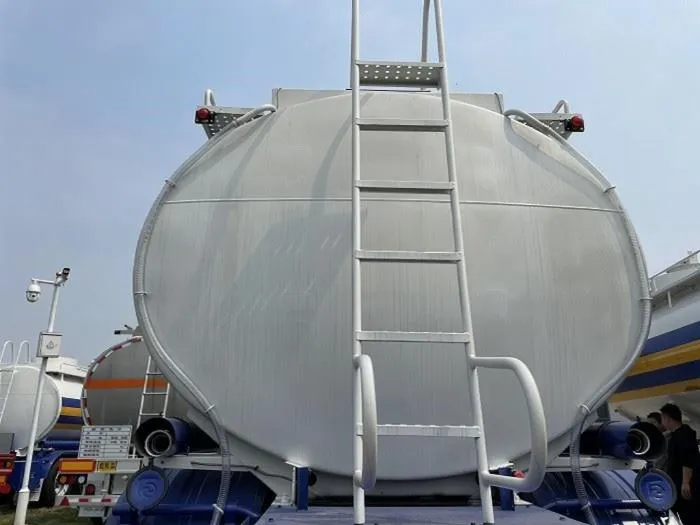

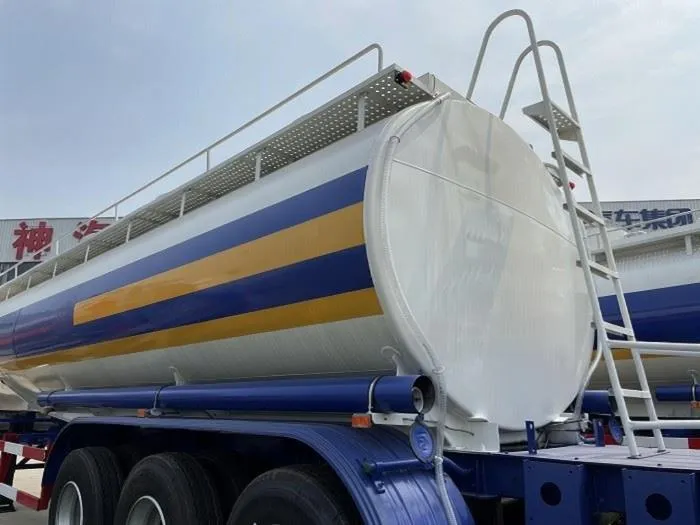

Additional equipment includes a dust board covering the tires. A rear access ladder with angle supports, and a walkway with foldable air-operated handrail. The tanker carries two 9kg fire extinguishers in holders. A drip collecting system directs liquid to an on/off tap. Four brass earthing plots are placed at the front and rear corners. A 5cm wide yellow reflective safety line runs along both sides of the tank shell. An ABS system is fitted as standard.

Applications.

This tanker is used for transporting liquid fuels including diesel, gasoline, and JET A1 aviation fuel. It is suitable for depot delivery, refinery distribution, and fuel station supply chains.

The 40000-liter capacity makes it suitable for regional fuel distribution routes. Operators can service multiple stations per trip.

Why Choose This Truck.

The factory good price Chengli offers competitive pricing without reducing on structural integrity. The Q235 carbon steel body with 5mm thickness provides durability for daily fuel transport duties. The mono block cylinder design reduces joint failures.

Each compartment is individually controlled through pneumatic bottom valves. This allows operators to discharge different fuels at separate stations without cross-contamination. The complete braking, lighting, and safety package meets standard road requirements for immediate deployment after purchase.
