China Tri-axle 50000L 1300 Gallons Fuel Transport Truck Trailer for Nigeria – Chengli
Chengli factory direct supply of a tri-axle 50000 liter fuel transport semi trailer. Mono-block cylinder tank with three compartments, FUWA axles, and full WABCO pneumatic braking system.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

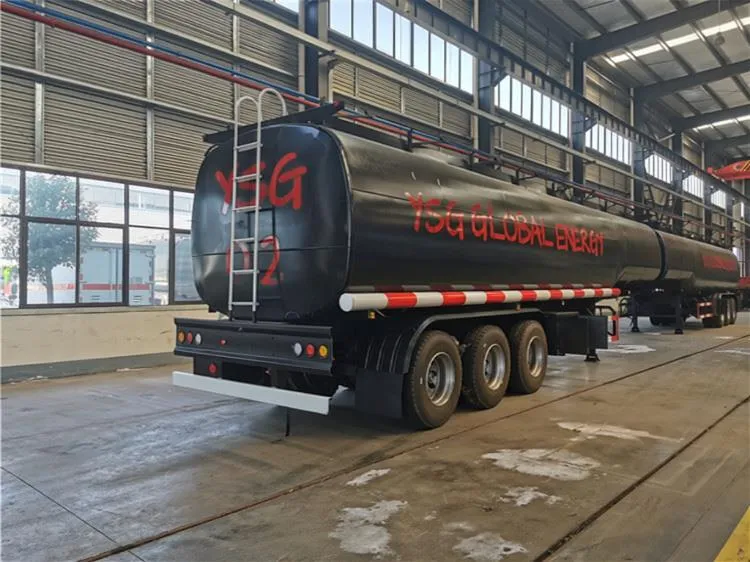

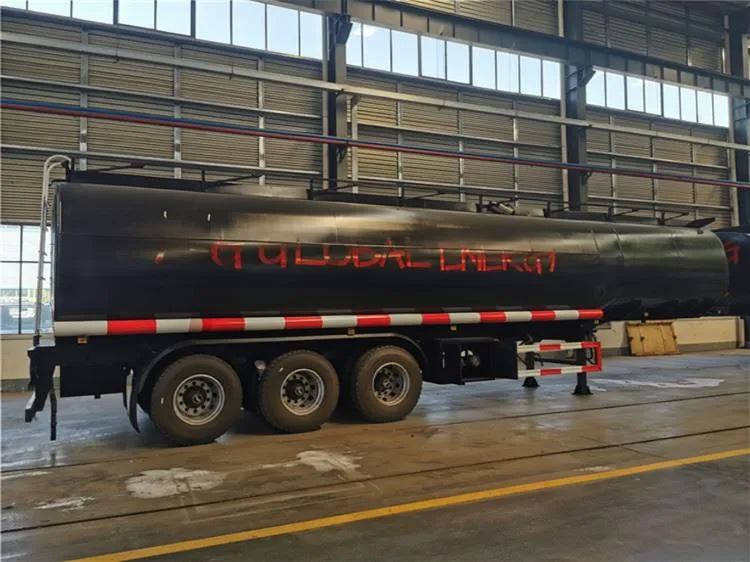

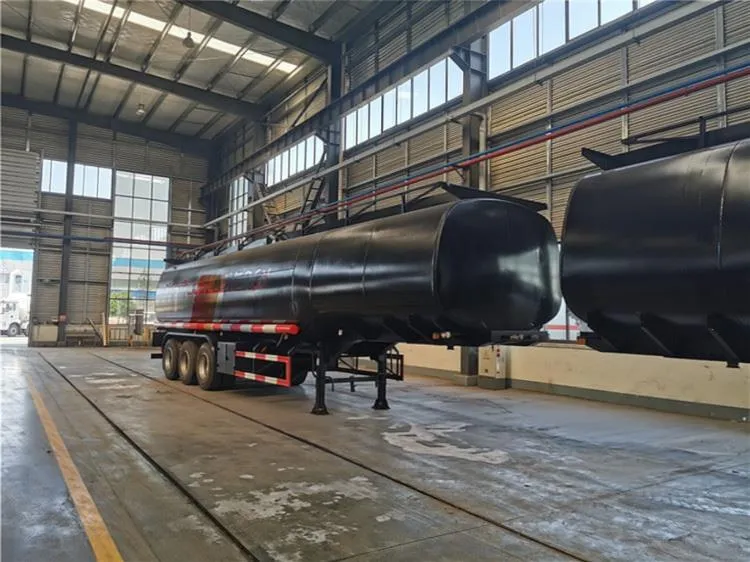

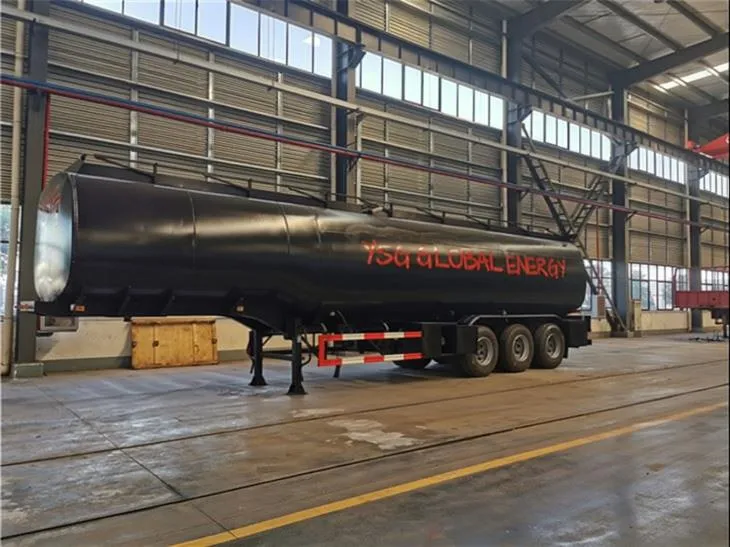

Chengli manufactures this tri-axle fuel transport semi trailer at its factory in China. The unit carries 50000 liters or 1300 gallons of liquid fuel. It targets commercial transport operations in Nigeria.
The mono block cylinder tank is divided into three separate compartments. Each compartment has its own manhole cover and discharge valve. The design meets standard fuel transportation requirements for bulk liquid delivery.
Key Features.
Key specifications include the following configuration elements:.
- Mono block cylinder tank, 50 cubic meter total volume.
- Carbon steel tank body and carbon steel end plate thickness: Not provided in source.
- 2 baffles made of 4mm carbon steel for internal stabilization.
- 3 compartments with individual discharge systems.

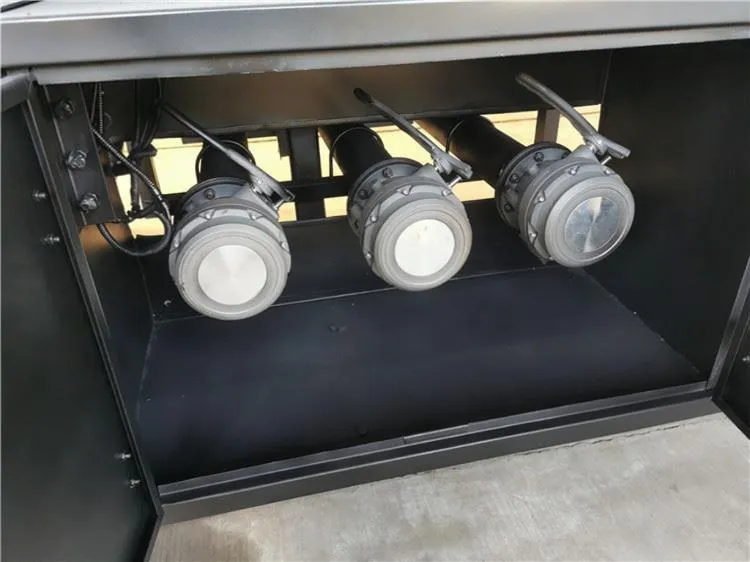

- 3 sets of API pneumatic bottom valves.
- 3 manhole covers, 500mm diameter, with breather valves.
- Top safety rail with pneumatic control on both sides.
- 4-inch rubber discharge hose, 6 meters long, 2 pieces included.
- Top walkway and backside steel ladder for operator access.
Performance and Configuration.

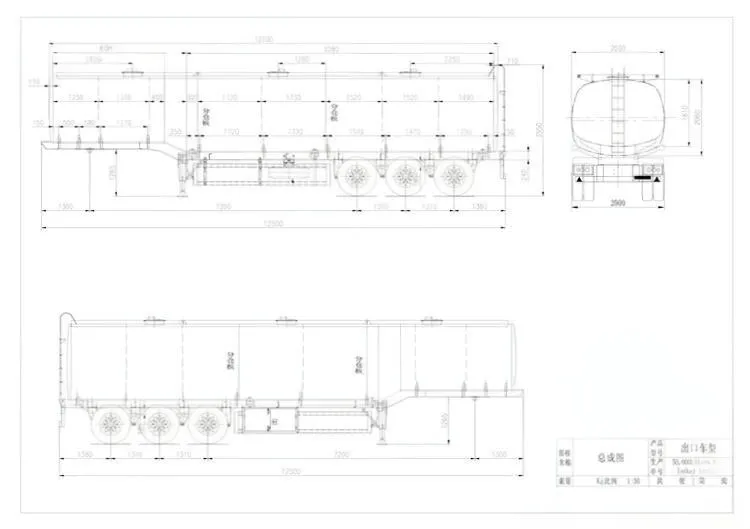

The chassis measures 12500mm overall length, 2500mm width, and 3550mm height. The tare weight is around 11,000KGS. The loading capacity reaches 50 cubic meters across three compartments.
Three FUWA axles rated at 13 tons each support the tank body. The suspension is heavy duty mechanical type. A JOST two-speed manual landing gear handles support. The king pin is a JOST 2-inch bolt-in model.
The pneumatic braking system uses a WABCO RE 6 relay valve. Spring brake chambers are T30/30 plus T30 models. Two 45L air tanks provide the required air volume. Thirteen 12R22.5 tubeless tires are fitted on 9.00-22.5 wheel rims. One spare tire is included.
The chassis undergoes complete sand blasting before painting. One coat of anti-corrosive primer is applied. Two coats of final paint complete the surface treatment. A standard tool box is mounted on the frame.
Applications.
This trailer is built for transporting liquid fuels such as diesel and gasoline. The three-compartment design allows separate storage of different fuel grades during a single run.
It is suitable for fuel distribution companies, petroleum distributors, and logistics operators working in Nigeria and surrounding West African markets.
Why Choose This Truck.
Chengli sells this trailer directly from the factory at a competitive price. The mono block construction and standard component brands provide straightforward maintenance.
Every unit includes a standard tool box and complete discharge accessories. Contact the factory for detailed specifications and current availability.
