China 3 Tri-Axle 60Tons Low Bed Loader Semi Trailer – Chengli Factory

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

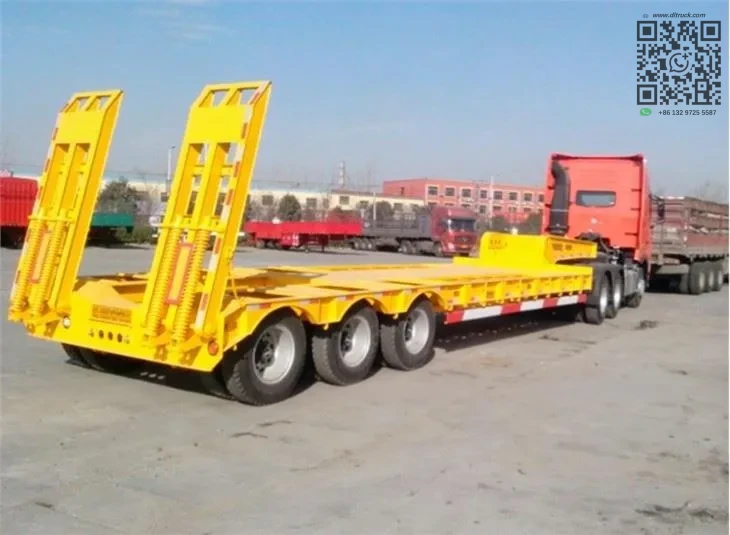

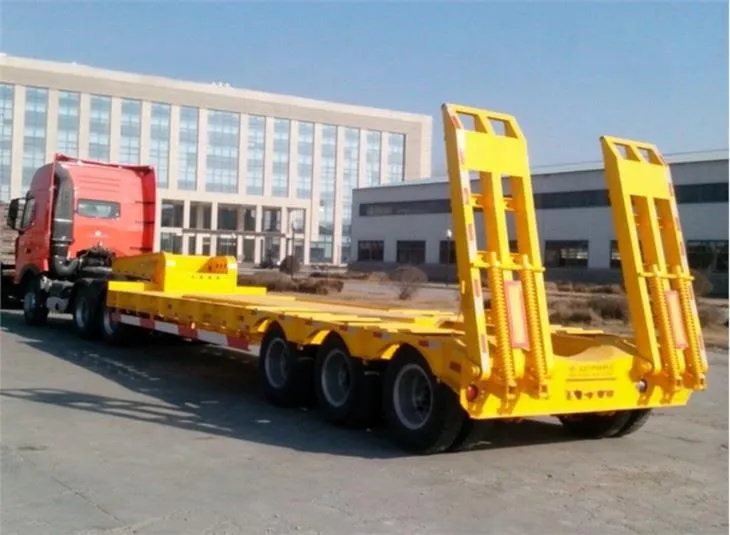

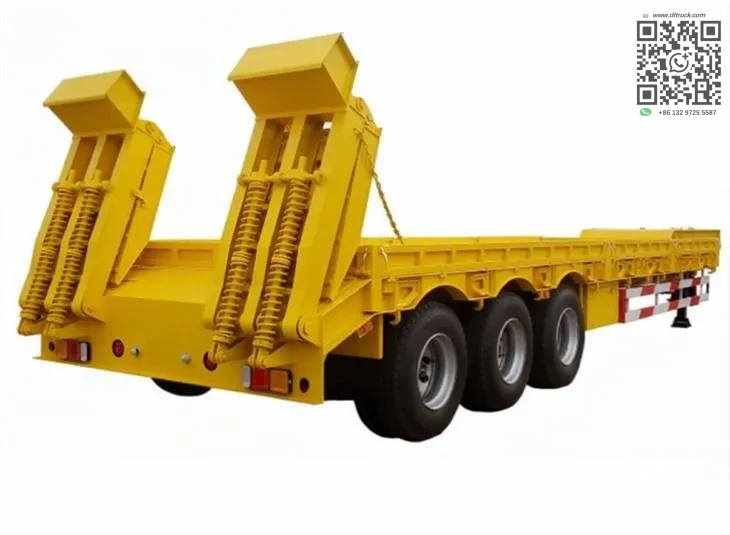

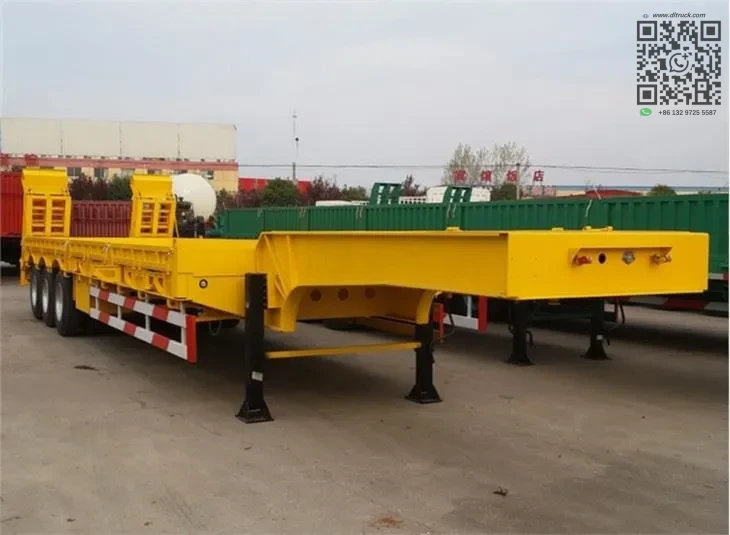

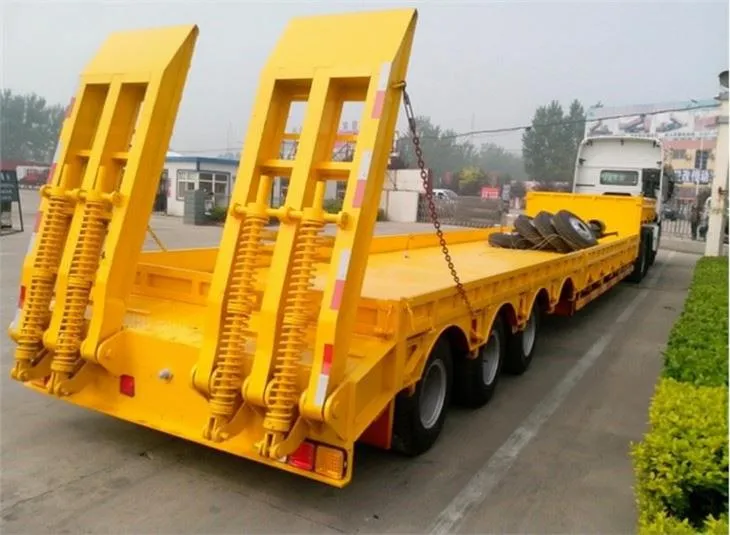

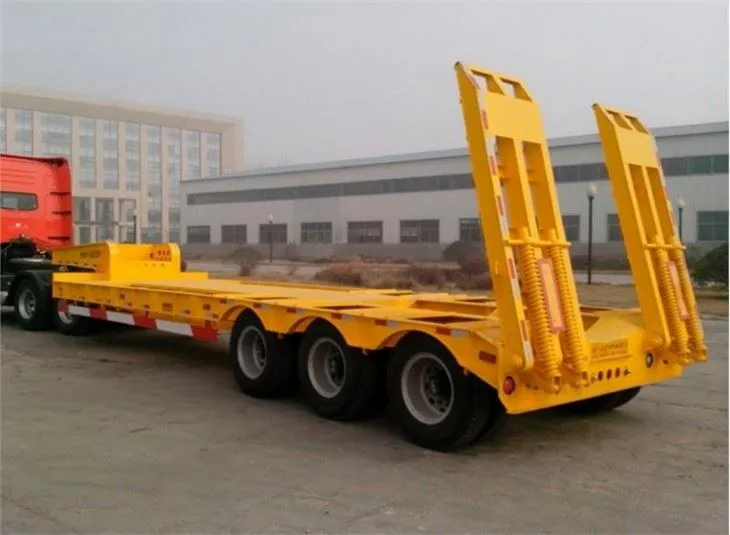

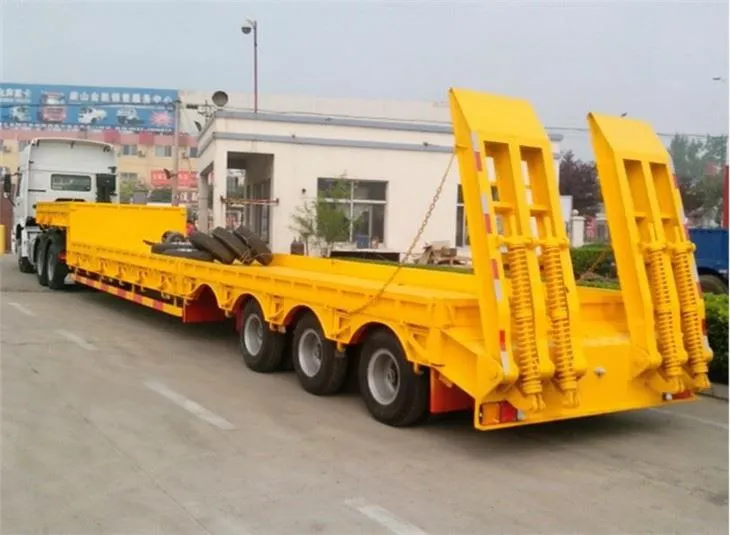

This 3 tri-axle low bed loader semi trailer is manufactured by Chengli in China. It carries a loading capacity of 100T with a tare weight of about 8.5-13T. The overall dimension measures 13000x3000x3200mm. The factory good price makes it suitable for overseas buyers looking for cost-effective heavy transport solutions.

Key Features.

The trailer is built with a robust main beam constructed from Q345B steel. The beam stands 500mm tall with plates of 14mm, 8mm, and 16mm thickness. Side beams use 16mm or 18mm steel channel made from Q235 steel. The platform is covered with a 3mm-thick checkered plate for grip and durability.

• 100T loading capacity for heavy equipment transport.
• Tri-axle configuration with 13T or 16T rated axles.
• JOST 2.0 or 3.5 inch king pin bolted or welded.
• JOST D200T or Chinese brand 28-ton double-speed landing gear.
• Spring or hydraulic ramp options for easy loading.
• Mechanical suspension with multi-layer spring leaves.

Performance and Configuration.

The chassis uses Q345B steel for the main beam. This material provides strong load-bearing performance. The upper plate is 14mm thick, the middle plate is 8mm, and the bottom plate is 16mm. Side beams are made from Q235 steel channel at 16mm or 18mm thickness.

Axle brands include FUWA, BPW, and Zhengyang Chinese Famous Brand. Tire sizes are 12.00R22.5 or 315/80R22.5 as optional choices. Rim options are 9.00-22.5 or 9.75-22.5. The mechanical suspension uses spring leaves sized wide by thick with 10 layers. Or by by 12 layers for overseas markets.

The braking system features a WABCO RE 6 relay valve. Spring brake chambers are T30/30 plus T30 TKL brand with a 45L air tank. For overseas markets, a WABCO valve and LED lights are specially intended. The electrical system runs on 24V with a 7-pin socket for the wire harness. ABS is available as an optional feature.

The tool box measures 1m x 0.5m x 0.5m. It contains one tire spanner, one gudgeon sleeve, and one cranking bar. Its size can be tailored to suit your needs. The painting process includes sandblasting for the chassis surface. One layer of anticorrosive primer and two layers of top coats are applied.

Applications.

This low bed loader semi trailer is designed for transporting heavy construction machinery and equipment. The low deck height allows easy loading of excavators, bulldozers, and other heavy machines via the ramp system. The tri-axle configuration distributes weight effectively for road compliance.

The 100T loading capacity makes it suitable for mining operations, infrastructure projects, and industrial equipment relocation. Buyers from overseas markets benefit from the optional WABCO valves. LED lighting, and reinforced spring leaf suspension specified for international shipping requirements.

Why Choose This Truck.

Chengli is a recognized manufacturer of low bed semi trailers in China. The factory direct pricing eliminates middleman costs. The trailer uses well-known axle brands such as FUWA and BPW. JOST king pin and landing gear are standard components. WABCO braking parts are specified for overseas market orders.

Shipping is handled by bulk carrier in RORO or 40ft container format. The paint system includes sandblasting and anti-rust treatment. The tool box is included and its dimensions can be customized. The ramp can be spring type or hydraulic type depending on your preference.
