China Howo 15000L LPG Bobtail Tanker Truck – Good Price from Chengli Factory

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

Chengli is a professional manufacturer of Howo 15000L LPG bobtail tanker trucks in China. Our factory supplies these vehicles at competitive prices directly to buyers worldwide. The truck carries 15,000 liters of propane gas for safe transport.

Each unit is built to GB150.1~2011 design code. The tank uses Q345R steel with a 2000mm diameter. This truck is a practical choice for LPG distribution operations.

Key Features.

The truck integrates a complete LPG transport system. The tank is equipped with safety valves and pressure gauges for secure operation.

• 15,000 liters tank volume with 10mm thickness.
• Corken Z2000 LPG pump driven through PTO.
• Single nozzle dispenser with English remarks.
• Float ball level gauge at rear of tank.
• Emergency valve set in valve box and rear.
• Two fire extinguisher holders at rear and sides.

Performance and Configuration.

The chassis uses a Howo 2080 type cabin. It has one row and a half seats with A/C. The truck is right hand drive for markets that require it. Overall dimension is 7800x2500x3250 mm with a 4700 mm wheel base.

The powertrain uses a Yuchai YC4E160-33 diesel engine. Output is 160 horsepower or 118KW. Emission meets EUROIII standard. Maximum driving speed is 95 km/h. Displacement is 4260mL.

The transmission is a DC6J65TC gearbox with 6 forward and 1 reverse gear. Tires are 9.00R20 with 6 pieces plus 1 spare. Gross vehicle weight is 16000 kg. Curb weight is 8460 kg. Payload capacity is 7000 kg.

The tank is built from Q345R pressure vessel steel. Diameter is 2000mm and thickness is 10mm. Design pressure is 1.61Mpa with hydraulic test pressure at 2.21Mpa. Not provided in source.

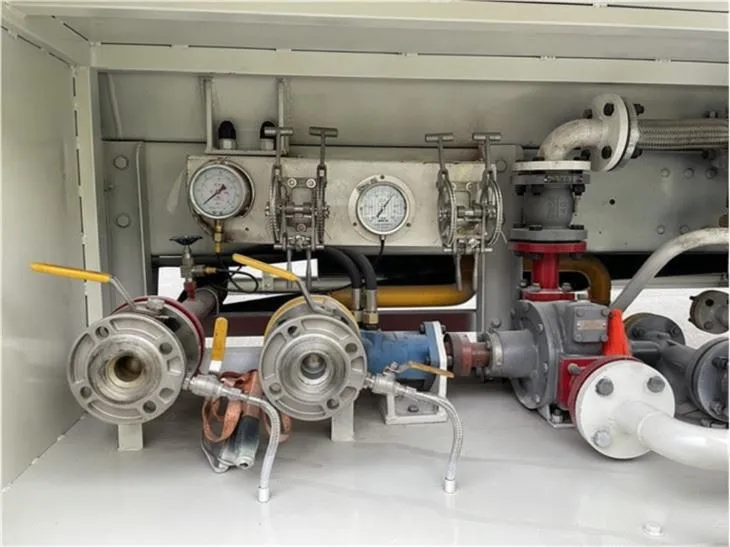

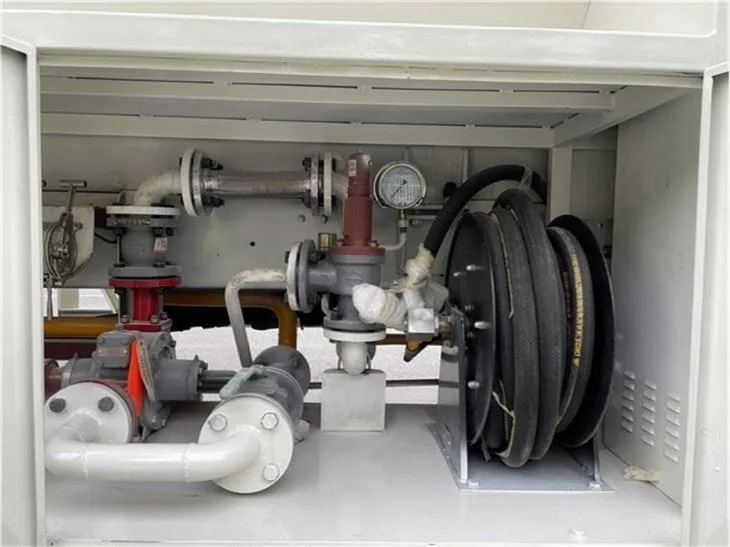

Safety fittings include one DN80 safety valve. The gas phase connection is DN25, DN50 or customized. Liquid phase is DN50 or DN80 or customized. A radiator of hydraulic oil and a thermometer are installed. Pressure gauge and filling hose of 15 meters are provided. Filling nozzle is one piece. The exhaust shaft is located at the front of the truck under the cabin for safety.

Applications.

This truck is used for transporting liquefied petroleum gas including propane. It is suitable for gas supply companies and fuel distributors. The bobtail design allows access to urban delivery routes.

The single nozzle dispenser supports filling operations at depots. The 15,000 liter capacity serves medium volume distribution requirements.

Why Choose This Truck.

Chengli factory produces this Howo 15000L LPG tanker truck at good price. Buyers receive direct factory supply without middleman markup. The tank meets GB150.1~2011 design code for pressure vessel safety.

The truck combines a proven Howo chassis with a Corken LPG pump. The complete system including dispenser and safety valves is ready for operation. Contact our factory for more information and specifications.
