Introduction.

Chengli is a professional manufacturer of 5 tons LPG skid stations in China. We supply high-capacity LPG storage tanks for industrial applications. Our factory offers competitive pricing on every unit we produce.

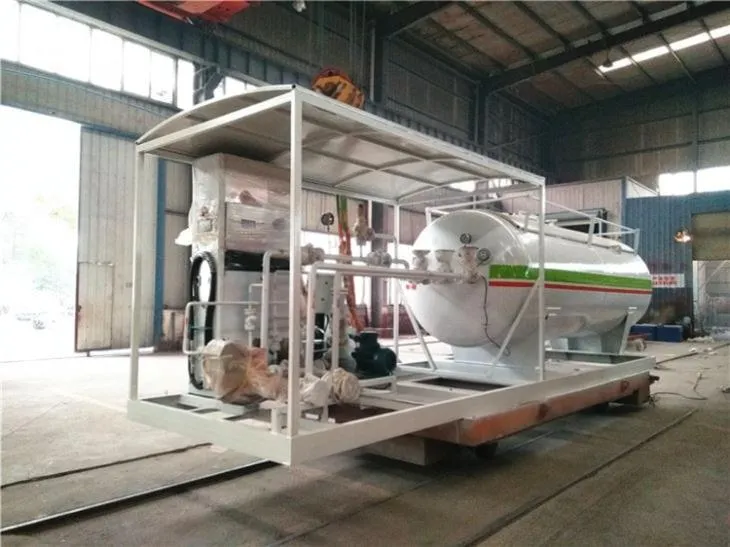

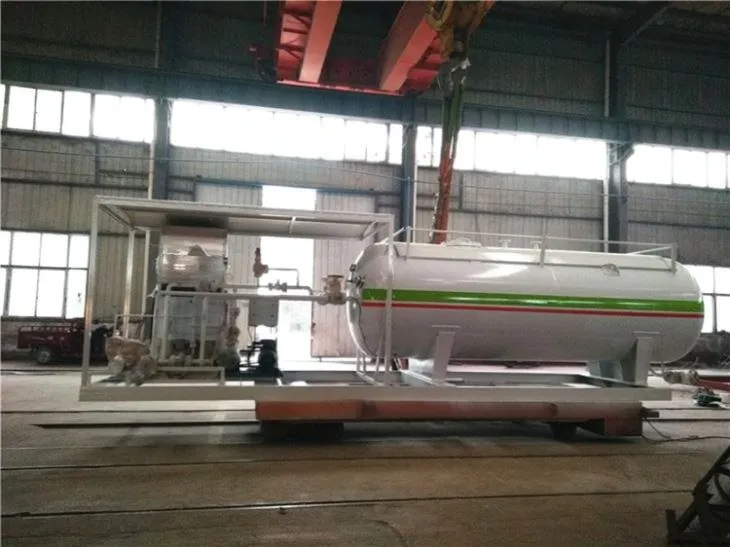

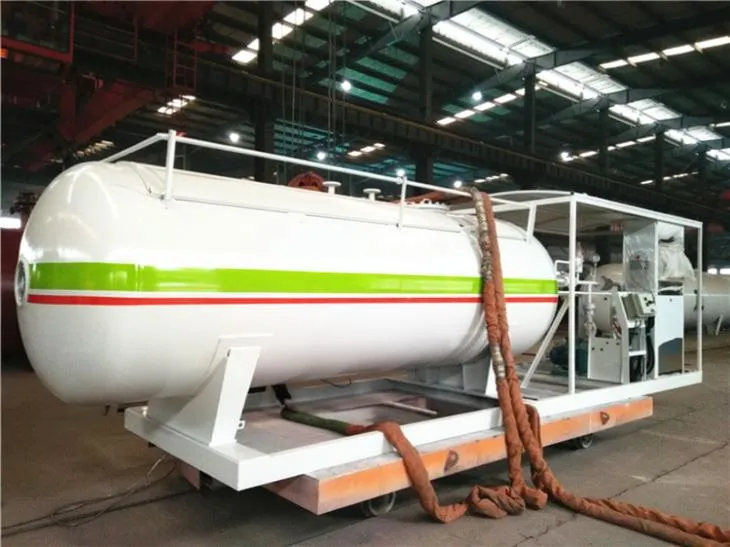

The Chengli 5-ton LPG skid station holds 10,000 liters of liquefied petroleum gas. It is built for reliable stationary storage and distribution. Each unit leaves our factory ready for shipment.

Key Features.

The skid station is engineered for safe LPG storage at commercial scale.

• 10,000-liter tank capacity rated for 5 tons of propane.
• Carbon steel Q345R construction for pressure vessel durability.
• 10 mm shell and endplate thickness for structural integrity.
• 1.71 MPa design pressure rating.
• 1 mm corrosion allowance built into the tank walls.
• Compact skid-mounted layout at 5260 x 1620 x 2210 mm.

Performance and Configuration.

The tank body uses carbon steel Q345R, a material selected for pressure vessel performance. The shell thickness is 10 mm and the endplate thickness is also 10 mm. A corrosion allowance of 1 mm is accounted for in the design.

The tank diameter measures 1600 mm. The full external dimensions are 5260 by 1620 by 2210 mm. The design pressure is 1.71 MPa for safe propane containment.

The filling weight capacity is 5000 kg. The tank volume is 10 CBM or 10,000 liters. The medium density for propane is between 500 and 590 kg per cubic meter. These figures define the storage capacity and operational parameters of the skid station.

Applications.

This LPG skid station is used for bulk storage and distribution of liquefied petroleum gas. It suits industrial sites, commercial fuel depots, and gas filling plants. The fixed skid design makes it suitable for permanent installation at a storage facility.

Why Choose This Truck.

Chengli produces this LPG skid station directly at our factory. Buying from the manufacturer gives you access to competitive pricing without intermediary margins. Each unit is built to meet the specified technical parameters.

The combination of Q345R carbon steel construction. 10 mm wall thickness, and 1.71 MPa design pressure provides a durable storage solution. Contact our factory for detailed pricing and export information on the Chengli 5 ton LPG skid station.
