China 49600L 25MT Propane Gas Tanker Trailer Manufacturers, Suppliers, Factory – Good Price – Chengli
Chengli manufactures a 49.6 CBM propane gas tanker trailer with a 20832 kg payload. The tank uses Q345 steel at 12mm thickness. FUWA axles and tubeless tires equip the chassis. Direct factory pricing available from China.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

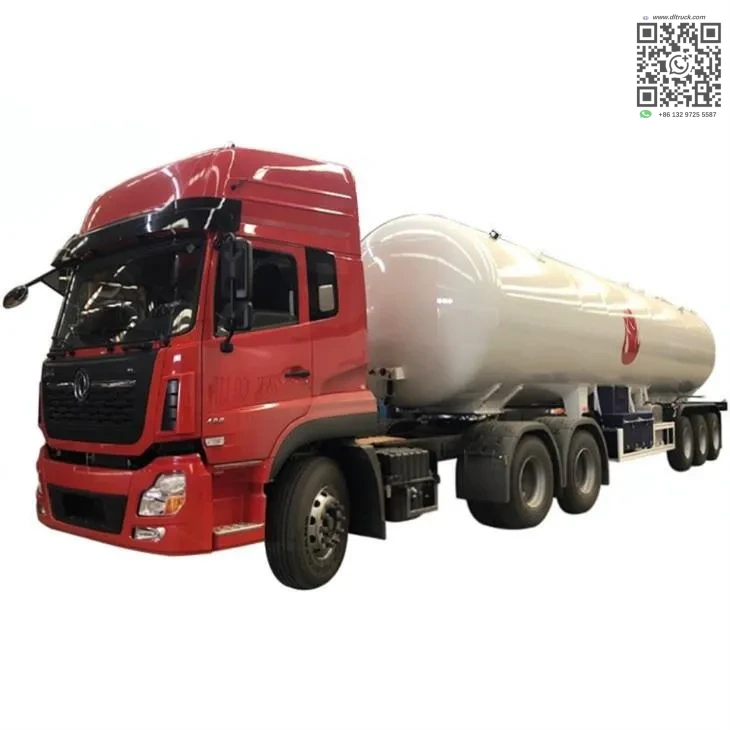

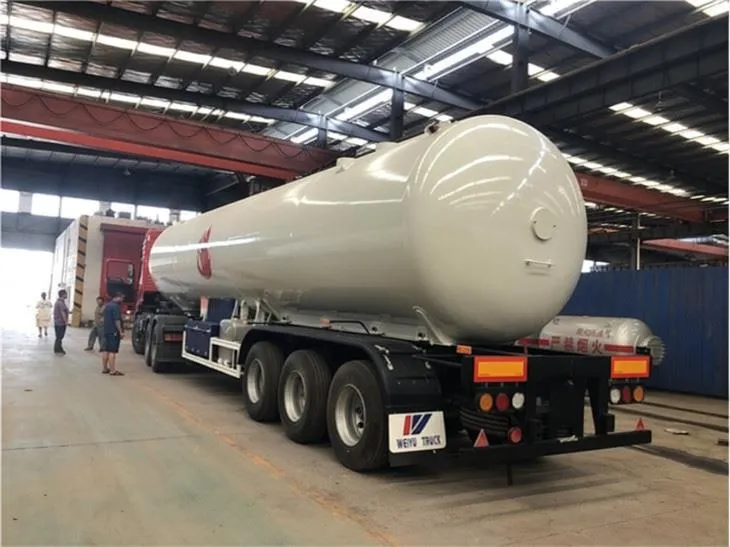

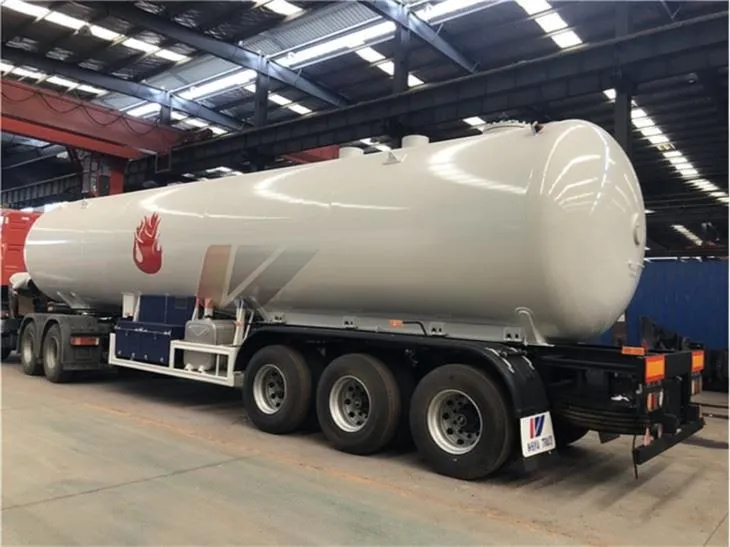

Chengli manufactures a 49.6 CBM propane gas tanker trailer in China. The unit carries a 20832 kg payload of liquefied petroleum gas. The tank body is built from Q345 steel at 12mm plate thickness. This factory offers direct pricing on the complete trailer.
The vehicle supports transport of flammable gas at design pressures up to 1.61 Mpa. It is classified as a mechanical-operated tanker type. Chengli performs 100% flaw detection on all tank plates.
Key Features.
The trailer combines a heavy-duty chassis with certified pressure vessel construction.
- Tank water capacity: 49.6 CBM.
- Payload: 20832 kg.
- Tank material: Q345 steel, 12mm thickness.
- Design working pressure: 1.61 Mpa / 16.1 Bar.
- Hydraulic test pressure: 2.12 Mpa / 21.2 Bar.

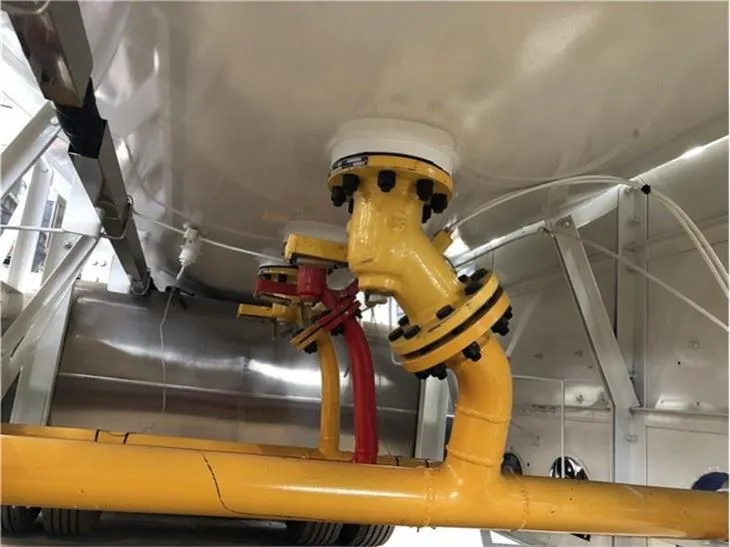

- Liquid phase valve: QGJ43F-2.5-7, shut-off ≤10 seconds.

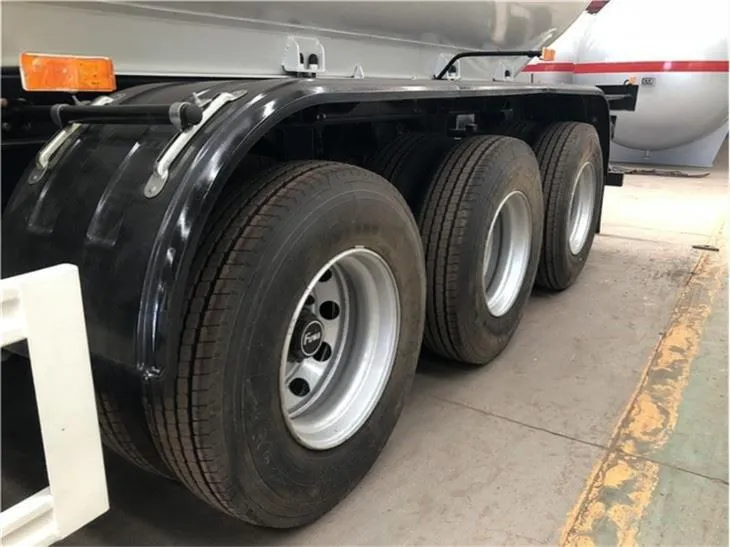

- Axles: 3 × 12T FUWA brand.
- Tires: 12R22.5 tubeless, 12 pcs plus spare.
- Overall dimensions: 12740 × 2480 × 3800 mm.
- Design speed: 80 km/h.
Performance and Configuration.
The tank measures 2300mm inner diameter with 12372mm length. Corrosion allowance is set at 1.00mm. The weld joint factor is 1, indicating full-penetration welds throughout the vessel.
Heat treatment is applied to the entire tank in a furnace at 600°C to 640°C. All weld lines undergo 100% radiographic testing. Air leakage tests cover all piping and valves at 100% coverage.

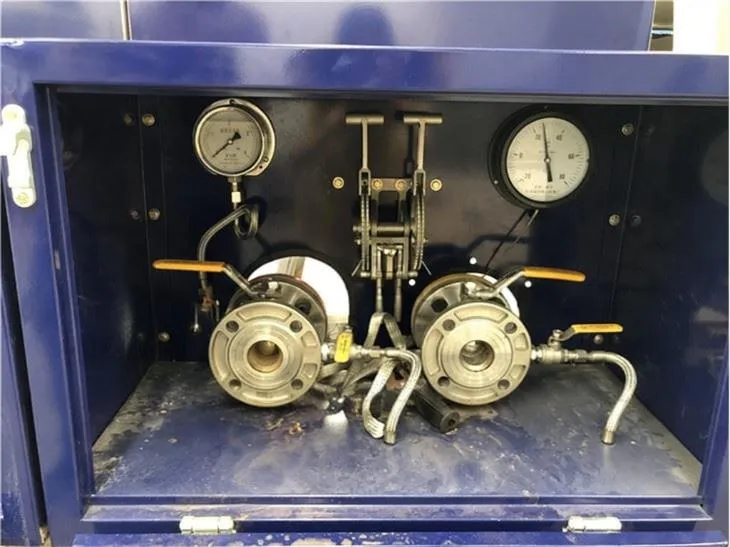

Instrumentation includes a YWJ-25A manual rotation level gauge with a 50 to 2475mm range. A YN-100T pressure gauge and WTQ280 thermometer are fitted. The liquid phase valve has a 53mm throat diameter and a nominal pressure rating of 2.5 Mpa / 25 Bar.
Applications.
This trailer is built for transporting liquefied petroleum gas. It carries flammable gas within a design temperature range of -19°C to +50°C. The unit suits industrial gas distributors and fuel logistics operators.
Why Choose This Truck.
Chengli builds the trailer at their manufacturing facility in China. You receive direct factory pricing without intermediary markups. The 20832 kg payload and 49.6 CBM tank volume support large-volume gas transport runs.
All critical safety checks are performed before shipment. Contact Chengli for current pricing and export details.
