China LPG Filling Plant Tank 25Tons 50000L – Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

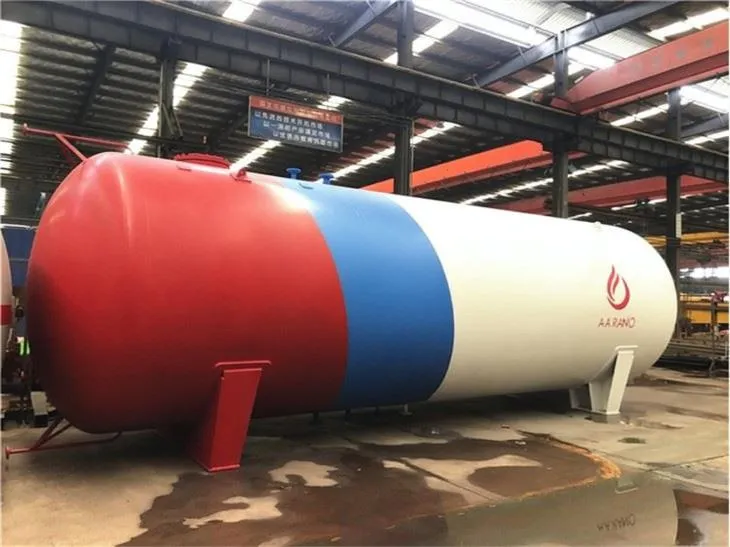

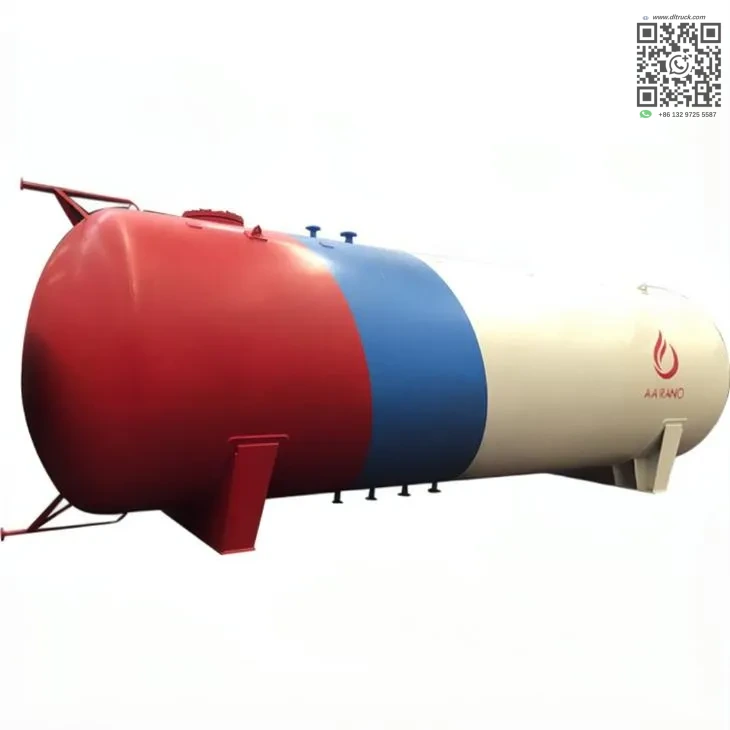

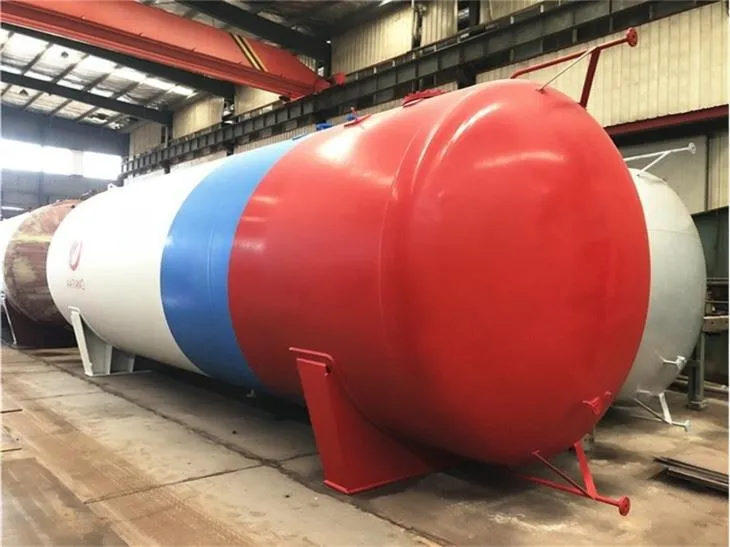

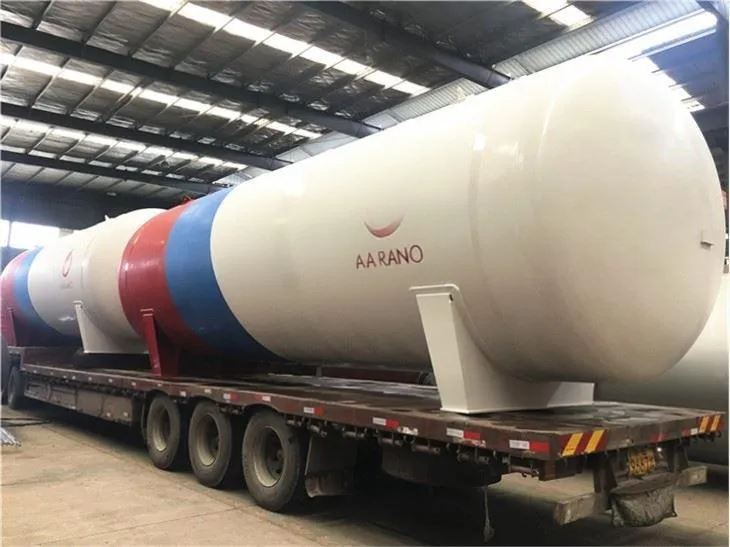

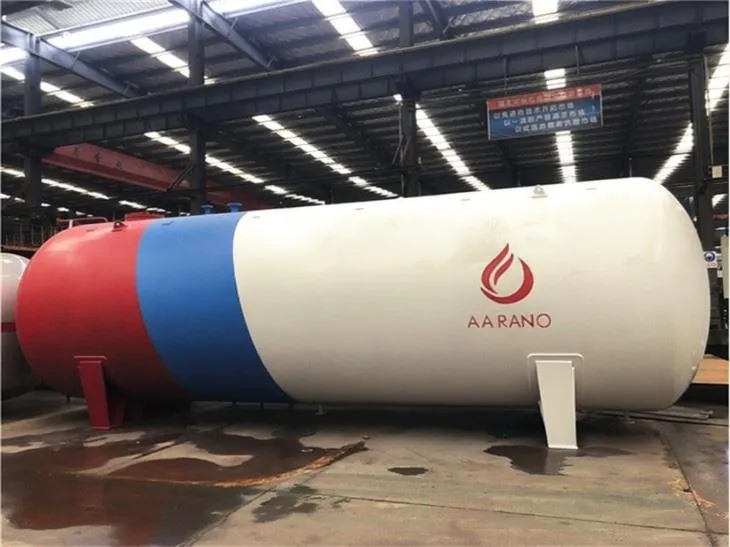

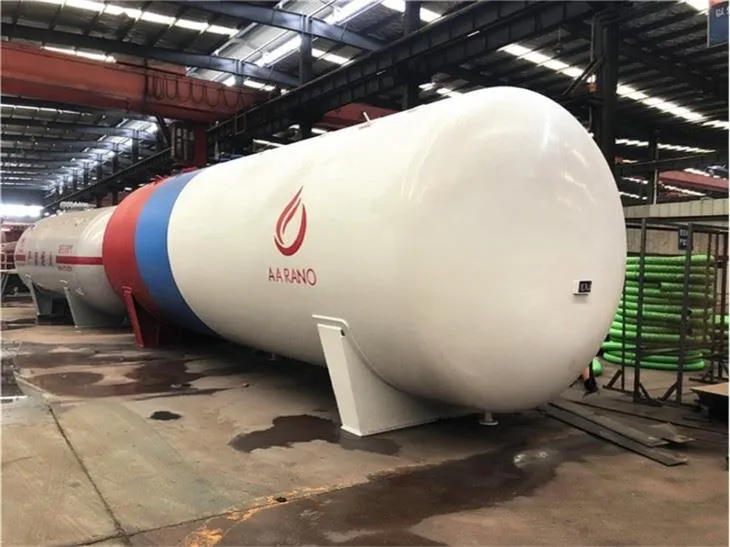

Chengli manufactures LPG filling plant tanks with large storage capacity. Our factory offers competitive pricing for these 25 ton industrial storage units. Each tank holds 50 cubic meters of liquefied petroleum gas. The filling capacity reaches 19950 kg per unit. We export these tanks to clients across multiple regions.

The tank is constructed from carbon steel Q345R. This material provides strength and durability for pressurized gas storage. Chengli ensures every tank meets required specifications before shipment.

Key Features.

• Volume of Tank: 50 cbm.
• Filling Capacity: 19950 kg.
• Shell Thickness: 14 mm.
• Endplate Thickness: 16 mm.
• Material: Carbon Steel Q345R.
• Design Pressure: 1.77 MPa.
• Tare Weight: 10640 kg.
• Tank Cylinder Diameter: 2700 mm.
• Corrosion Allowance: 1 mm.

Performance and Configuration.

The tank is built for LPG storage in filling plants and industrial facilities. The 50 cbm volume allows large-scale gas handling. The 19950 kg filling capacity supports continuous distribution operations.

The shell uses 14 mm carbon steel Q345R. The endplate is thicker at 16 mm for additional structural support. The design pressure of 1.77 MPa ensures safe operation under normal conditions.

The tank cylinder diameter is 2700 mm. A 1 mm corrosion allowance is included in the design. External dimensions are Not provided in source. The medium density of the liquefied petroleum gas is 420 kg per cbm.

Applications.

This LPG filling plant tank is used in gas filling stations and industrial storage facilities. It stores and distributes liquefied petroleum gas for commercial and industrial use.

The tank suits LPG blending plants, fuel depots, and gas distribution centers. Chengli supplies these units to clients who require dependable LPG storage solutions.

Why Choose This Truck.

Chengli operates as a direct manufacturer with competitive factory pricing. Our production team builds each tank to exact specifications. We ship units worldwide through established export channels.

Choosing factory good price chengli gives you direct access to manufacturer pricing. Each tank is inspected before delivery. Contact our sales team for detailed information and current availability.
