Factory Good Price Chengli 61.9CBM 30 Tons LPG Road Tanker Truck

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

Chengli is a professional manufacturer of 61.9cbm 30 tons LPG road tanker trucks. We supply these units at competitive factory prices. Buyers get direct access from the factory for better value.

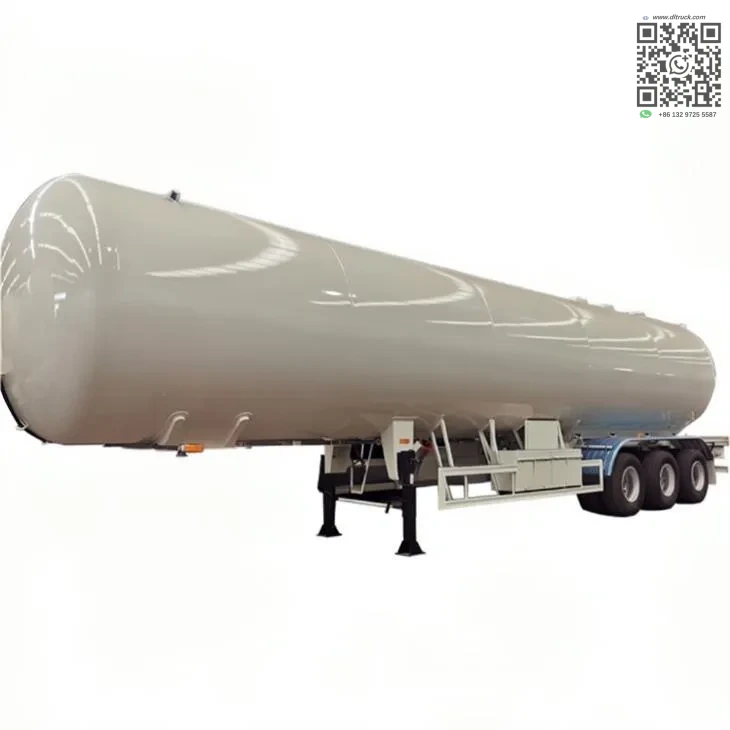

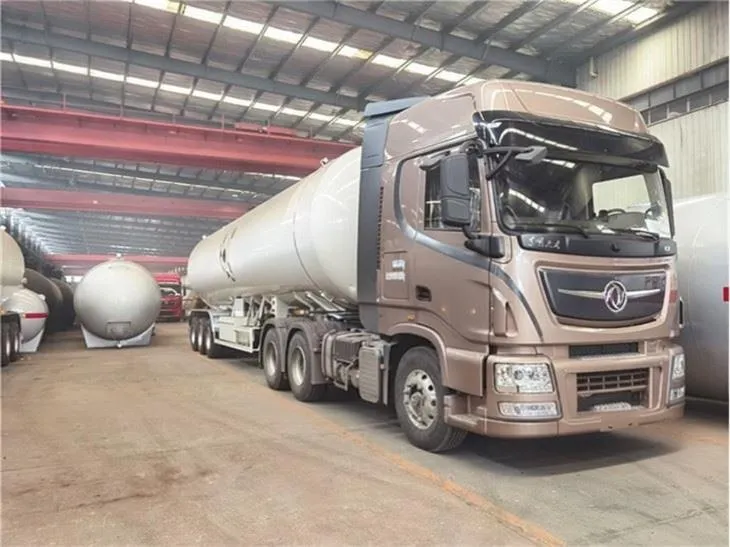

The tanker truck is designed for transporting liquefied petroleum gas, specifically propane. The tank holds 61.9cbm with an estimated payload of 26000kg. The vehicle overall dimensions are 13350x2550x3995mm.

Key Features.

The tanker truck has several notable design features.

• Tank volume of 61.9cbm with 26000kg payload capacity.
• Inner diameter of 2500mm and tank wall thickness of 12mm.
• Body material is Q345 steel with corrosion allowance of 1.00mm.
• Overall heat treatment in a furnace at 600℃ to 640℃.
• 100% flaw detection on all weld joints.
• Hydraulic test pressure of 2.21 MPa with design pressure of 1.61 MPa.
• Three 12T FUWA brand axles with 12R22.5 tubeless tires.
• JOST landing leg and #50 or #90 king pin.
• Emergency cut-off valves: 1 for liquid phase and 1 for vapour phase.
• Four ball valves allowing discharge and loading from two sides.
• Two fire extinguishers, two tool boxes, one wheel carrier, and two fenders.

Performance and Configuration.

The main beam is constructed from 16Mn steel. The tank body uses Q345 material at 12mm thickness. The weld joint factor is 1, indicating full penetration welds. The design temperature range for the vessel is from -19℃ to 50℃.

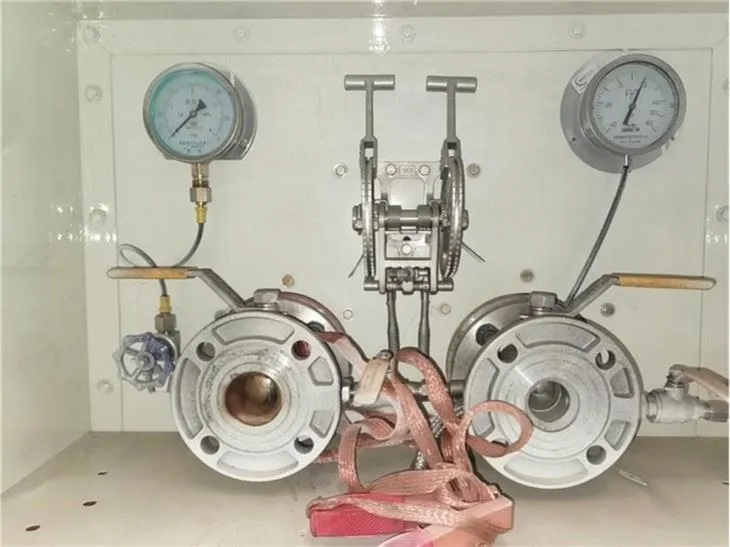

The tanker is equipped with one thermometer and one pressure gauge mounted on top. A DN450 opening is provided on top of the tanker. The manual rotation type valve is sized at DN50 or as the customer requires. Two emergency cut-off valves protect against overpressure situations.

The chassis is fitted with three FUWA axles rated at 12T each. Twelve 12R22.5 tubeless tires are fitted with one spare. The wheelbase is 7230+1310+1310mm. Paint colour follows the customer’s requirement.

Applications.

This tanker truck is used for transporting liquefied petroleum gas, also known as propane. The fluid property is classified as flammable. The vehicle serves gas supply companies, industrial plants, and commercial distributors who need bulk LPG delivery.

The truck can travel long distances with a total weight of 42250kg. The tare weight is approximately 16250kg. The design accommodates ambient temperature variations from -19℃ to 50℃ during transit and storage.

Why Choose This Truck.

Chengli is a well-known manufacturer based in China. We offer factory direct pricing on our LPG road tanker trucks. Buyers receive competitive rates without middleman markups.

The complete manufacturing process includes heat treatment and 100% flaw detection. Each unit is built to carry flammable LPG fluid safely. We welcome buyers to contact our factory for more information.
