factory good price chengli 25 Ton LPG Gas Bulk Transport

Factory Good Price Chengli 25t LPG Gas Bulk Transport Trailer

Chengli factory offers competitive prices for 25 metric ton LPG gas bulk transport trailers. The tank holds 49.6 cbm of flammable liquefied petroleum gas (propane). Professional manufacturing ensures safe transport.

Factory Good Price Chengli 25t LPG Gas Bulk Transport Trailer - pain point 1 ad image

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

Chengli is a professional manufacturer of 25 metric tons LPG gas bulk transport trucks in China. We offer these trailers at competitive factory prices. The trailer is built for safe transport of flammable liquefied petroleum gas (propane).

Key Features.

Tank volume: 49.6 cbm.
Overall dimensions: 12740*2480*3800 mm.
Payload: 20832 kg.
Total weight: 36132 kg.
Wheelbase: 6800+1310+1310 mm.
Products: Liquefied Petroleum Gas (propane).
Fluid property: Flammable.
Design temperature: -19℃~50℃.
Design pressure: 1.61 MPa.
Corrosion allowance: 1.00 mm.
Weld joint factor: 1.
Major material: Tanker body Q345, 12mm.
Heat treatment: Overall treatment in a furnace, 600℃ to 640℃.
Flaw detection: 100% flaw detection.
Hydraulic test: 2.21 MPa.
Top valve: Quantity 1; on top, DN450.
Ball valves: 4 pcs, can be discharged and loaded at two sides.
Emergency cut-off valves: 2 pcs, 1 for liquid phase and 1 for vapour phase.
Axles: 3*12T FUWA brand.
Tires: 12R22.5 tubeless tires, 12 pcs with one spare tire.
Landing leg: JOST.
King pin: #50 or #90.
Thermometer: 1.
Pressure gauge: 1.
Tool box: 2.
Wheel carrier: 1.
Fire extinguisher: 2.
Fender: 2.
Paint: As customer’s requirement.
Main beam: 16Mn.

Performance and Configuration.

The tanker body is made of Q345 steel with 12mm thickness. It undergoes overall heat treatment in a furnace between 600℃ and 640℃. Every weld receives 100% flaw detection. Hydraulic testing is performed at 2.21 MPa.

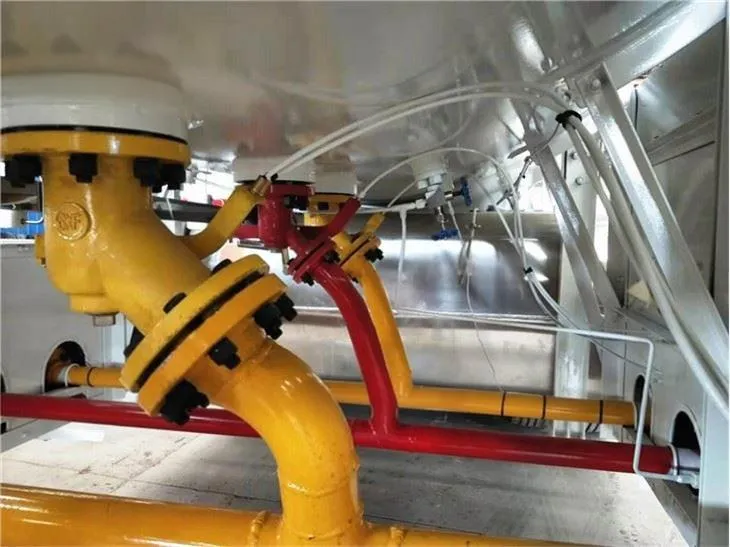

A DN450 manuel rotation type valve is located on top of the tanker. Four ball valves allow loading and discharge from both sides. Two emergency cut-off valves protect liquid and vapour phases separately.

The chassis uses three FUWA axles rated at 12T each. Twelve 12R22.5 tubeless tires plus one spare provide support. A JOST landing leg and #50 or #90 king pin are available. Accessories include two tool boxes, one wheel carrier, two fire extinguishers, and two fenders.

Applications.

This trailer is designed for transporting flammable liquefied petroleum gas (propane). The design temperature range is -19℃ to 50℃. The design pressure is 1.61 MPa. It suits bulk gas distribution to industrial and commercial customers.

Why Choose This Truck.

Chengli manufactures these LPG transport trailers directly from our factory. We offer competitive pricing without compromising build quality. Customization options include paint color, king pin size, and valve dimensions. Each unit undergoes rigorous inspection before delivery.
