Factory Good Price Chengli 3-Axle 50000L LPG Tanker Trailer

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

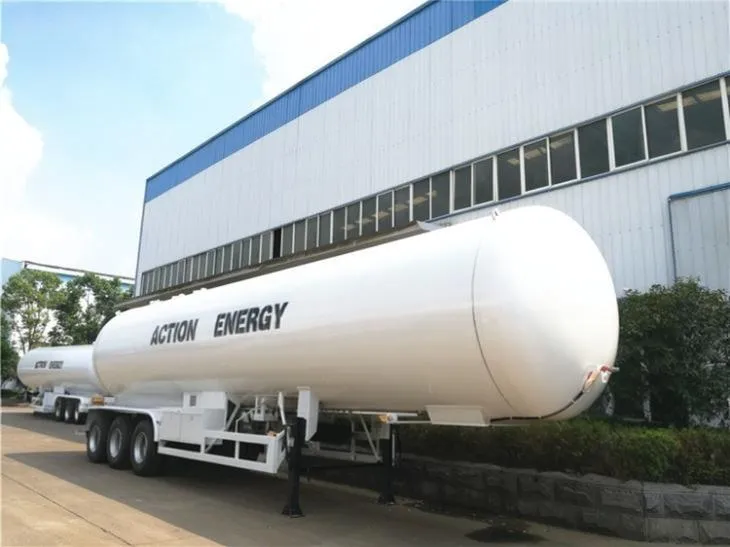

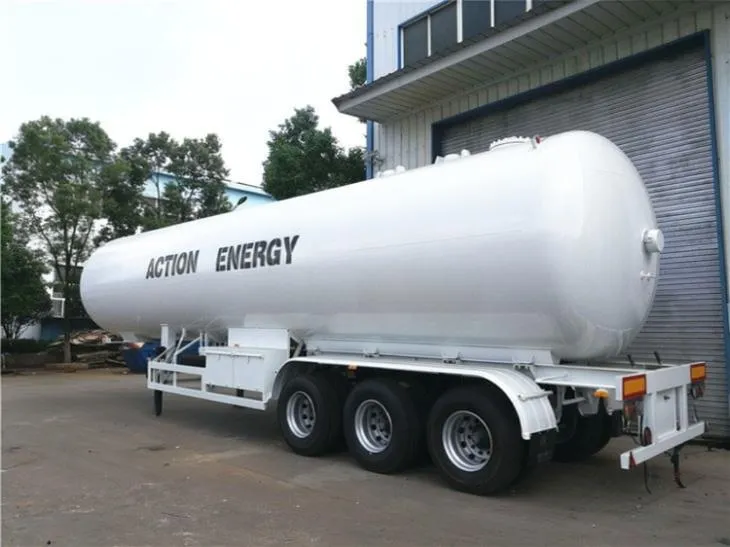

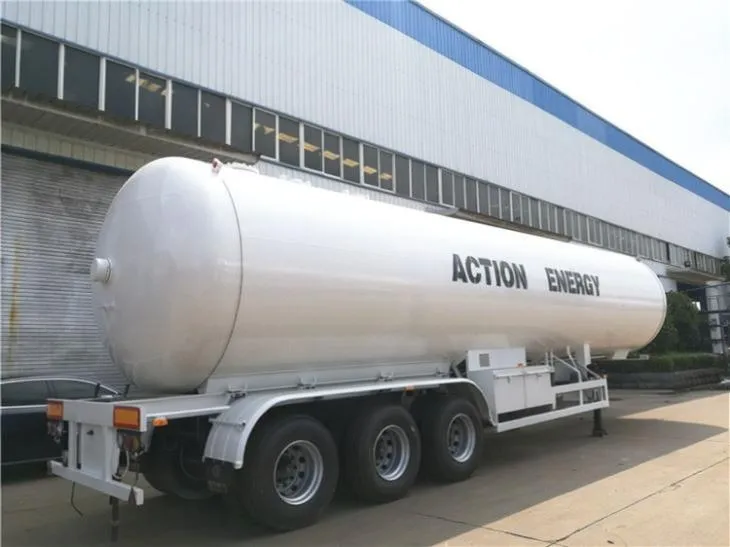

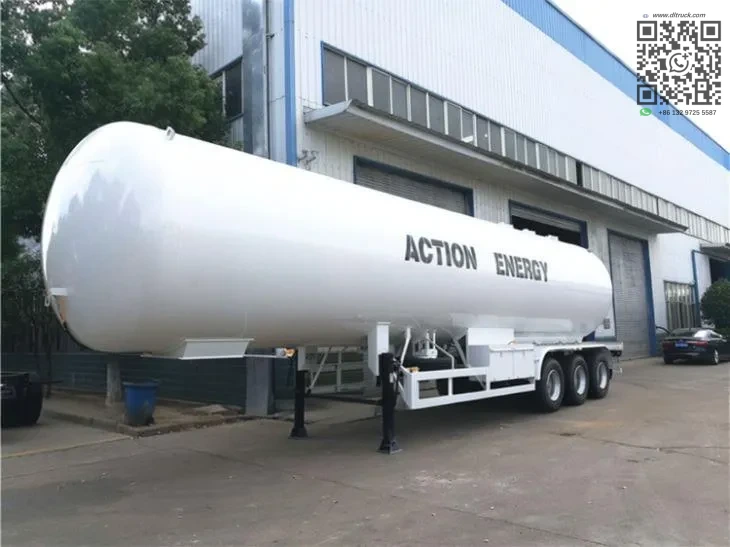

Chengli is a professional manufacturer of 3-axle LPG tanker trailers in China. This model carries 50000 liters of liquefied petroleum gas. The trailer has a rated payload of 20832 kg and a total weight of 36132 kg. We offer competitive factory pricing for bulk orders.

The tank holds 49.6 cubic meters of product. Overall dimensions measure 12740 by 2480 by 3800 millimeters. The wheelbase uses a tri-axle layout at 6800 plus 1310 plus 1310 millimeters. Contact us for more details.

Key Features.

The trailer is built with a robust pressure vessel and heavy-duty chassis components for safe LPG transport.

• Tank volume of 49.6 cubic meters for large payload capacity.
• Overall dimensions: 12740 x 2480 x 3800 mm.
• Three FUWA 12-ton axles for stable road handling.
• Tank body made from Q345 steel at 12 mm thickness.
• 100% flaw detection on all welded joints.
• JOST landing leg for secure coupling support.
• 12 pieces of 12R22.5 tubeless tires plus one spare.
• Emergency cut-off valves: 2 for liquid phase and 1 for vapour phase.

Performance and Configuration.

The tank is engineered for design pressure of 1.61 MPa and operates within a temperature range. Not provided in source. A corrosion allowance of 1.00 mm is built into the wall thickness. The inner tank measures Not provided in source in diameter with 12 mm plate and 12372 mm in length.

Heat treatment is performed in a furnace at Not provided in source across the entire vessel. Hydraulic test pressure reaches 2.21 MPa with a weld joint factor of 1. The loading manhole on top is DN450 in size. Ball valves number 6 pcs and allow discharge and loading from both sides.

Additional fittings include a manual rotation type valve sized DN50 or to customer requirement. 1 thermometer, 1 pressure gauge, 2 tool boxes, 1 wheel carrier, 2 fire extinguishers, and 2 fenders. Paint finish is available as per customer requirement.

Applications.

This trailer is built for transporting liquefied petroleum gas, commonly known as propane. The fluid property is classified as flammable. The vehicle is suited for fuel distribution companies and industrial gas logistics operators who need bulk transport on highways.

Why Choose This Trailer.

Chengli produces this unit directly from the factory. The manufacturer supplies the complete trailer with verified materials and tested welds. Full documentation supports export registration. Reach out to the factory for pricing and shipping details.
