10tons LPG Tanker Truck – Factory Good Price Chengli
Chengli factory produces 10-ton LPG tanker truck with Q345R steel tank, 20cbm volume, and 336HP EUROIII engine. Designed for safe propane transport.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

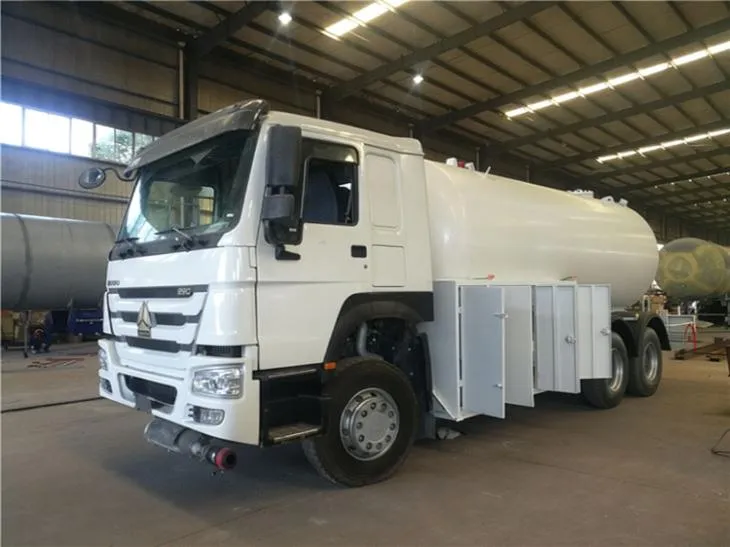

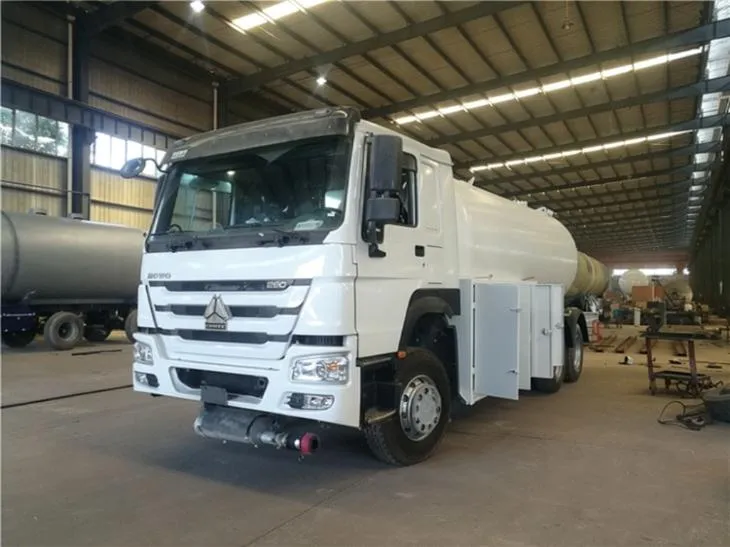

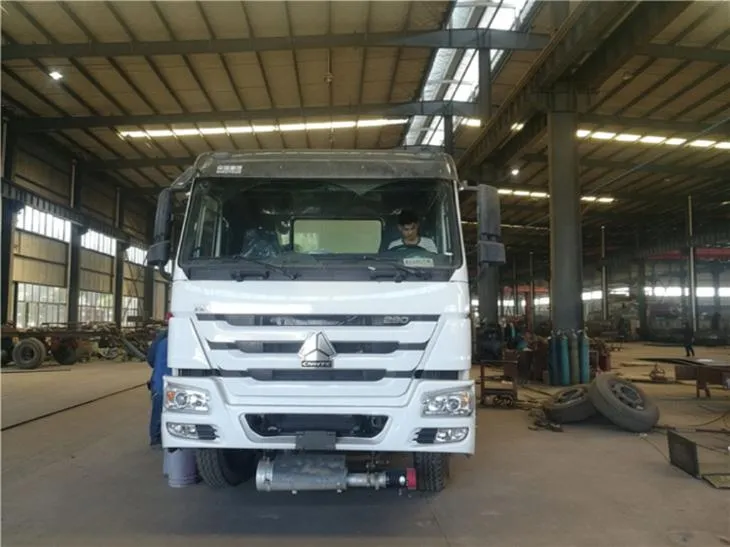

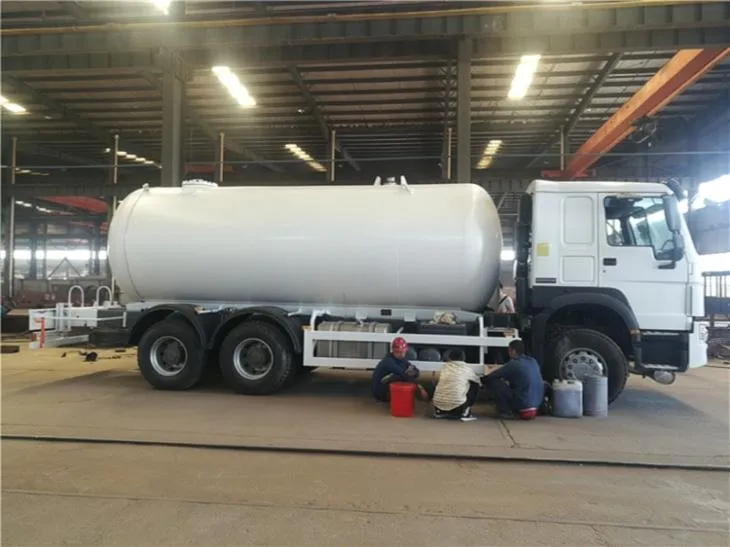

The Chengli factory produces a 10-ton LPG tanker truck. The tank volume is 20cbm. The tank is made of Q345R steel. This truck transports propane liquefied petroleum gas. The truck is manufactured in China.
The overall dimension is 10590x2495x3350 mm. The wheel base measures 4600+1350 mm. The gross vehicle weight is 25000 kg. The curb weight is 14000kg. The front axle rating is 7000kg. The rear axles are 18000 kg each. The truck has a left hand drive configuration. The cabin accommodates up to three passengers.
Key Features.
The truck includes several safety and operational components. The truck includes a tool and valve box.
- Tank diameter: 2000mm. Tank thickness: 10mm. End plate thickness: 12mm.
- Gas phase port DN50. Liquid phase port DN80. Tank length: 6090mm.
- Design pressure: 1.61Mpa.
- Manual rotation level gauge at rear.
- Safety valve DN80. Emergency valve included.
- Pressure gauge, thermometer, and tool/valve box each one.
- Steel fenders. Two fire extinguishers.
- Exhaust shaft positioned at front for safety.
.
Performance and Configuration.
The engine model is WD615.69. It is a 4-stroke direct injection unit. Six cylinders are arranged in-line. Water cooling, turbo-charging, and inner cooling are used.
The engine horsepower is 336HP EUROIII. Displacement is 9760mL diesel fuel. Maximum driving speed is 95 km/h. Gearbox model is HW19710.
Cabin is standard HW76 type. It allows 2 to 3 passengers. Air conditioning is equipped. Tires are 12R22.5 size with 11 pieces. Driving model is left hand drive.
The front tread is 2022 mm. Rear tread is 1830 mm. Approach angle is Not provided in source. Departure angle is 12 degrees.
The exhaust shaft is located at the front of the truck. This placement enhances safety during operation.
Applications.
This vehicle transports propane LPG. The tank is designed for gas phase and liquid phase handling. It serves industrial, commercial, and residential supply chains. The truck fills propane gas. The tank complies with design pressure 1.61Mpa. The level gauge is manual rotation type. These features support safe loading and unloading.
Why Choose This Truck.
Chengli is a professional manufacturer in China. The factory offers competitive pricing. The truck meets EUROIII emission standards. Steel tank material ensures durability. Safety valves and fire extinguishers are included. The factory provides good price competitiveness. The truck is built for reliable LPG transport. The factory supplies trucks to international buyers.
