China 50000Liters 25Tons LPG Carrier Tanker – Good Price – Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

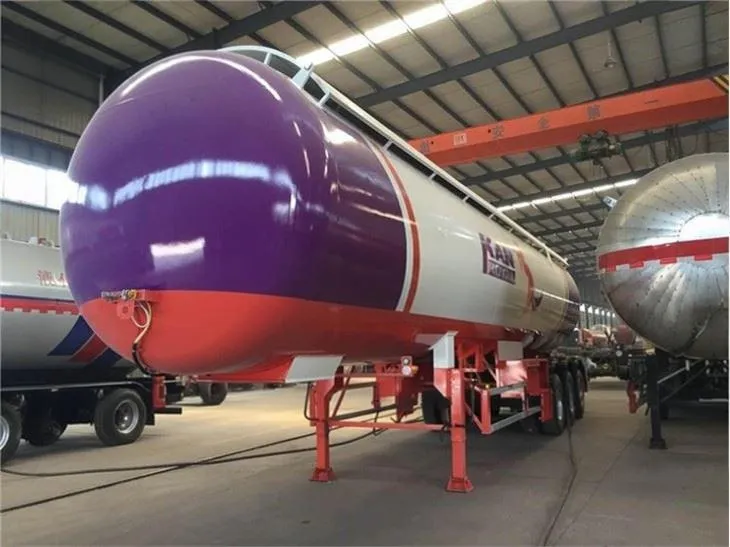

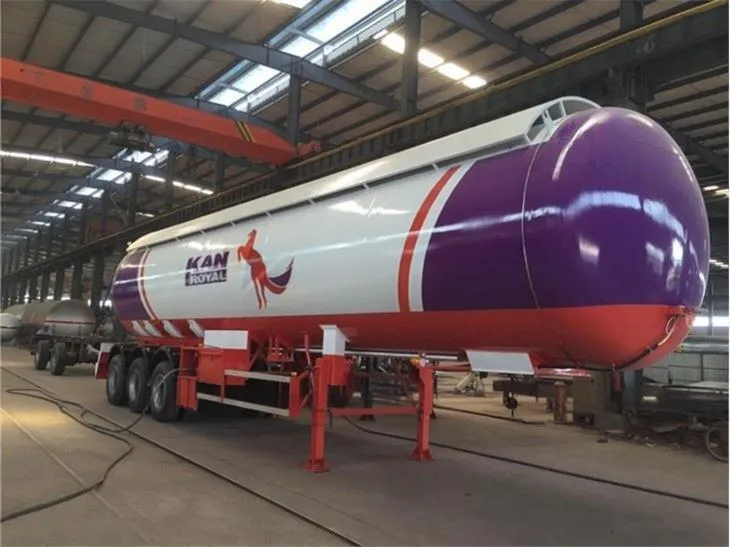

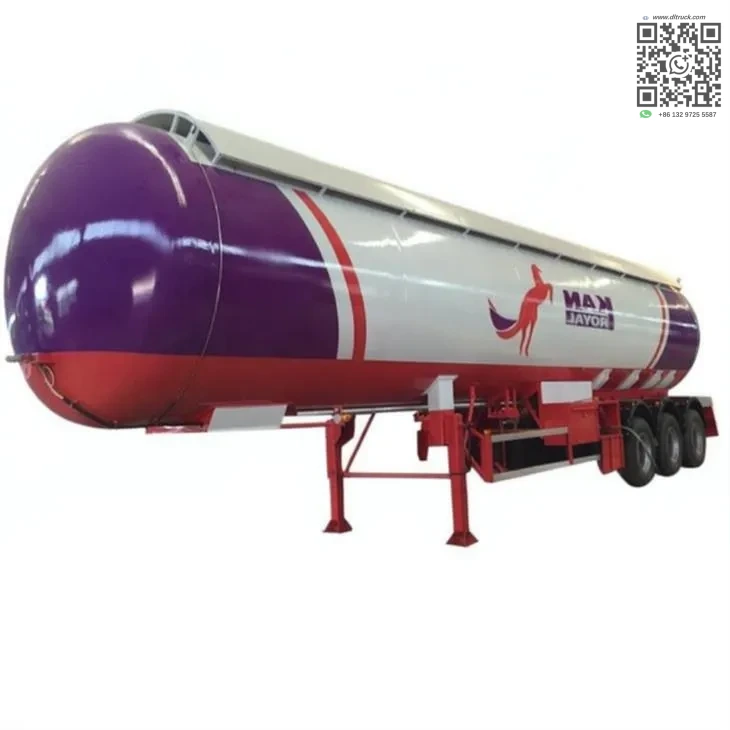

Chengli manufactures this 50000liter LPG carrier tanker trailer. The unit holds 49.6 cubic meters of liquefied petroleum gas. The tank body uses Q345 steel with 12mm thickness. The trailer carries a payload of 20832 kilograms.

Overall dimensions measure 12740 times 2480 times 3800 millimeters. Total weight reaches 36132 kilograms. The wheelbase spans 6800 plus 1310 plus 1310 millimeters. Three FUWA brand axles support the load.

Key Features.

The tank operates at a design pressure of 1.61 MPa. Working temperature range is Not provided in source. Corrosion allowance is set at 1.00 millimeter. Weld joint factor equals 1 for full strength.

• 49.6 cbm tank volume for large LPG capacity.
• Q345 steel body with 12mm plate thickness.
• Overall heat treatment specification is Not provided in source.
• 100 percent flaw detection on all welds.
• Hydraulic test pressure of 2.21 MPa.
• Three 12-ton FUWA axles with air suspension.

Performance and Configuration.

The inner tank diameter is 2300 millimeters. Tank length measures 12372 millimeters inside. The main beam uses 16Mn steel for structural strength. Tires are 12R22.5 tubeless type. Twelve tires carry one spare tire.

Safety equipment includes two emergency cut-off valves. One valve handles liquid phase. The other valve handles vapor phase. Four ball valves allow loading and discharge from both sides. A thermometer and pressure gauge monitor tank conditions.

The landing leg is a JOST brand unit. King pin size is either 50 or 90 millimeters. Two tool boxes mount on the chassis. One wheel carrier and two fire extinguishers are included. Fenders protect both sides of the tires. Paint finish matches customer requirements.

Applications.

This trailer transports liquefied petroleum gas such as propane. The fluid property is classified as flammable. The tank design meets industrial gas transport standards. Operators can load and discharge from either side of the trailer.

The 50000liter capacity suits bulk LPG distribution. The unit works for gas suppliers and industrial distributors. The robust construction handles regular highway transport cycles.

Why Choose This Truck.

Chengli sells this unit directly from their factory. Buyers get competitive pricing without intermediary markup. The manufacturer provides full technical documentation and quality certificates. Each tank undergoes 100 percent flaw detection before shipment.

The trailer uses recognized brand components like FUWA axles and JOST landing gear. Custom paint colors and king pin sizes are available. The factory supports international shipping arrangements for export orders.
