22cbm Shacman Cooking Gas Truck – Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

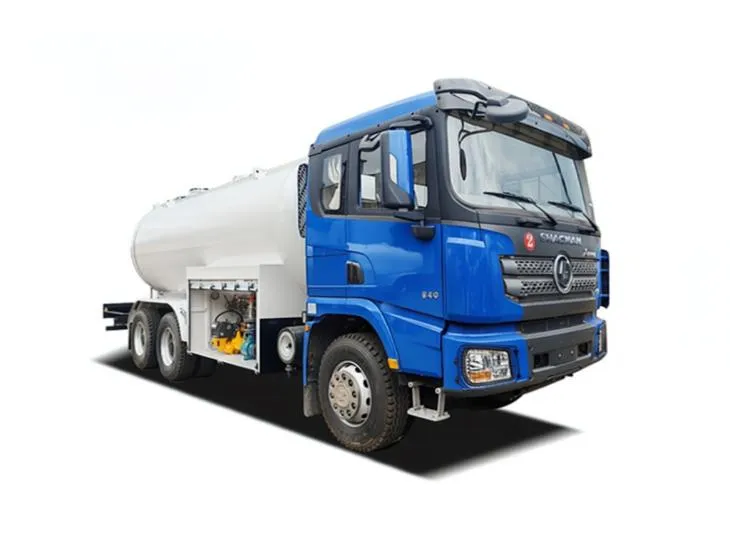

Chengli factory produces 22cbm Shacman cooking gas trucks. We supply LPG tankers at good factory prices. The truck carries propane for urban fuel distribution.

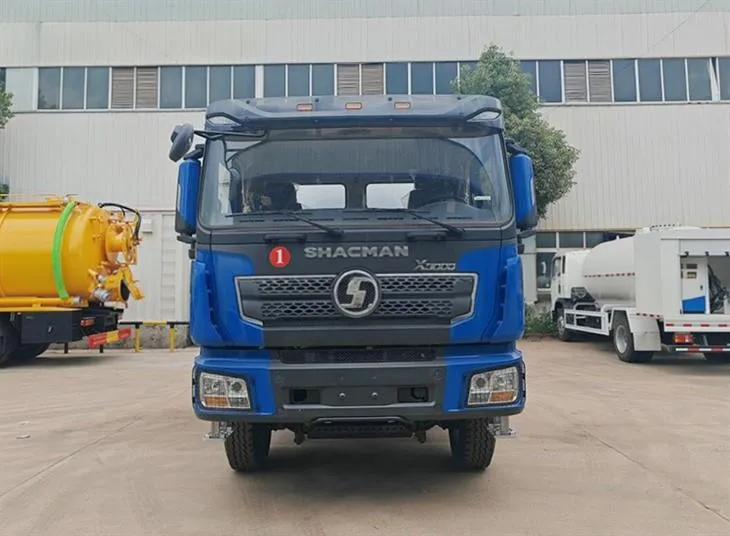

This vehicle uses Shacman X3000 chassis. It comes with a 20,000 liter tank. The truck meets Euro II emission standards.

Key Features.

• Shacman X3000 6X4 driving mode.
• Weichai WP10.340 engine with 340hp.
• 20,000 liter LPG tank volume.

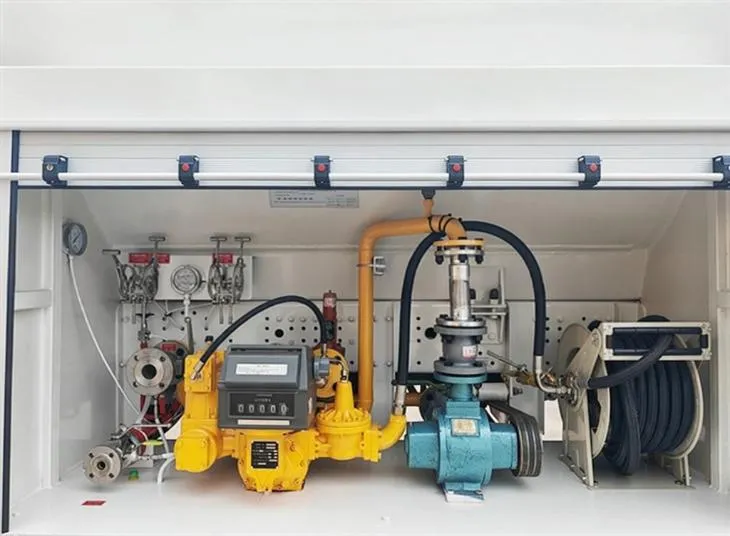

• USA CORKEN vane pump driven by PTO.
• Single nozzle dispenser with English remarks.
• 15 meter filling hose included.
• Flat top cab with 2-3 seats and sleeper.
• Air conditioning in cabin.
• Q345R tank material, 10mm thickness.
• Design pressure 1.61Mpa.
• GB150.1~2011 design code compliance.
• Emergency valve at rear controlled from valve box.
• Safety valve DN80 one set.
• Manhole DN450 for tank access.
• Tool and valve box equipped.
• Hydraulic oil radiator provided.
• Steel fenders.
• Two fire extinguisher holders at rear sides.
• Exhaust shaft positioned at front of cabin.
• 12.00R20 tyres, 10 pieces plus one spare.
• 8JS85T gearbox, 8 forward and 2 reverse gears.
• Max driving speed 95km/h.
• Gross weight 25,000kg, curb weight 12,500kg.
• Payload capacity 10,000kg.

Performance and Configuration.

The chassis is Shacman X3000 6X4 drive. Wheelbase measures 4375 plus 1400mm. Overall dimension is 9500 by 2550 by 3420mm. Front axle loads 7,500kg and rear axle handles 13,000kg.

The engine is Weichai WP10.340 with 7,800ml displacement. Fuel system uses a 300 liter corrosion-resistant aluminum tank. Emission standard is Euro II.

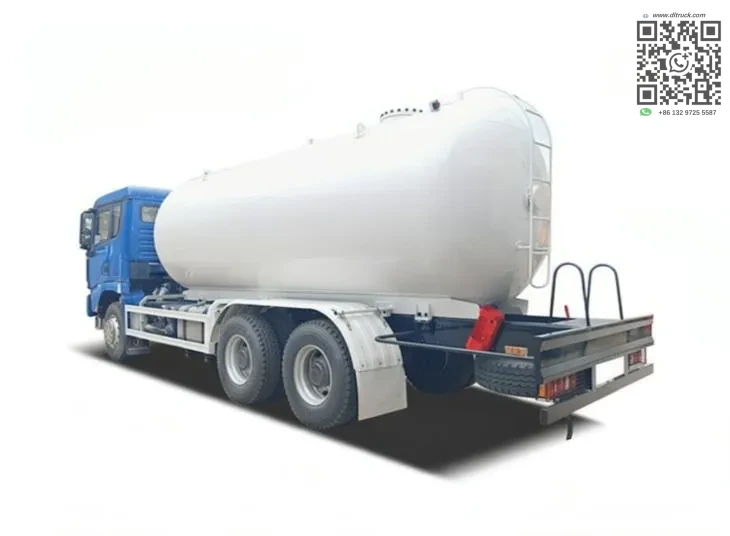

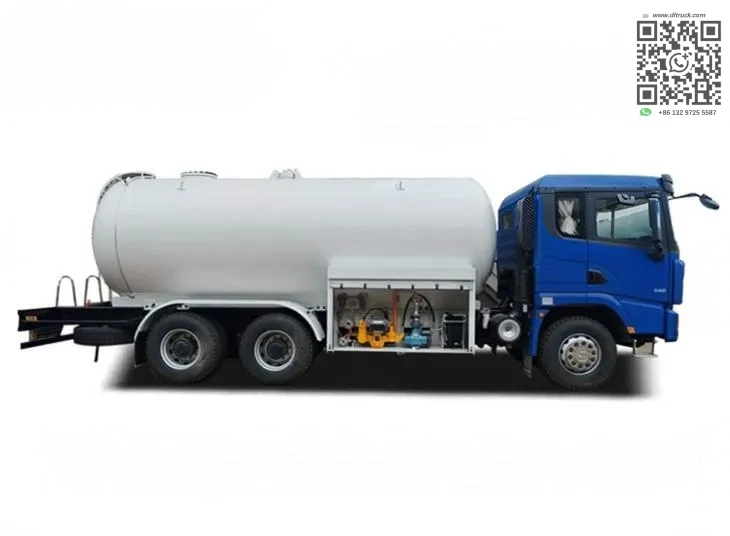

The LPG tank holds 20,000 liters. Tank diameter is 2,050mm. End plate thickness is 10mm. Tank length is designed to match requirements. Level gauge is Rochester float ball type mounted at rear.

Gas phase connection is DN25 or DN50 or customized. Liquid phase is DN50 or DN80 or customized. Pressure gauge and thermometer each come as one set. Hydraulic temperature rating is 2.21Mpa.

Applications.

This truck transports propane as cooking gas. It serves urban fuel delivery routes. Mobile fueling stations can deploy in disaster zones. Areas without fixed infrastructure also benefit from this truck.

The dispenser unit enables direct filling at retail points. Single nozzle operation simplifies fueling workflow. English remarks on the dispenser aid international operators.

Why Choose This Truck.

Chengli factory sells directly at good prices. We are a professional manufacturer and supplier in China. The truck combines proven Shacman chassis with reliable CORKEN pump. Quality construction follows GB150.1~2011 design code.

Contact our factory for more information. Competitive pricing is available for bulk orders. Custom configurations including tank size and connections can be arranged.
