10Tons LPG Refilling Truck For Kenya – Chengli Factory Good Price

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

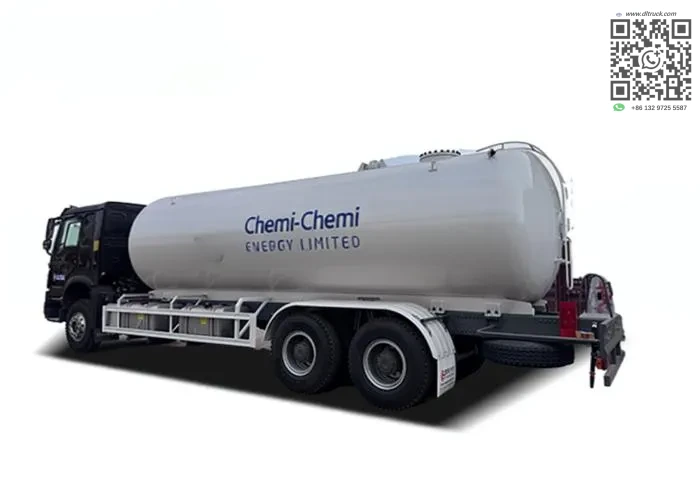

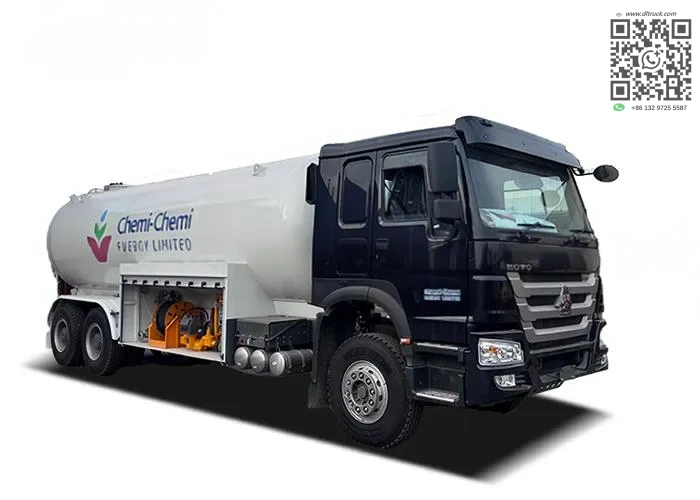

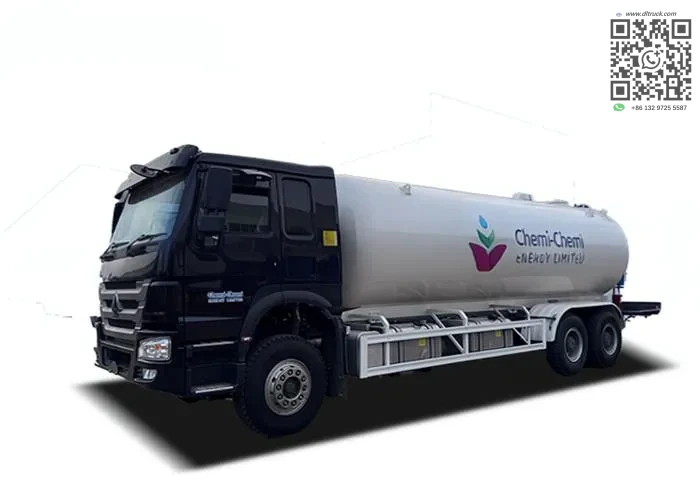

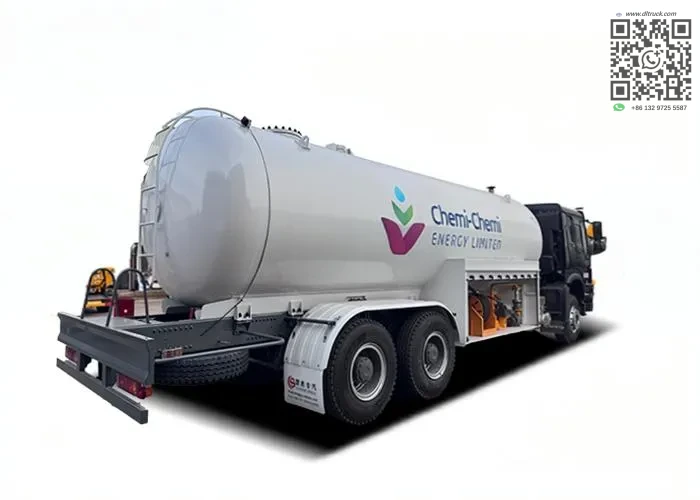

This 10Tons LPG Refilling Truck is manufactured by Chengli. The truck is designed for transporting and dispensing liquefied petroleum gas. It carries a tank volume of 20,000 Liters.

The vehicle uses a ZZ125 chassis with 6 x 4 driving configuration. The cab features right-hand drive with air conditioning. This setup supports daily LPG distribution routes across Kenya.

Key Features.

• 20,000 Liter tank built from Q345R steel plate at 12 mm thickness.
• WP10.380E22 engine producing 380hp with Euro 2 emission standard.
• CLW 15-5 LPG pump built-in type with 76~380lpm capacity.
• TSC-50 LPG flow meter for accurate volume measurement.
• 15 m retractable filling hose with REGO adapter.
• Safety system includes A412F-25-16 safety valve and emergency shut-off valves.
• Working temperature range from -40 to 50℃.
• Customizable painting and logo per buyer requirements.

Performance and Configuration.

The truck is powered by a WP10.380E22 diesel engine. It displaces 9726 ml and reaches a maximum speed of 105 km/h. The manual gearbox provides 10 forward and 2 reverse gears. Reinforced diaphragm clutch ensures smooth power transfer.

The tank diameter measures 2050 mm. Working pressure is 1.61 Mpa while design pressure stands at 1.71 Mpa. Testing pressure reaches 2.21 Mpa. Corrosion allowance is set at 1.0 mm for long service life.

Equipment and valve box are mounted on the side opposite the driver. The system includes two emergency shut-off valves with switches inside the valve box and at the rear. Temperature and pressure monitoring use WTQ-280 thermometer and YN-100T pressure gauges. DN450 manhole allows tank inspection access.

Applications.

This LPG refilling truck is intended for propane distribution in urban and rural areas. It serves fuel stations, industrial suppliers, and commercial distributors. The truck supports direct refilling operations into small storage tanks using the retractable hose and REGO adapter.

The vehicle handles Filling Gas as propane (LPG). Its working temperature range from -40 to 50℃ suits diverse climate conditions found across African markets including Kenya.

Why Choose This Truck.

Chengli manufactures this LPG refilling truck at their factory in China. The company offers competitive pricing directly from the source. Buyers receive complete technical documentation and customization options for painting and branding.

The truck combines proven engine performance with purpose-built LPG handling equipment. The 9870 kg net weight and external dimensions of 10260×2500×3500 mm allow maneuverability on standard roads. Steel fenders and static conductive tape enhance operational safety during refueling tasks.
