Factory Good Price Chengli ISUZU Giga 22m Bucket Truck

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

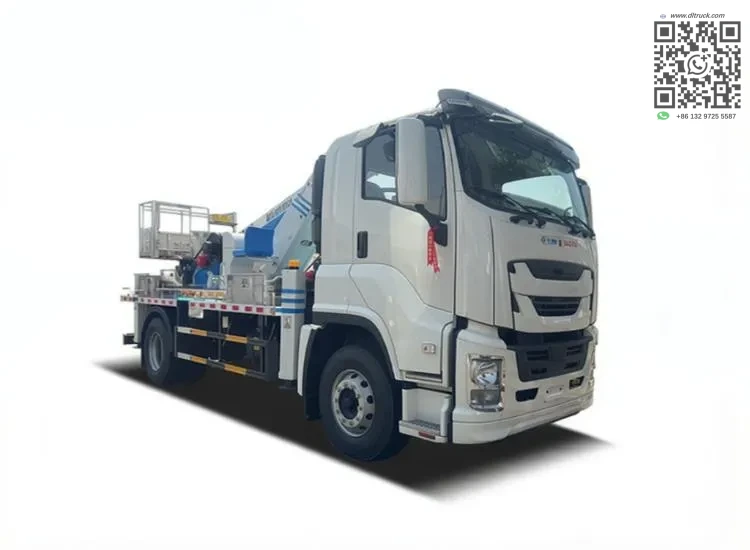

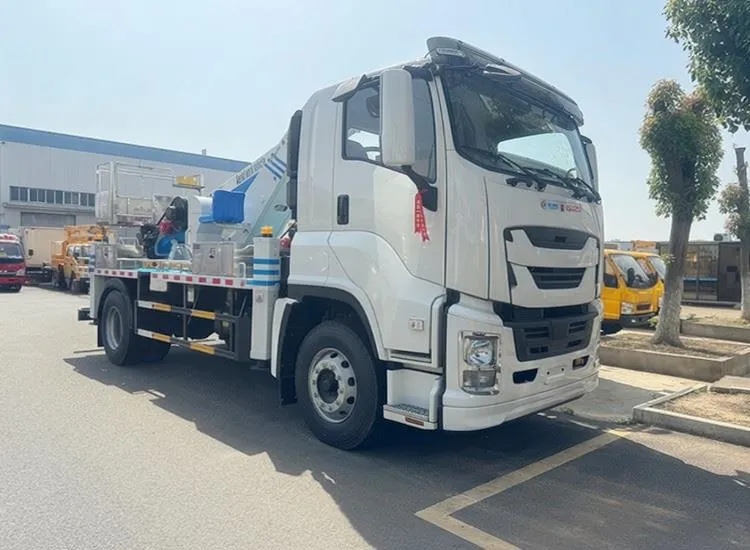

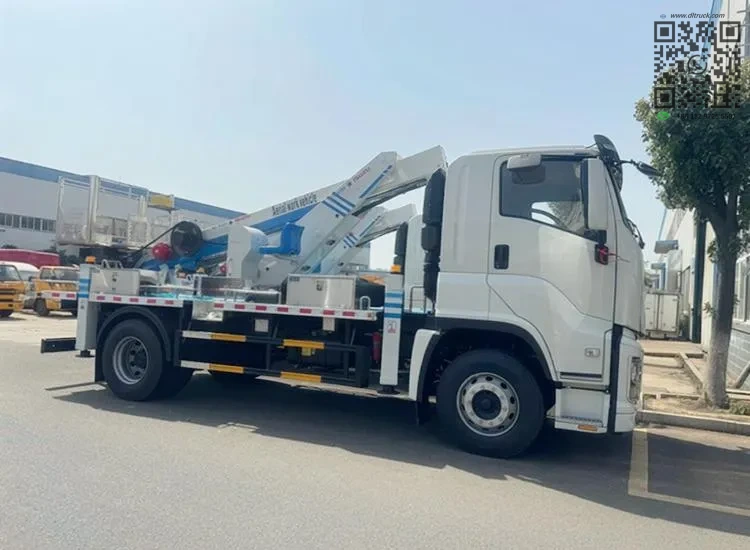

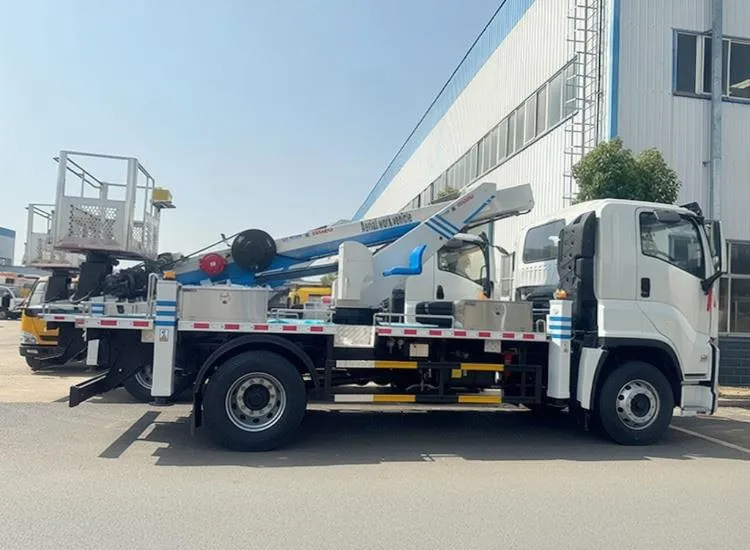

The Chengli ISUZU Giga 22meters bucket truck provides elevated access for utility and construction work. The vehicle reaches a working height of 22m or 24m depending on configuration.

Powered by an ISUZU 4KH1-TC60 diesel engine producing 205 HP and meeting Euro VI standards. The truck combines reliable Chinese manufacturing with competitive factory pricing.

Key Features.

• ISUZU MLD 6-speed manual gearbox with 6 forward and 1 reverse gear.
• Cabin with A/C and seating for 2 or 3 passengers.
• Dual control: manual and remote control systems.

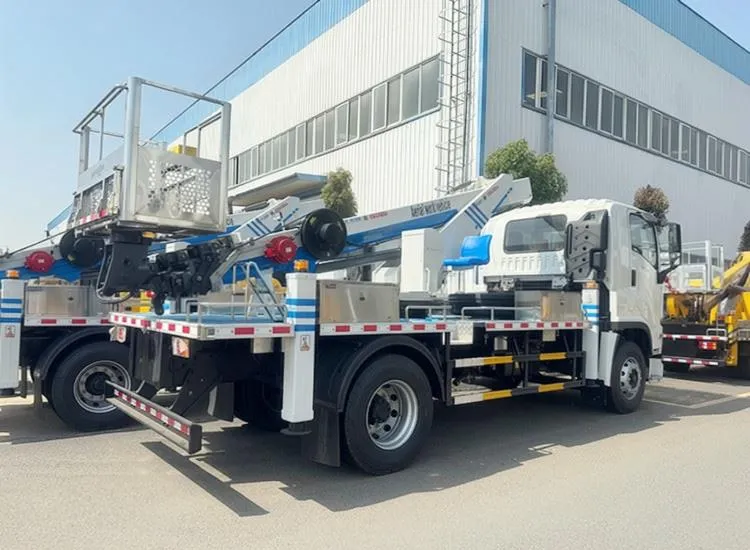

• Four hydraulic landing legs for stable operation.

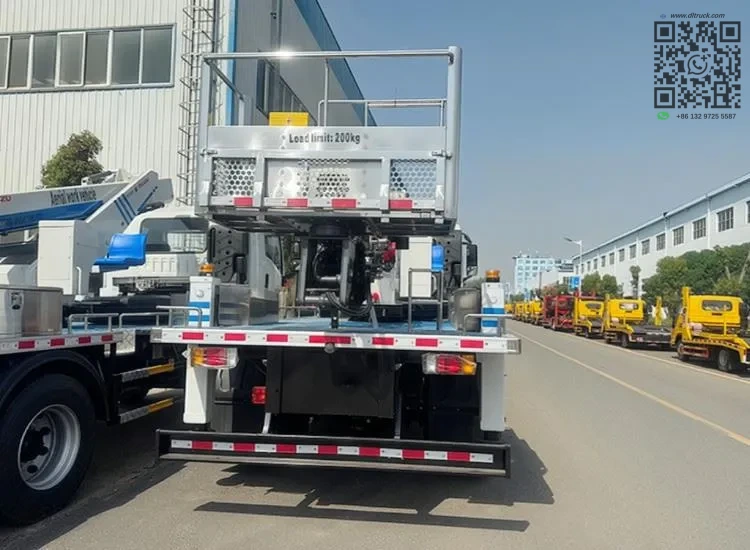

• Bucket rated for 250 kg with platform size of 1600×700×1000mm.
• Maximum platform working angle of 80 degrees.

Performance and Configuration.

The truck features a 3900mm wheelbase with a 6.3 ton front axle and 13 ton rear axle. Six 295/80R22.5 18PR tires are mounted with one spare included. The gross vehicle weight reaches 18000 kg while the curb weight sits at 6370 kg.

The platform achieves a height of at least 20.3m above ground level. Maximum operating range extends to 13m horizontally. When the boom reaches maximum height, the platform still maintains an operating range of at least 2m. The landing legs span 4190mm at the front and 4230mm at the rear.

Applications.

This bucket truck is used for overhead line maintenance, street lighting repair, and tree trimming operations. The elevated platform supports general construction and infrastructure work requiring safe aerial access.

Why Choose This Truck.

Chengli manufactures this bucket truck directly and offers competitive factory pricing. The proven ISUZU powertrain provides dependable performance for demanding aerial work applications.

The combination of manual and remote control gives operators flexibility on site. Dedicated export support is available for international buyers seeking quality equipment at competitive prices.
