China ISUZU 45m Aerial Work Platform Vehicle – Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

Chengli is one of the professional manufacturers of ISUZU 45m aerial work platform vehicles in China. We offer this equipment at a good factory price for buyers worldwide.

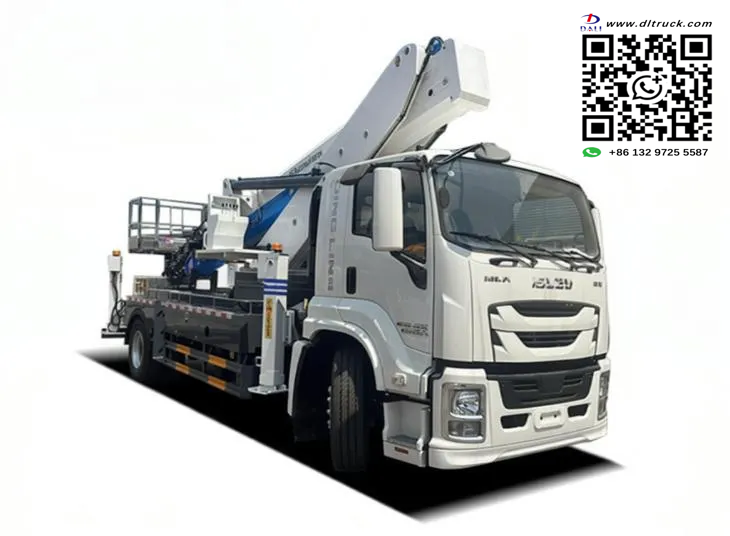

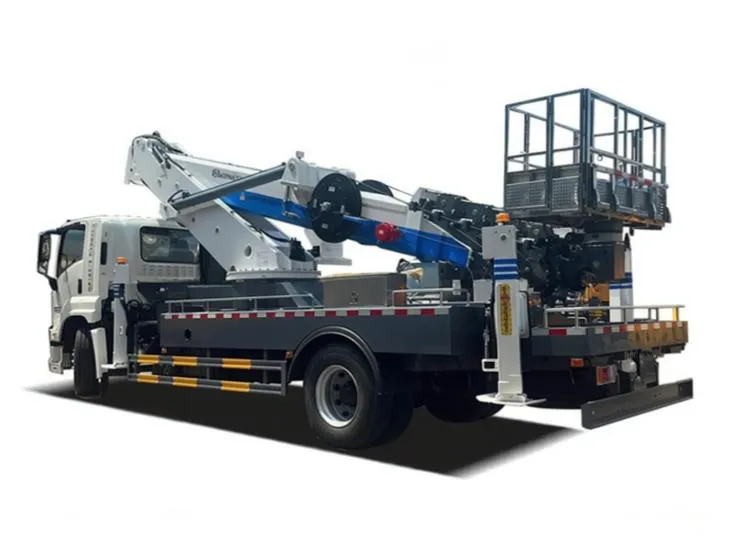

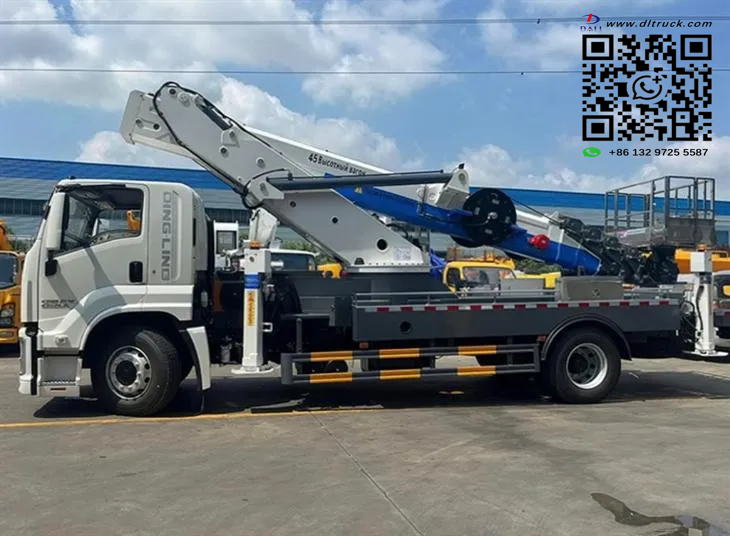

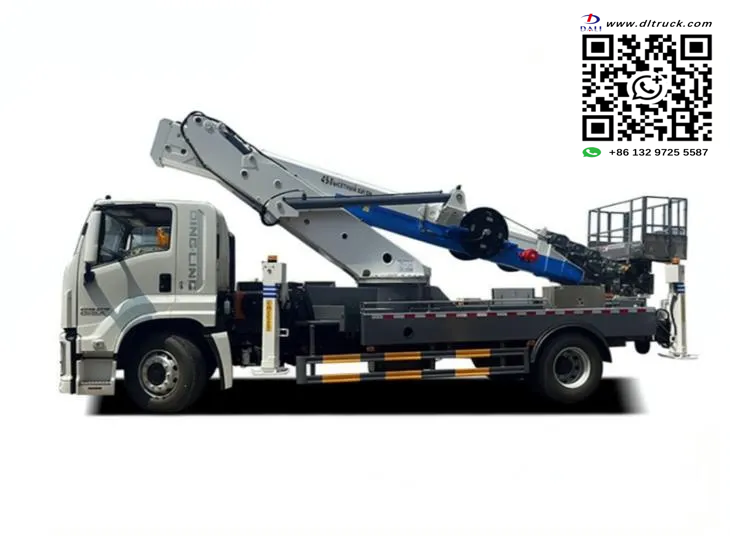

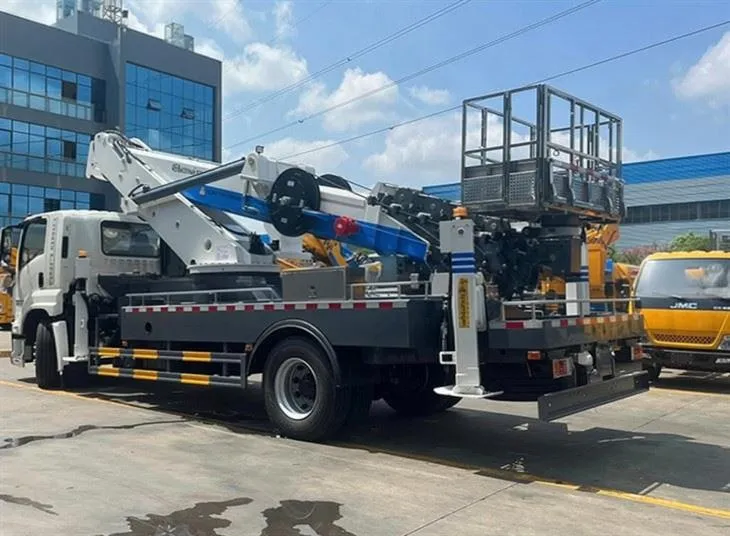

This bucket truck features a seven-section hexagon working arm with a maximum working height of 45 meters. The chassis is built on ISUZU for proven durability on job sites.

Key Features.

The aerial work platform combines reach, strength, and ease of control in one vehicle.

• Working height: 45 meters.
• Max working radius: ≥22 meters.
• Operating height at max radius: 18 meters.
• Maximum working angle of platform: 80°.
• Bucket lifting capacity: 200 kgs.
• Bucket size: 1800x680x1000 mm.
• Rotation angle: 360 degrees.
• Arm material: BAOSTEEL BS960.
• Leveling system: Hydrostatic self-leveling.
• Control method: Remote controller with monitor and manual control.
• LCD working monitor panel displays arm length, working height, radius, and tilt angle.
• Stainless steel fence and anti-slip walking platform.
• Horizontal span: 6100mm.
• Vertical span: 5800 mm.

Performance and Configuration.

The seven-section hexagon boom is manufactured from BAOSTEEL BS960. This high-strength steel provides excellent rigidity throughout the extension range. The maximum working radius reaches 22 meters or more.

Operators control the platform through a remote controller with an integrated LCD monitor. The monitor panel shows real-time data including arm length, working height, working radius, and tilt angle. Manual controls are also available both on the platform and in the operator cabin.

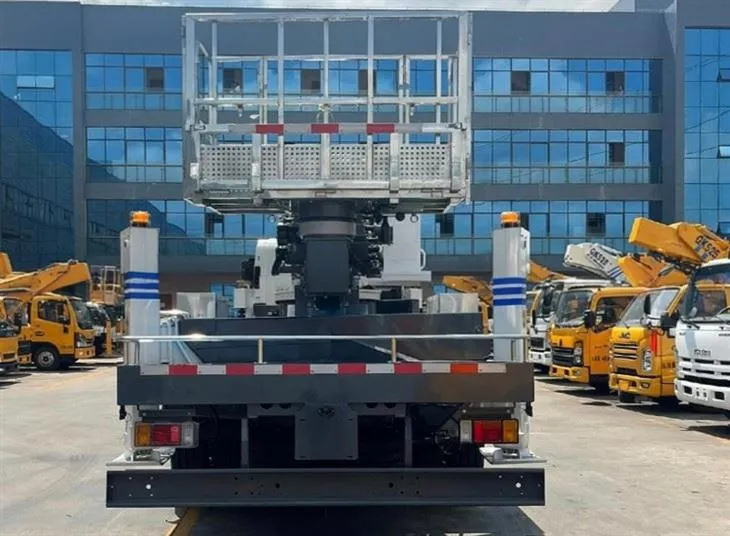

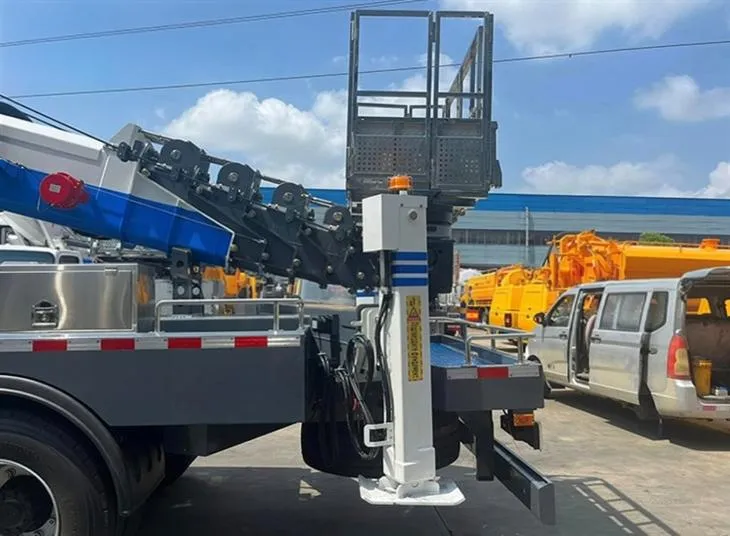

The hydrostatic self-leveling system keeps the bucket stable during operations. The work platform features a stainless steel fence for safety. The anti-slip walking surface reduces hazard on the platform. Color and client LOGO are optional on the body.

The truck body uses electrostatic spraying treatment for long-lasting paint finish. Each unit is inspected before shipment. We currently offer a batch of 4 units available from stock.

Applications.

This 45m aerial work platform is built for tree trimming, streetlight maintenance, and building exterior repair work. Utility companies and municipal departments rely on this bucket truck for overhead infrastructure tasks.

The 360-degree rotation range allows operators to position the bucket precisely. The 200 kg bucket capacity accommodates two workers with tools safely.

Why Choose This Truck.

Chengli supplies this ISUZU 45m aerial work platform at a competitive factory price. The manufacturer has years of experience producing aerial equipment for global markets.

We welcome buyers to contact us through WeChat at 139 2570 3918 for more information. Custom color and LOGO application are available on request.
