ISUZU 23m Aerial Work Platform Truck – Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

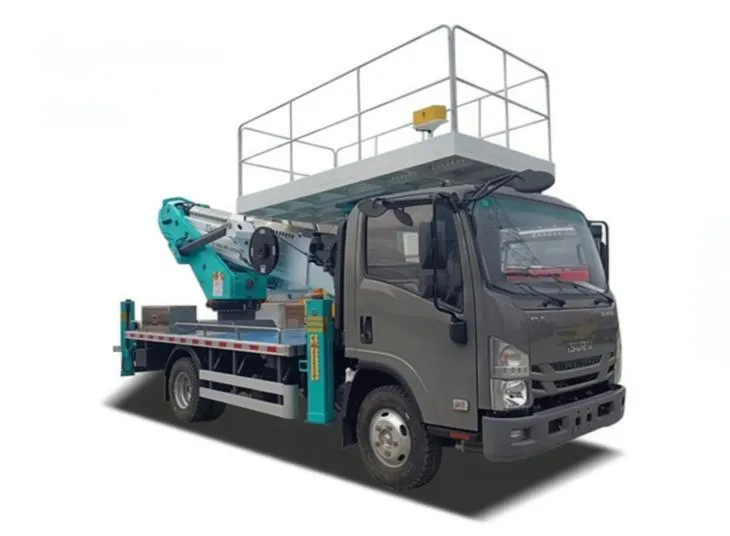

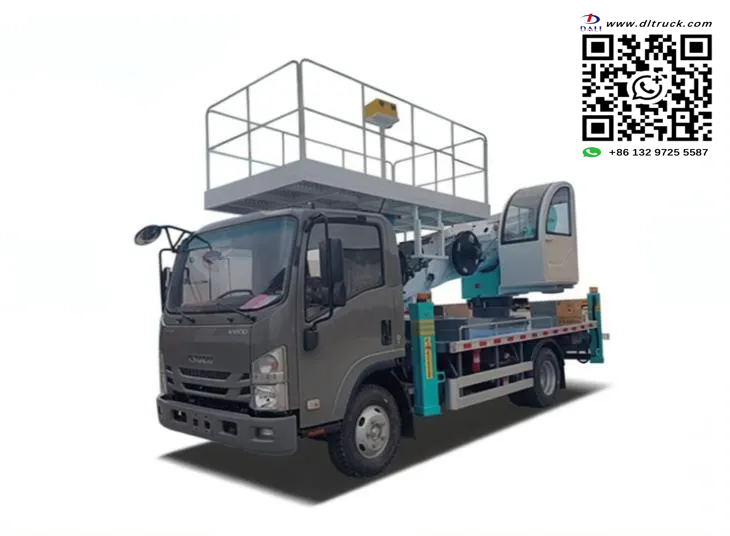

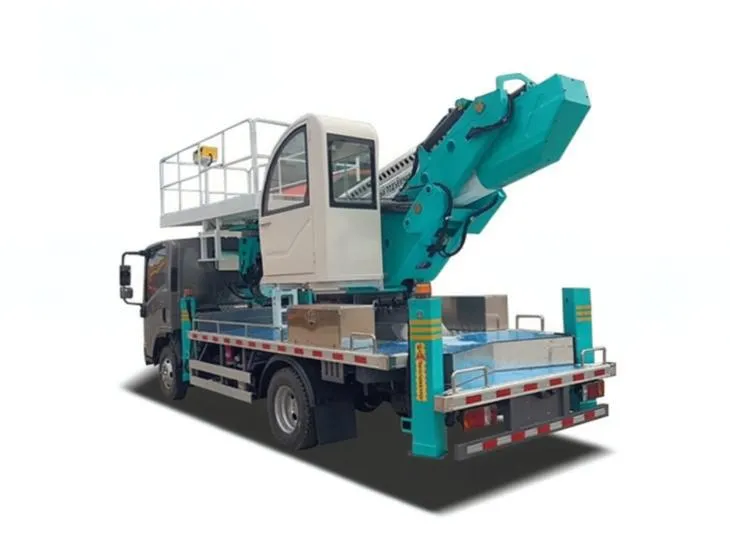

Chengli manufactures the ISUZU 23m aerial work platform truck for commercial and industrial use. This 4×2 utility truck combines a proven ISUZU chassis with a hydraulic lifting bucket system rated for 300 kg. The manufacturer sources an original ISUZU KV100 cab equipped with air conditioning and left-hand drive configuration.

The aerial platform reaches a working height of 23 meters. The bucket interior measures 1600 by 700 by 1000 mm. The vehicle is built for operators who need elevated access on construction sites, maintenance projects, and municipal work.

Key Features.

• ISUZU diesel engine, 120 HP, Euro 6 emission standard.
• Rated bucket load of 300 kg with 1600 x 700 x 1000 mm basket.
• Original ISUZU KV100 cab with air conditioning, left-hand drive.
• 2-axle 4×2 chassis, wheelbase 3360 mm.
• Gross vehicle weight 4000 kg, front axle 2500 kg, rear axle 4800 kg.
• 7.00R16 tires on dual-axle configuration.
• 100L fuel tank capacity.

Performance and Configuration.

The ISUZU 4KH1CN6LB engine delivers 120 horsepower from a 2999 ml displacement. It is a 4-cylinder in-line, water-cooled, turbocharged, aftercooled unit with cold-start capability. The Euro 6 emission standard meets current regulatory requirements.

The transmission is an ISUZU model matched to the engine. The vehicle sits on a QL104 chassis with two axles and a 3360 mm wheelbase. Overall dimensions are 8000 by 2400 by 3500 mm. Tire size is 7.00R16.

The bucket landscape reach extends to 4200 mm and the portrait reach to 4000 mm. The basket holds a rated load of 300 kg. Front axle loading capacity is 2500 kg and rear axle loading capacity is 4800 kg. Gross vehicle weight is rated at 4000 kg.

Applications.

This aerial work platform truck is used for tasks that require personnel to reach elevated positions. Construction workers use it for facade maintenance and installation work. Municipal crews operate it for streetlight repair and tree trimming near roads.

Utility companies deploy this truck for overhead line inspection and repair. The 23-meter reach and 300 kg bucket capacity support two operators with tools at height. The compact 4×2 chassis allows operation on standard roadways.

Why Choose This Truck.

Chengli sells this truck directly from the factory at competitive pricing. Buyers receive an ISUZU-powered vehicle with a known drivetrain and established parts network. The Euro 6 engine and original ISUZU cab are specified without substitution.

The 4×2 layout keeps the vehicle maneuverable while the 3360 mm wheelbase provides a stable base for the lifting system. Chengli manufactures this aerial work platform truck for export, supporting international buyers seeking direct factory purchase.
