ISUZU 32m Aerial Platform Truck | Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

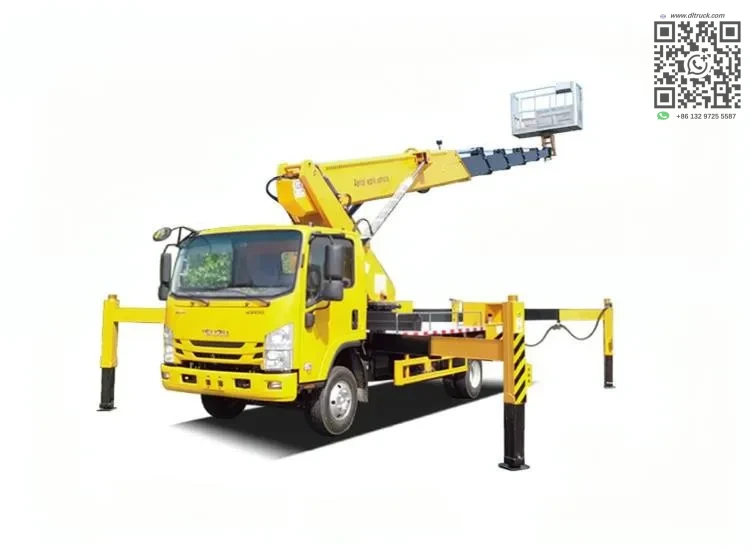

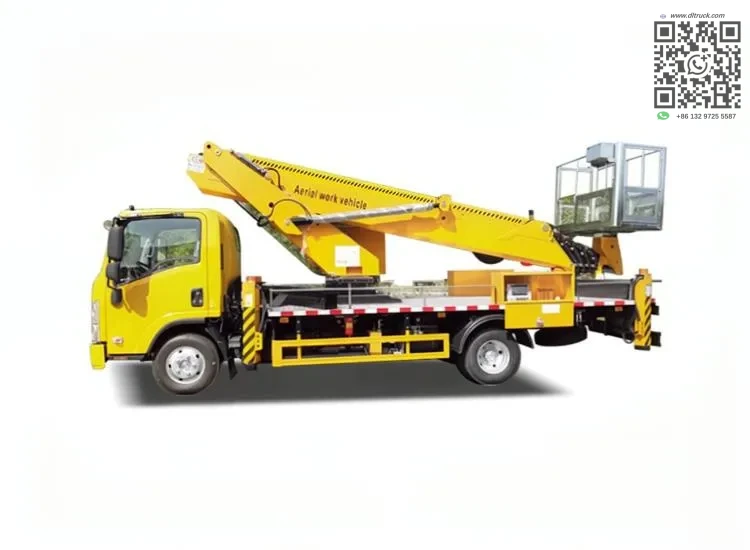

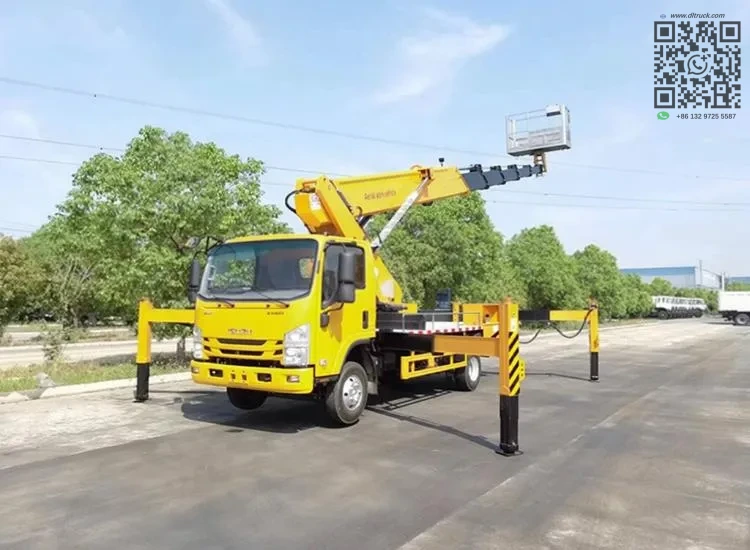

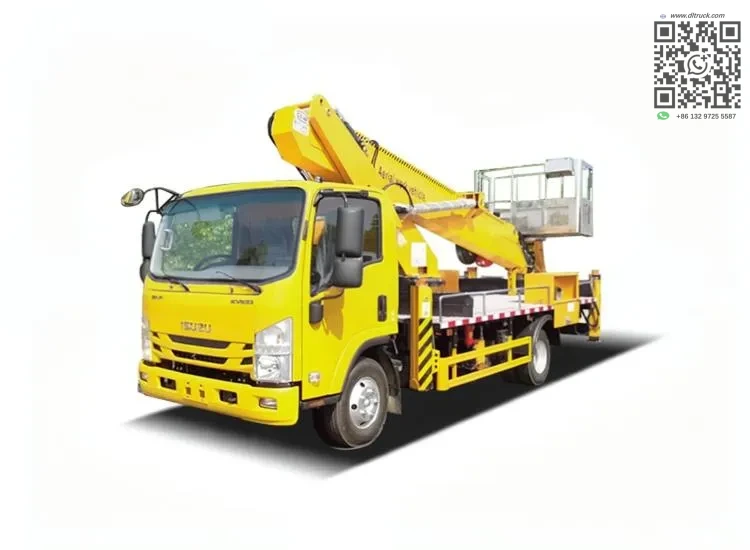

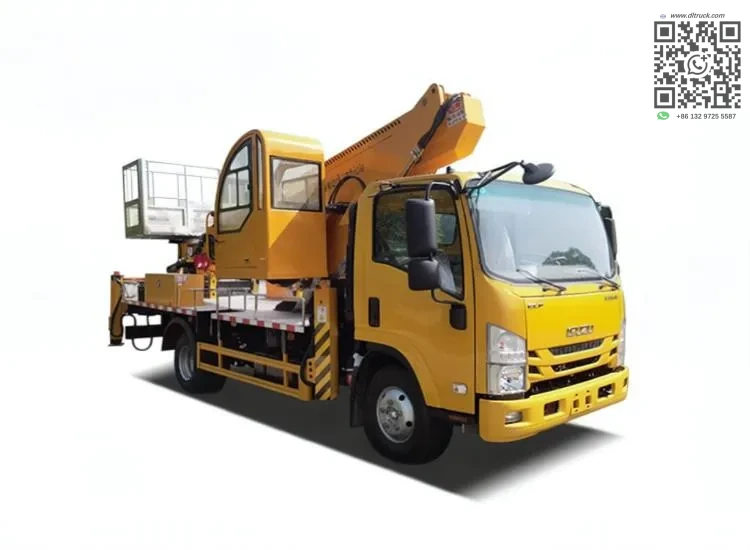

The ISUZU 32m aerial platform truck delivers elevated work capability with a six-section telescopic boom. The rotating platform reaches a maximum working height of 32 meters. This vehicle suits utility and construction operations that require safe personnel access at height.

The truck uses an ISUZU 4KH1CN6LB diesel engine producing 120 horsepower. It meets Euro VI emission standards. Factory direct pricing is available from Chengli. Custom colors and client logos are supported through electrostatic spraying treatment.

Key Features.

The vehicle combines proven ISUZU mechanical components with a purpose-built aerial work system. Operators benefit from dual control options and a robust outrigger setup for stability at height.

• Six-section telescopic boom reaching 32 meters maximum working height.
• 360-degree continuous rotation of the boom and platform assembly.
• Manual control and remote control operation modes.
• Four landing legs with front V rear V design, individually adjustable.
• Lateral leg span of 6180 mm and longitudinal leg span of 7050 mm.
• Bucket loading capacity ranging from 200 kg to 400 kg.
• Customized color options with electrostatic spraying and client logo application.
• Single row LHD cabin equipped with air conditioning.

Performance and Configuration.

The powertrain centers on the ISUZU 4KH1CN6LB diesel engine rated at 120 horsepower. It complies with Euro VI emission requirements. Power routes through a manual transmission offering five forward gears and one reverse gear. The vehicle carries a gross vehicle mass of 7300 kg with axle loading split at Not provided in. Source front and 4800 kg rear.

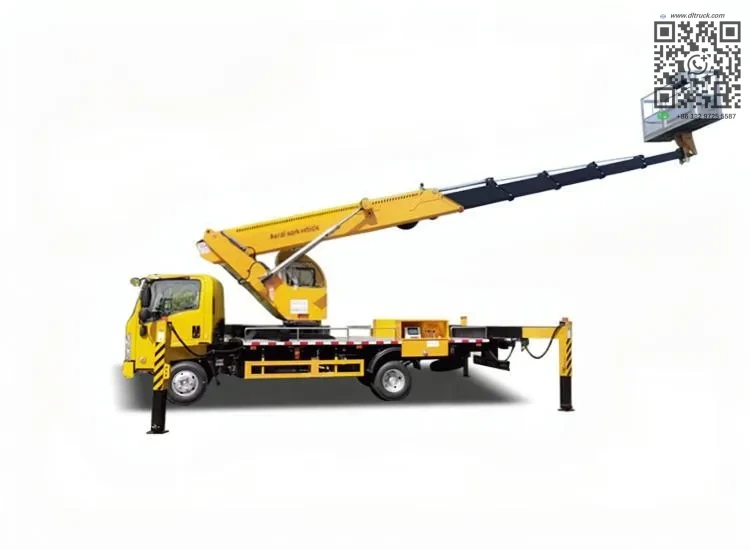

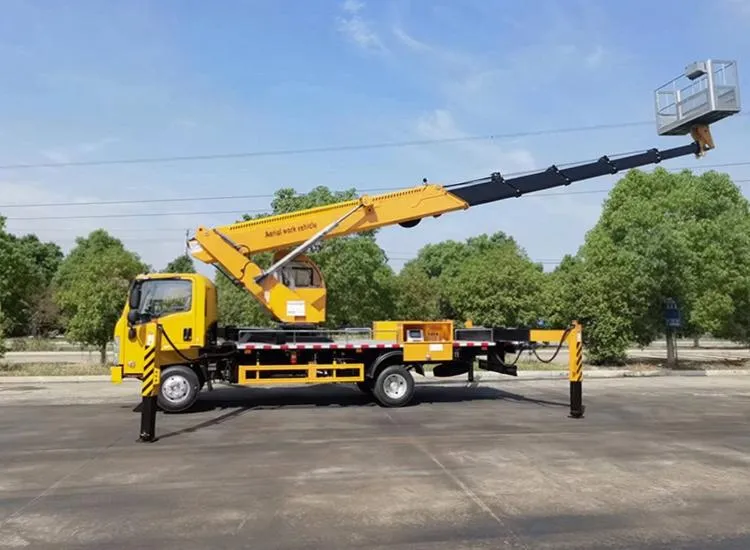

The cab provides left-hand drive seating for a single operator. Air conditioning is included as standard equipment. The six-section telescopic boom delivers a maximum working height of 32 meters. At that height the operating radius reaches 9 meters while the platform operating range extends to 16 meters.

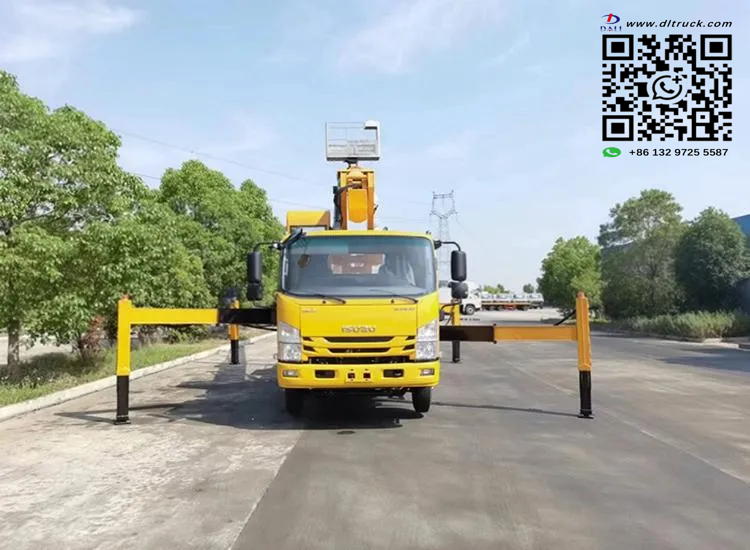

Stability is managed by four landing legs arranged in a front V rear V layout. Each leg adjusts individually on site. The outrigger spans measure 6180 mm laterally and 7050 mm longitudinally. The truck rides on 7.00R16 tires, supplied as six pieces with one spare tire carried onboard.

Applications.

This aerial platform truck serves municipal and utility operations. It supports overhead electrical line maintenance, street light replacement, and tree trimming work. The rotating boom and adjustable platform allow operators to position precisely at the task location.

Construction and infrastructure projects also benefit from this equipment. The bucket handles 200 to 400 kg, which accommodates workers and tools together at height. The 32-meter reach covers most standard urban and suburban work scenarios.

Why Choose This Truck.

Chengli supplies this ISUZU aerial platform truck directly from the factory. That approach removes intermediary markups and keeps the price competitive. The ISUZU engine is widely recognized for durability and low fuel consumption in commercial duty cycles.

Custom branding is available through electrostatic spraying. You can select your company colors and add your logo to the body. The dual control system gives operators flexibility on confined or crowded job sites. Both manual and remote operation are ready from delivery.
