China ISUZU 4X4 38m Telescopic Boom Lift Truck – Chengli Factory Direct

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

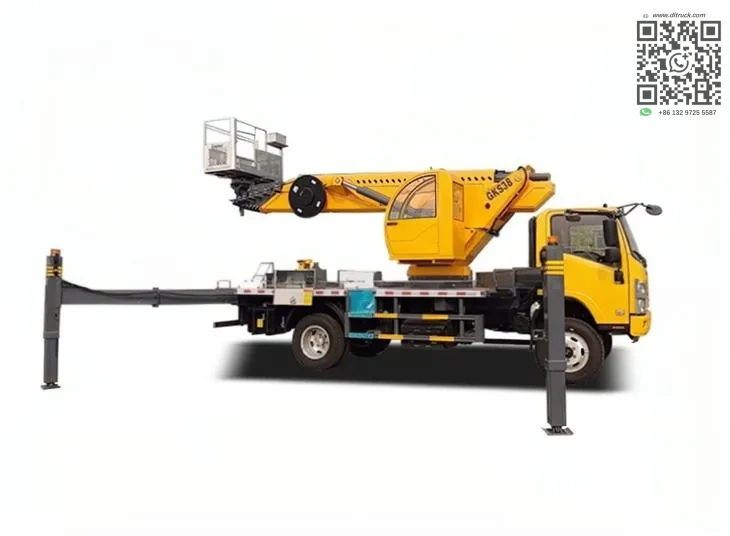

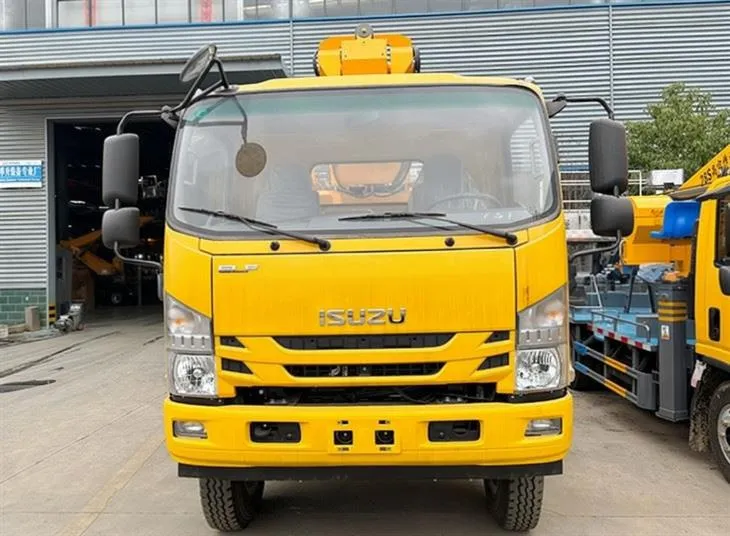

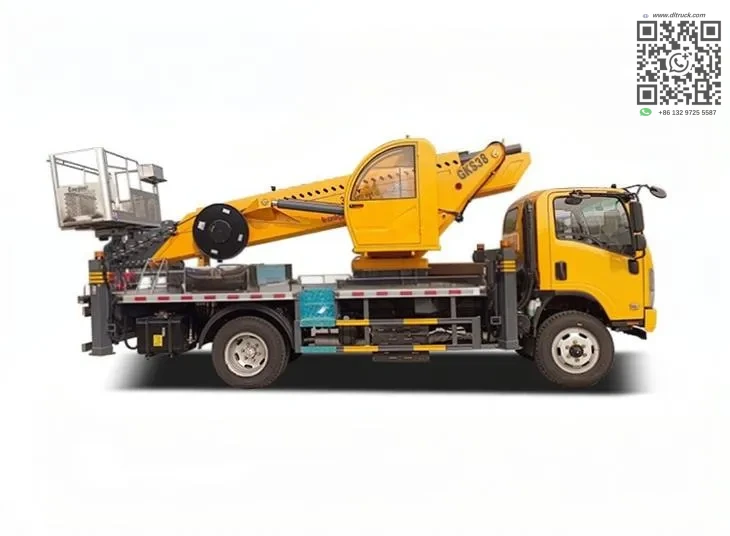

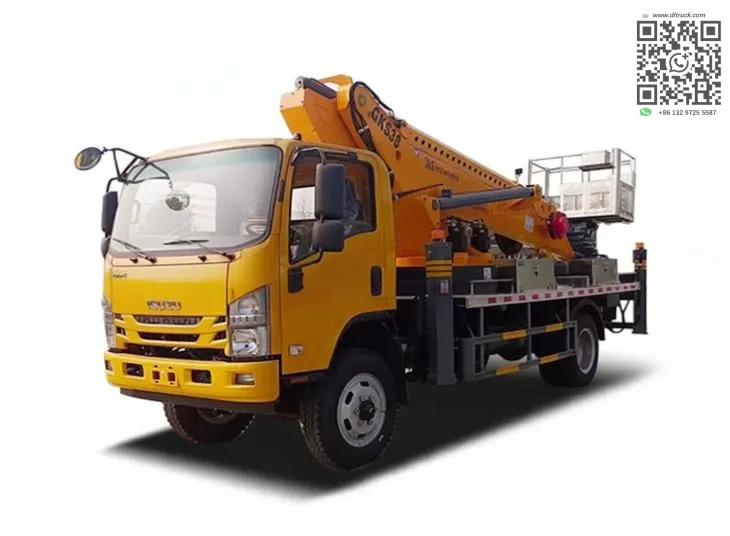

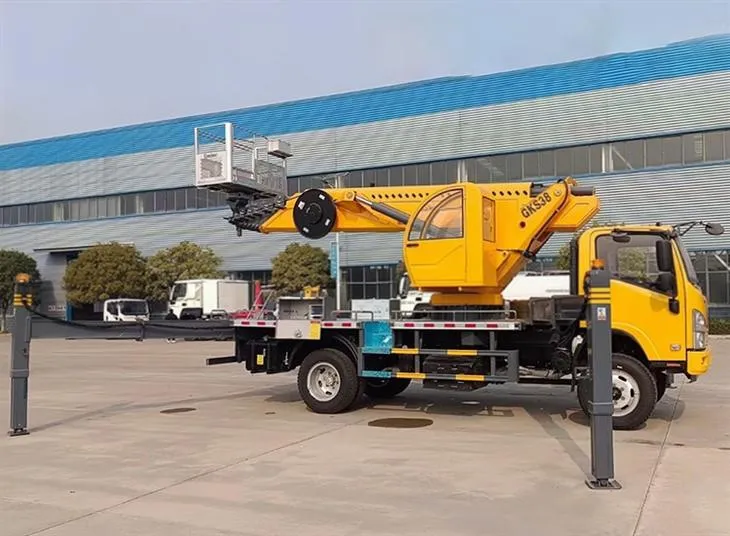

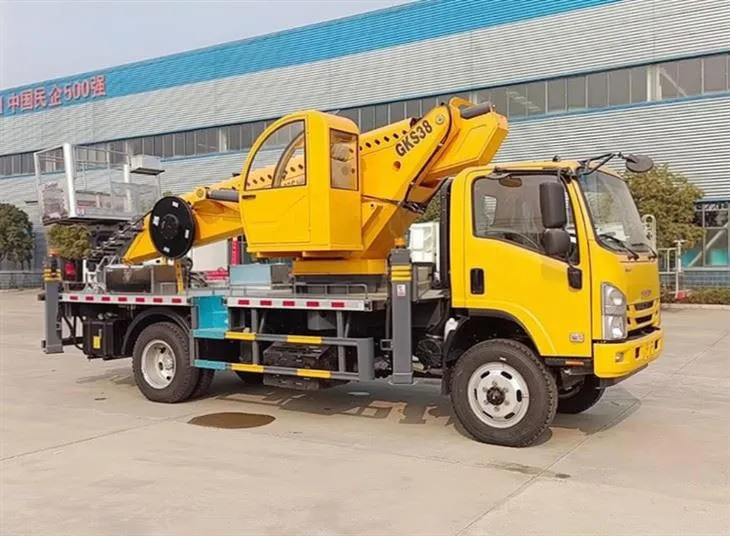

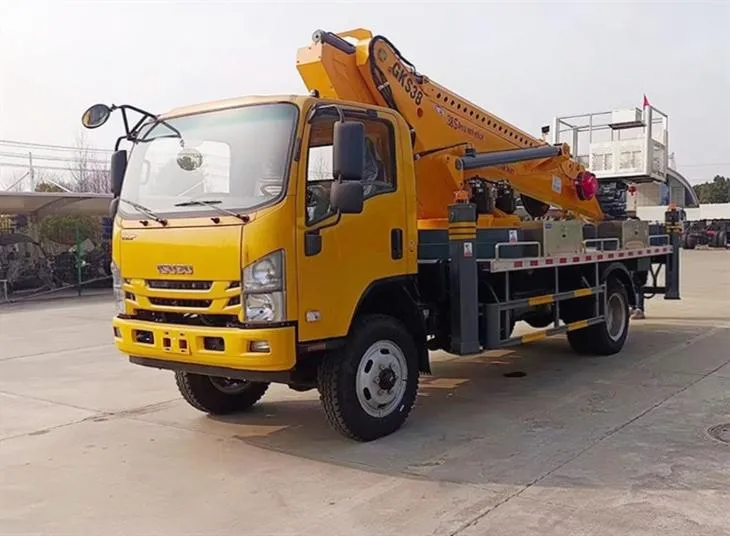

Chengli factory manufactures and supplies ISUZU 4X4 38m telescopic boom lift trucks. This all-terrain utility vehicle is built on a robust ISUZU chassis with four-wheel drive. The unit combines a powerful diesel engine with a high-reach telescopic boom system.

The truck reaches a working height of 38 meters. The platform extends to a maximum operating range of 19 meters. Chengli offers direct factory pricing on this model for international buyers seeking reliable aerial work equipment.

Key Features.

• ISUZU 4KH1-TC60 diesel engine producing 205 HP with Euro VI compliance.
• 4×4 all-drive system with 6.3-ton front axle and 13-ton rear axle.
• 38-meter telescopic boom with 19-meter maximum operating range.
• Manual and remote control system for platform operation.
• Four individually adjustable landing legs with 5385mm lateral span.
• Single row cabin equipped with air conditioning.
• Optional insulated bucket available for electrical line work.

Performance and Configuration.

The ISUZU 4KH1-TC60 engine delivers 205 horsepower meeting Euro VI emissions standards. Power routes through an ISUZU MLD manual gearbox offering six forward speeds and one reverse gear. The chassis uses 295/80R22.5 tires with six mounted plus one spare tire.

The 38m telescopic boom provides substantial reach for utility and maintenance tasks. At maximum height, the platform still reaches 7 meters horizontally. The bucket accommodates a loading capacity between 200 kg and 400 kg depending on configuration.

Stability comes from four landing legs with individual adjustment. The lateral leg span measures 5385mm while the longitudinal span reaches 5195mm. The truck overall dimensions are 8600mm in length, 2060mm in width, and 3050mm in height. Gross vehicle weight stands at 18000 kg with a wheelbase of 3815mm.

Applications.

This boom lift truck serves municipal maintenance crews, telecommunications companies, and electrical utility operators. The 38m reach handles street lighting, tree trimming, and overhead line installation. The 4×4 drive system allows operation on uneven terrain and unpaved job sites.

The optional insulated bucket makes this unit suitable for live electrical work. Remote control capability allows the operator to maneuver the platform from ground level while maintaining visibility of the work area.

Why Choose This Truck.

Chengli operates as a direct manufacturer and exports these trucks at competitive factory prices. Buyers receive full technical specifications, documentation, and shipping support straight from the production facility. The ISUZU powertrain and proven boom system provide long service life with widely available spare parts.

Each unit ships with the complete four-wheel-drive chassis, telescopic boom assembly, landing leg system, and dual control setup. Chengli welcomes inquiries for detailed pricing and export arrangements on this 38m telescopic boom lift truck model.
