China ISUZU 100P 21Meters Bucket Truck – Factory Good Price CHENGLI

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

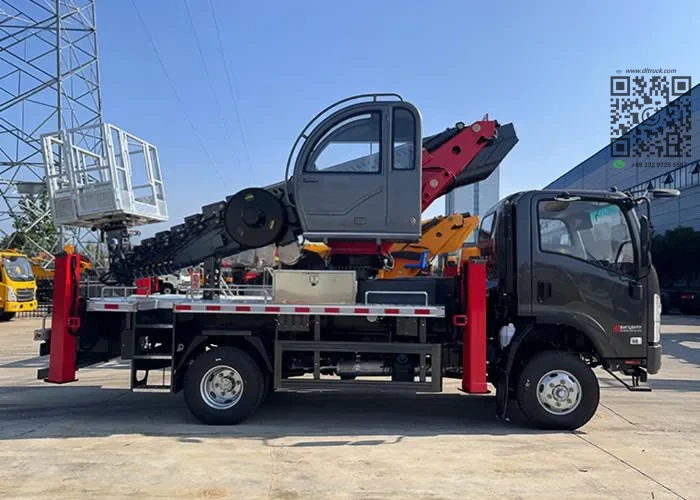

The CHENGLI ISUZU 100P bucket truck delivers aerial work capability at 21 meters. The unit is mounted on a 4X2 ISUZU QL104 chassis with a 3360 mm wheelbase.

This utility truck is built for municipal, telecommunication, and infrastructure maintenance tasks. The manufacturer offers direct factory pricing for bulk and export orders.

Key Features.

• ISUZU 100P single-row cab with air conditioning for three passengers.
• 21-meter maximum working height on a four-section synchronized boom.
• 200 kg rated platform load with 360-degree continuous rotator.
• CAN control system paired with wireless remote control.
• Manual emergency operation backup for safety.
• Stainless steel partition boards and anti-slip walkway surfaces.
• Air brake system and hydraulic power steering.
• Euro 6 emission standard compliance.

Performance and Configuration.

The powertrain centers on the ISUZU 4KH1CN6LB diesel engine. It produces 120 horsepower from a 2999 ml displacement. The inline-four cylinder layout includes water cooling, turbocharging, and aftercooling. Cold-start capability is included.

Power routes through a manual transmission to the 4X2 driveline. The vehicle carries 7.00R16 tires and a 100L fuel tank. Gross vehicle weight sits at 4000 kg with a curb weight of 2720 kg. Front axle capacity is 2000 kg and rear axle capacity is 4000 kg.

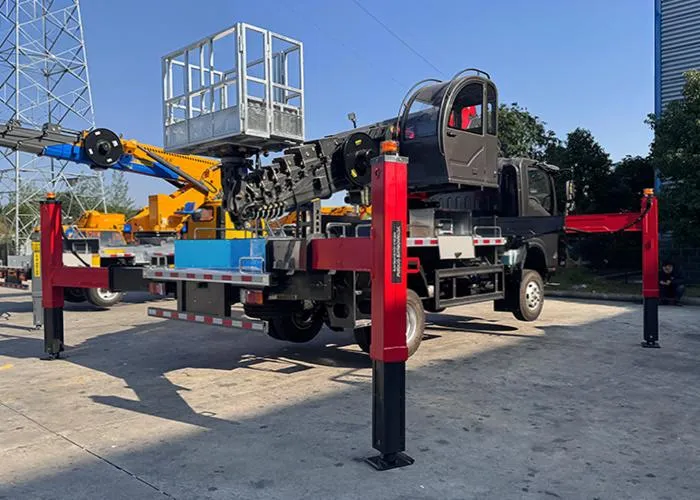

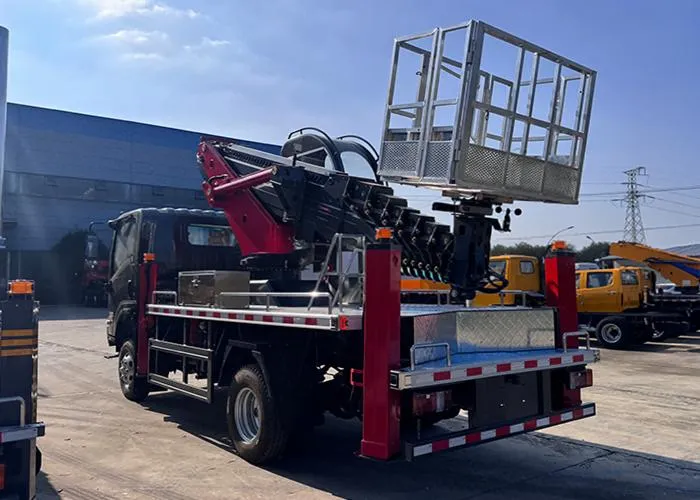

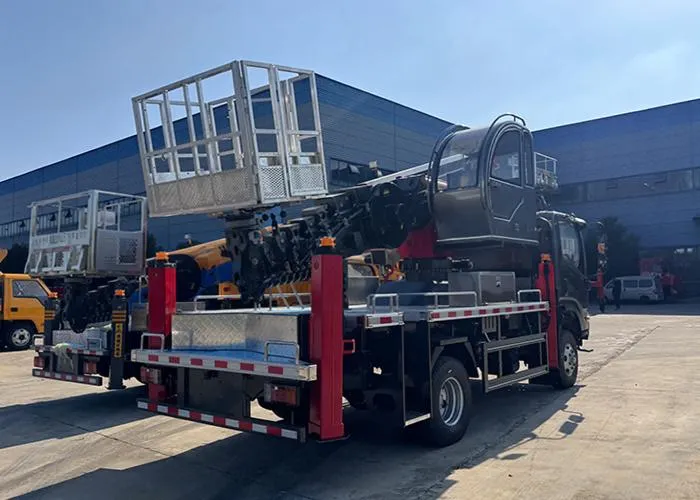

The boom consists of four sections with a six-hexagonal cross-section design. It operates through synchronized telescoping motion. The platform measures 1600 by 700 by 1000 mm. Maximum working range reaches 11 meters with a 5-meter vertical reach. Outrigger span measures 4200 mm laterally and 4000 mm longitudinally.

Applications.

This bucket truck suits streetlight replacement, tree trimming, and sign installation work. Telecommunication companies use it for antenna maintenance and cable routing at height.

Municipal departments deploy it for road signage repair and utility line inspection. Construction sites also benefit from the 21-meter access height for facade work.

Why Choose This Truck.

CHENGLI sources the ISUZU chassis and builds the boom assembly in-house. This integration allows tighter quality control across the complete unit. Direct factory sales remove middleman margins and shorten lead times for international buyers.

The Euro 6 engine meets strict emissions requirements in many export markets. The CAN-based control system provides smooth stepless speed regulation. Wireless remote operation adds convenience for ground technicians directing the lift.
