China 4 Axle 80 Tons 100 Tons Low Bed Excavator Transport Trailer – Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

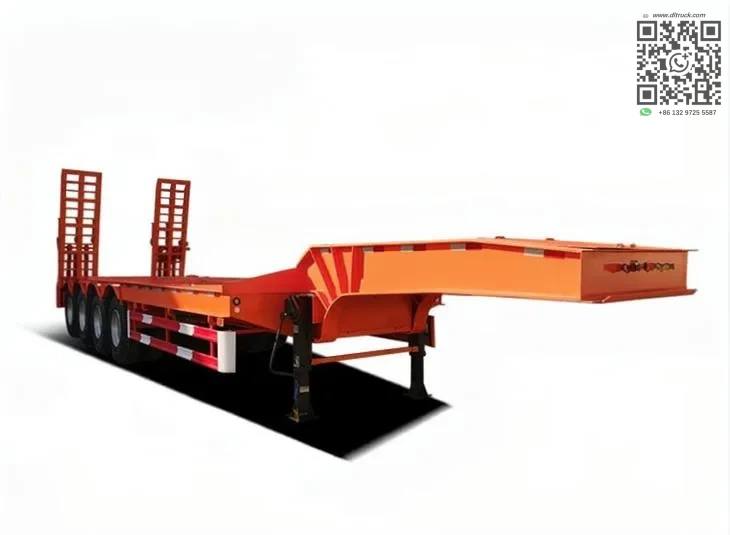

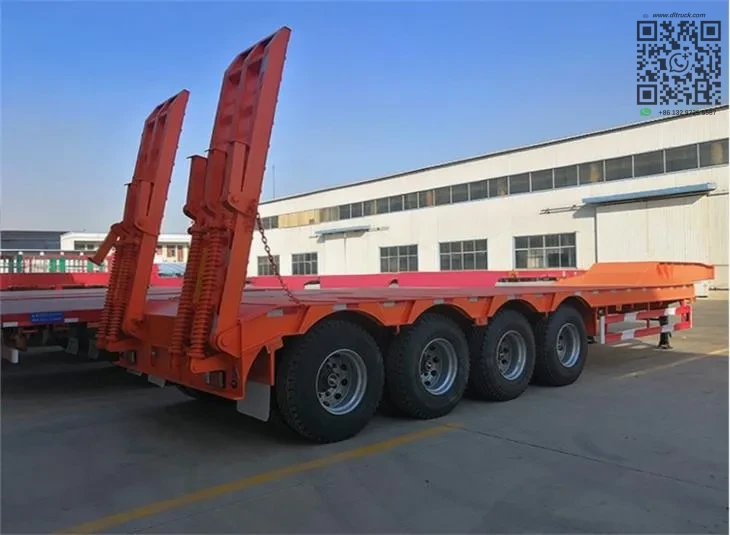

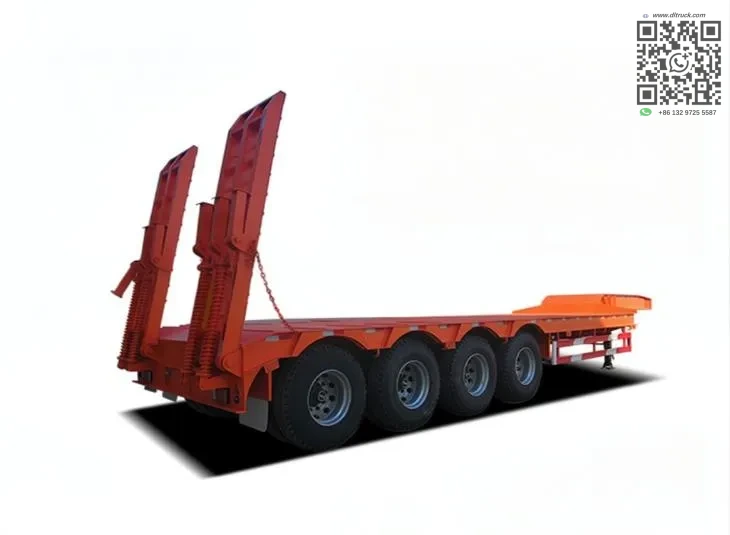

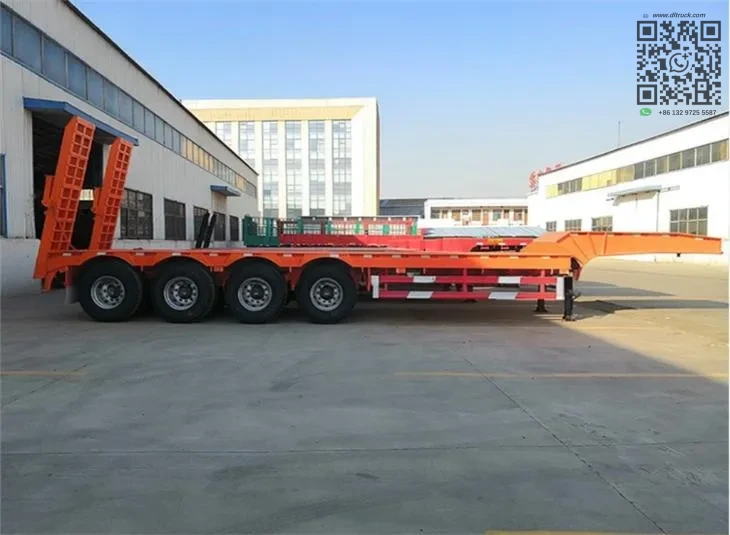

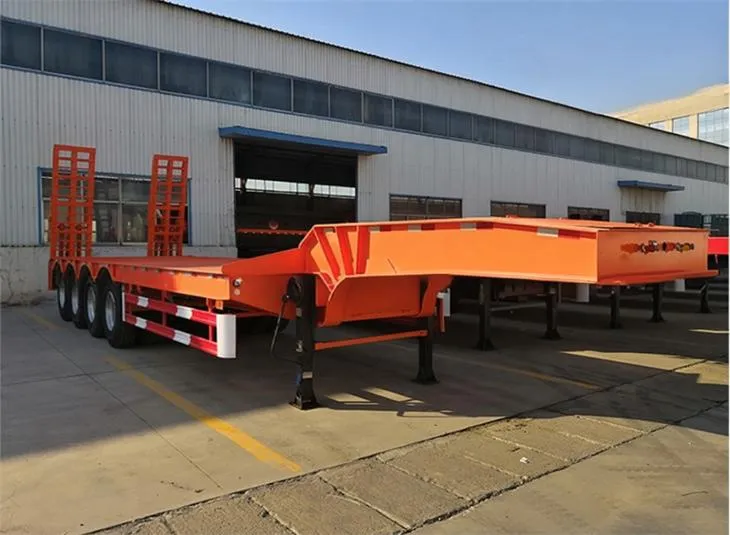

This 4 axle low bed semi trailer is manufactured by Chengli in China. It is rated for 80 tons and 100 tons load carrying capacity. The trailer is built for transporting heavy equipment such as excavators.

The main body measures 13000 to 17000mm in length. Width is 3000mm. Side height is 1750mm. The tare weight ranges from 10 tons to 12 tons depending on configuration.

Key Features.

The trailer includes several key components selected for durability and safe transport operations.

• JOST brand kingpin available in 2 inch or 3.5 inch interchangeable option.
• JOST brand 28 ton two speed manual landing gear.
• Leaf spring suspension or air suspension available.
• Dual line pneumatic brake system with WABCO emergency relay valve.
• Q345 carbon steel main beam at 500mm height.
• Rear loading ramps 720mm wide, spring loaded and manually operated with safety chain.
• Tool box with standard trailer tools included.
• Spare tire carrier available in one piece or two pieces.

Performance and Configuration.

The chassis construction uses 20mm upper plate and 20mm lower plate. The mid web is 12mm thick. This provides strong structural support for heavy loads during transit.

Wheel rims are available in 8.5-20 and 9.0-20 sizes. Axle spacing is 1310mm. The trailer operates on a 24 volt electrical system. The electrical receptacle follows the German standard with a 7 way wire harness connection.

Lighting includes rear light, rear reflector, turn indicative light, side reflector, fog lamp, and number plate light. Painting preparation uses shot blast treatment to SA 2.5 standard. Primer and polyurethane top coat are applied. Total DFT is not less than 100μm. Any color will be available on request.

Applications.

This low bed trailer is designed primarily for hauling excavators and other heavy construction machinery. The low deck height allows easier loading and unloading of tall equipment. The rear ramp system supports manual loading procedures.

The 80 ton and 100 ton rating makes it suitable for large excavators. Bulldozers, and similar earthmoving equipment found on construction sites and mining operations.

Why Choose This Trailer.

Chengli factory produces these trailers at a competitive price point. Direct factory supply reduces intermediate costs for buyers. The JOST brand components on kingpin and landing gear provide known reliability.

The available dimensions range from 13000mm to 17000mm length. This range allows selection based on specific transport requirements. Custom color options are also available to match fleet standards.
