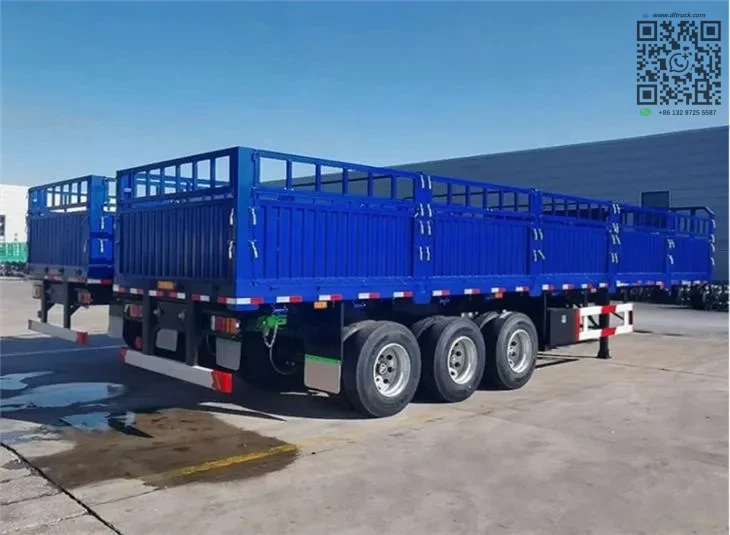

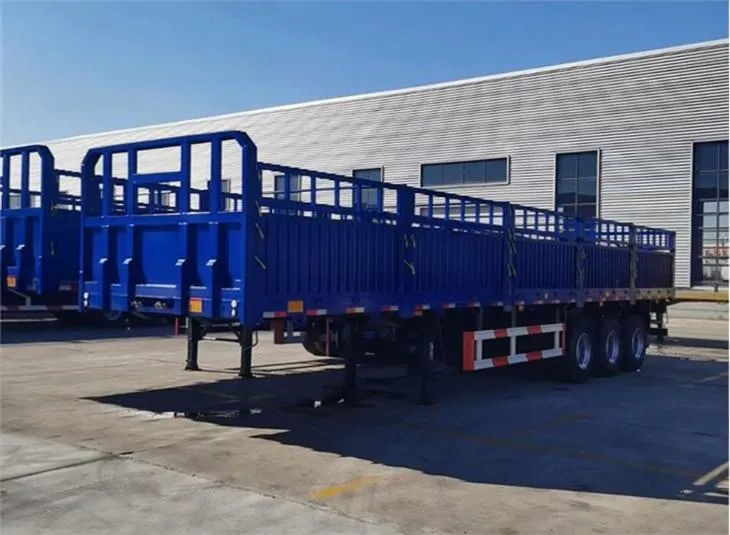

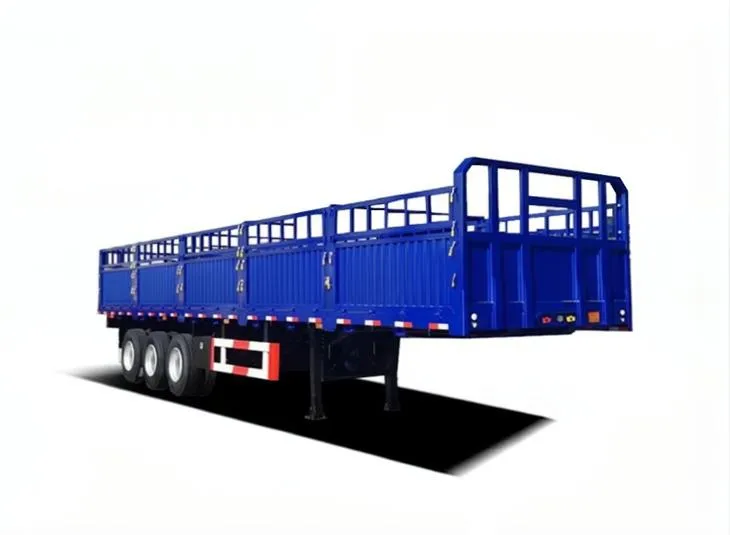

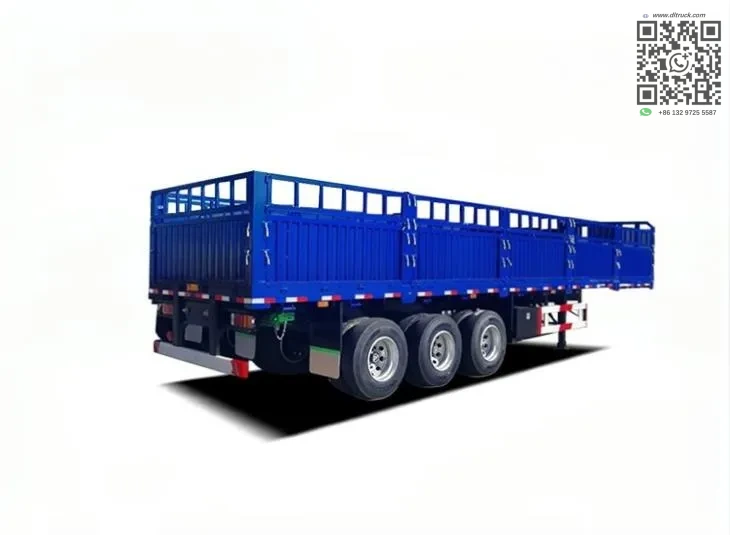

Factory Good Price Chengli 3 Axle 60T Storehouse Warehouse Fence Cargo Trailer
Chengli manufactures a 3 axle 60 tons storehouse warehouse fence cargo trailer at factory good price. This semi trailer provides competitive pricing directly from our factory.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.
Chengli manufactures a 3 axle 60 tons storehouse warehouse fence cargo trailer. This semi trailer offers competitive pricing from our factory. The dimensions range from 12500 to 13000 mm in length. The width measures 2500 mm and height is 3550 mm.
The side wall configuration is not provided in source. Loading capacity reaches up to 60 tons. Tare weight falls between 8.5 and 9 tons.
Key Features.
The trailer features multiple structural and functional components for cargo transport.
- Main beam height ranges from 450 mm to 500 mm.
- Upper plate thickness is 12 mm with middle plate at 8 mm.
- Down plate thickness measures 14 mm.
- Side beams use 16 mm channel steel.
- Side wall thickness is 2 mm and floor is 3 mm.
- Material is Q235 carbon steel for side wall and floor.
- Door configuration includes 13 pairs total.
- Twelve pairs are positioned on right and left sides.
- One pair serves as rear door.
.
Performance and Configuration.
The chassis utilizes Q345 carbon steel for the main beam structure. Floor material is Q235 carbon steel with 3 mm thickness. Spring leaves are not provided in source.
AXle options include FUWA, BPW, or WODELI brands in 13T or 16T ratings. Suspension can be mechanical or air type. King pin is available in 2.0 or 3.5 inch bolts type. Support leg is either FUWA 28T or JOST 24T double speed.
Braking system employs dual line air brake with piggyback spring on all axles. Six units of T30/30 spring brake chamber are installed. Two units of local brand 52L air tank provide reliability. Two units of standard coppery air connector complete the circuit.
Lighting consists of LED units throughout. Electrical system operates at 24V with 7-pin ISO 1185 socket. Two sets of rear light, turn light, rear reflector, side light, and side reflector are mounted. One set of 6-core standard cable connects the circuit.
Tool box includes two pieces of 11 m large size. Size can be chosen freely. Equipment includes one tyre spanner, one gudgeon sleeve, and one cranking bar.
Applications.
This storehouse warehouse fence cargo trailer is built for freight transport. The 60 ton loading capacity suits bulk goods movement.
Why Choose This Truck.
Chengli provides factory direct pricing on this 3 axle cargo trailer. The construction uses verified carbon steel grades for main beam and floor.
The trailer undergoes complete chassis sandblasting to remove rust. One anticorrosive prime coat is applied before two final paint coats. Options for suspension, axle brand, and rim size allow customization.
