Electric Skip Loader Truck

The Electric Skip Loader Truck is purpose-built for efficient municipal waste collection in residential communities, markets, industrial parks, and other urban environments. Developed on a self-designed 4.5-ton electric chassis, it combines an integrated vehicle structure, intelligent electronic control, fast charging capability, and a high-performance self-loading system. The compact body improves maneuverability on narrow streets while delivering zero-emission operation and lower operating costs for sanitation fleets.

Electric Skip Loader Truck Overview

The Electric Self Loading Garbage Truck integrates the chassis and upper body into a unified structure, improving reliability, stability, and maintenance efficiency. Intelligent vehicle management continuously monitors operating conditions, helping fleet operators improve productivity and vehicle utilization.

Electric Skip Loader Truck for Narrow Urban Roads

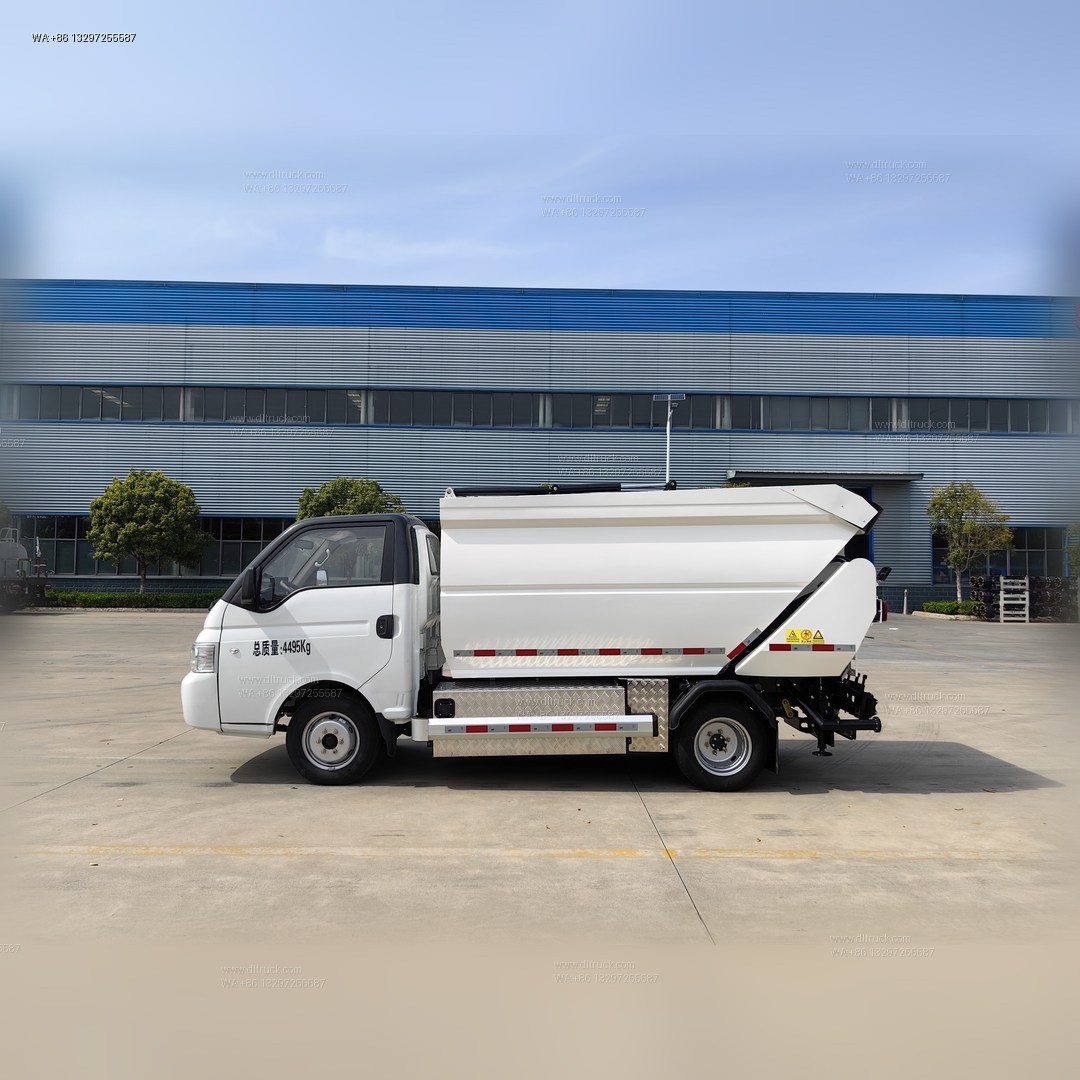

The compact dimensions allow the vehicle to work efficiently in residential communities, markets, alleys, underground parking areas, and other restricted spaces where larger refuse trucks cannot easily operate. Furthermore, the 2,800mm wheelbase improves maneuverability without sacrificing loading capacity.

Electric Skip Loader Truck with High Loading Capacity

The 4.5m³ refuse body combines a scraper and sliding plate structure to maximize loading efficiency. It carries more than 50 standard waste bins with an actual payload of approximately 2 tons, reducing collection trips and improving daily productivity.

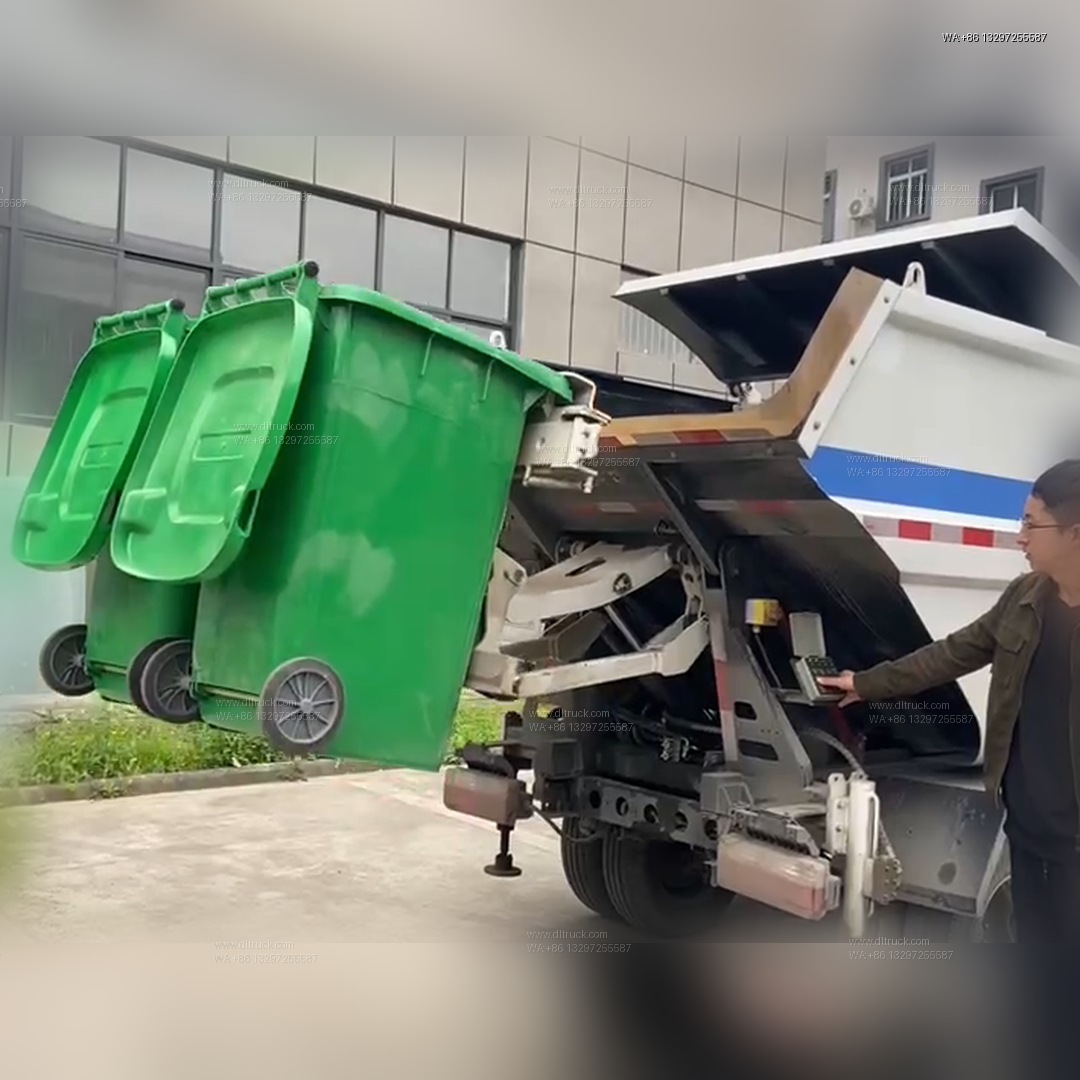

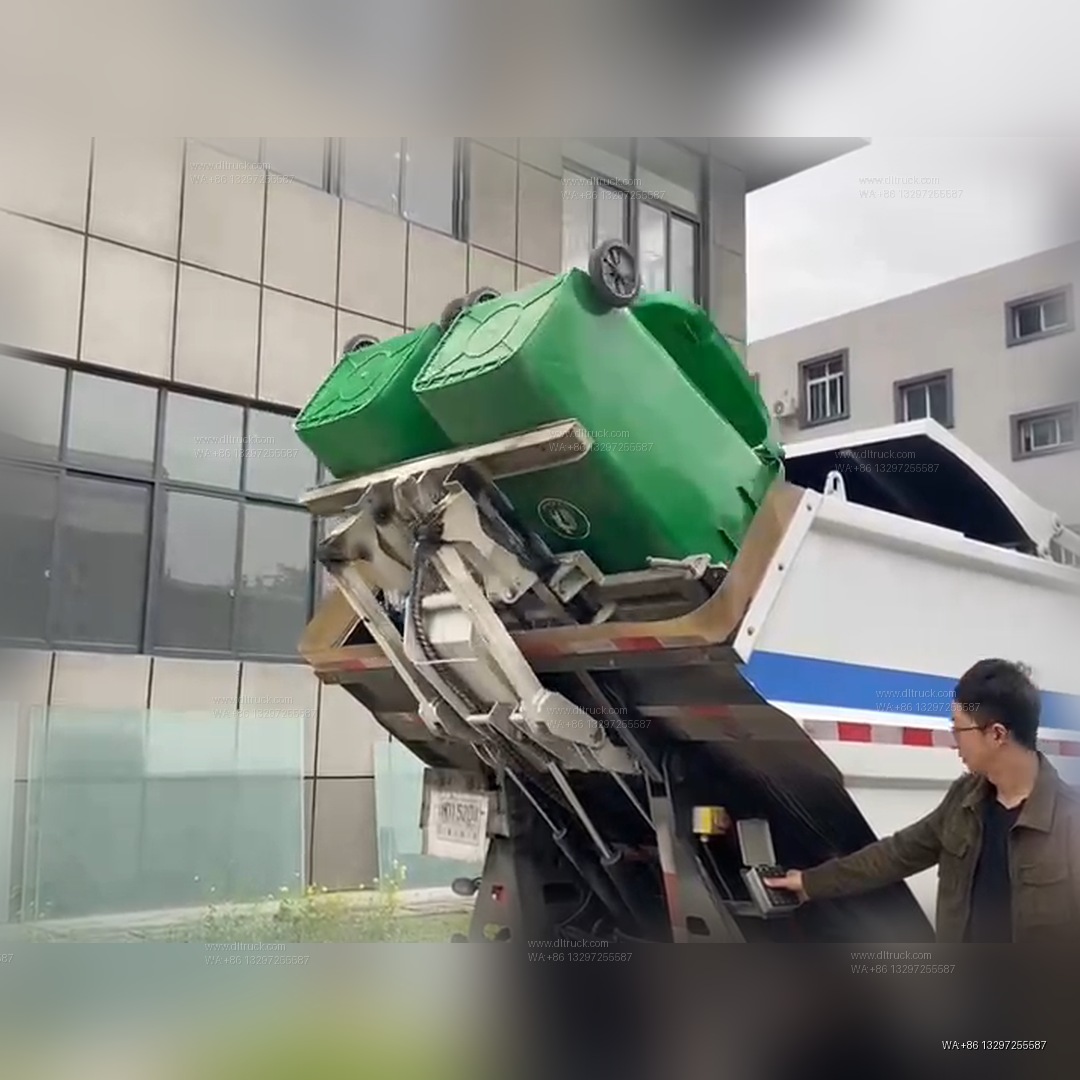

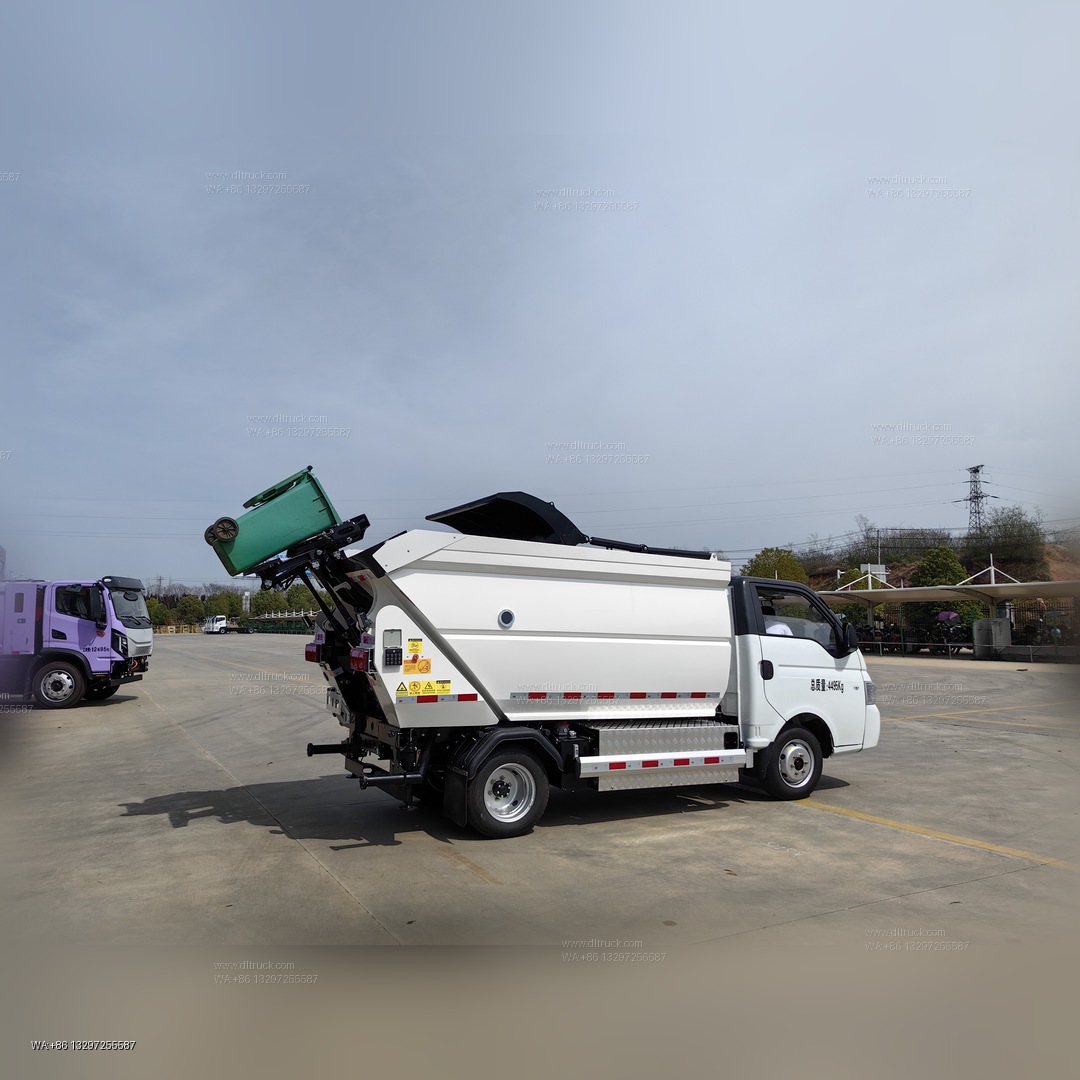

The lifting mechanism supports:

• Two 120L plastic bins
• Two 240L plastic bins
• One 660L waste bin
• Optional 300L metal waste bin

Electric Skip Loader Truck with Intelligent Electric Power

Powered by a 57.6kWh Gotion High-tech lithium iron phosphate battery, the vehicle delivers reliable daily performance with zero tailpipe emissions. Meanwhile, the permanent magnet synchronous motor provides smooth acceleration and stable power output.

Performance highlights include:

• 57.6kWh battery capacity
• 55kW rated power
• 150kW peak power
• 265km driving range
• Approximately 35-minute fast charging
• Maximum speed of 90km/h

Electric Skip Loader Truck with Quiet Hydraulic Operation

The optimized hydraulic drive system keeps the electric motor operating within its highest efficiency range. In addition, the low-noise hydraulic pump limits operating noise to 65dB or below, making the vehicle suitable for residential districts and other noise-sensitive environments.

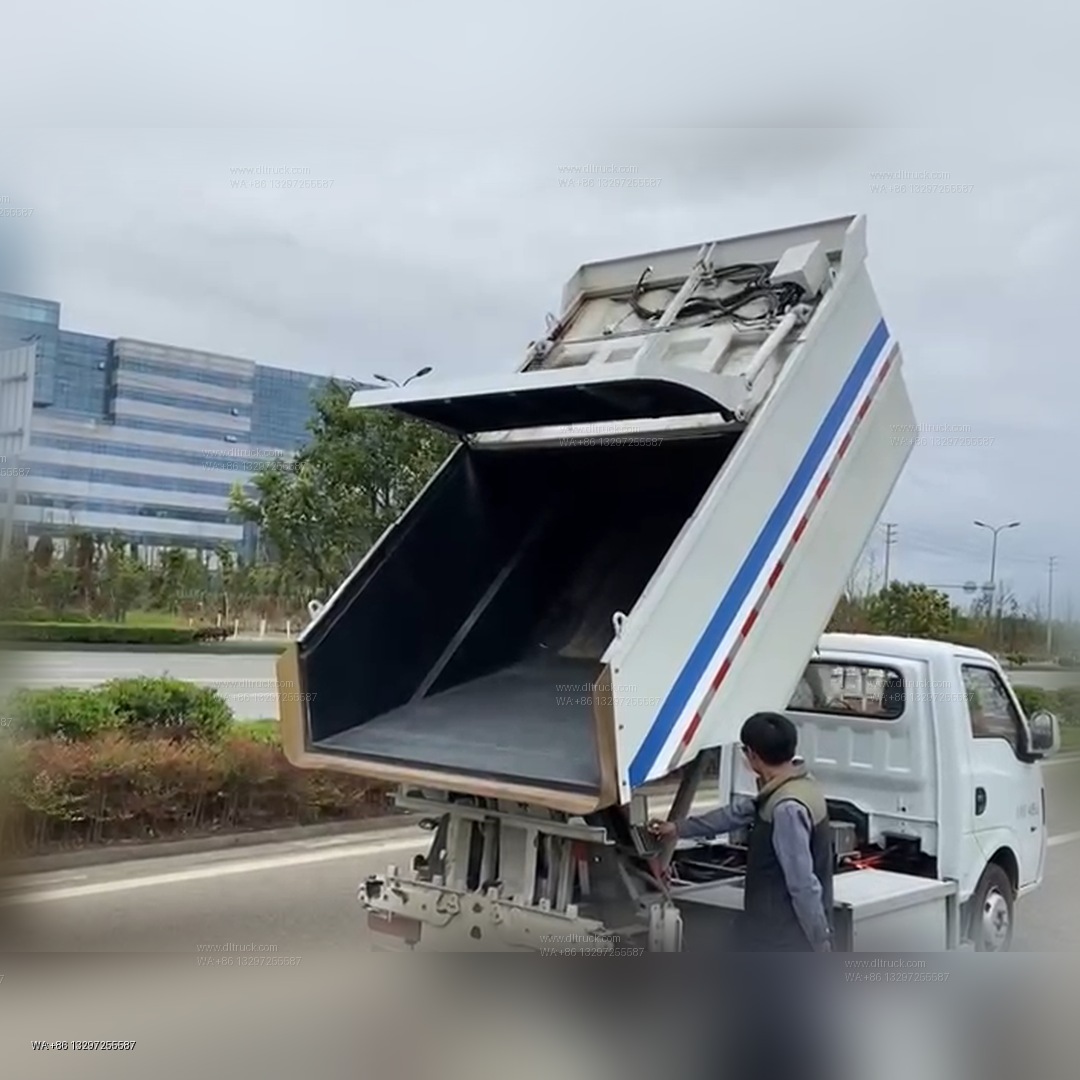

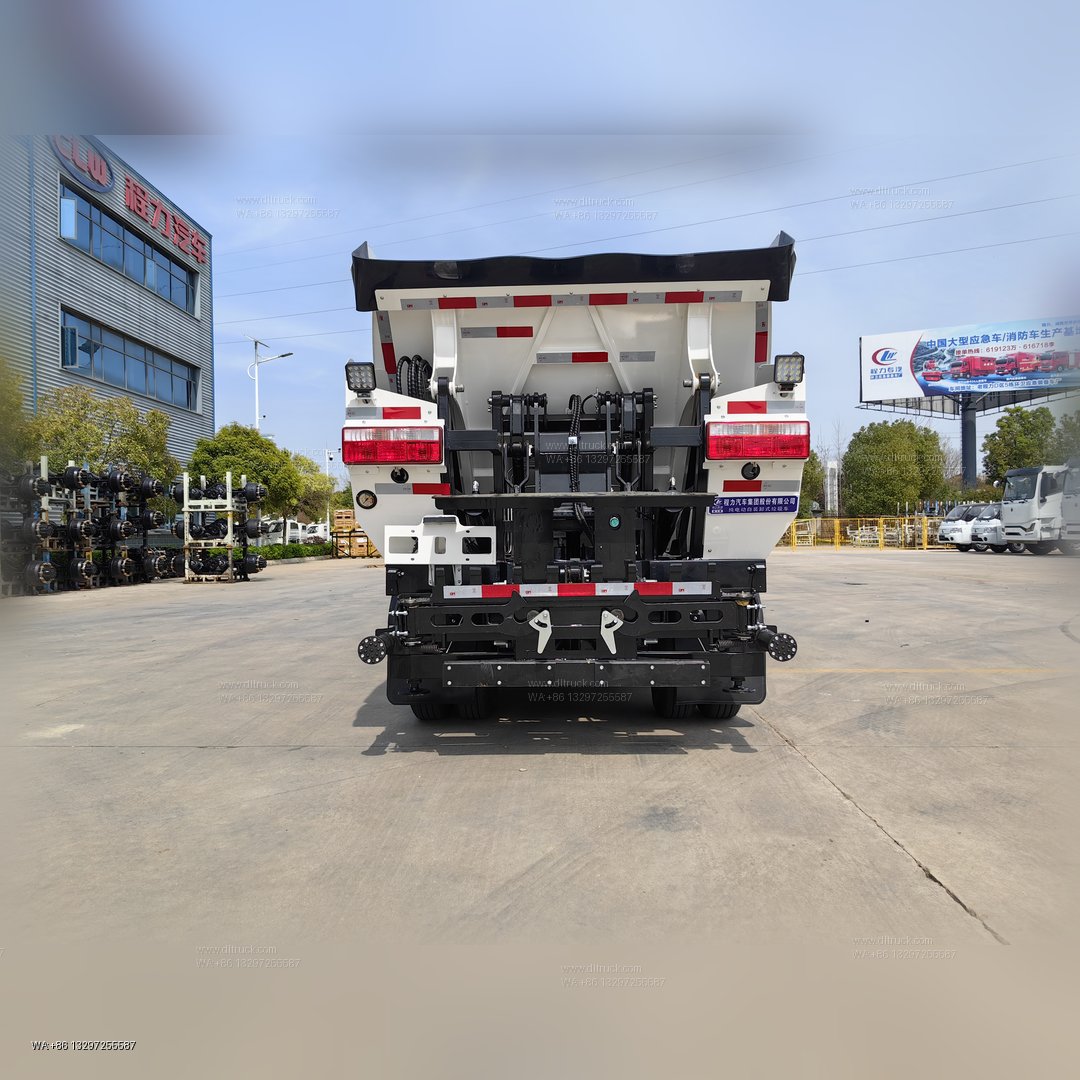

The elevated tipping mechanism also allows direct unloading into larger refuse transfer vehicles, improving transfer efficiency and reducing manual handling.

Applications

• Municipal sanitation departments
• Residential communities
• Farmers’ markets
• Commercial districts
• Industrial parks
• Schools
• Hospitals
• Tourist attractions
• Property management companies
• Urban waste collection projects

Optional Configurations

• 120L plastic bin lifting device
• 240L plastic bin lifting device
• 660L waste bin lifting device
• Optional 300L metal bin lifter

FAQ

What is the refuse body capacity?

The vehicle features a 4.5m³ refuse body with an actual loading capacity of approximately 2 tons and can transport more than 50 standard waste bins.

How long does charging take?

Fast charging requires approximately 35 minutes from 30% to 80% battery capacity.

Which waste bins are supported?

The lifting mechanism supports 120L, 240L, and 660L plastic waste bins, while a 300L metal bin lifter is available as an option.

Is the vehicle suitable for residential communities?

Yes. Its compact size, quiet hydraulic system, and excellent maneuverability make it ideal for residential communities, narrow streets, markets, and underground parking areas.

Conclusion

The Electric Skip Loader Truck combines intelligent vehicle integration, a compact self-loading design, fast charging, and zero-emission electric power into an efficient waste collection solution. With its 4.5m³ refuse body, multiple bin compatibility, quiet hydraulic operation, and flexible unloading system, it helps sanitation operators improve collection efficiency while reducing environmental impact. Contact us today for customization options and worldwide export services.
