Electric Aerial Work Platform Truck
23m Maximum Working Height
11m Maximum Working Outreach
57.6kWh Lithium Iron Phosphate Battery
200kg Rated Platform Capacity
30-Minute DC Fast Charging
360° Rotating Aerial Platform
The Electric Aerial Work Platform Truck is developed on a self-designed 4.5-ton electric chassis and delivers a clean, efficient solution for elevated maintenance and utility operations. Its integrated vehicle structure combines the chassis and aerial platform into one optimized system, improving stability, reducing maintenance requirements, and enhancing operational safety. Powered by a 57.6kWh lithium iron phosphate battery, the truck offers zero-emission performance, fast charging, and intelligent electronic control, making it suitable for municipal maintenance, power utilities, telecommunications, landscaping, airports, and industrial facilities.
Electric Aerial Work Platform Truck Overview
The Electric Bucket Lift Truck features an integrated electric chassis, intelligent vehicle management system, and lightweight body design. These features improve structural rigidity while maximizing payload and working performance. Furthermore, the electric drivetrain operates quietly, making the vehicle suitable for urban environments and noise-sensitive areas.
Electric Aerial Work Platform Truck for High-Reach Operations
The aerial platform provides a maximum working height of 23 meters and a maximum working outreach of 11 meters, allowing operators to safely access elevated work areas. In addition, the working platform supports 200kg, accommodating up to three operators with tools.
Key advantages include:
- 23m working height
- 11m horizontal outreach
- 200kg platform capacity
- 360° rotating work platform
- Stable hydraulic operation
- Smooth boom movement
Electric Aerial Work Platform Truck with Intelligent Safety

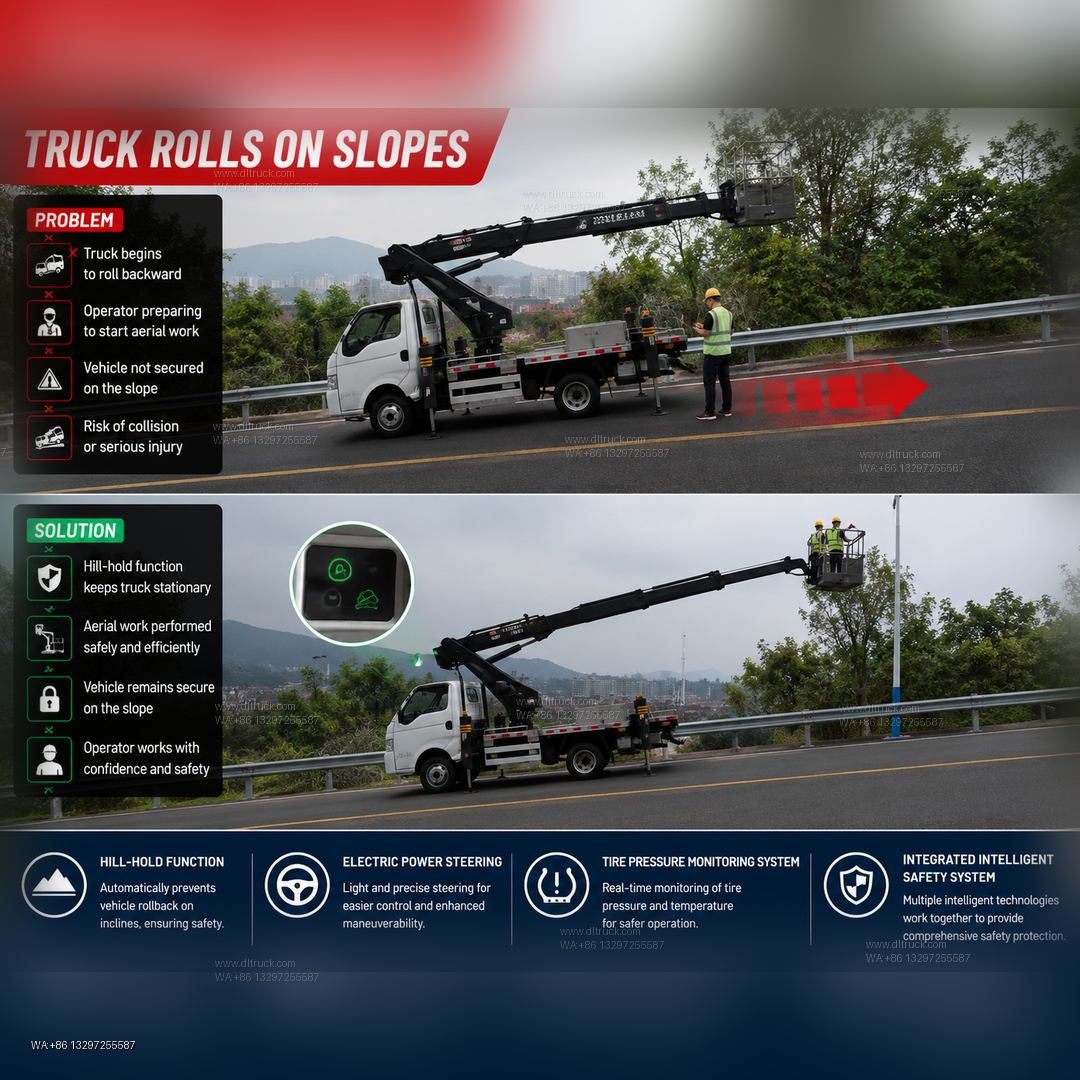

The vehicle integrates multiple intelligent safety systems to improve driving and operational security. Anti-roll-back assistance prevents unintended movement on slopes, while the tire pressure monitoring system continuously monitors tire conditions. Meanwhile, electric power steering improves handling and driving comfort.
Safety features include:
- Hill-start assist
- Tire pressure monitoring system
- Electric power steering
- Intelligent vehicle monitoring
- Real-time operating status monitoring
- Enhanced driving safety
Electric Aerial Work Platform Truck with Fast Charging
Powered by a 57.6kWh Gotion High-tech lithium iron phosphate battery, the truck provides reliable daily operation while reducing operating costs and emissions. The permanent magnet synchronous motor delivers smooth acceleration and efficient power output.
Performance highlights include:
- 57.6kWh battery capacity
- Permanent magnet synchronous motor
- 55kW rated power
- 110kW peak power
- 265km driving range
- DC fast charging from 30% to 80% in approximately 30 minutes
- Maximum driving speed of 90km/h
Electric Aerial Work Platform Truck Built for Durability
The chassis adopts high-strength 510L/610L structural steel and an electrophoretic anti-corrosion coating process that helps protect major structural components for 6–8 years under normal operating conditions. Furthermore, the integrated three-electric system optimizes power distribution through intelligent data analysis, improving energy efficiency during both driving and aerial operations.
Applications
- Street lighting maintenance
- Power line maintenance
- Telecommunications installation
- Traffic signal servicing
- Municipal engineering
- Tree trimming
- Airport facility maintenance
- Industrial plant maintenance
- Building exterior inspection
- Advertising installation
Optional Configurations
- Left-hand drive or right-hand drive
- Different working height configurations
- Customized warning lights
- Tool storage boxes
- Platform accessories
- Customer-specific paint scheme
FAQ
What is the maximum working height?
The aerial platform reaches a maximum working height of 23 meters with a maximum horizontal outreach of 11 meters.
How many people can the platform carry?
The platform supports a 200kg rated load, accommodating up to three operators with their tools.
How long does fast charging take?
The DC fast charging system charges the battery from 30% to 80% in approximately 30 minutes under suitable charging conditions.
Is the truck suitable for urban maintenance work?
Yes. Its compact dimensions, zero-emission electric drivetrain, quiet operation, and intelligent safety systems make it ideal for municipal maintenance, utility services, airports, industrial facilities, and commercial property management.
Conclusion
The Electric Aerial Work Platform Truck combines a self-developed electric chassis, a 23-meter aerial platform, intelligent safety systems, fast DC charging, and zero-emission performance into a dependable access solution. Its compact design, integrated vehicle structure, and durable anti-corrosion construction help contractors and municipal operators complete elevated work safely and efficiently. Contact us today for customization options and international export support.
Product Specifications
| Item | Specification |
|---|---|
| Vehicle Model | CL5042JGKBEV |
| Chassis Model | CL1041JBEV |
| Gross Vehicle Weight | 4,495 kg |
| Curb Weight | 4,365 kg |
| Overall Dimensions | 5,998 × 2,080 × 2,950 / 3,100 / 3,200 mm |
| Wheelbase | 2,800 mm |
| Battery Type | Lithium Iron Phosphate |
| Battery Brand | Gotion High-tech |
| Battery Capacity | 57.6 kWh |
| Battery Voltage | 384 V |
| Battery Capacity (Ah) | 150 Ah |
| Motor Type | Permanent Magnet Synchronous Motor |
| Rated / Peak Power | 55 / 110 kW |
| Rated / Peak Torque | 150 / 318 Nm |
| Maximum Speed | 90 km/h |
| Driving Range | 265 km |
| DC Fast Charging Time | About 30 min (30%–80% SOC) |
| Platform Capacity | 200 kg |
| Maximum Working Height | 23 m |
| Maximum Working Outreach | 11 m |
| Platform Rotation | 360° |
| Outrigger Span (Transverse) | 4,200 mm |
| Outrigger Span (Longitudinal) | 4,000 mm |
