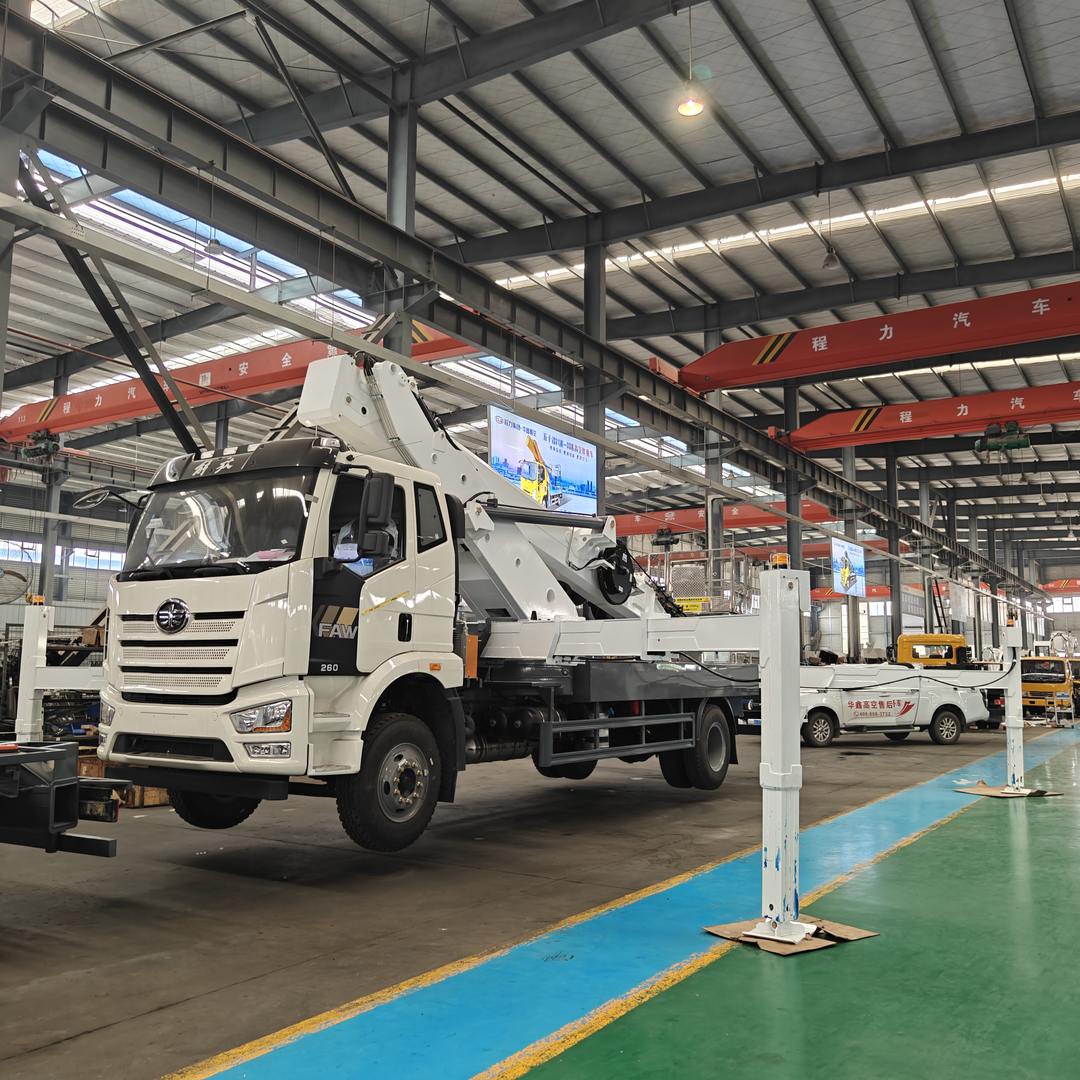

FAW 50m Aerial Work Platform Truck with Insulated Telescopic Boom
50m Maximum Working Height
Heavy-Duty 17-Sided Telescopic Boom
Imported Wireless Remote Control System
Reinforced Chassis & Composite Outriggers
| Item | Specification |
|---|---|
| Product Name | Insulated Aerial Work Platform Truck |
| Drive Type | 4×2 |
| Chassis Brand | ISUZU |
| Engine | Isuzu / Cummins Diesel Engine |
| Horsepower | 120-150HP |
| Engine Capacity | ＜4L |
| Transmission | Manual |
| Fuel Type | Diesel |
| Emission Standard | Euro 4 |
| Fuel Tank Capacity | 100L |
| Max Working Height | 15m |
| Bucket Material | Reinforced Fiberglass Insulated Bucket |
| Bucket Load Capacity | 200 kg |
| Bucket Rotation | 360° |
| Wheelbase | 3360 mm |
| Tire Specification | 7.00R16 |
| Overall Dimension | 5995 × 2300 × 2850 mm |
| Max Driving Speed | 90 km/h |
| Control System | Hydraulic Control |
| Operation Modes | Platform Control, Ground Remote Control, Bucket Control, Emergency Lever |
| Steering | Hydraulic Power Steering |
| Insulation Type | Partial Insulation / Optional Full Boom Insulation |
| Application | Electrical Maintenance, Street Light Repair, Telecom Work |
Product Description
Professional Insulated Aerial Platform for Electrical Operations
This ISUZU insulated aerial work platform truck is specially designed for high-altitude electrical maintenance and utility operations. Equipped with a reinforced fiberglass insulated bucket and a stable telescopic boom structure, the vehicle provides safe and efficient access for power line maintenance, street lighting repair, and telecom installation work.
With a 15-meter working height, the truck is ideal for operations around utility poles, overhead cables, and urban maintenance projects.
Reinforced Fiberglass Insulated Bucket
The aerial bucket uses high-strength fiberglass insulation material, offering excellent electrical insulation performance and long-term durability.
Key advantages include:
- Reliable insulation protection
- Lightweight but strong structure
- Weather-resistant material
- Safe for live-line operations
- Lower maintenance costs
Each insulated component can undergo strict voltage breakdown testing, and insulation test reports can be provided according to customer requirements.
Optional Full Boom Insulation Design
To help customers balance safety requirements and project budgets, the truck supports both:
- Partial insulation configuration
- Full boom insulation configuration
The optimized insulation design allows customers to reduce unnecessary costs while still achieving the required operational safety standard.
This solution is widely welcomed in overseas utility and municipal projects.
Strong Boom Structure with Long Service Life
The boom adopts high-strength steel material with excellent anti-yield performance.
Even after years of continuous operation, the boom maintains:
- Stable lifting performance
- Strong structural rigidity
- Reduced deformation risk
- Smooth platform movement
This makes the truck suitable for demanding daily utility operations and heavy-duty outdoor environments.
Multiple Operation Modes for Easy Control
The vehicle is equipped with an advanced hydraulic control system and supports four operation methods:
- Platform electrical control
- Ground remote control
- Bucket controller
- Emergency operation lever
The flexible control system improves operational efficiency and enhances safety during emergency situations.
Widely Used for Overseas Utility Projects
This aerial platform truck is suitable for:
- Electric power companies
- Municipal maintenance departments
- Telecom contractors
- Street light installation projects
- Construction maintenance companies
Both left-hand drive and right-hand drive versions are available for export markets.
We also support customized chassis brands including:
- ISUZU
- FAW
- FOTON
- JAC
- SHACMAN
- SINOTRUK
Professional Export & Customization Support
We provide complete overseas delivery solutions including:
- OEM customization
- Different working height options
- Full insulation upgrades
- Hydraulic system customization
- Spare parts supply
- Technical training
- After-sales support
Working heights from 8m to 68m are available according to project requirements.
