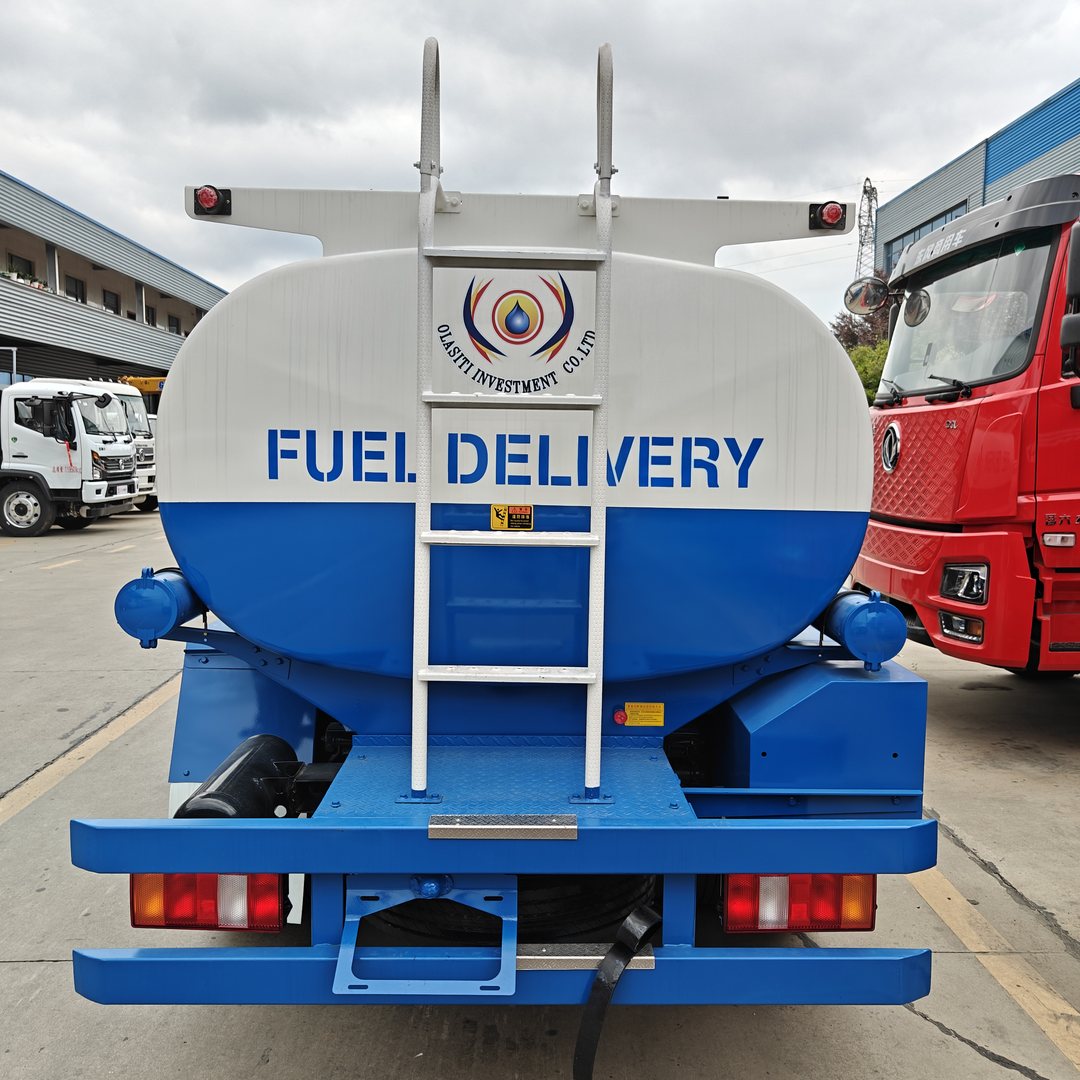

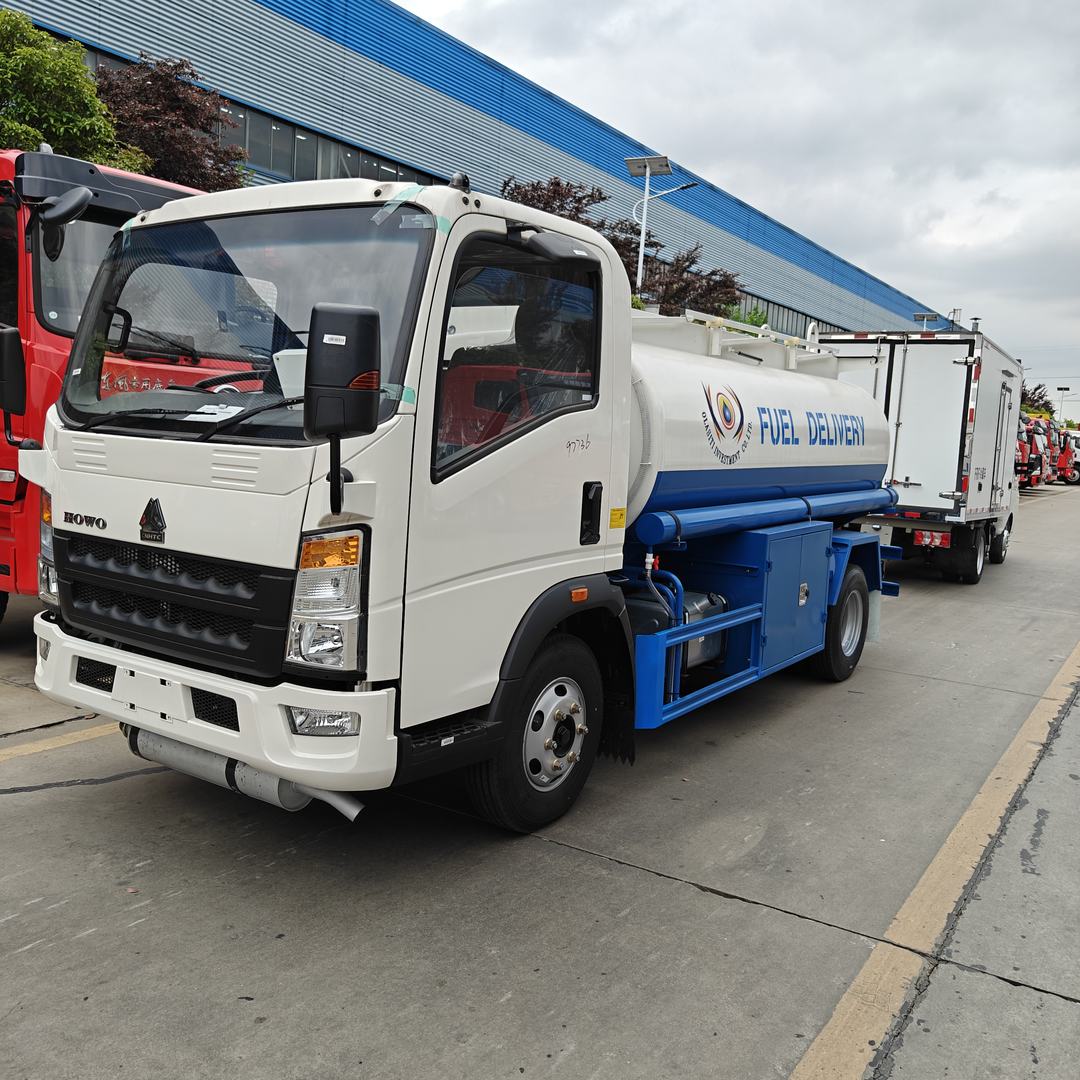

5 ton HOWO fuel tanker truck
- Built for Every Market & Terrain
- 4×4 Power for Tough Conditions
- Designed for Safe Fuel Transport
- EU Standard Fueling Solution
5 ton HOWO fuel tanker truck with 5000L tank, optional 4×4 chassis, and mobile refueling system for diesel and gasoline delivery.
Product Specifications
| Item | Specification |
|---|---|
| Drive Type | 4×2 / Optional 4×4 |
| Chassis Brand | SINOTRUK HOWO |
| Engine | Weichai 130HP / Yunnei / Cummins Optional |
| Horsepower | 130HP |
| Transmission | 5-Speed Manual |
| Tank Capacity | 5,000 Liters (5CBM) |
| Tank Material | Carbon Steel / Aluminum Alloy / SS304 Optional |
| Tank Thickness | Body 4-5mm / Head 5mm |
| Wheelbase | Optional / Customizable |
| Tire | 7.50R16LT 8PR Steel Wire Tires |
| Fuel Type | Diesel |
| Emission | Euro 2 / 3 / 4 / 5 Optional |
| Fuel Tank Capacity | 100-200 Liters |
| Axle Configuration | 2.0T Front Axle / 3.5T Rear Axle |
| Overall Dimension | 6550 × 2210 × 3050 mm |
| Gross Vehicle Weight | 5-10 Tons |
| Application | Diesel & Petrol Transportation |
Product Description
Looking for the right truck?
Need a compact fuel truck that can handle construction sites, remote projects, or daily fuel supply work?
This 5 ton fuel tanker truck offers flexible configurations, practical fuel transport capacity, and reliable operation for different working environments.
Product Overview
This oil delivery truck is built on the original SINOTRUK HOWO hazardous goods chassis and is suitable for diesel and gasoline transportation.
With a 5000-liter tank capacity, the truck works well for construction sites, mining projects, agricultural equipment refueling, and remote fuel delivery operations.
Customers can choose standard 4×2 drive or optional 4×4 off-road configuration for muddy roads and rough terrain.
The truck also supports left-hand and right-hand drive customization for different overseas markets.
This fuel delivery truck combines compact size with practical transport performance, making it suitable for both urban and off-road fuel supply work.
Why This Truck Stands Out
Flexible Chassis Options
The optional 4×4 system gives this fueling truck better traction on mining roads, construction sites, and uneven terrain.
Multiple Tank Material Choices
Customers can choose carbon steel for cost efficiency, aluminum alloy for lighter weight, or stainless steel for corrosion resistance.
Reliable Hazardous Goods Chassis
The original HOWO dangerous goods chassis includes ABS, front disc brakes, and spark arrestor for safer transport operation.
Mobile Refueling Capability
Optional fuel dispenser and hose reel allow this mobile refueling truck to work like a small portable fuel station.
Efficient Fuel Transfer
The high-flow pump system supports fast fuel loading and unloading during daily operations.
Where It Works Best
✔ Construction projects
✔ Mining operations
✔ Agricultural machinery refueling
✔ Remote fuel delivery
✔ Fleet fuel management
✔ Industrial job sites
Chassis Benefits
The HOWO light-duty chassis is widely used in overseas markets because of convenient maintenance and strong spare parts support.
Its diesel engine options offer stable fuel economy for long-term transport work.
The compact body size also makes this diesel fuel truck easier to operate on narrow roads and temporary work sites.
For demanding environments, the optional 4×4 system improves road adaptability significantly.

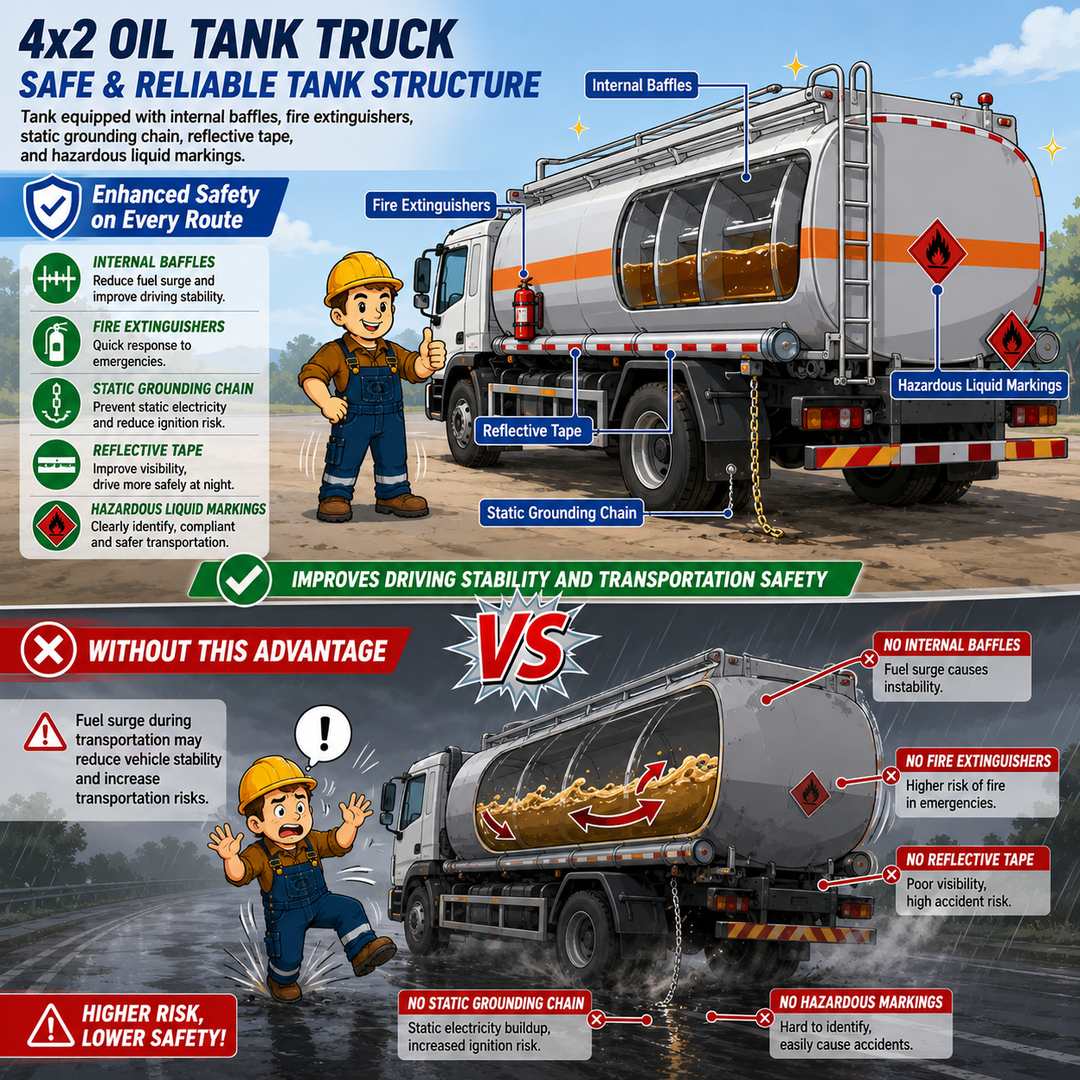

Safety & Refueling System
The tank body includes internal baffles to improve driving stability during fuel transport.
Safety configurations include:
✔ Fire extinguishers
✔ Static conductive drag chain
✔ 3M reflective tape
✔ Flammable liquid warning signs
✔ Original ABS system

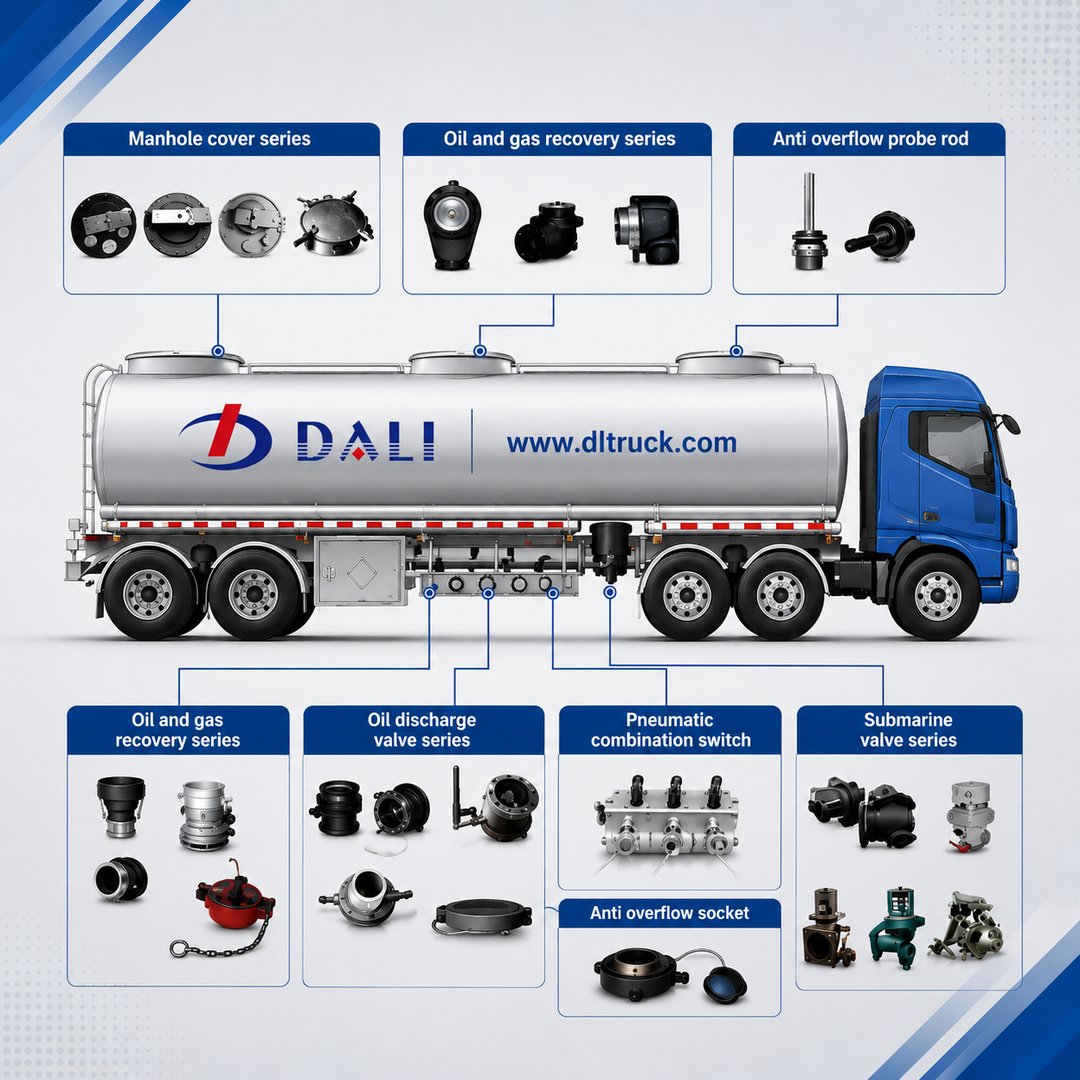

Optional European-standard refueling system includes:
✔ EU standard manhole
✔ Pneumatic bottom valve
✔ API adapter
✔ Vapor recovery system
✔ Overfill prevention probe
This gasoline tanker truck can also be equipped with a dispenser system for direct vehicle refueling on-site.
Export & Custom Options
Different export specifications are available according to market requirements.
Optional configurations include:
✔ Left-hand / right-hand drive
✔ 4×2 or 4×4 chassis
✔ Carbon steel / aluminum / stainless tank
✔ Fuel dispenser system
✔ Hose reel system
✔ Company logo customization
✔ Euro emission standards
✔ CKD / SKD shipment
FAQ
What fuel types can this truck transport?
The truck is suitable for diesel, gasoline, and other approved liquid fuels.
Can the truck work in mining areas?
Yes. The optional 4×4 chassis is suitable for rough roads, muddy conditions, and mining operations.
Is the tank material customizable?
Yes. Carbon steel, aluminum alloy, and stainless steel tank options are available.
Do you provide after-sales support?
Video technical support, overseas service assistance, and spare parts support are available.
Request A Quote
Need fuel truck price information, shipping costs, or custom configurations?
Send your inquiry today and get a suitable solution for your fuel transport business.
