18CBM Foton Auman Compactor Garbage Truck
✔ 18CBM Large Capacity
✔ 245HP Strong Power
✔ ≥2.5 Compression Ratio
✔ Dual Sewage Tank System
Product Specifications
| Item | Specification |
|---|---|
| Drive Type | 4×2 |
| Chassis Brand | Foton Auman |
| Engine | Yuchai 6-Cylinder Diesel |
| Horsepower | 245HP |
| Transmission | Manual |
| Tank Capacity | 18CBM |
| Tank Material | Q345 Manganese Steel with Epoxy Lining |
| Wheelbase | 5150mm |
| Tire | 10.00R20 |
| Fuel Type | Diesel |
| Emission | Euro 3 / 4 / 5 / 6 |
| Overall Dimension | 9580 × 2550 × 3400 mm |
| Payload | Optional / Customizable |
| Compression Ratio | ≥2.5 |
| Hopper Capacity | Approximately 1.5CBM |
| Hydraulic Pressure | 18MPa |
| Sewage Tank | Dual Sewage Tank System |
| Control System | CAN Bus + Siemens PLC |
| Application | Municipal waste collection, industrial waste transport, community sanitation projects |
Product Description
Looking for the right truck?
Need a garbage collection truck that can handle larger routes while reducing operating costs and transport frequency?
Municipal and sanitation projects often require more than simple waste transportation. Greater compression performance, cleaner operation, and reliable daily service can make a significant difference.
Product Overview

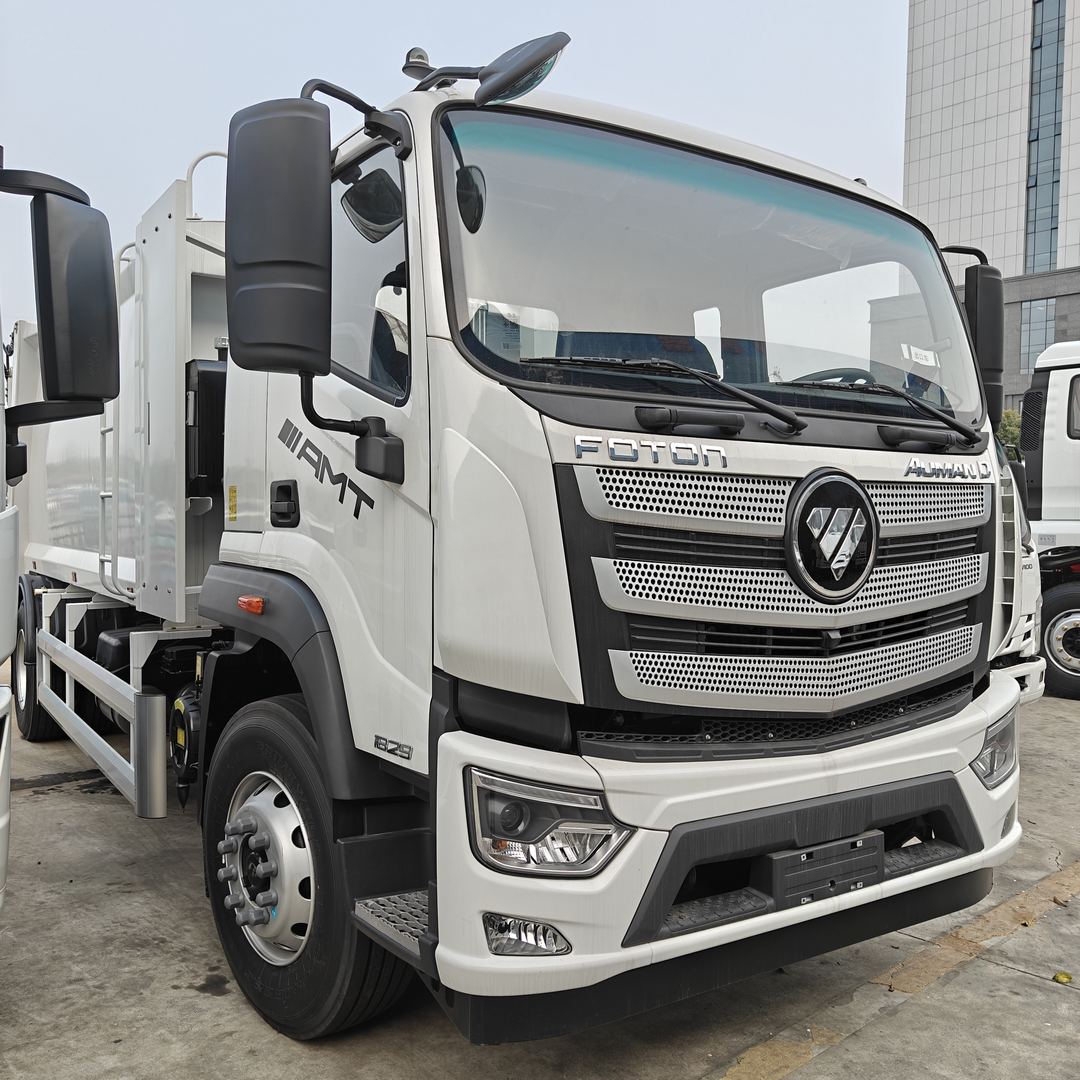

The 18CBM Foton Auman Compactor Garbage Truck combines large waste volume with a smart hydraulic compression system for demanding sanitation work.
Built on the Foton Auman 4×2 chassis and powered by a 245HP Yuchai diesel engine, this truck offers stable road performance and efficient waste handling capability. The 18CBM garbage body supports larger collection volumes while reducing the number of trips required.
The body structure uses Q345 high-strength manganese steel with an internal epoxy coating to improve corrosion resistance and service life.
Why This Truck Stands Out
Large Waste Capacity
The 18CBM garbage body supports high-volume waste collection and helps improve route efficiency.
Powerful Compression Performance
With a compression ratio of 2.5 or above, the truck increases loading density and reduces transportation frequency.
Smart Control System
The Foton Auman compactor garbage truck uses CAN electrical automatic control together with a Siemens PLC system for smooth and reliable operation.
Cleaner Waste Transportation
Dual sewage tanks help collect wastewater and reduce secondary pollution during transportation.
Reliable Hydraulic Operation
Hydraulic pressure reaches 18MPa, creating strong and stable compression force during operation.
The compactor garbage truck is suitable for demanding waste collection environments where efficiency and reliability matter.
Where It Works Best
✔ Municipal sanitation projects
✔ Urban waste collection routes
✔ Industrial park waste transport
✔ Residential communities
✔ Commercial districts
✔ Public facility maintenance
✔ Property management projects
✔ Environmental sanitation operations
Chassis Benefits
The Foton Auman chassis platform provides practical operating advantages:
- Stable performance during continuous operation
- Convenient maintenance access
- Good fuel economy
- Strong payload capability
- Spare parts available in many export markets
- Comfortable cabin environment for drivers
The forward-tilting cabin design also improves maintenance access and service convenience.
Export & Custom Options
Flexible configurations are available for overseas markets:
- CKD / SKD shipment available
- Left-hand drive / Right-hand drive
- Customized logo and body paint
- Optional rear bucket structures
- Different loading mechanisms available
- Euro emission customization
- Optional automatic and manual control systems
- Multiple chassis brands available
FAQ
What is the garbage body capacity?
The truck uses an 18CBM compactor body, suitable for municipal and large-scale waste collection operations.
What is the compression ratio?
The compression ratio reaches 2.5 or higher, increasing waste carrying efficiency.
How does the sewage system work?
The truck uses a dual sewage tank design to collect wastewater and help reduce road contamination during transportation.
What after-sales service is available?
We provide technical support, spare parts service, and export after-sales assistance.
Request A Quote
Need pricing, shipping costs, or custom configurations?
Send your inquiry today and get a practical waste collection solution tailored to your project requirements.
