FAW 16m³ 20m³ Compactor Garbage Truck

Product Overview

The FAW Compactor Garbage Truck is a heavy-duty rear loader designed for efficient municipal waste collection and transportation. With 16m³ and 20m³ garbage body options, it offers a practical solution for large-scale sanitation operations.

Powered by a 370HP FAW diesel engine, the vehicle provides strong performance for demanding waste collection routes. In addition, the high compression ratio of ≥1:3 allows operators to load more waste during each trip and reduce unnecessary transportation cycles.

Built on the reliable FAW JH6 chassis, this rear loader garbage truck combines high power, large capacity, efficient compression, and convenient operation. As a result, it can serve municipal sanitation projects, urban waste collection, residential communities, industrial parks, and commercial areas.

Efficient Rear Loading and Waste Compression

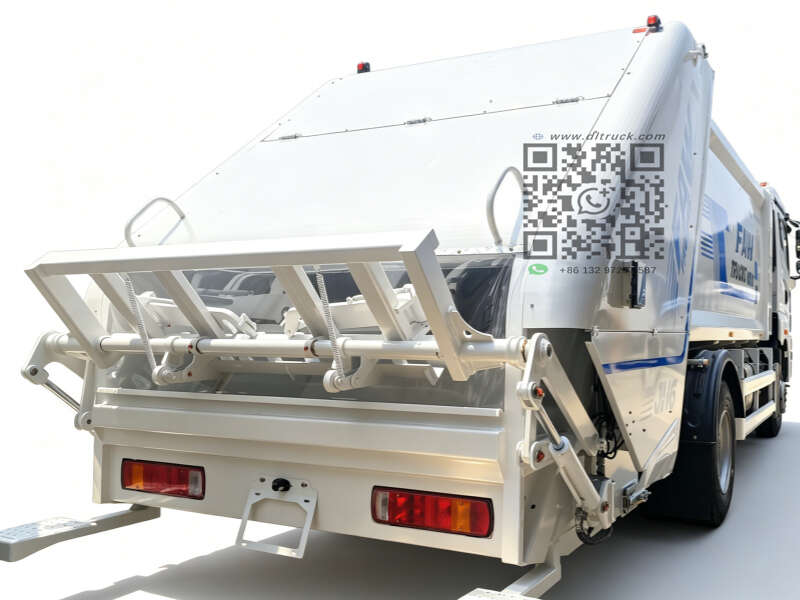

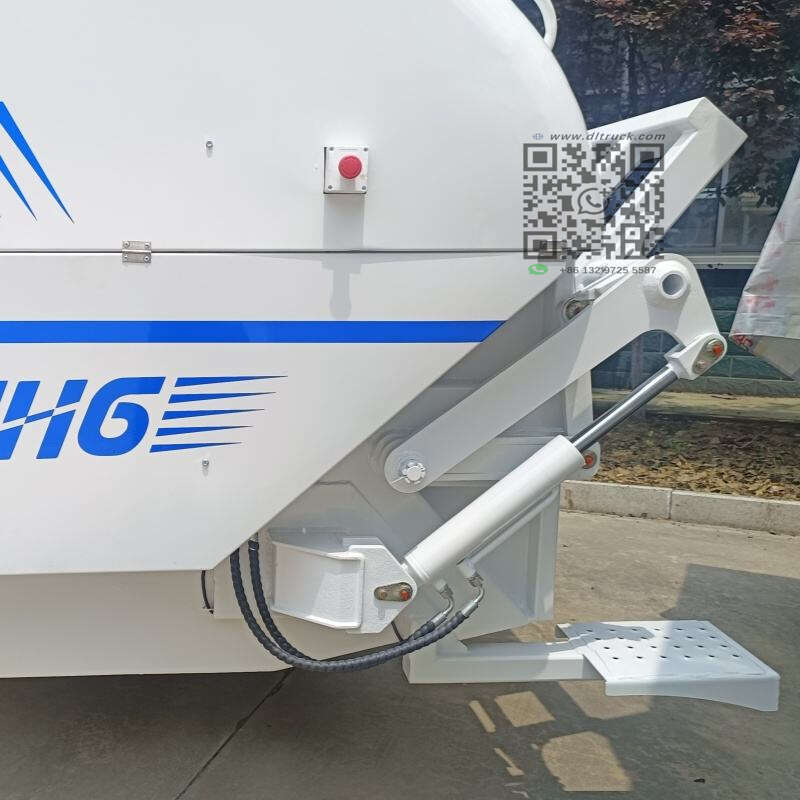

Waste enters through the rear loading mechanism and moves into the compactor body for compression. Meanwhile, the standard garbage bin lifting mechanism helps operators load waste efficiently during daily collection routes.

With a compression ratio of ≥1:3, the system reduces the volume of collected waste before transportation. Therefore, operators can carry more waste per trip and potentially reduce the number of trips required for busy collection routes.

A hydraulic push plate then discharges the compressed waste during unloading. This design provides smooth and efficient waste discharge while helping shorten the unloading process.

For customers with different collection requirements, the garbage body can be configured with 16m³ or 20m³ effective volume.

Why Choose This FAW Compactor Garbage Truck?

Large 16m³–20m³ Waste Capacity

The large compactor body provides plenty of space for daily waste collection. As a result, fleet operators can improve route efficiency and reduce transportation frequency.

Moreover, customers can select a 16m³ or 20m³ configuration according to local waste volumes and operating conditions.

Powerful 370HP FAW Engine

A 370HP FAW CA6DL2-370E5 engine provides strong power for heavy-duty waste collection and transportation.

Combined with a Fast 10-speed manual transmission, the powertrain supports stable vehicle operation on urban roads and longer transportation routes. Therefore, the truck can handle demanding sanitation work more effectively.

High Compression Ratio

The compactor system achieves a compression ratio of ≥1:3. This high compression performance helps reduce loose waste volume and increases the amount of waste transported in each load.

As a result, operators can improve transportation efficiency while reducing unnecessary collection trips.

Fast Compression Cycle

Each compression cycle takes ≤15 seconds, allowing the truck to maintain an efficient working rhythm during continuous collection operations.

In busy urban areas, faster cycles can help reduce waiting time and improve daily productivity. Meanwhile, the rear loading structure supports convenient waste collection from standard garbage bins.

Hydraulic Push Plate Unloading

During unloading, the hydraulic push plate moves the compressed waste out of the garbage body efficiently.

This system provides stable discharge performance and helps operators complete unloading operations with less manual effort. Therefore, it is suitable for regular municipal and commercial waste collection routes.

Built-in Sewage Tank

Liquid waste can create leakage and secondary pollution during transportation. To address this issue, the vehicle features a built-in sewage tank with a capacity of ≥300L.

The tank collects liquid waste during collection and transportation. Consequently, it helps maintain a cleaner working environment and reduces the risk of waste liquid leakage.

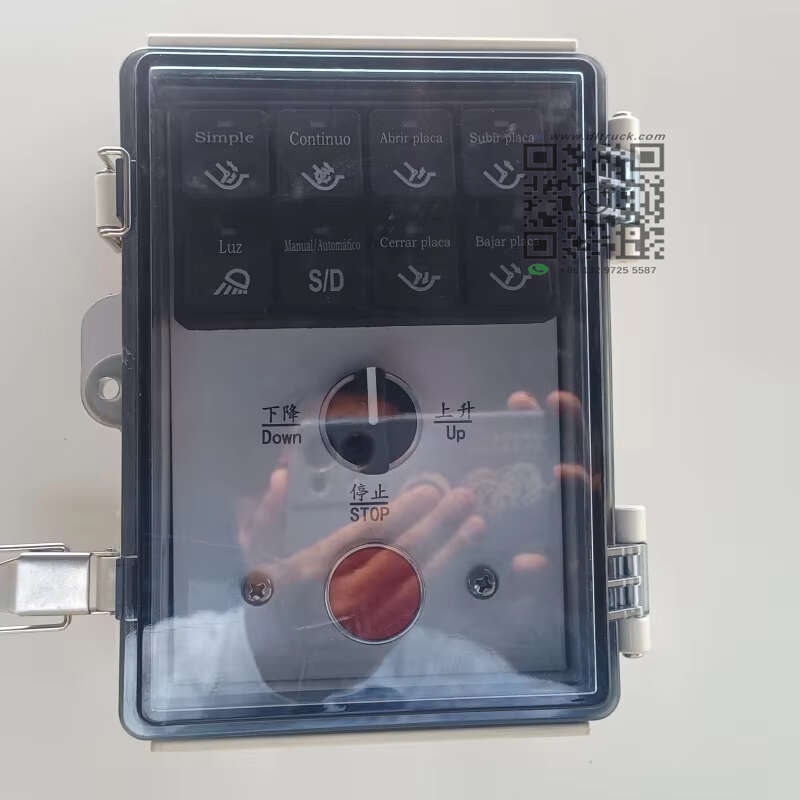

Dual Control System

Operators can control the garbage collection system from the cab or use the rear manual control panel.

This dual-control design provides greater flexibility during different operating conditions. For example, the driver can manage the system from the cab, while workers can operate the rear controls during loading activities.

Where It Works Best

The FAW Compactor Garbage Truck can support a wide range of waste management operations, including:

• Municipal sanitation projects
• Urban waste collection
• Residential community waste collection
• Industrial park waste transportation
• Commercial district sanitation
• Public facility waste collection
• Large property management projects
• City environmental sanitation services

Because of its large capacity and high compression performance, the truck works particularly well for high-volume waste collection routes.

FAW JH6 Chassis and Vehicle Benefits

The FAW JH6 chassis provides a strong platform for heavy-duty waste collection applications.

Key vehicle features include:

• 370HP FAW diesel engine
• Fast 10-speed manual transmission

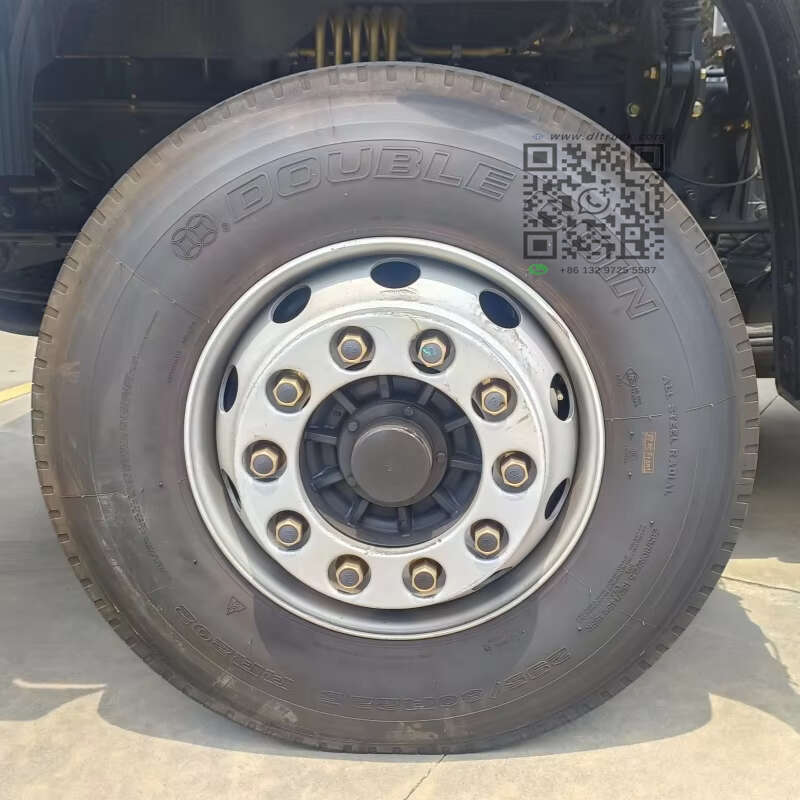

• 12.00R20 radial tires
• High-roof sleeper cab
• Factory air conditioning
• 400L aluminum alloy fuel tank
• Air braking system with ABS
• Heavy-duty chassis structure
• Reliable performance for continuous operation
• Suitable for long-distance waste transportation

Furthermore, the high-roof sleeper cab provides a more comfortable working environment for long-distance operations. The 400L aluminum alloy fuel tank also supports extended driving between refueling stops.

For demanding municipal and commercial sanitation applications, this combination of power, capacity, and chassis durability offers a practical operating solution.

Product Specifications

Export and Custom Options

Different countries and sanitation projects may require different vehicle configurations. For this reason, we provide flexible options for international customers.

Available configurations include:

• 16m³ or 20m³ garbage body
• Customized garbage body capacity
• Left-hand drive or right-hand drive
• Different emission standards
• Customized vehicle color
• Company logo and branding
• High-strength carbon steel garbage body
• Stainless steel garbage body
• Different garbage bin lifting mechanisms
• Customized hydraulic system
• CKD / SKD export options

In addition, we can discuss other chassis and body configurations based on the requirements of your local market.

Frequently Asked Questions

What is the capacity of this FAW Compactor Garbage Truck?

The truck offers 16m³ or 20m³ effective garbage body capacity. We can also customize the body volume according to specific project requirements.

What is the compression ratio?

The garbage compactor provides a compression ratio of ≥1:3. Therefore, it can significantly reduce loose waste volume and improve transportation efficiency.

How fast is the compression cycle?

A single compression cycle takes ≤15 seconds. This fast cycle supports continuous waste collection and helps improve daily operating efficiency.

How is the garbage unloaded?

The vehicle uses a hydraulic push plate unloading system. During unloading, the push plate moves the compressed waste out of the garbage body efficiently.

Does the truck have a sewage tank?

Yes. A built-in sewage tank with a capacity of ≥300L collects liquid waste during operation. As a result, it helps reduce leakage and secondary pollution during transportation.

Can this FAW Garbage Truck be customized for export?

Yes. We can customize the truck according to the destination market and project requirements. Options include garbage body capacity, steering position, emission standards, body material, color, lifting mechanism, and other equipment.
