Pure Electric Compression Refuse Collector
4.5T Pure Electric Compression Refuse Truck
4.5m³ Large Capacity Compactor Body
57.6kWh Lithium Iron Phosphate Battery
Fast Charging in About 35 Minutes
Low Noise & Zero Emissions
Compatible with 120L, 240L and 660L Waste Bins
Electric Refuse Collector

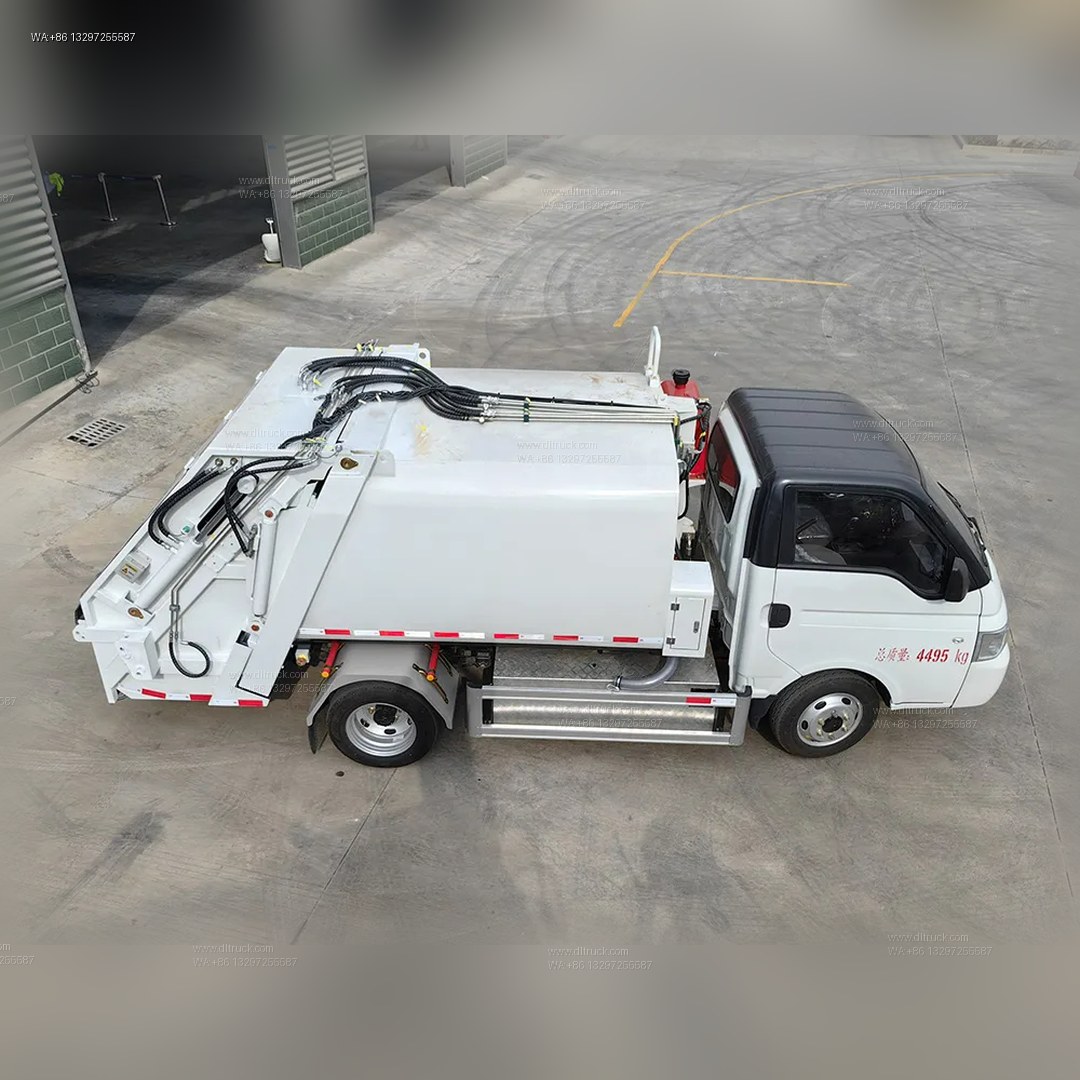

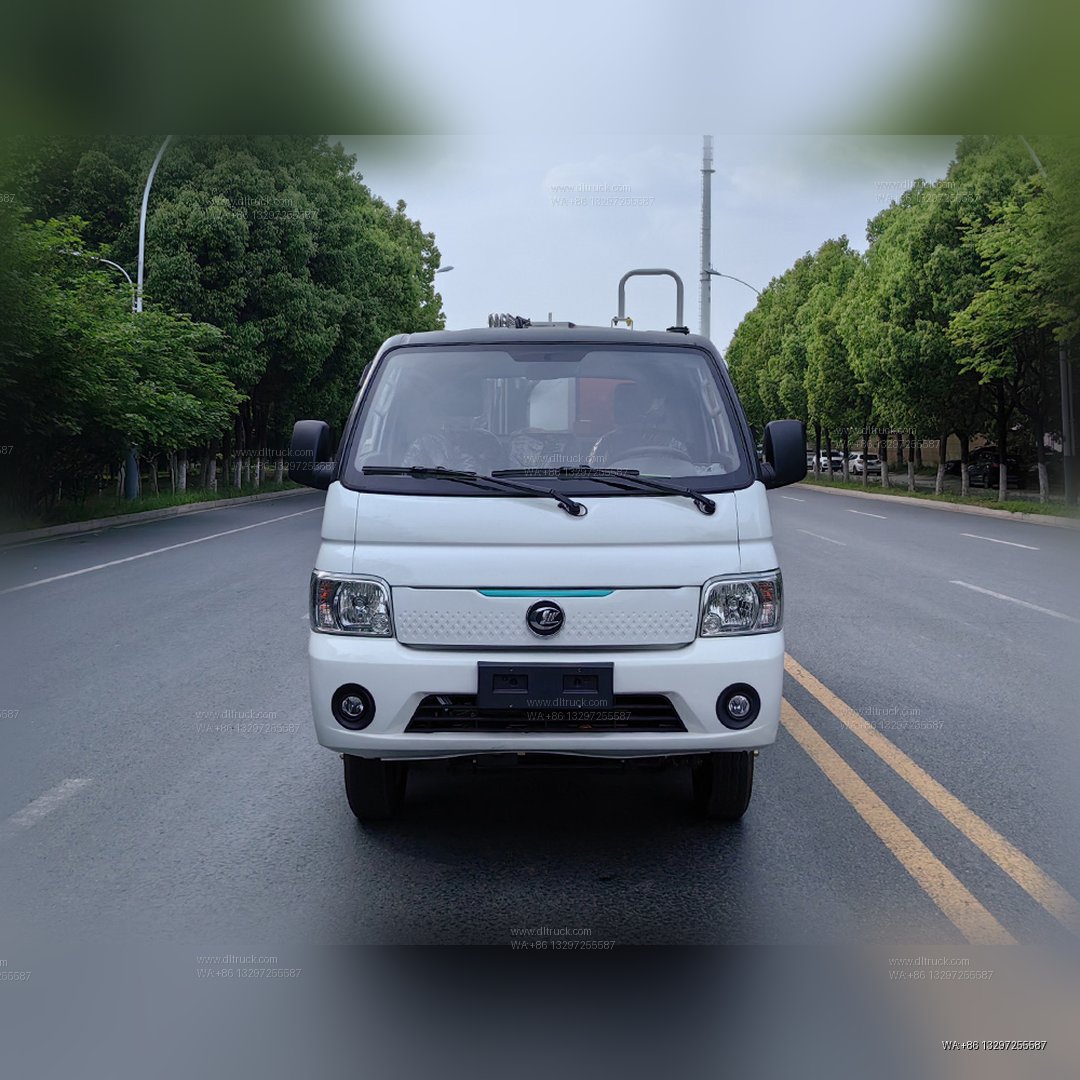

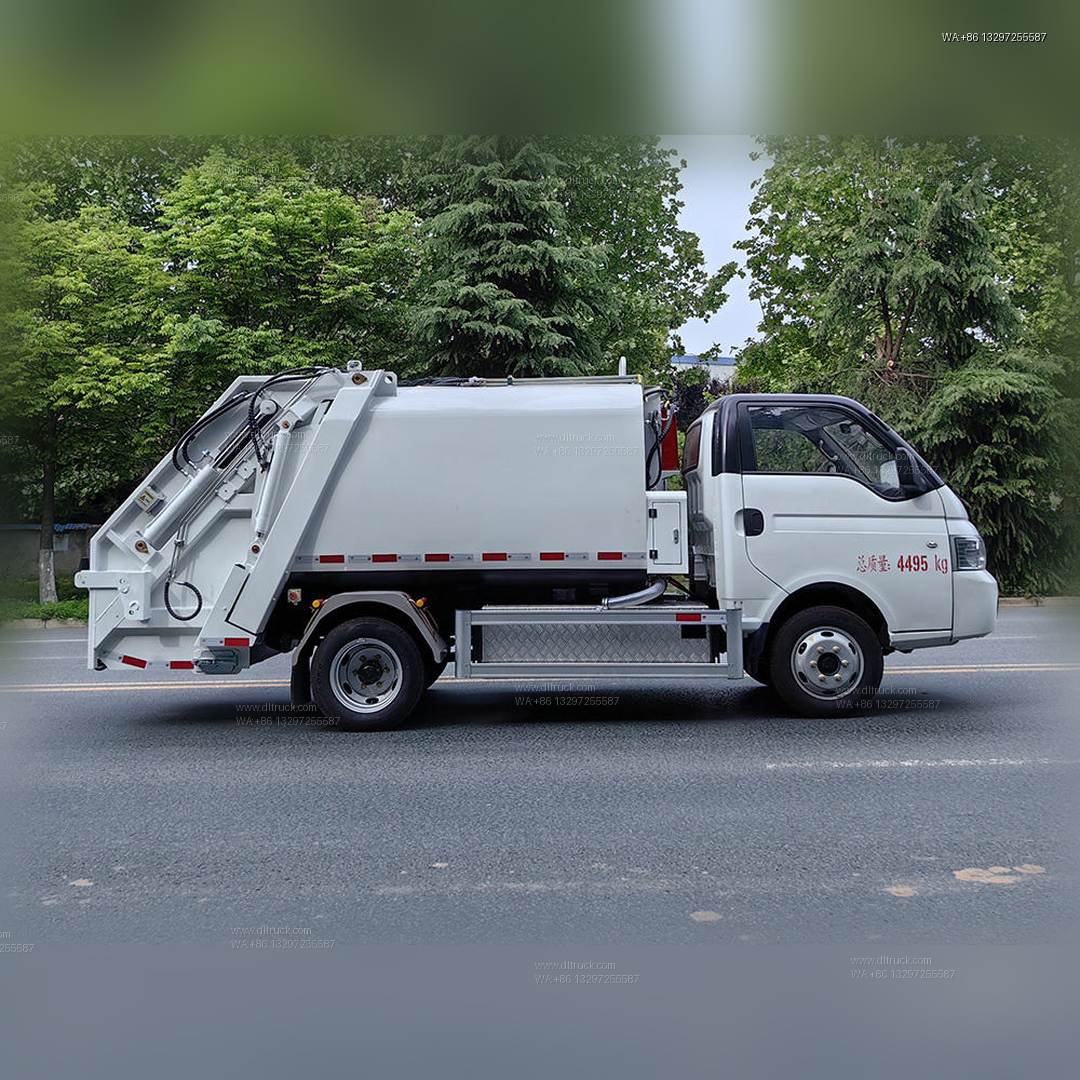

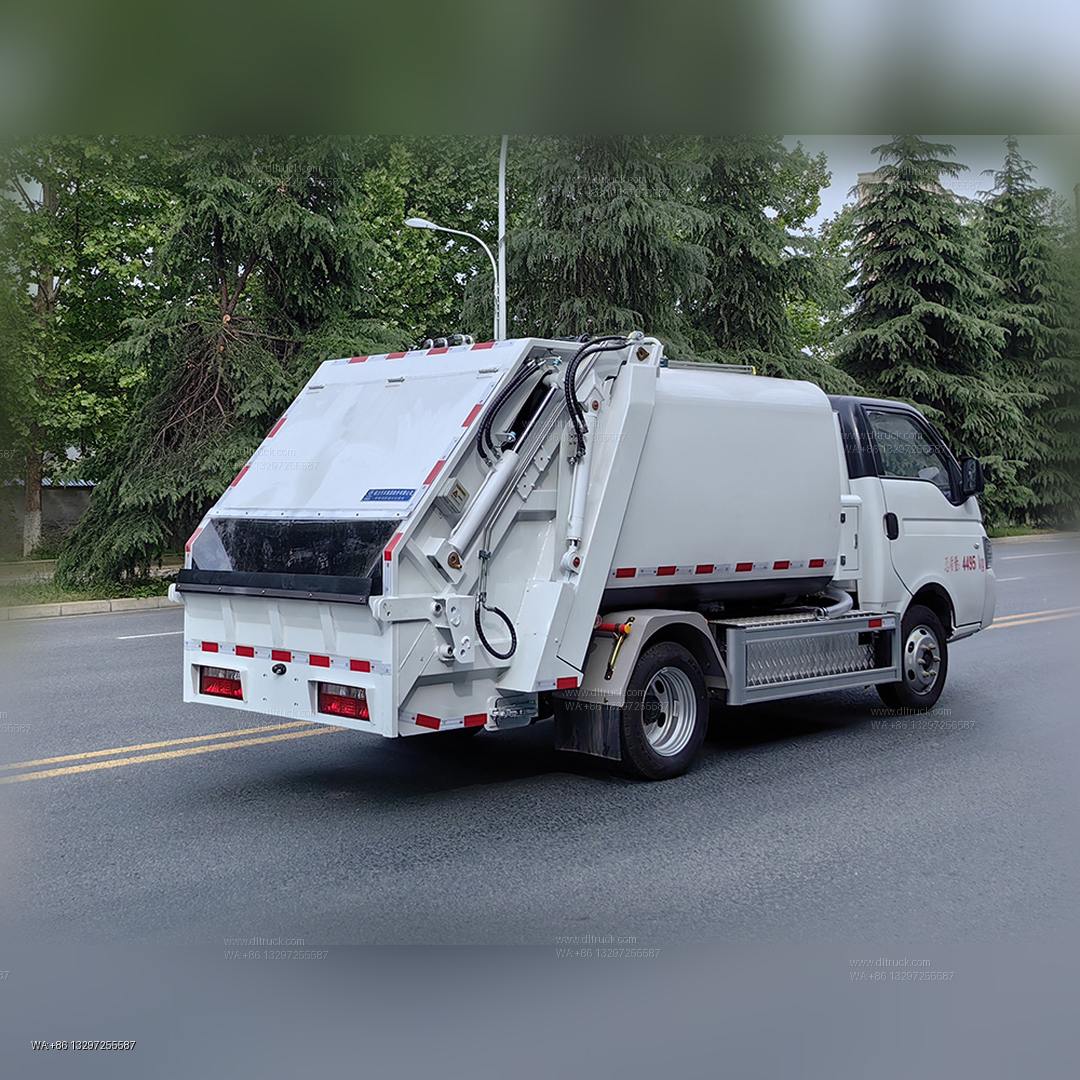

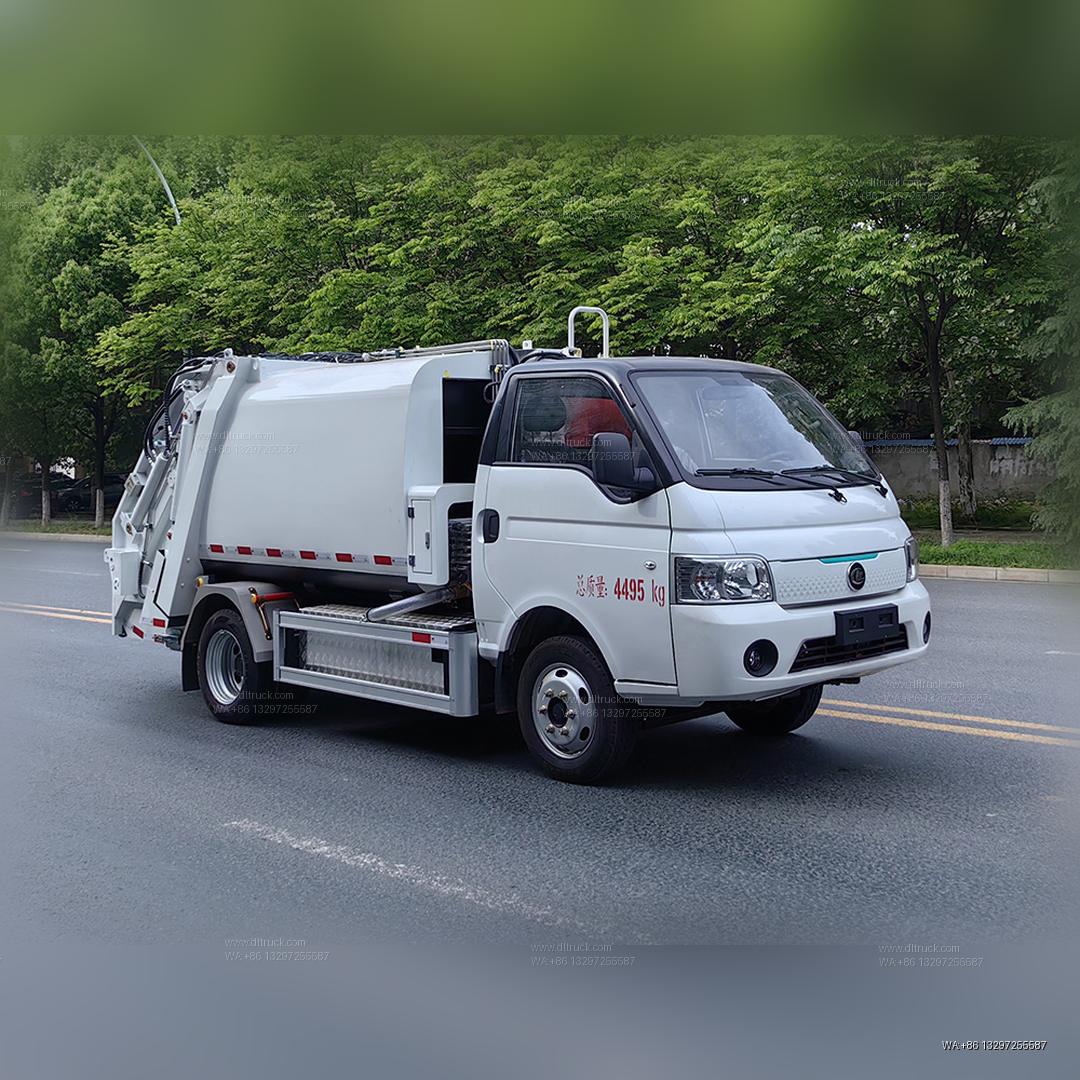

Our Electric Refuse Collector is designed for modern municipal sanitation and urban waste management. Built on a self-developed 4.5-ton electric chassis, it combines a high-efficiency hydraulic compression system, intelligent electronic control, fast charging technology, and zero-emission performance. The integrated body structure provides higher reliability while reducing operating costs and maintenance requirements.
Intelligent Electric Garbage Collection
The vehicle adopts an integrated chassis and body design to improve structural strength and simplify maintenance. The intelligent control system manages driving, loading, compression, and unloading operations with greater precision and safety.
Key advantages include:
- Integrated vehicle design
- Intelligent electronic control
- Stable hydraulic system
- Easy maintenance
- High operational reliability
Efficient Compression Performance

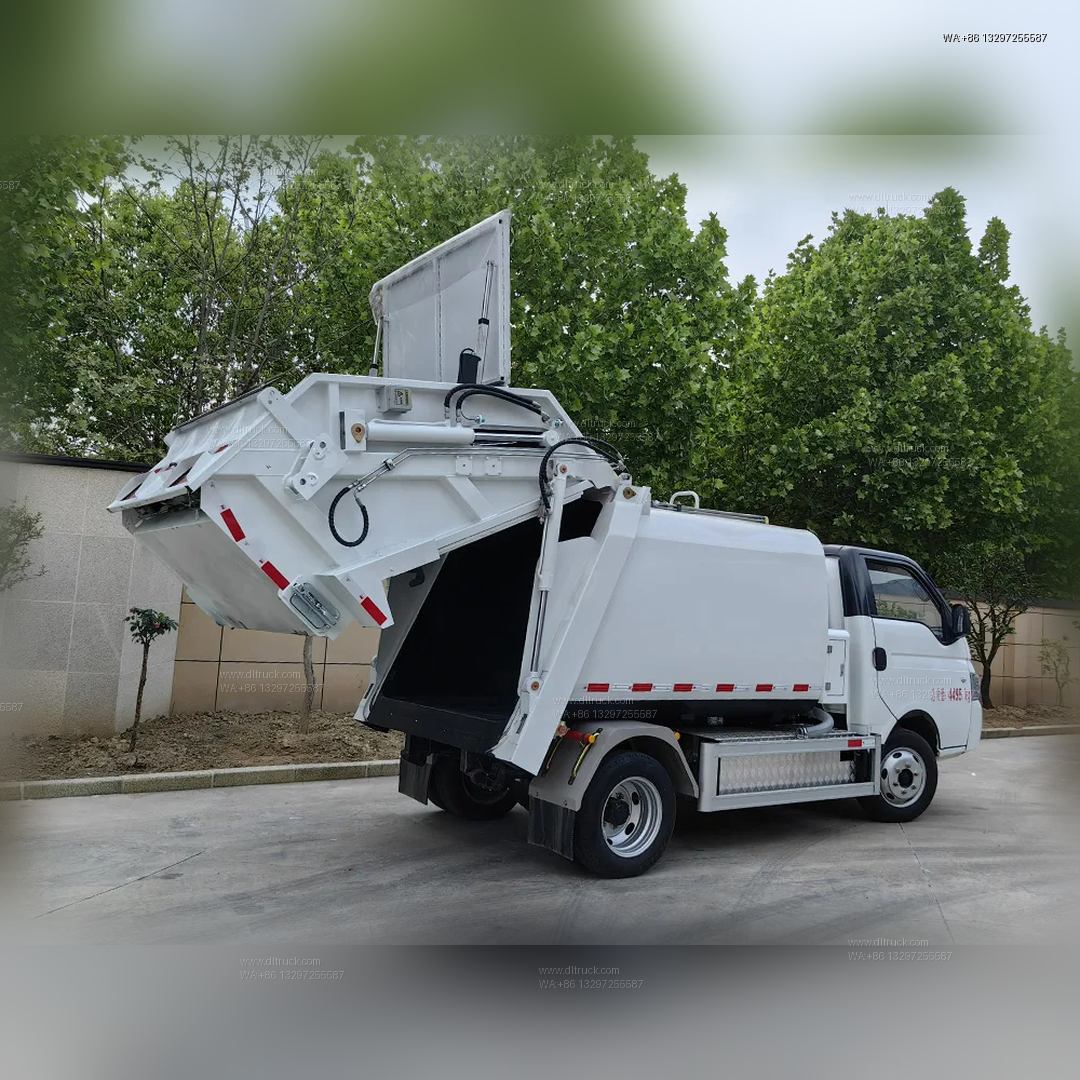

The hydraulic compression system supports simultaneous loading and compression, greatly improving waste collection efficiency.
Features include:
- Continuous loading operation
- Fast compression cycle
- Large compression capacity
- Low operating noise
- Stable hydraulic performance
Excellent Sealing System
The body is designed to reduce leakage and secondary pollution during transportation.
Features include:
- U-shaped sealing strip
- Leak-proof refuse compartment
- Dry and wet waste separation
- Integrated sewage collection channel
- Corrosion-resistant body structure
Large Capacity for Daily Operations
The 4.5m³ refuse container can carry approximately 3 tons of compressed waste, making it suitable for daily municipal collection tasks.
Compatible waste bins include:
- 120L plastic bins
- 240L plastic bins
- 660L plastic bins
- Optional 300L metal bins
Technical Specifications
| Item | Specification |
|---|---|
| Vehicle Model | CL5042YSBEV |
| Chassis Model | CL1041JBEV |
| GVW | 4495 kg |
| Curb Weight | 3960 kg |
| Payload | 405 kg |
| Refuse Body Capacity | 4.5 m³ |
| Battery | 57.6 kWh Lithium Iron Phosphate |
| Battery Brand | Gotion High-tech |
| Motor | Permanent Magnet Synchronous Motor |
| Rated / Peak Power | 55 / 150 kW |
| Rated / Peak Torque | 150 / 318 Nm |
| Maximum Speed | 90 km/h |
| Driving Range | 265 km |
| Charging Time | About 35 min (30–80% SOC) |
| Hydraulic Pressure | 18 MPa |
| Loading Cycle | ≤25 s |
| Unloading Cycle | ≤40 s |
Applications
This vehicle is suitable for:
- Municipal sanitation
- Residential communities
- Industrial parks
- Commercial districts
- Hospitals
- Schools
- Airports
- Property management
- Urban environmental services
