We are one of the most professional 30 tons refrigerated trailer manufacturers and suppliers in China. Our factory produces refrigerated trailers for cold chain logistics. Each unit meets strict quality standards.

The trailer body size is 13820x2340x2410 mm. The loading capacity is approximately 39000 kg. Gross vehicle weight reaches approximately 49530 kg.

Key Features.

This 30 tons refrigerated trailer combines proven components with durable construction. The trailer supports heavy loads and long-haul operations.

• CARRIER brand independent refrigeration unit maintaining -18ºC inside body.
• FRP fiber reinforced plastic inner and outer body panels.
• FUWA axles with 13 ton load capacity per axle.
• JOST brand 28T landing gear with 50# king pin.
• 12 tires in 11.00R20 model.

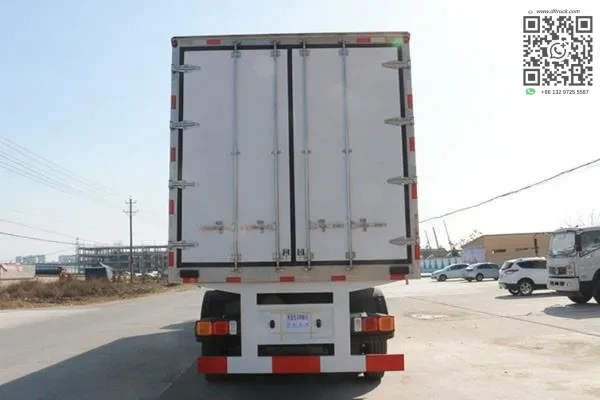

• Single side open door with tail double open doors.

Performance and Configuration.

The main beam uses high tensile steel A345B. The design is heavy duty and extra durable. Welding uses automatic submerged-arc processes for consistent strength.

The suspension is FUWA brand mechanical tandem type. Wheel base measures 7350+1310+1310 mm. Rear overhang is 2030 mm with a departure angle of Not provided in source.

The protective material is Q235A carbon steel. Left right sides and lower protection are welded together. Rear protection height from ground is 450 mm. Inner wall has anti-collision strips and aluminum alloy rail paving.

Electrical system uses a 24V 7-pin socket. Standard rear lights include orange turning lights and red rear reflectors. Three orange side lights and three orange side reflectors are on each side. Standard cable is included.

Applications.

This refrigerated trailer is designed for transporting temperature-sensitive goods. It suits pharmaceutical products, frozen foods, and other cold chain cargo. The -18ºC refrigeration range covers most perishable goods.

The 30 ton loading capacity allows large volume shipments. Long wheel base design provides stable highway travel. Single side access door enables efficient warehouse loading.

Why Choose This Truck.

Chengli factory offers direct pricing without middleman markup. You get competitive factory good price Chengli products. Each trailer is built to order with documented specifications.

The combination of CARRIER refrigeration, FUWA axles, and FRP body construction delivers dependable cold chain performance. Contact our factory for detailed pricing and delivery information.
