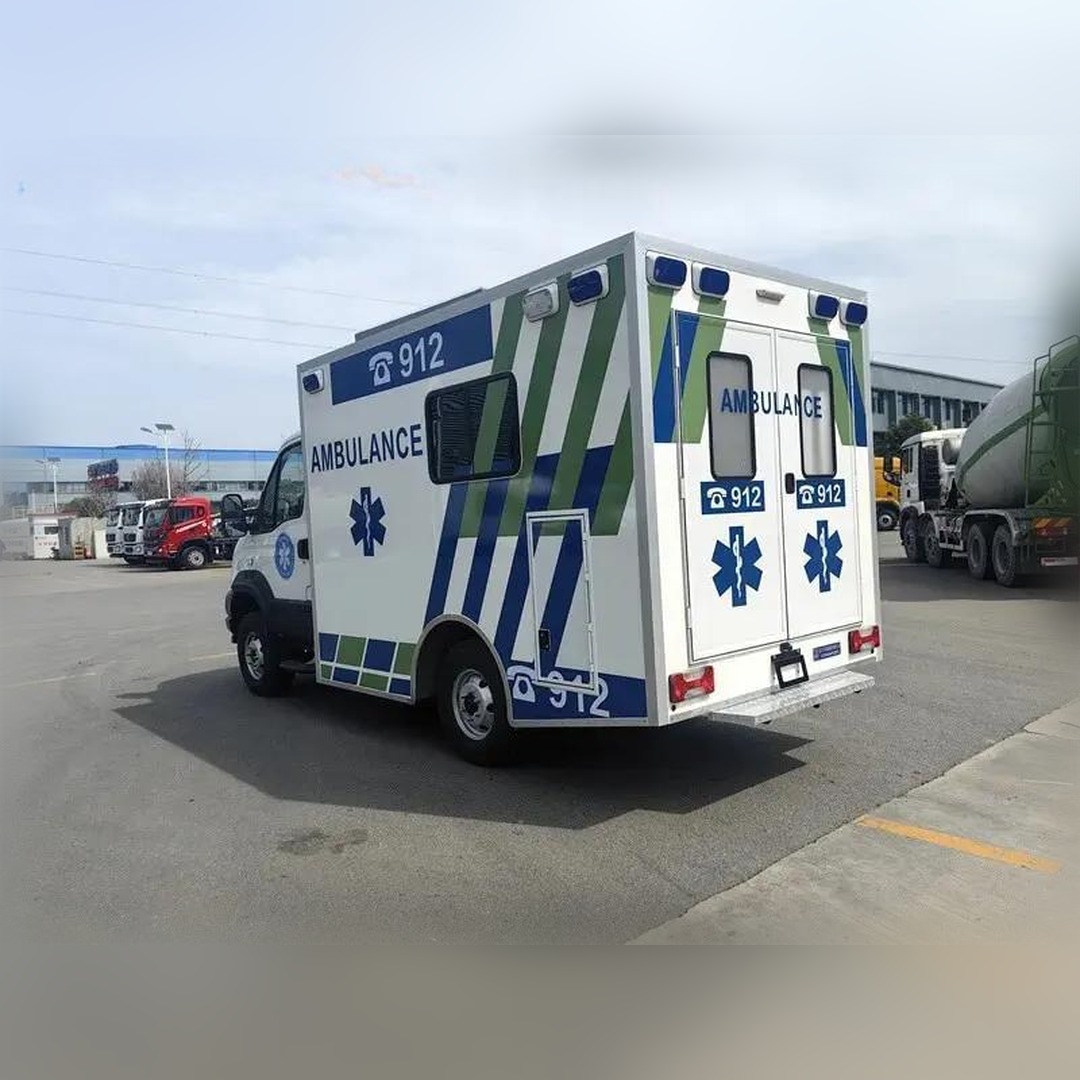

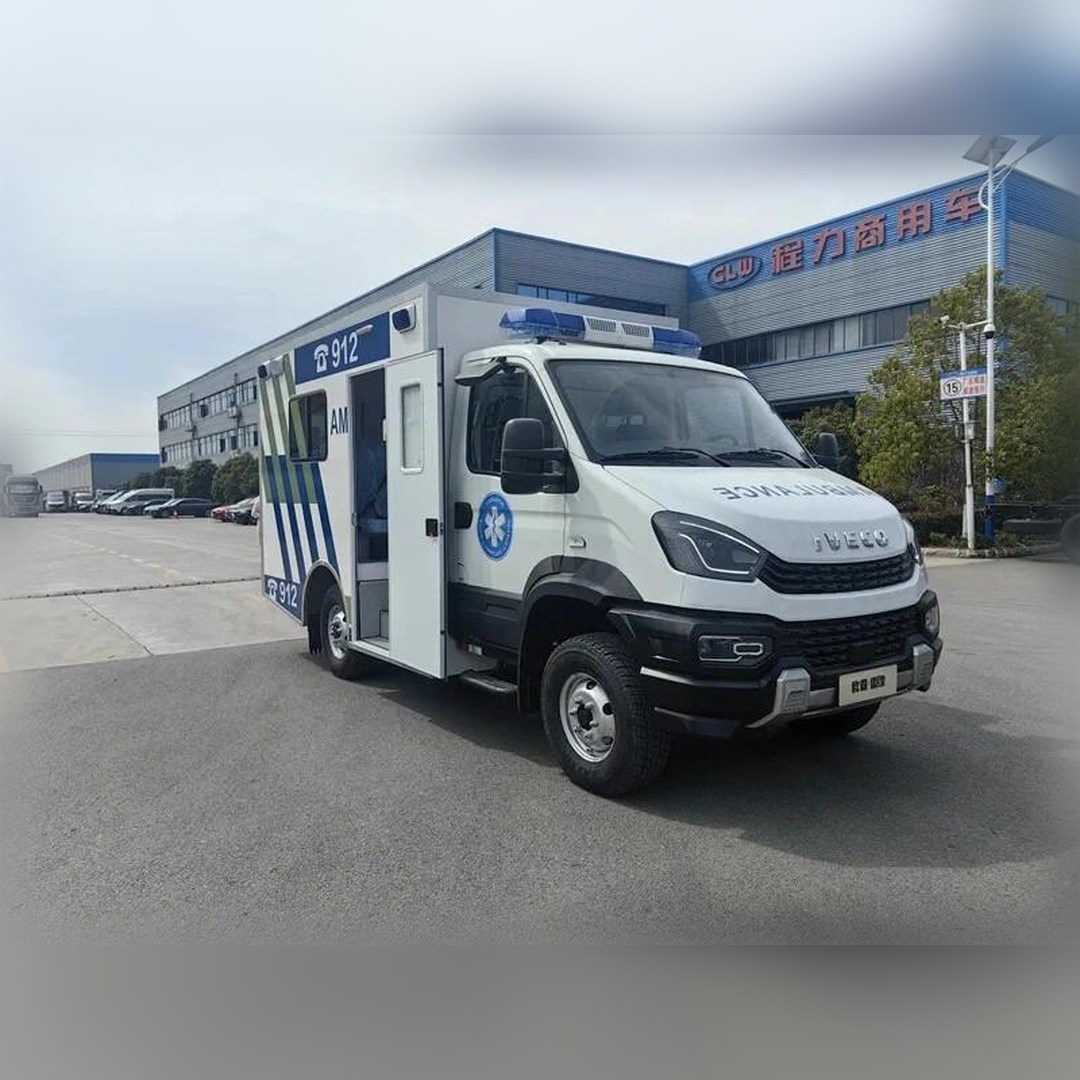

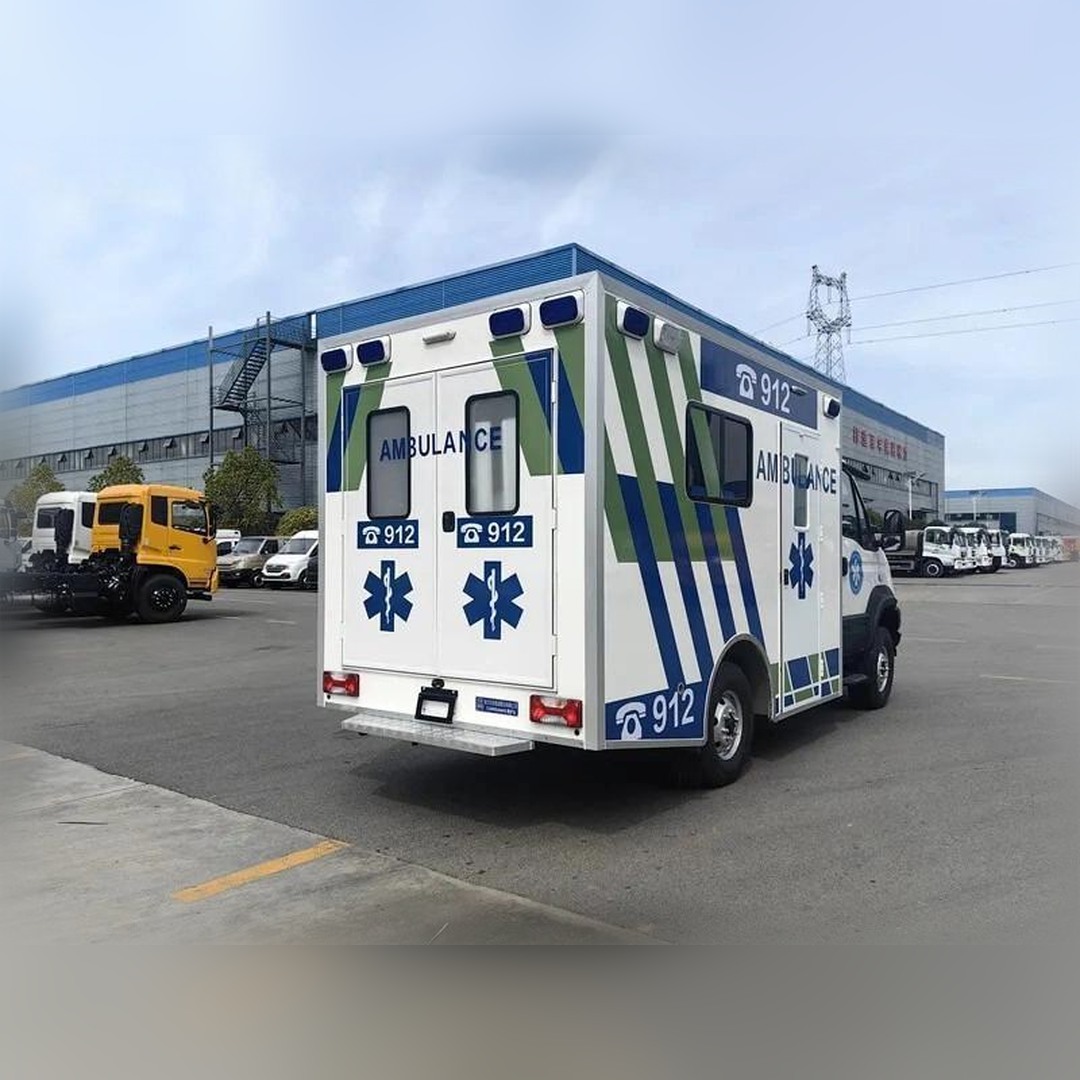

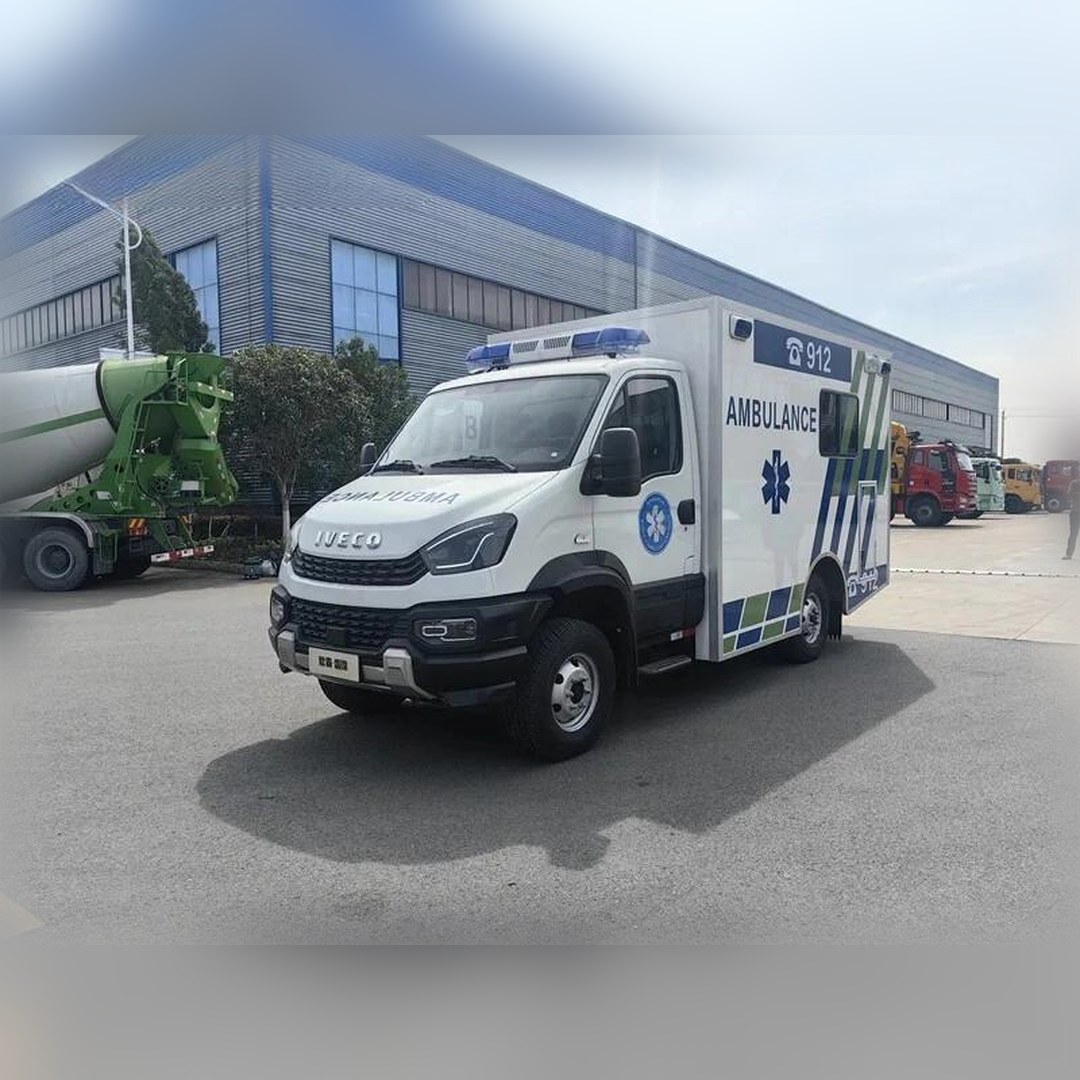

Iveco Diesel Ambulance Van with ICU Medical Transfer System
Powerful 170HP Diesel Engine
Professional Emergency Medical Interior
Compact Body for Urban Rescue Operations
Customizable ICU & Patient Transfer Layout
| Item | Specification |
|---|---|
| Drive Type | 4×2 |
| Chassis Brand | Iveco |
| Chassis Model | NJ1046EFC |
| Engine | F1CE8481K Diesel Engine |
| Horsepower | 170HP |
| Transmission | Manual / Optional Automatic |
| Fuel Type | Diesel |
| Emission Standard | Euro 6 |
| Wheelbase | 3300 mm |
| Tire Specification | 195/75R16LT 10PR |
| Seating Capacity | 7-8 Persons |
| Overall Dimension | 5990 × 2330 × 2770 mm |
| GVW | 4490 kg |
| Curb Weight | 3420 kg |
| Suspension | Leaf Spring Suspension |
| ABS | BOSCH ABS9 / ESP9 |
| Maximum Speed | 130 km/h |
| Medical Equipment | Oxygen Tank, Stretcher, Medical Cabinet |
| Application | Emergency Rescue & Patient Transfer |
| Steering | Left Hand Drive / Optional Right Hand Drive |
| Exterior Color | Optional / Customizable |
Product Description
Professional Ambulance Solution for Emergency Response
This Iveco ambulance van is designed for fast emergency rescue and safe patient transportation. Built on the reliable Iveco NJ1046EFC chassis, the vehicle combines strong power performance, stable driving control, and a professional medical cabin layout.
It is widely used for:
- Emergency medical rescue
- Hospital patient transfer
- ICU transportation
- Urban ambulance service
- Disaster relief operations
The compact body size also makes it highly suitable for narrow city roads and crowded urban environments.
Reliable Iveco Diesel Chassis
Powered by the proven 3.0L turbo diesel engine, this ambulance delivers up to 170HP, providing stable power output for high-speed emergency response.
Key chassis advantages include:
- Excellent fuel economy
- Strong load-bearing capability
- Stable long-distance driving
- Mature global after-sales support
- Easy spare parts availability
The vehicle is equipped with BOSCH ABS and ESP systems for enhanced braking safety and driving stability.

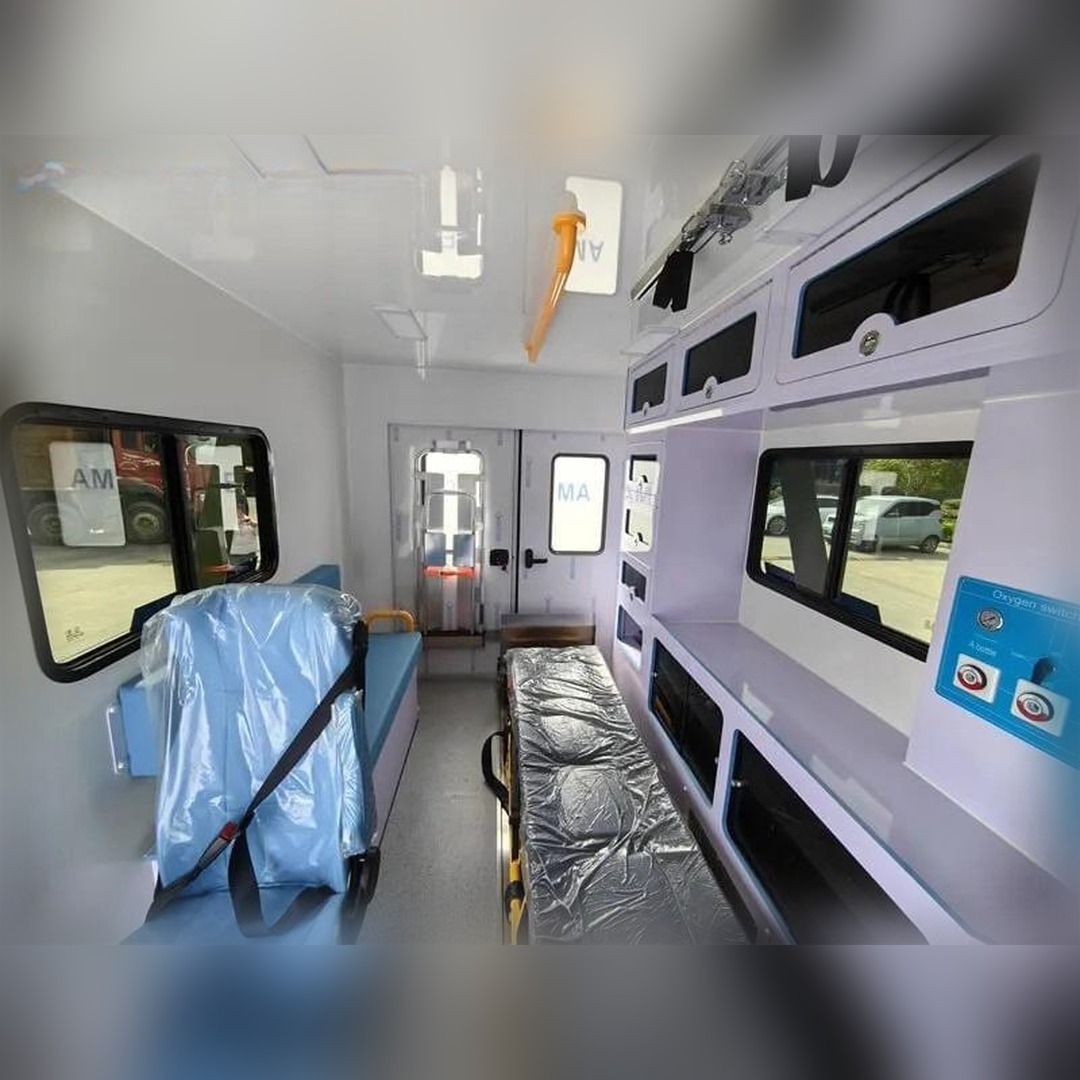

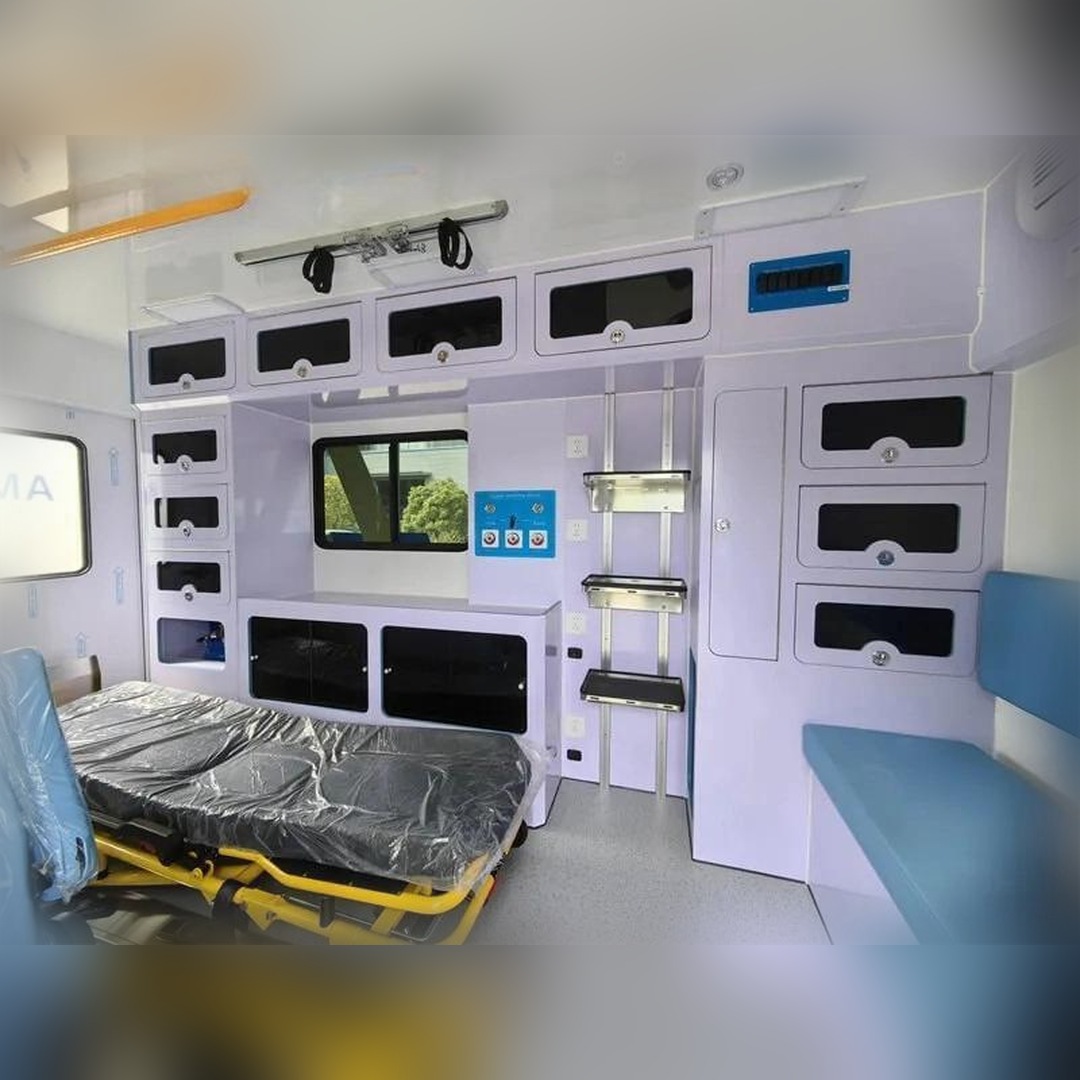

Professional Medical Cabin Design
The rear medical compartment is optimized for emergency treatment and patient care during transportation.
Standard medical equipment includes:
- Automatic stretcher system
- Oxygen supply system
- Medical cabinets
- Emergency lighting
- Medical seating
- Power supply system
The interior layout can also be customized according to customer requirements.
Optional configurations:
- ICU ambulance layout
- Ventilator installation
- Defibrillator cabinet
- Negative pressure system
- Roof warning light upgrades
Built for Urban & Overseas Operations
With a wheelbase of 3300mm and overall length under 6 meters, this ambulance offers excellent maneuverability in urban environments.
It is suitable for:
- Government medical projects
- NGO emergency fleets
- Private hospitals
- Military medical support
- International aid projects
The vehicle can be exported in both left-hand drive and right-hand drive versions to match different market requirements.
Custom Manufacturing & Export Support
We provide complete export solutions for overseas customers.
Available services include:
- OEM customization
- Medical equipment upgrades
- Different ambulance standards
- CKD/SKD support
- Logo and branding customization
- Technical training
- Spare parts supply
The ambulance complies with modern emission and safety standards, making it suitable for international markets.
