We are professional Africa ambulance manufacturers and suppliers based in China. Our factory provides high-quality emergency transport vehicles at competitive prices.

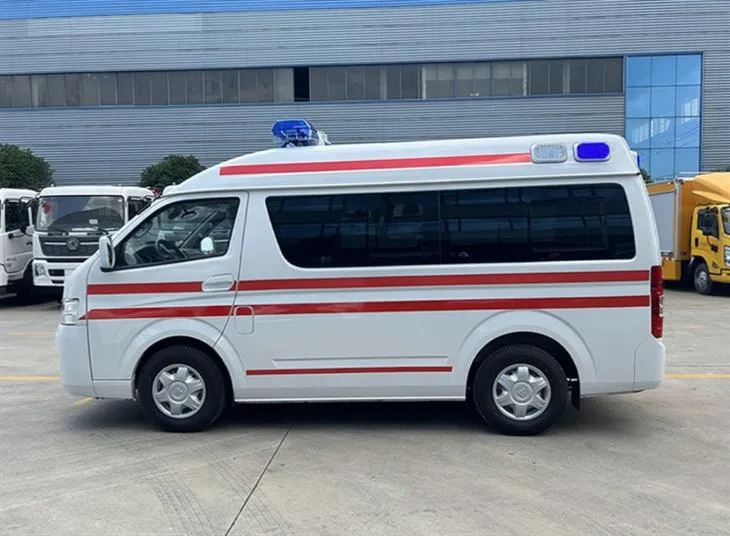

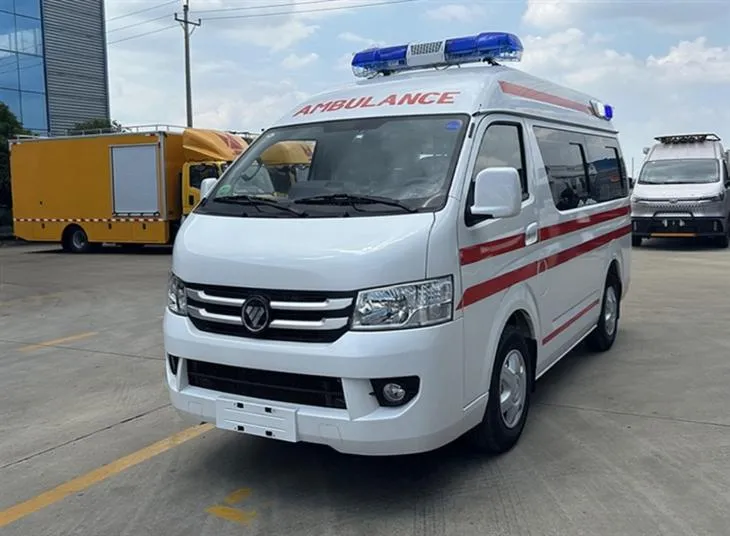

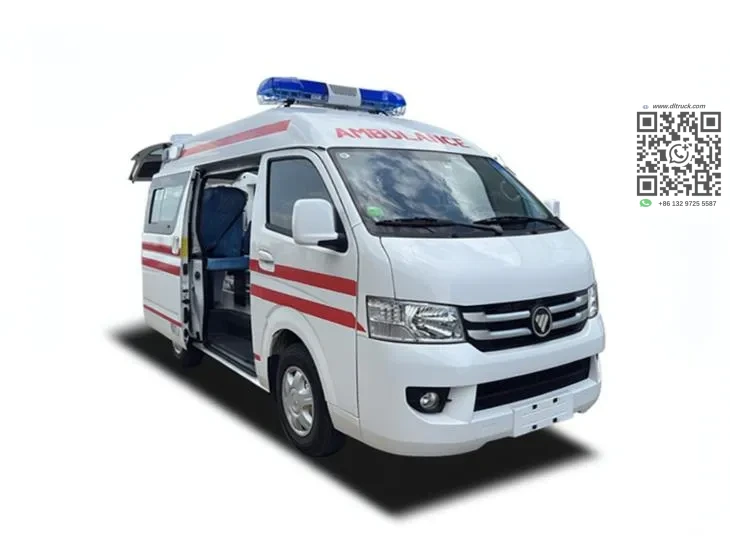

The Chengli Africa ambulance is built on a FOTON View chassis. It carries a crew of 6 people including stretcher passengers. The vehicle is designed for reliable medical service across diverse road conditions.

Key Features.

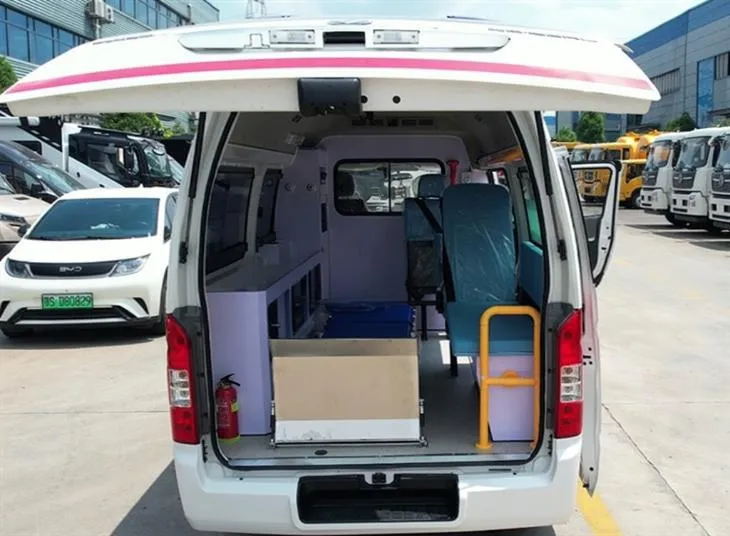

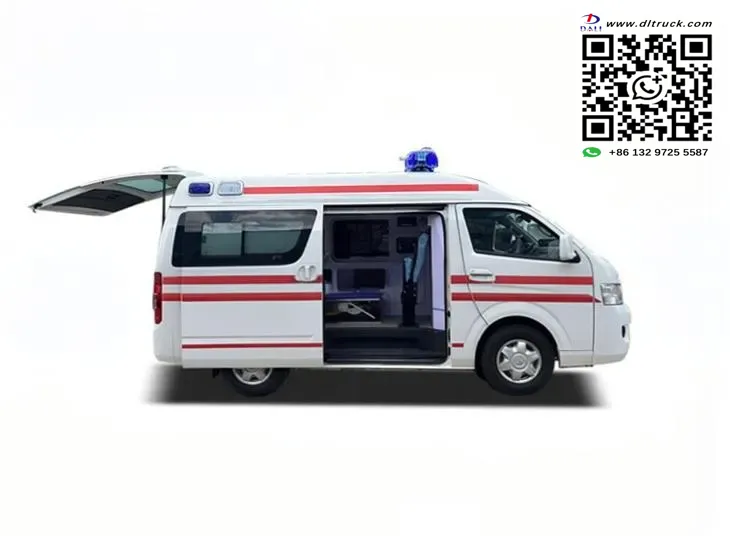

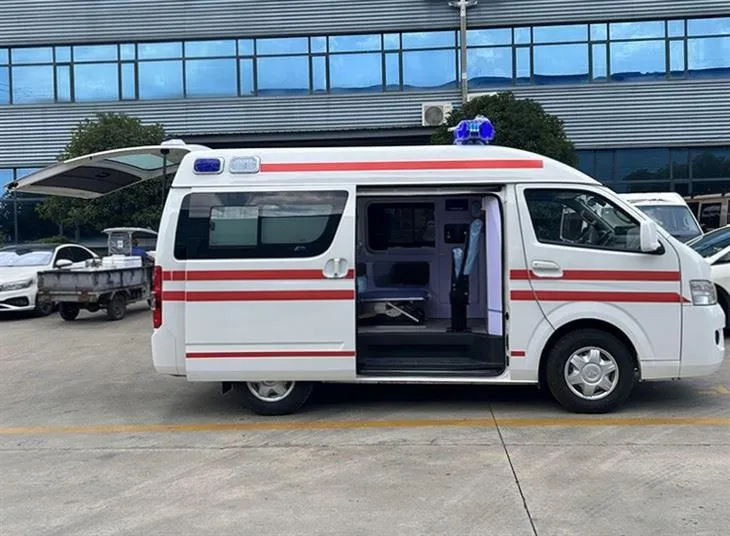

The vehicle body features a right-side sliding door and a wide rear lift-up tailgate. Both openings allow medical personnel to move patients and stretchers quickly during emergencies.

• White exterior with customized decoration for high visibility.
• Frosted glass paper covering two-thirds of medical cabin windows for patient privacy.
• I-shaped front warning light with 100W speaker.

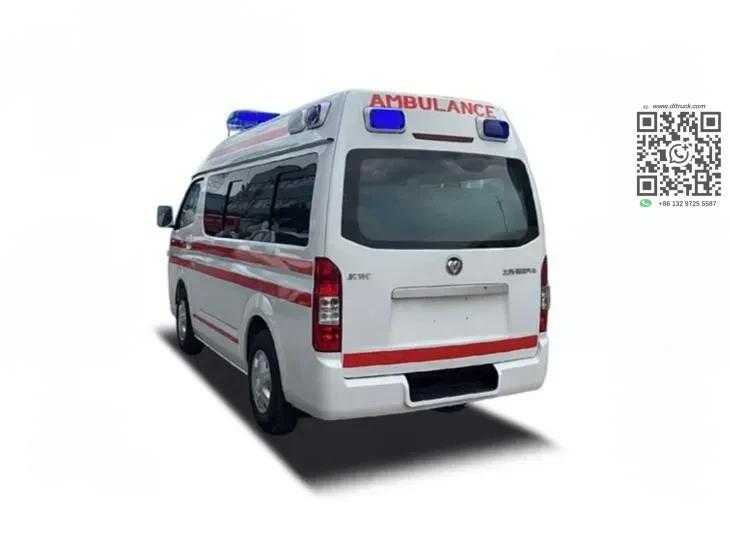

• Blue flashing lights on both sides and rear.
• Automatic loading stretcher with all-aluminum alloy frame rated at 181kg.
• Two hanging infusion bottle holders on the cabin ceiling rated at 2.5kg each.
• Oxygen system with two 10L steel cylinders at 15MPA nominal pressure.
• Intelligent timed ultraviolet disinfection lamp.
• 500W sine wave inverter with 220V/12V multifunctional socket group.
• 12V cabin lighting with stable light source and large illumination area.

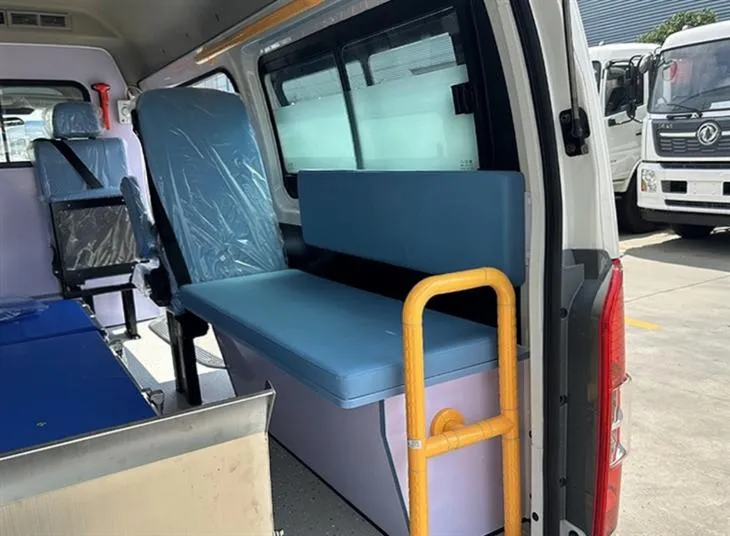

• Partition wall with observation window between cab and medical cabin.

Performance and Configuration.

The FOTON View chassis is powered by a Mitsubishi 4K22D4M Euro VI engine. It delivers 118 kW from a 2.378 L displacement. The vehicle carries a maximum total mass of 2860 kg.

The vehicle measures 4840 by 1695 by 2440mm overall. The medical cabin interior measures 2800 by 1540 by 1580mm. It uses a manual 5-forward and 1-reverse gearbox. Hydraulic power steering and front disc with rear drum hydraulic brakes provide control and stopping power.

The suspension combines double wishbone torsion bar spring independent units up front with leaf spring non-independent suspension at the rear. The vehicle sits on 195R15C tires in a 4 plus 1 piece arrangement. Minimum ground clearance is 165mm. The approach and departure angles are 15 degrees and 16.5 degrees respectively. A 65-liter fuel tank supports extended missions.

Applications.

This ambulance serves emergency medical transport across African regions. It supports urban hospital transfer routes, rural clinic call-outs, and highway trauma response. The full medical cabin equipment enables patient stabilization during transit.

The robust FOTON View chassis and proven suspension design handle varied road surfaces. The independent front suspension improves ride comfort for critically ill patients during transport.

Why Choose This Truck.

Our factory produces these vehicles with standardized components and thorough quality inspection. The FOTON View platform ensures parts availability across African markets.

Chengli offers factory-direct pricing without middleman margins. Each ambulance leaves the factory with complete medical cabin installation ready for immediate deployment.
