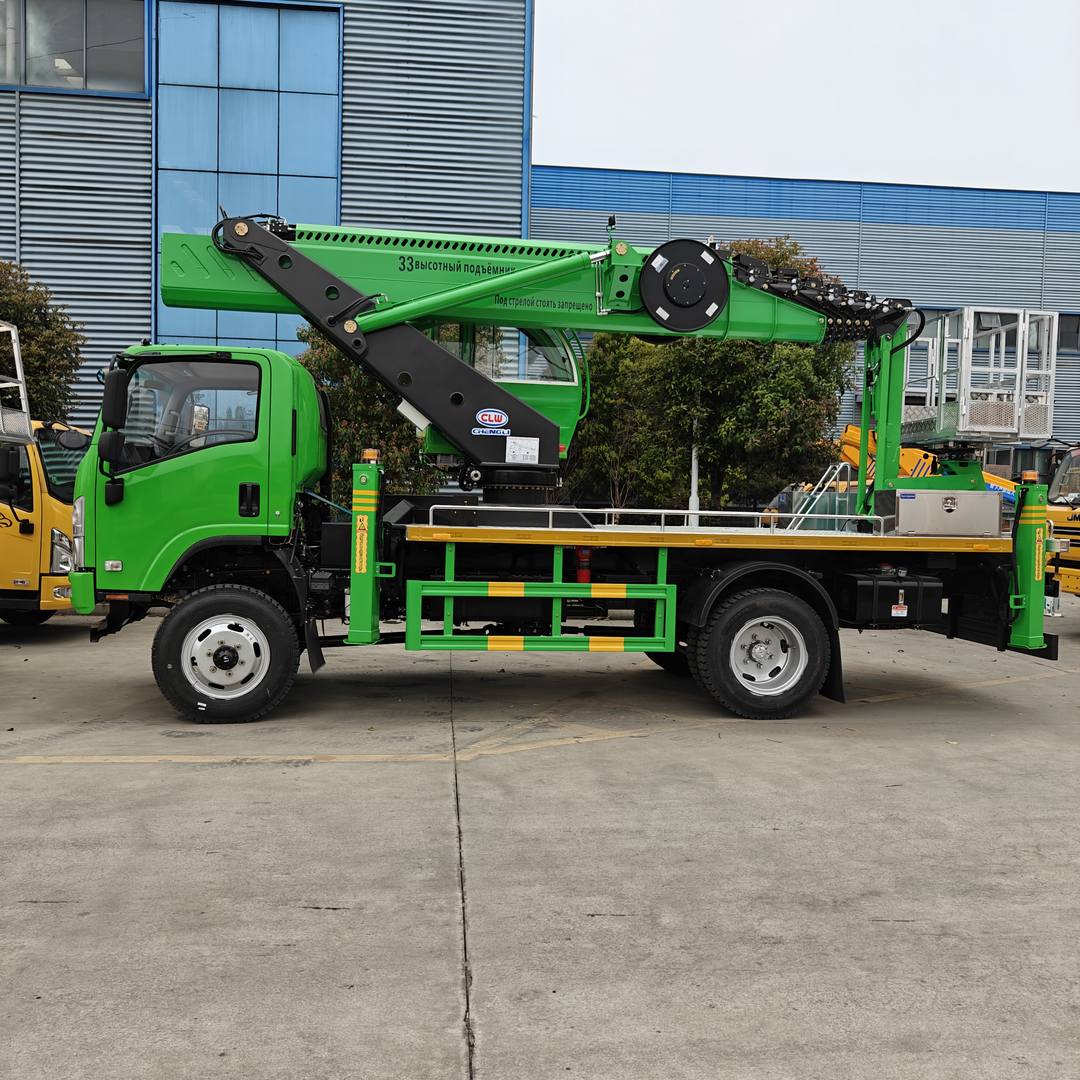

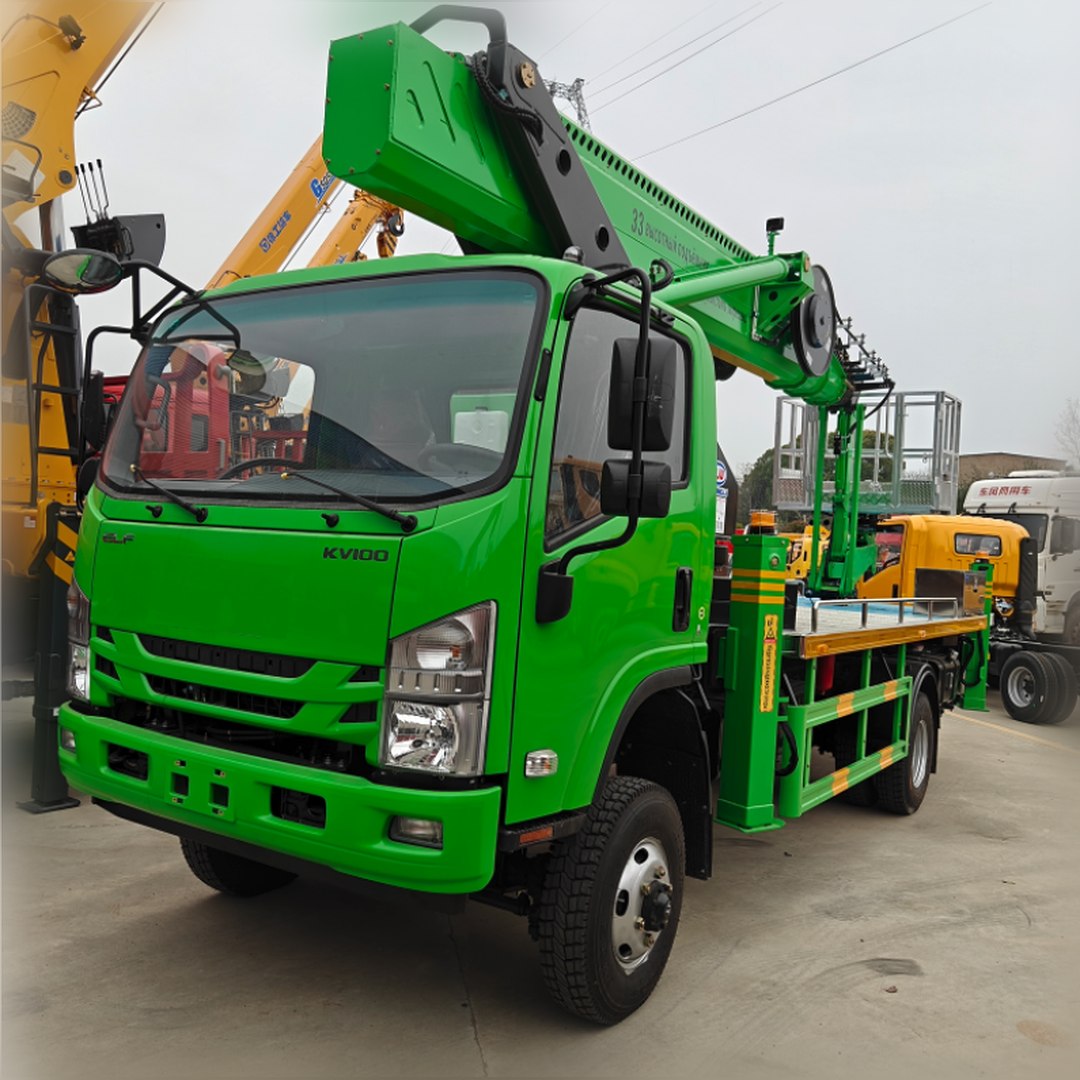

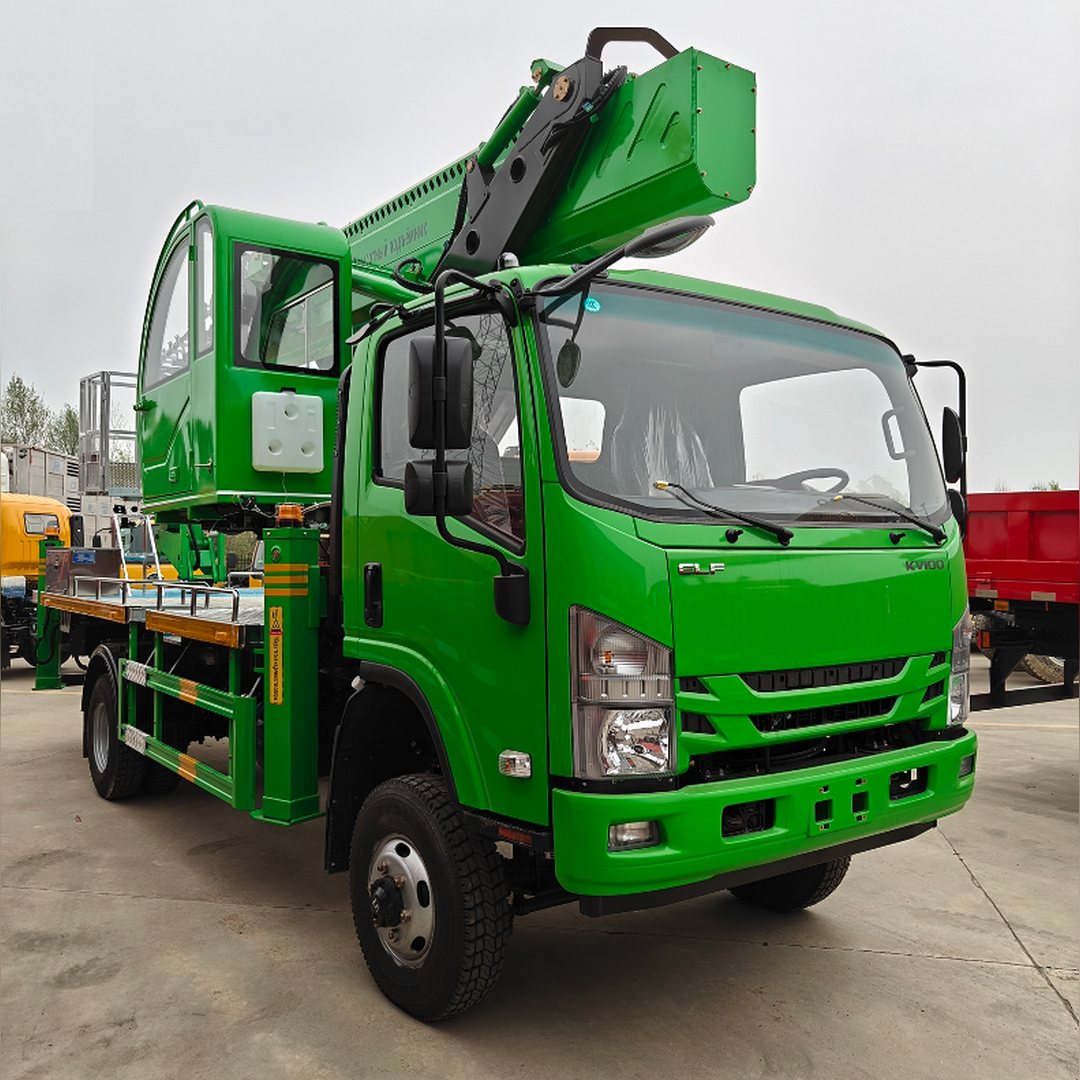

ISUZU 33m Aerial Work Platform Truck with Fly Jib
✔ 33m Maximum Working Height
✔ 4×4 Chassis for Mountain & Rough Terrain Operations
✔ Fly Jib Design for Obstacle-Crossing Flexibility
✔ V-Type Hydraulic Outriggers for Stable Operation
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Telescopic Aerial Work Platform Truck |
| Model | CSC5040JGKQ6 |
| Chassis Brand | HOWO / Customizable |
| Drive Type | 4×4 |
| Engine | Diesel Engine 4KB1-TCG60 |
| Horsepower | 130HP |
| Engine Capacity | ＜4L |
| Fuel Type | Diesel |
| Emission Standard | Euro III / Euro VI Optional |
| Transmission | 5-Speed Manual with Overdrive |
| Fuel Tank Capacity | 100–200L |
| Wheelbase | 3360 mm |
| Tire Specification | 7.00R15 |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4300 kg |
| Max Working Height | 33m |
| Max Working Radius | 14m |
| Platform Load Capacity | 200 kg |
| Platform Rotation | 360° |
| Boom Structure | Seven-Section 18-Sided Synchronous Telescopic Boom |
| Fly Jib | Equipped |
| Outrigger Type | Front & Rear V-Type Hydraulic Outriggers |
| Control Mode | Turntable + Wireless Remote Control |
| Max Speed | 100 km/h |
| Overall Dimensions | 5998 × 2150 × 2850 mm |
| Application | Power Maintenance, Telecom Work, Mountain Areas, Municipal Projects |
Product Description
Built for Challenging Terrain and High-Reach Operations
This HOWO 33m aerial work platform truck is designed for customers who require reliable high-altitude access in demanding environments. With a 4×4 drivetrain, fly jib design, and heavy-duty telescopic boom, the vehicle can work efficiently in locations where standard road trucks struggle.
Typical applications include:
- Power line maintenance
- Mountain communication tower installation
- Streetlight repair
- Emergency rescue operations
- Construction projects
- Municipal infrastructure maintenance
Its compact overall dimensions and powerful off-road capability make it ideal for both urban and remote working environments.

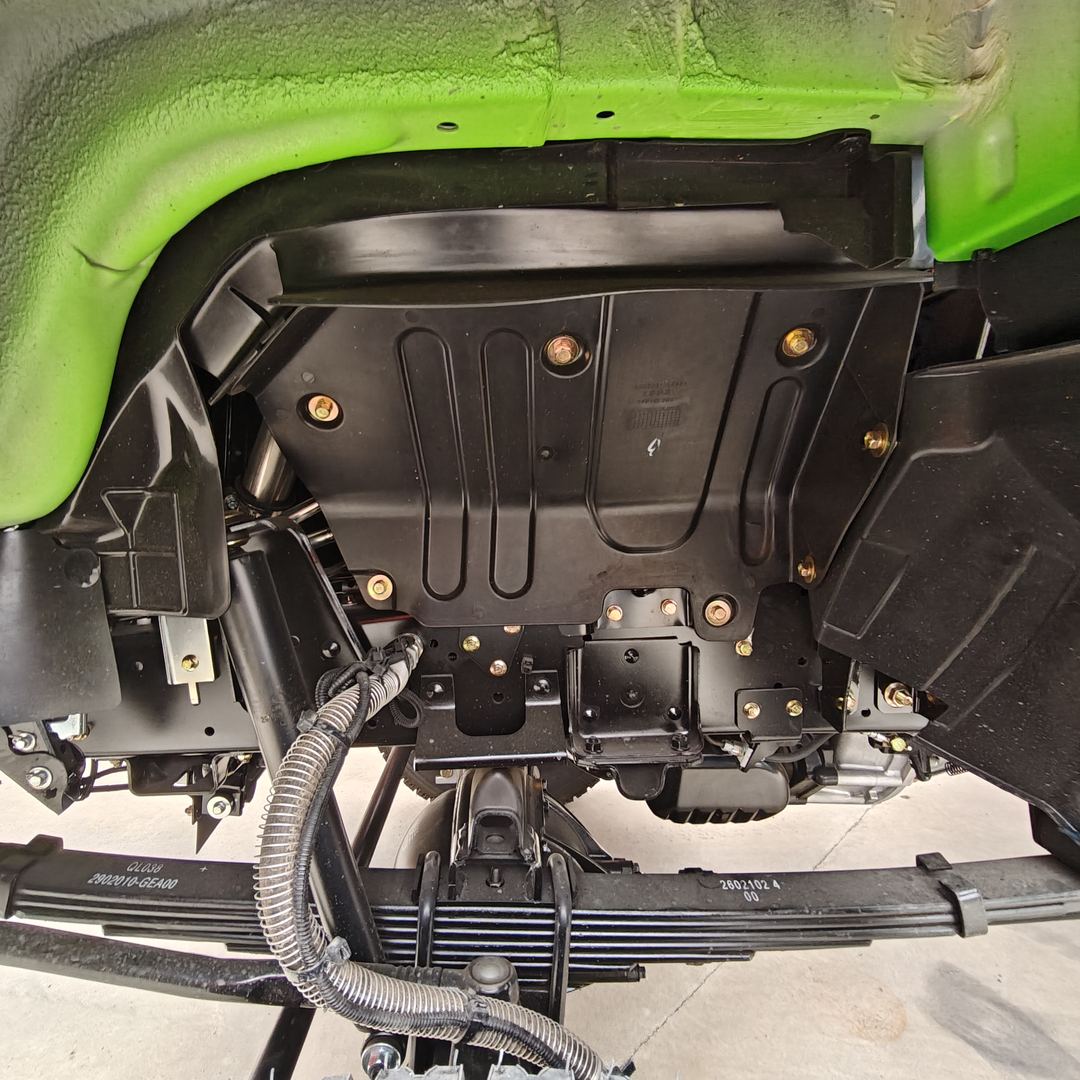

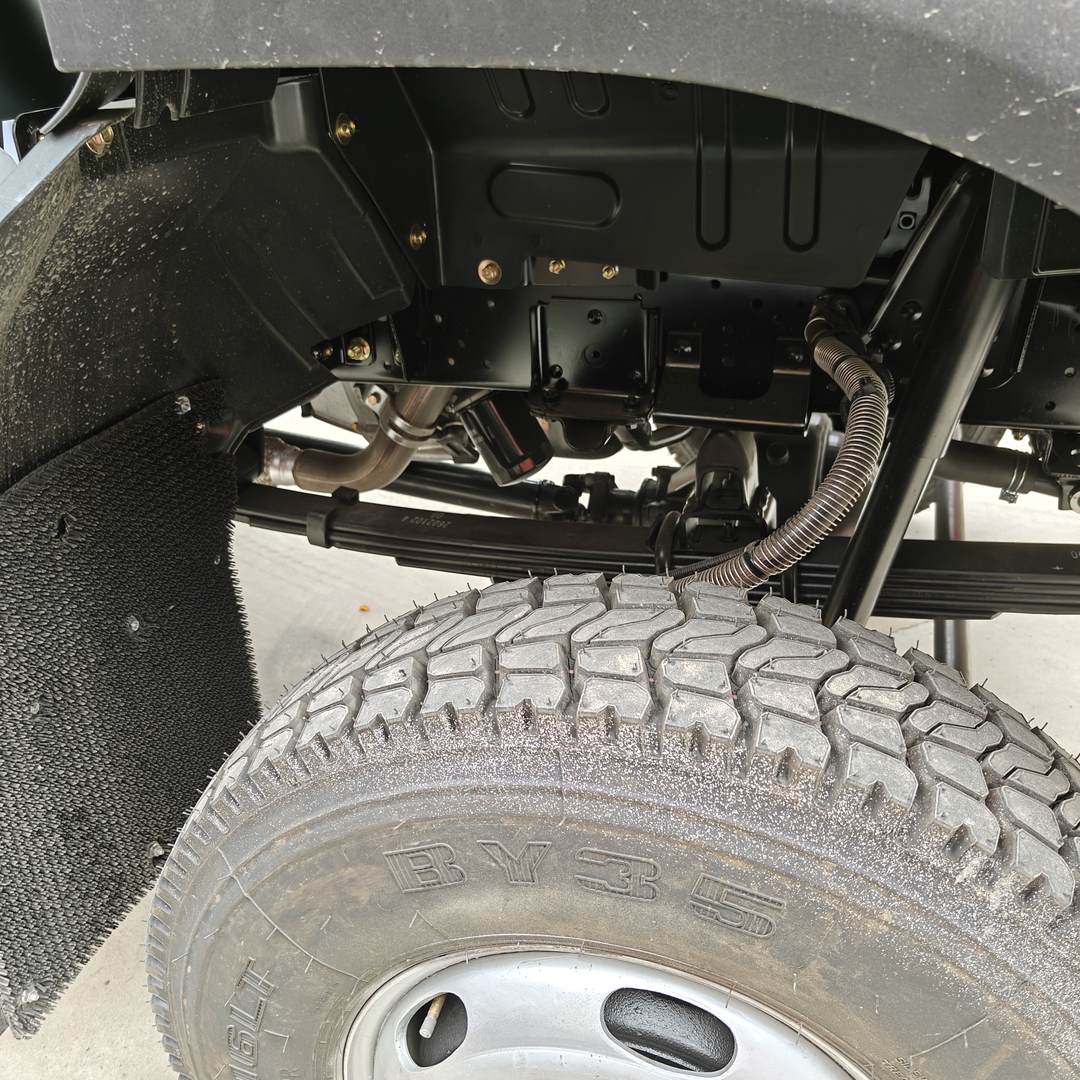

4×4 Chassis for Rough Roads and Mountain Areas
Unlike conventional 4×2 aerial trucks, this model uses a 4×4 drivetrain system designed for difficult terrain.
Key advantages:
- Better traction on mud and gravel
- Improved climbing performance
- Higher road adaptability
- Suitable for mountain and rural projects
- Stable operation on uneven surfaces
This configuration is particularly useful for utility contractors and infrastructure projects in remote areas.

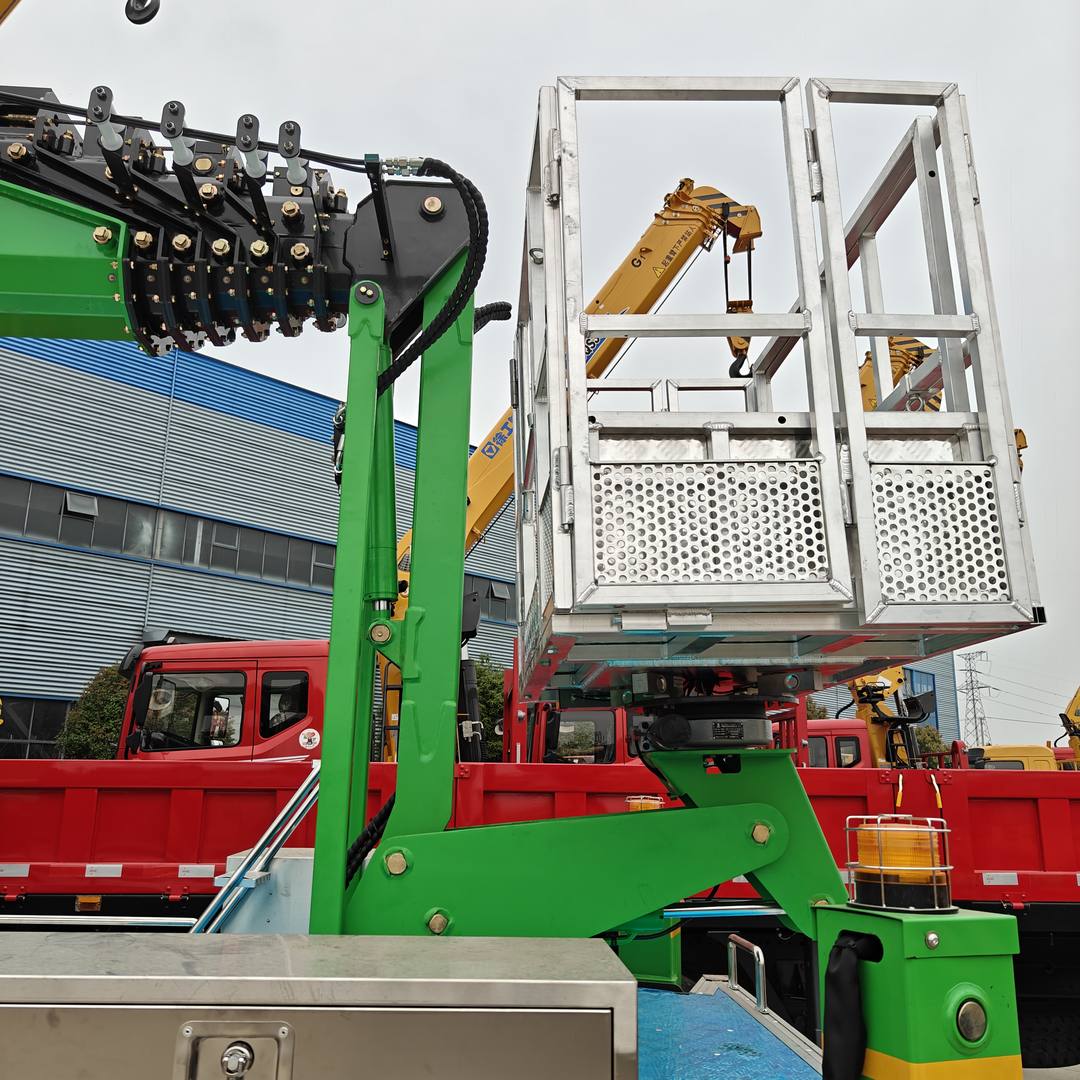

Fly Jib Design for Obstacle-Crossing Tasks
The truck is equipped with a Fly Jib system, providing greater flexibility when working around obstacles.
Benefits include:
- Reach over buildings and structures
- Easier access around trees and utility poles
- Better positioning accuracy
- Wider operating range
- Improved working efficiency
The fly jib becomes especially valuable in crowded urban environments and utility maintenance projects.

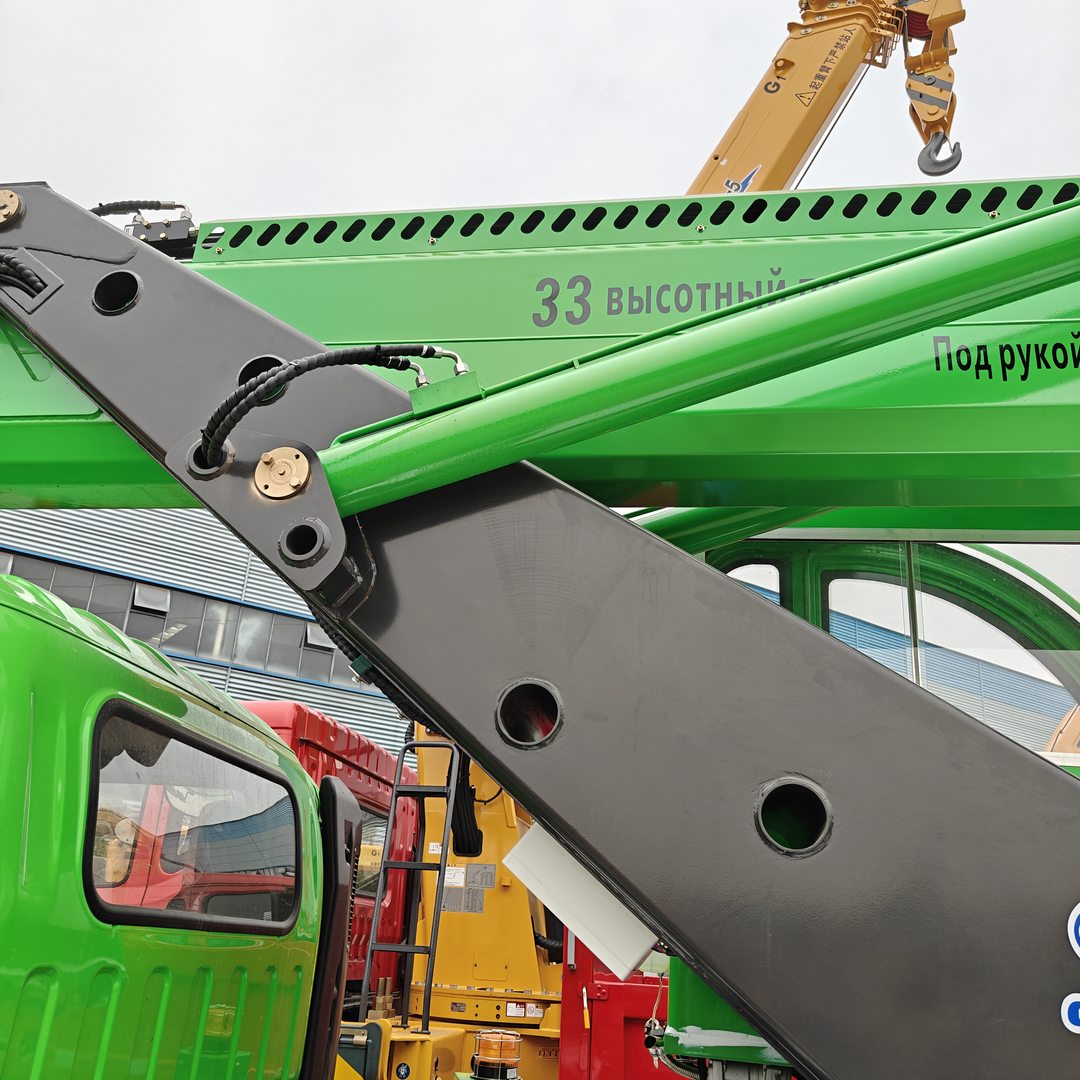

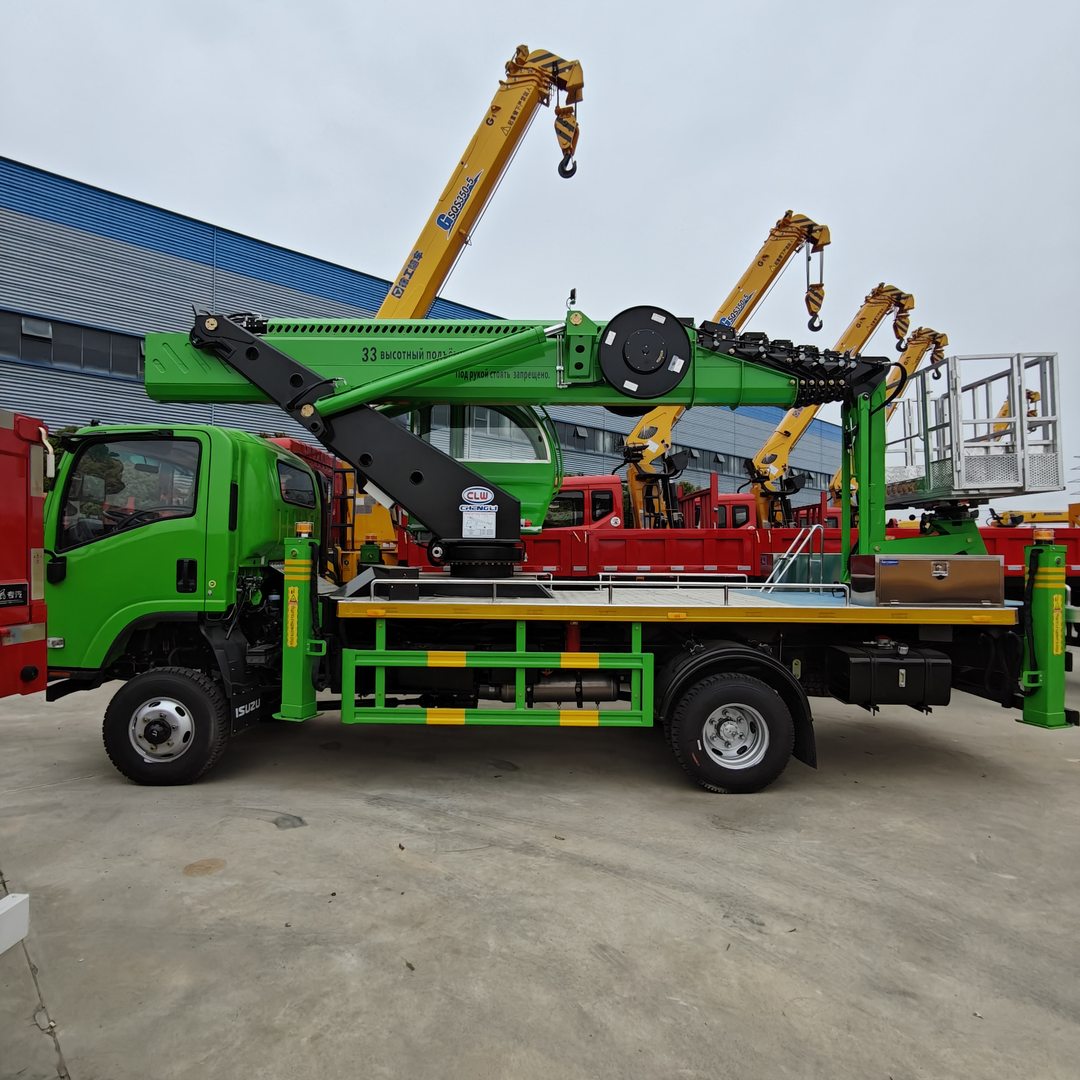

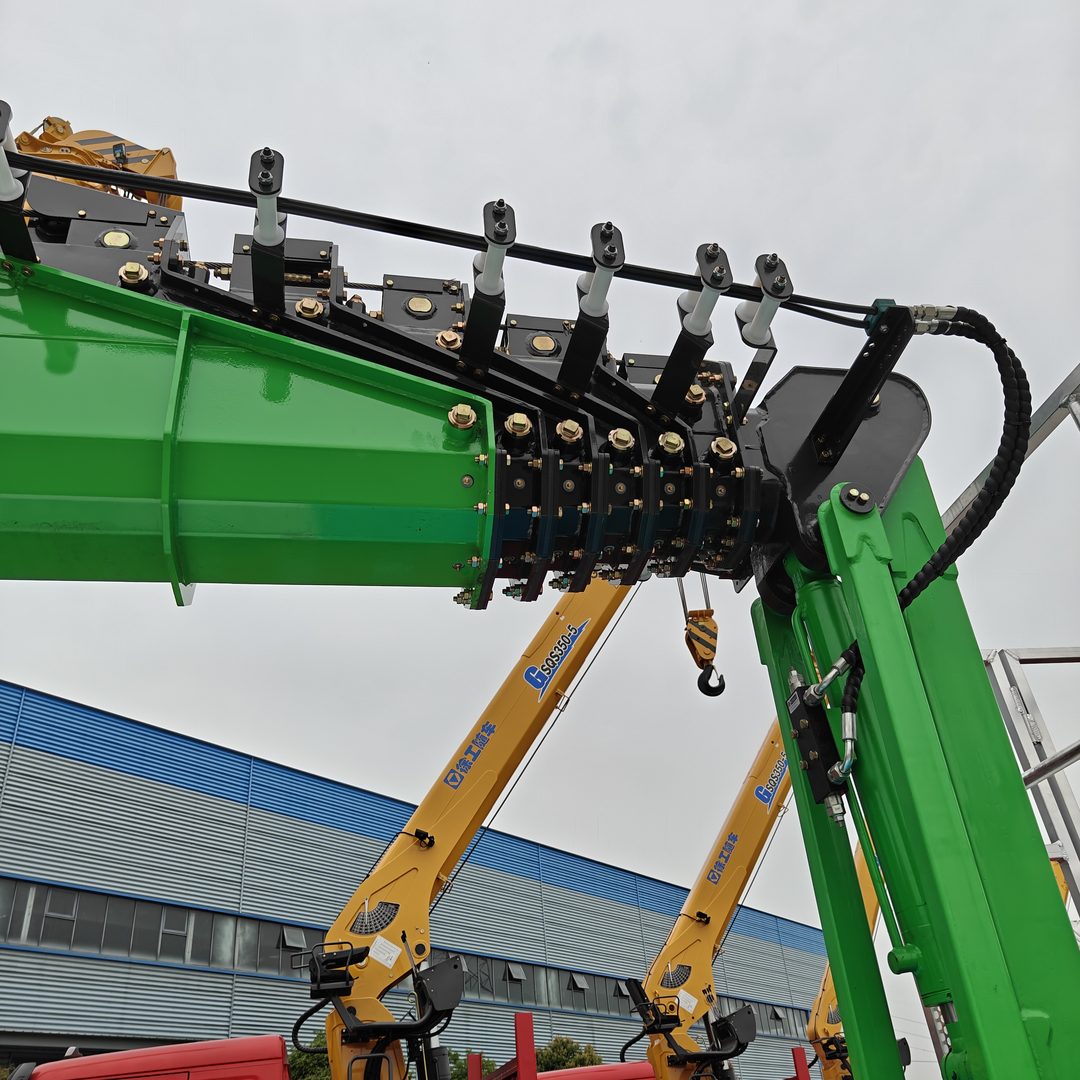

Seven-Section High-Strength Boom Structure
The aerial system adopts a 7-section 18-sided synchronous telescopic boom with reinforced structural design.
Main advantages:
- Strong load-bearing capability
- Better anti-torsion performance
- Smooth extension and retraction
- Excellent long-term durability
- Stable high-altitude operation
The synchronous telescopic system improves efficiency while maintaining stability at maximum reach.

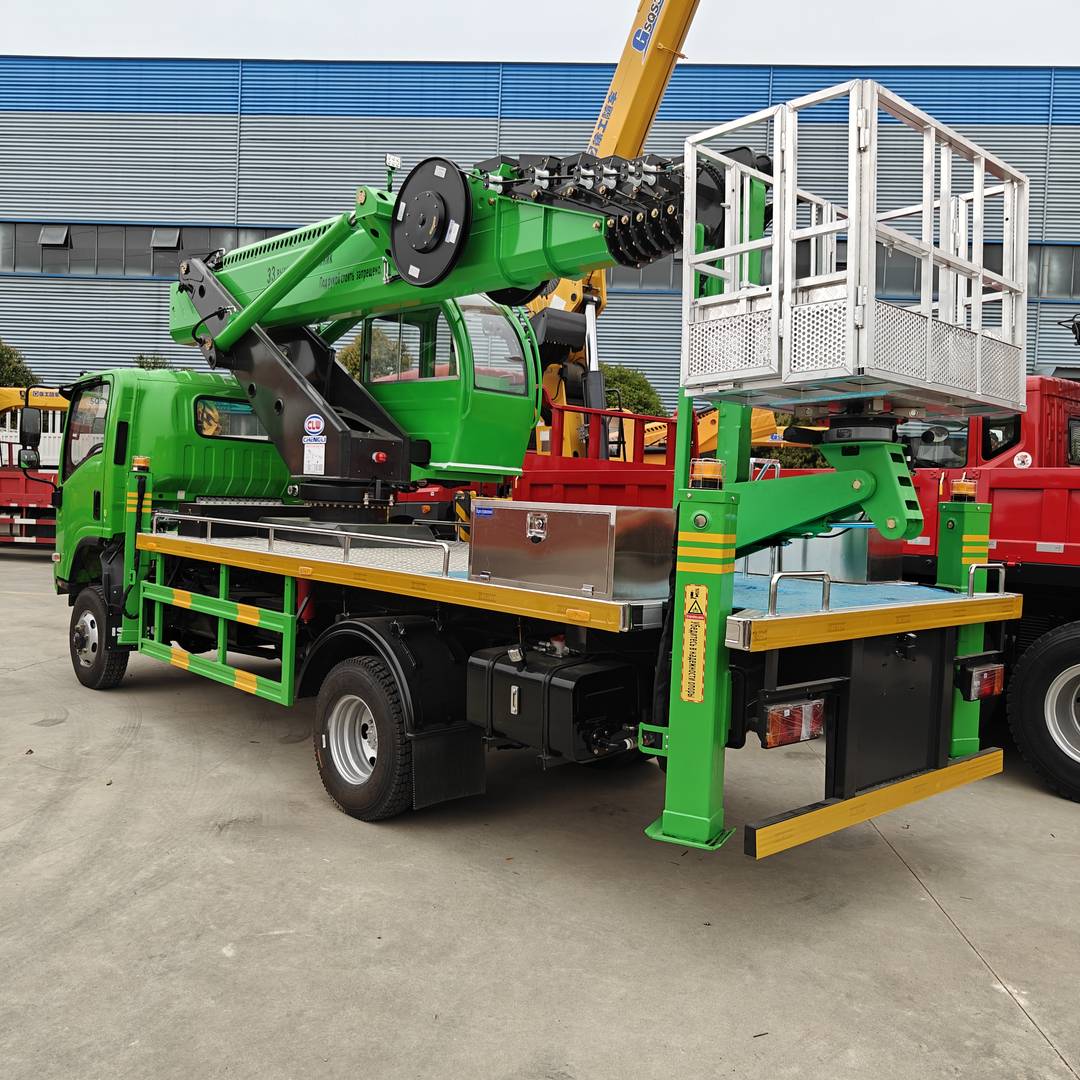

V-Type Hydraulic Outriggers for Better Stability
The truck uses front and rear V-type hydraulic outriggers for improved support during operation.
Advantages:
- Larger support footprint
- Better anti-roll performance
- Improved stability on uneven terrain
- Enhanced operator safety
Combined with intelligent leveling systems, the vehicle delivers stable performance even under difficult conditions.
Smart Safety Protection System
To improve working safety, the vehicle includes multiple safety features:
- Wireless remote operation
- Emergency stop device
- Automatic leveling
- Outrigger monitoring
- Real-time working status display
- Hydraulic safety interlock
- Anti-slip walking platform
These systems improve operational safety and reduce the risk of misoperation.
Built for Export Customization
We support export-oriented customization including:
- Customer paint colors
- Customer logo and branding
- Left-hand drive / Right-hand drive
- Different emission standards
- Multi-language decals and manuals
Suitable for:
- Equipment rental companies
- Utility contractors
- Municipal fleets
- Construction companies
- Telecom service providers
