China Sinotruk 336HP 20,000L LPG Bullet Truck – Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

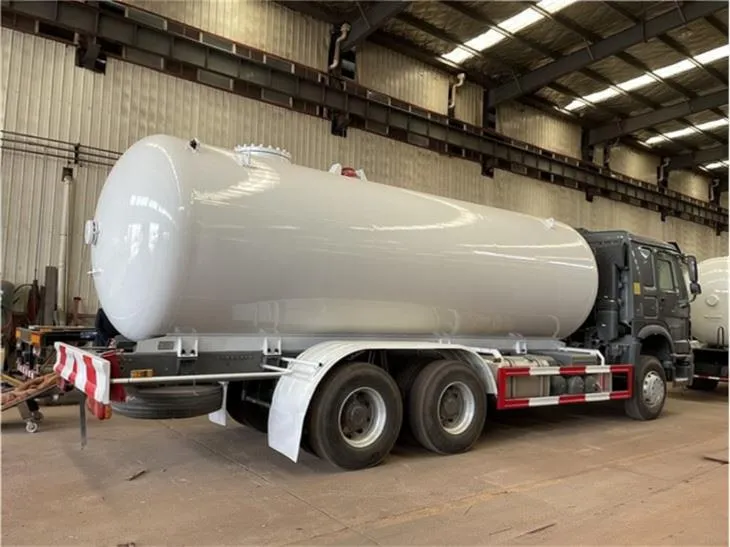

This Sinotruk LPG bullet truck carries 20,000 liters of propane. The tank is built from Q345R steel with a 12mm thickness. Chengli manufactures this vehicle at competitive factory pricing. The unit supports left-hand drive configuration.

Key Features.

The truck combines a heavy-duty chassis with a purpose-built LPG transport tank.

• Q345R steel tank, 12mm thickness, 2,050mm diameter.
• 336HP WD615.69 Euro II diesel engine.
• 20,000-liter or 24,000-liter volume options.
• Chinese brand LPG pump and flow meter with printer.
• Rochester float ball level gauge on tank side or rear.
• Safety valve DN80, emergency valve, and pressure gauge included.
• 15-meter filling hose with nozzle.

Performance and Configuration.

The Sinotruk chassis measures 10,720 by 2,480 by 3,420 mm overall. The wheel base is 5,200 plus 1,350 mm. Front and rear treads are 2,022 mm and 1,830 mm respectively. The approach angle is Not provided in source. The departure angle is 12 degrees.

Gross vehicle weight reaches 25,000 kg. The curb weight is 14,240 kg with a payload of 10,630 kg. The front axle is rated at 9,000 kg. The rear axle uses a dual heavy-duty HC16 setup rated at Not provided in source each.

The tank volume is 20,000 liters or 24,000 liters as configured. The tank length is 8,060 mm or customized per order. Design pressure is 1.61 MPa. Gas phase port is DN50 and liquid phase port is DN80. Both can be adjusted to customer requirements.

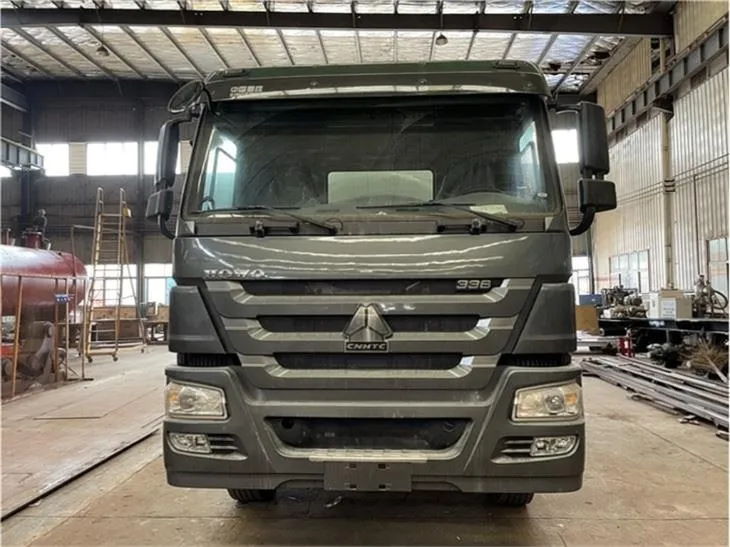

The engine produces 336 HP from a 9,760 mL displacement. Maximum driving speed is 95 km/h. The HW19710 gearbox connects to the drivetrain. The cabin is the standard HW76 model with air conditioning and seats two to three passengers.

Tire size is 12R22.5 or 12.00R20. Ten tires plus one spare come standard. Steel fenders cover the axles. Two fire extinguisher holders are mounted on the truck. The exhaust shaft is positioned at the front of the truck for safety.

Applications.

This truck is built for transporting propane and other liquefied petroleum gas. It serves gas distribution companies and industrial suppliers. The flow meter with receipt printer enables direct retail fueling operations.

Why Choose This Truck.

Chengli manufactures this LPG bullet truck at factory direct pricing. The Q345R steel tank meets pressure vessel standards for LPG transport. Sinotruk components ensure parts availability and service support worldwide.
