10MT 20000L Propane Gas Cylinder Refilling Plant – Chengli Factory
Chengli factory supplies 10MT 20,000-liter propane gas cylinder refilling plants at competitive prices. The unit holds 20CBM volume with carbon steel Q345R construction.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

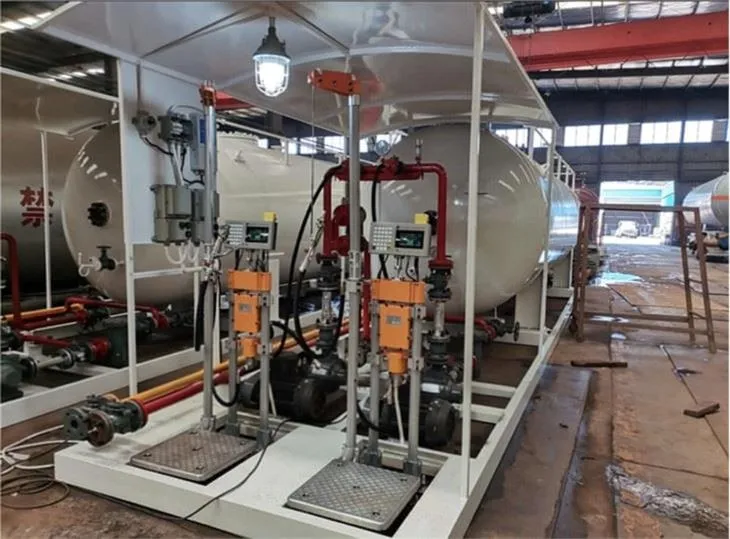

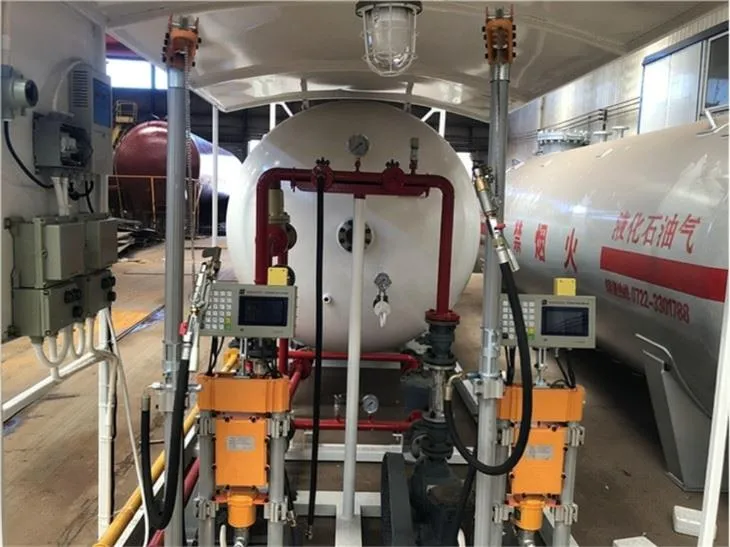

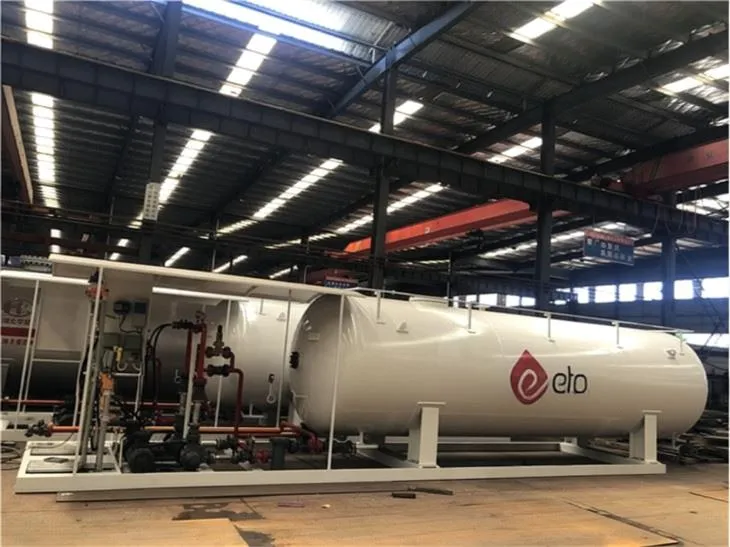

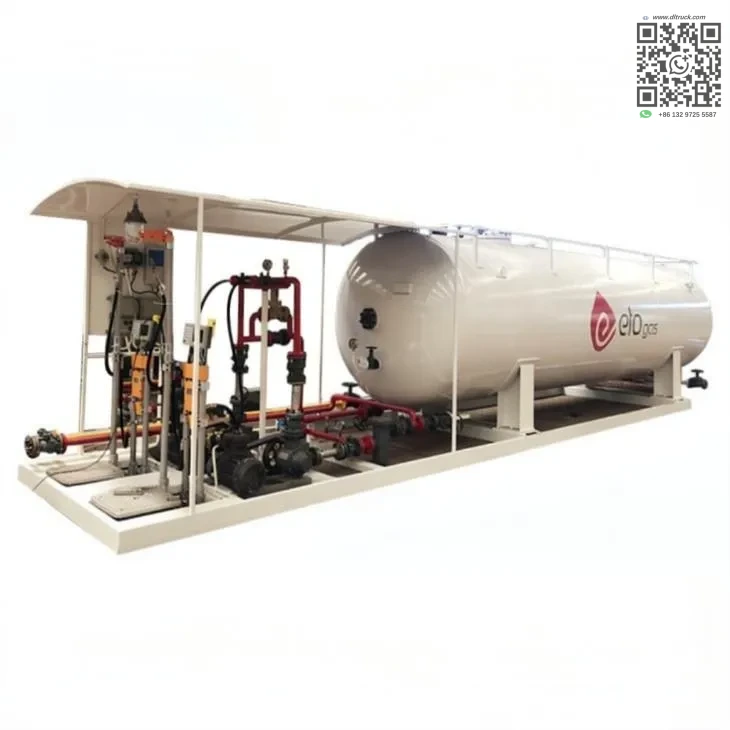

Chengli factory produces the 10MT 20,000-liter propane gas cylinder refilling plant. The unit handles a filling weight of 10000 kg. You get a direct factory price on this LPG skid system.

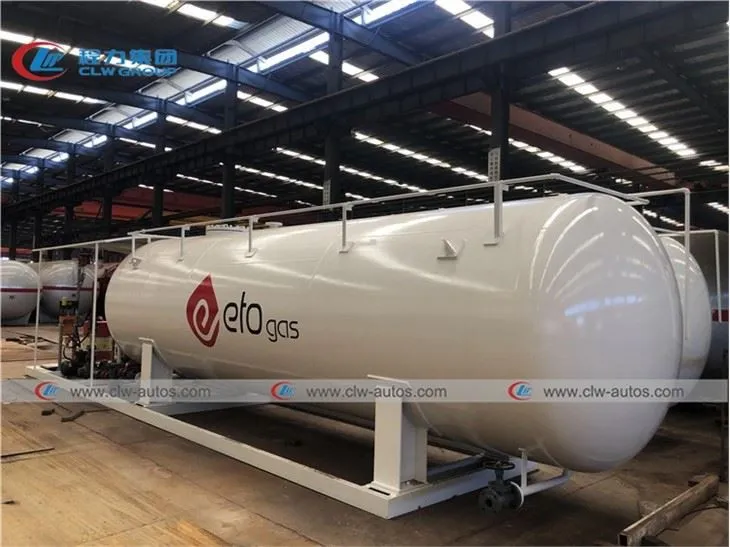

The tank provides 20CBM of internal volume. Carbon steel Q345R forms the shell and all main pressure parts. The design pressure reaches 1.77 MPa with a test pressure of 2.22 MPa.
Key Features.
The refilling skid includes a robust pressure vessel built for continuous propane handling.
- Tank shell thickness measures 10 mm.
- Endplate thickness is 12 mm.
- Tank diameter is 1800 mm.
- Overall external size is 8174 x 1820 x 2410 mm.
- Corrosion allowance is 1 mm.
- Tank weight is 2950 kg.
- Medium density range is 420-590 kg per cbm.
- Overall skid size is configured as designed for each order.
Performance and Configuration.
The vessel uses Carbon Steel Q345R for the shell and endplates. The thicker 12 mm endplate provides extra strength at the closed ends. The 10 mm shell thickness handles the full 1.77 MPa design pressure during normal operation.
The skid is sized at 8174 mm in length, 1820 mm in width, and 2410 mm in height. The 1 mm corrosion allowance extends service life when handling liquefied petroleum gas. The unit is configured to your specific site layout requirements.
Applications.
This refilling plant is used for filling LPG propane gas cylinders at distribution centers. It suits commercial gas suppliers who need a stationary filling skid with 10000 kg capacity.
The 20CBM tank volume supports high-throughput cylinder refilling operations.
Why Choose This Truck.
Chengli manufactures this refilling plant directly at the factory. You receive the equipment at a competitive price without middleman markup.
The Q345R carbon steel construction and 12 mm endplate thickness deliver durable pressure vessel performance. The skid is built to your layout specifications for quick site installation.
