Factory Good Price CHENGLI 60m3 LPG Tanker Trailer

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

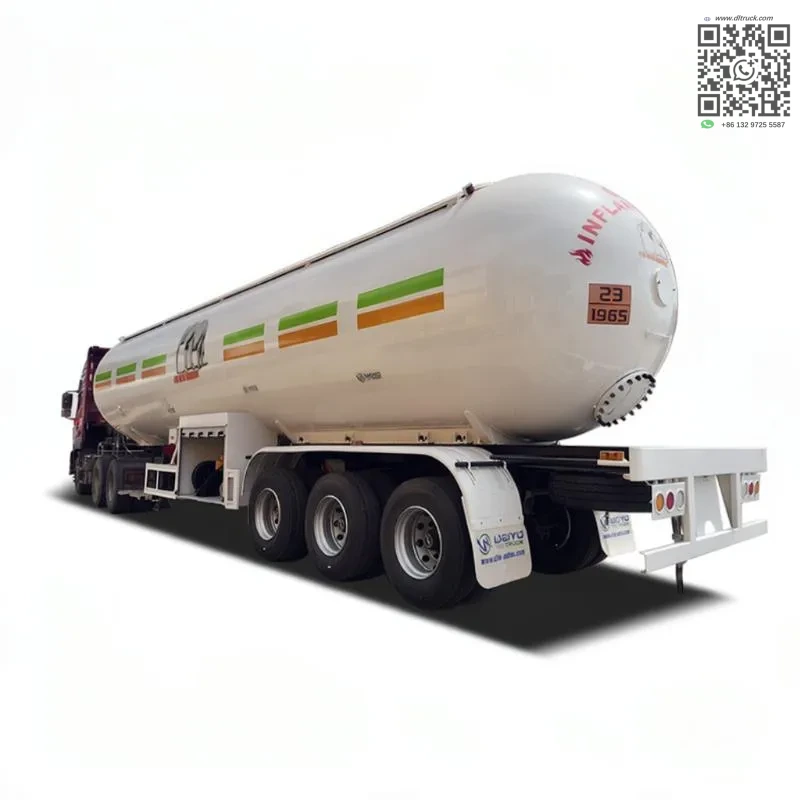

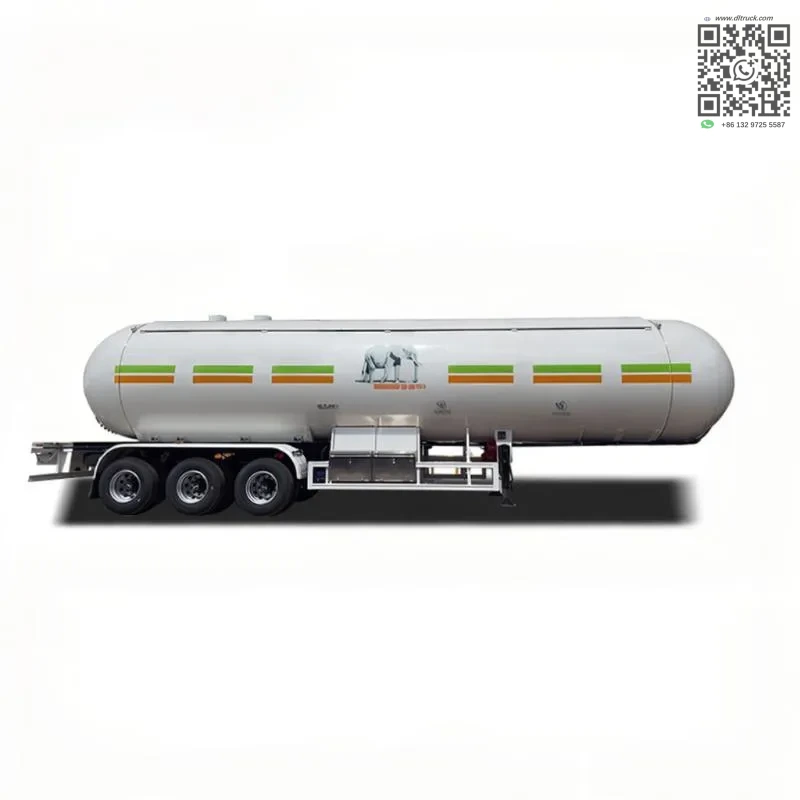

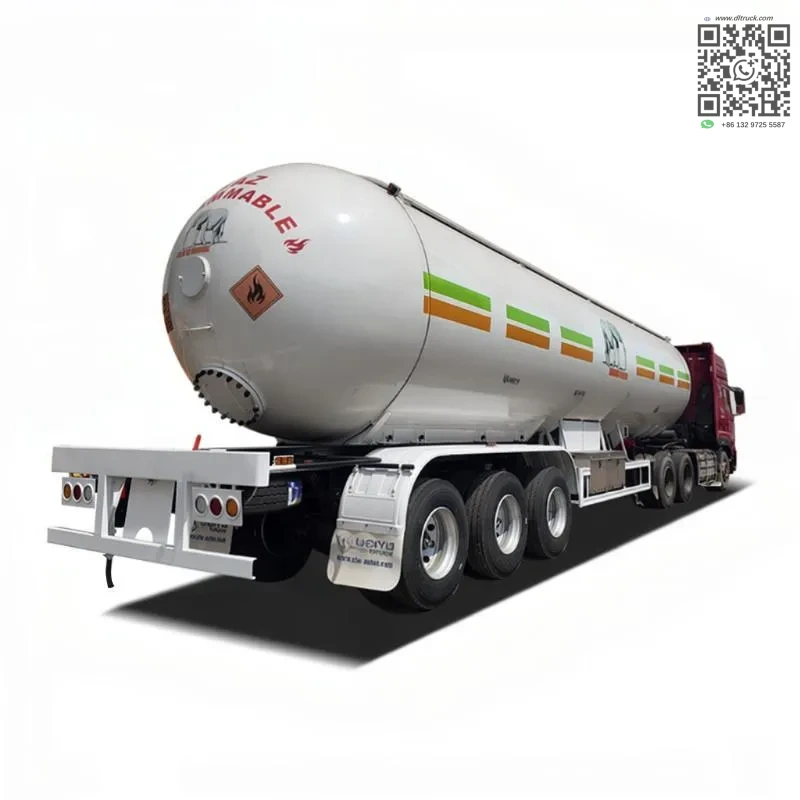

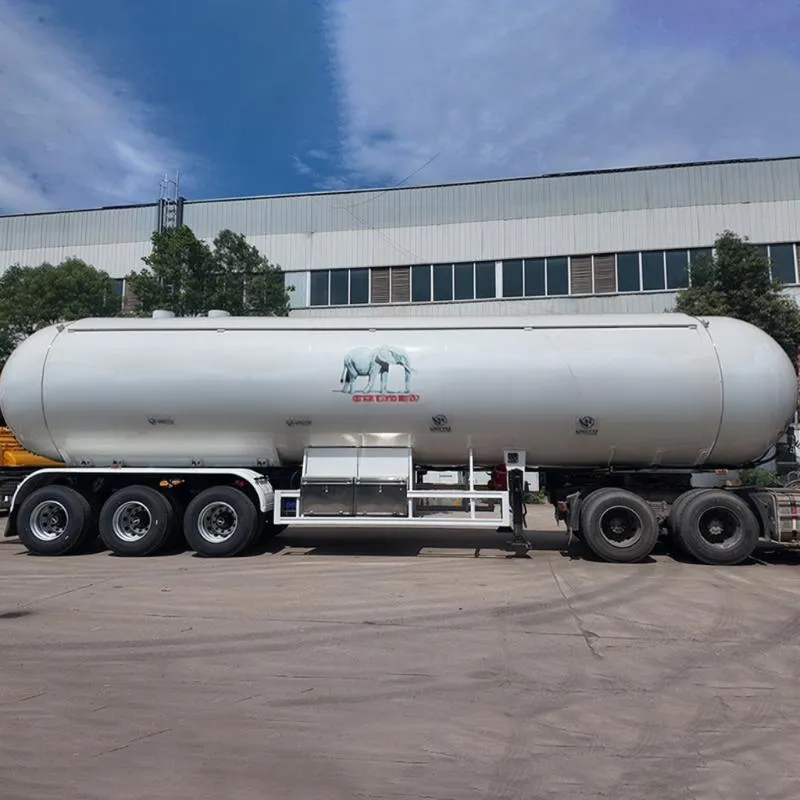

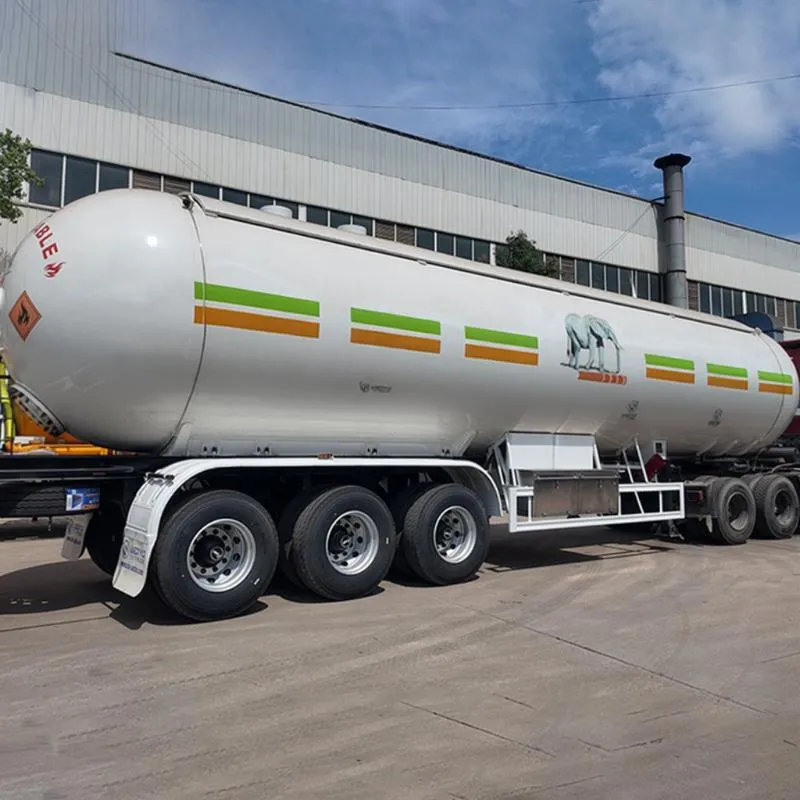

The CHENGLI 60m3 LPG tanker trailer is built for transporting liquefied petroleum gas, specifically propane. It carries 60 cubic metres of cargo in a single tank designed to -19 ℃ up to +50 ℃ operating temperatures.

The tank vessel is fabricated from Q345R steel plate with 12mm wall thickness. The design working pressure stands at 1.61 Mpa, tested hydraulically to 2.12 Mpa. The overall trailer measures 13350*2550*3995mm and has an estimated tare weight of 16250.

Key Features.

This LPG tanker trailer combines robust tank construction with precision filling and measurement equipment. Key specifications include:.

• USA brand CORKEN vane pump for loading and unloading.
• Coriolis Mass Flow Meter for accurate delivery measurement.
• Threaded connections with Rego fittings for both vapour and liquid phases.
• Emergency Shut-off Handle for rapid response during operations.
• Rochester floating ball level gauge for real-time level indication.
• 15 metre rubber filling hose paired with a Rego brand filling gun.
• Pressure gauge and thermometer installed on the tank.
• Tool box mounted for field service access.

Performance and Configuration.

The tank body uses 12mm thick Q345R steel plate with a corrosion allowance of 1.00mm. This grade of pressure vessel steel is widely used in LPG transport because of its proven performance at. Low and moderate temperatures.

The CORKEN vane pump is a USA brand unit mounted on the trailer. It handles both liquid and vapour phase transfer through the Rego threaded connectors. The Coriolis Mass Flow Meter provides accurate volumetric measurement for every loading and unloading cycle.

All standard gauging instruments are fitted as original equipment. The Rochester floating ball level gauge shows tank content level. One pressure gauge and one thermometer are mounted on the vessel. A 15 metre rubber filling hose and one Rego brand filling gun are supplied. The emergency shut-off handle allows immediate shutdown when required.

Applications.

This tanker trailer is designed for commercial transport of liquefied petroleum gas in bulk quantities. It suits LPG distribution networks, fuel suppliers, and industrial gas companies that require accurate measurement during loading and delivery.

The Coriolis Mass Flow Meter ensures compliance with trade measurement standards. The emergency shut-off system meets safety requirements for hazardous liquid transport on public roads.

Why Choose This Truck.

CHENGLI builds this LPG tanker trailer directly at its manufacturing facility. The CORKEN pump, Coriolis flow meter, and Rego fittings are specified as standard components. This means buyers receive a complete, ready-to-operate unit without needing aftermarket upgrades.

The 12mm Q345R steel tank. 1.61 Mpa design pressure rating, and hydraulic test to 2.12 Mpa give confidence in long service life. The combination of precision measurement equipment and safety features makes this trailer a practical choice for LPG bulk transport operations.
