China Zimbabwe 60m³ LPG Road Tanker Trailer – Chengli Factory Direct
Chengli 60m³ LPG road tanker trailer for Zimbabwe. 59.5 CBM tank with Q345 steel body. FUWA triple-axle chassis. Factory direct pricing from China supplier.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

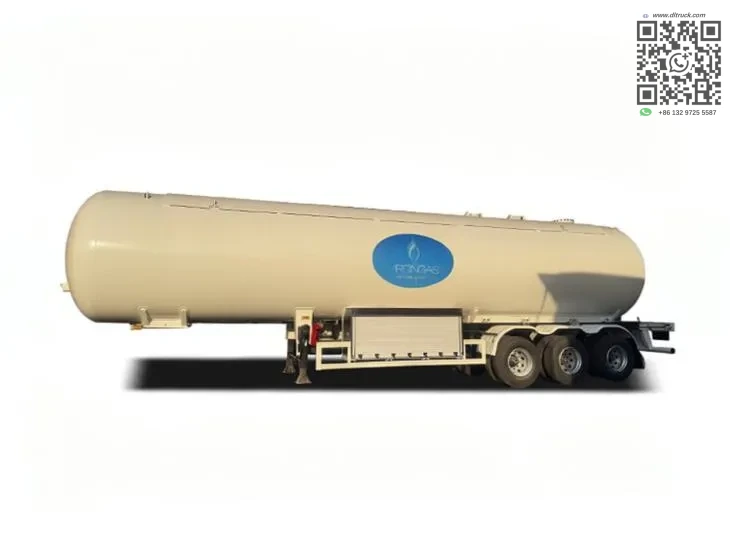

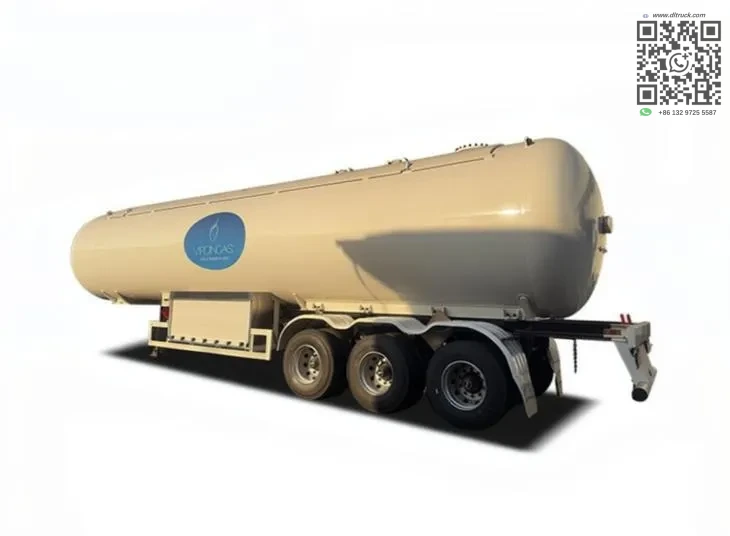

Chengli is a recognized manufacturer of LPG road tanker trailers in China. This 60m³ trailer is built for bulk liquefied petroleum gas transport. The vehicle is engineered for markets in Zimbabwe and the surrounding region.
The tank holds 59.5 cubic meters of LPG. The overall dimensions are 12990 by 2500 by 3990 mm. It runs on a reinforced chassis with three 12-ton FUWA axles.
Key Features.
The trailer carries key specifications designed for safe LPG transport.
- Tank capacity: 59.5 cubic meters.
- Overall length: 12990 mm.
- Tank inner diameter: 2478 mm with 12 mm wall thickness.
- Design working pressure: 1.61 Mpa / 16.1 Bar.
- Hydraulic testing pressure: 2.12 Mpa / 21.2 Bar.
- Maximum payload: 30000 kg.
- Estimated tare weight: 15650 kg.
- Operating temperature range: -19 ℃ to +50 ℃.
- Mechanical operated shut-off with response time under 10 seconds.
Performance and Configuration.
The tank body is constructed from Q345 steel with 12 mm plate thickness. The welding joints have a factor of 1. All plates undergo 100 percent flaw detection. Radio graphic testing covers every weld line.

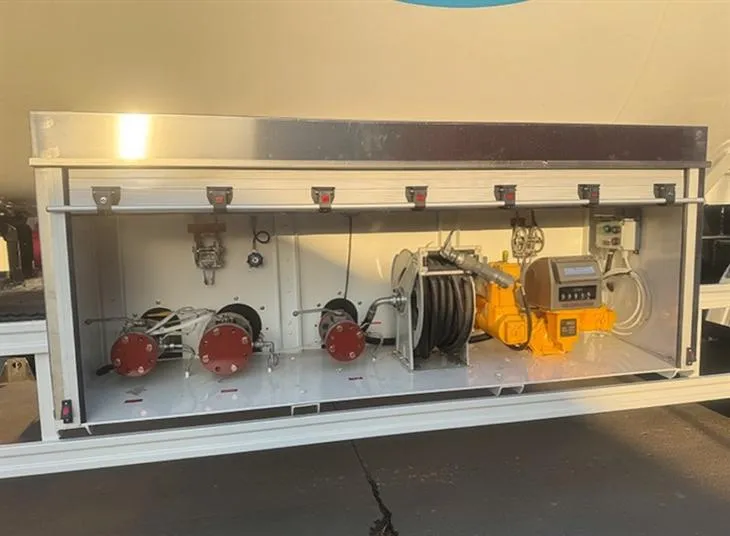

The trailer uses a mechanical operating type. Shut-off time is less than or equal to 10 seconds. Melting-close time is 75 plus or minus 5 seconds. Nominal pressure is 2.5 Mpa / 25 Bar. The valve base throat diameter measures 53 mm.
Instrumentation includes a YWJ-25A manual rotation level gauge with a measuring range of 50 to 2475 mm. A YN-100T pressure gauge and WTQ280 thermometer provide monitoring. Heat treatment is Not provided in source.
The chassis is reinforced to withstand overloaded conditions. High ground clearance handles unpaved roads. The axle setup consists of three 12-ton FUWA units. Twelve 12R22.5 tubeless tires are fitted with one spare.
Applications.
This trailer is designed for transporting liquefied petroleum gas. The loading medium is propane. The fluid property is classified as flammable. The vehicle serves fuel distribution networks across Zimbabwe.
It moves LPG from supply depots to urban filling stations and industrial sites. The reinforced chassis and high clearance make it suitable for rough rural roads in Zimbabwe and Kenya. The design speed is 80 km/h for highway transit.
Why Choose This Truck.
The factory good price Chengli model delivers direct factory pricing. Buyers skip middlemen and receive competitive rates straight from the Chinese manufacturing facility.
The reinforced chassis and high clearance are built for challenging road conditions in Zimbabwe. The mechanical operating system keeps maintenance straightforward. The FUWA triple-axle arrangement and tubeless tire package provide dependable highway and off-road performance.
