China ISUZU 6Tons Foam Fire Truck Manufacturers Suppliers Factory

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

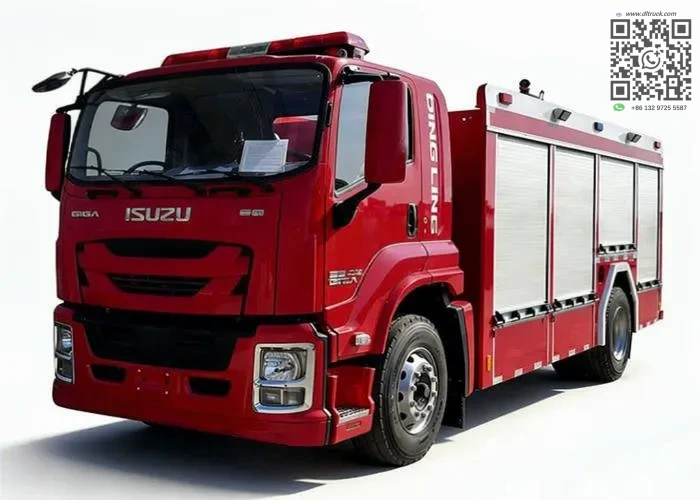

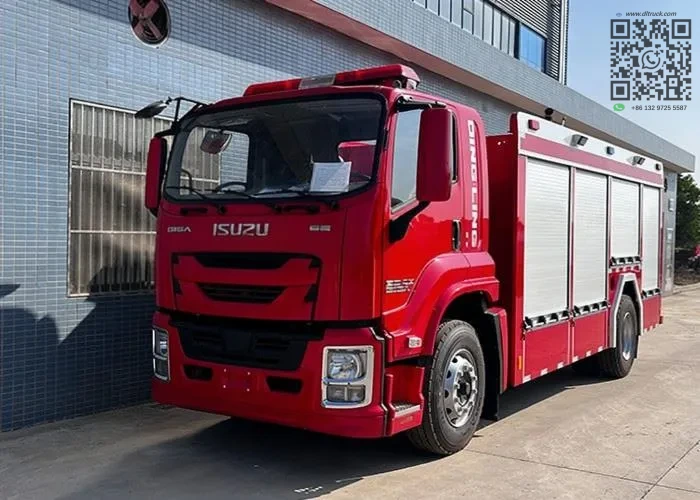

CHENGLI manufactures ISUZU 6 tons foam fire trucks in China. Our factory offers competitive pricing on every unit. This foam fire truck combines proven ISUZU chassis with a dedicated firefighting system. We supply these vehicles to municipal departments and industrial sites worldwide.

The truck carries 5000 liters of firefighting foam. It uses a post-mounted CB10/40 pump and a Wister PL32 fire monitor. The entire system is built for rapid deployment and effective fire suppression.

Key Features.

• 5000L / 5Tons / 1321 Gallon tank capacity.
• Q235 carbon steel tank construction.
• CB10/40 post-mounted fire pump.
• Rated flow 10 L/s at 4.0 MPa outlet pressure.
• Maximum suction depth of 7 meters.
• Rear-mounted pump with rear controls for easy firefighter access.
• Wister PL32 fire monitor.
• Not provided in source.
• Max depression ≤ -15° and max elevation ≥ +60°.
• Rated flow range 20 L/s to 32 L/s.
• Shoot range ≥ 50 meters.
• Direct current spraying, spray spraying, and foam spraying functions.

Performance and Configuration.

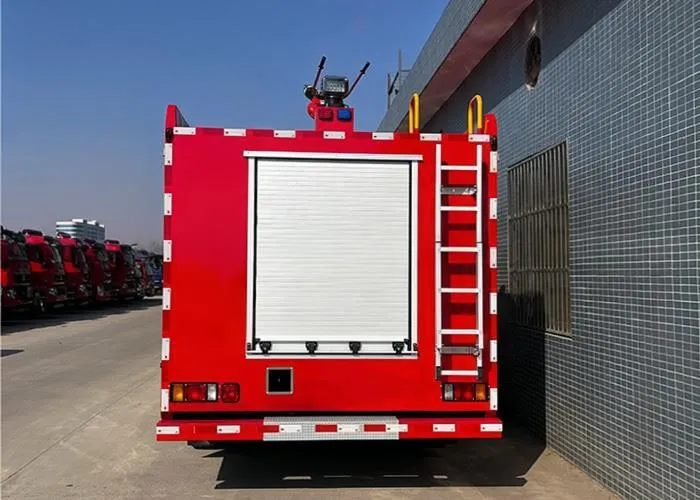

The CB10/40 pump sits at the rear of the truck. Firefighters can access the controls directly from the back of the vehicle. This layout keeps hoses and connections within easy reach during an emergency response.

The Wister PL32 monitor provides flexible water and foam delivery. The operator can tilt the nozzle from -15 degrees below horizon to +60 degrees above. This gives wide coverage across different fire scenarios.

The foam spraying function makes this truck suitable for flammable liquid fires. The monitor supports direct current spraying for long reach and spray spraying for wider coverage. Both modes work with foam solution for enhanced suppression on Class B fires.

The tank is fabricated from Q235 carbon steel. This material provides strong structural integrity for repeated pressurization cycles. The 5000 liter capacity stores sufficient foam concentrate and water for sustained operations.

Applications.

This foam fire truck serves airports, petrochemical plants, and industrial facilities. It handles hydrocarbon fuel fires where standard water jets are ineffective. Foam application smothers the fuel surface and prevents reignition.

Municipal fire departments also use this vehicle for compound fire incidents. The dual pumping and monitoring capability allows simultaneous water and foam deployment on scene.

Why Choose This Truck.

CHENGLI manufactures this truck directly at our factory in China. Buying straight from the factory gives you a competitive price. We do not add dealer markups between the manufacturer and buyer.

Every unit is built to specification with documented pump and monitor performance. The ISUZU chassis provides a proven foundation. The Q235 carbon steel tank meets durability demands for repeated firefighting duty cycles. Contact our factory for detailed pricing and configuration options.
