China HOWO 3 Tons Water Tender Fire Truck – Good Price | CHENGLI

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

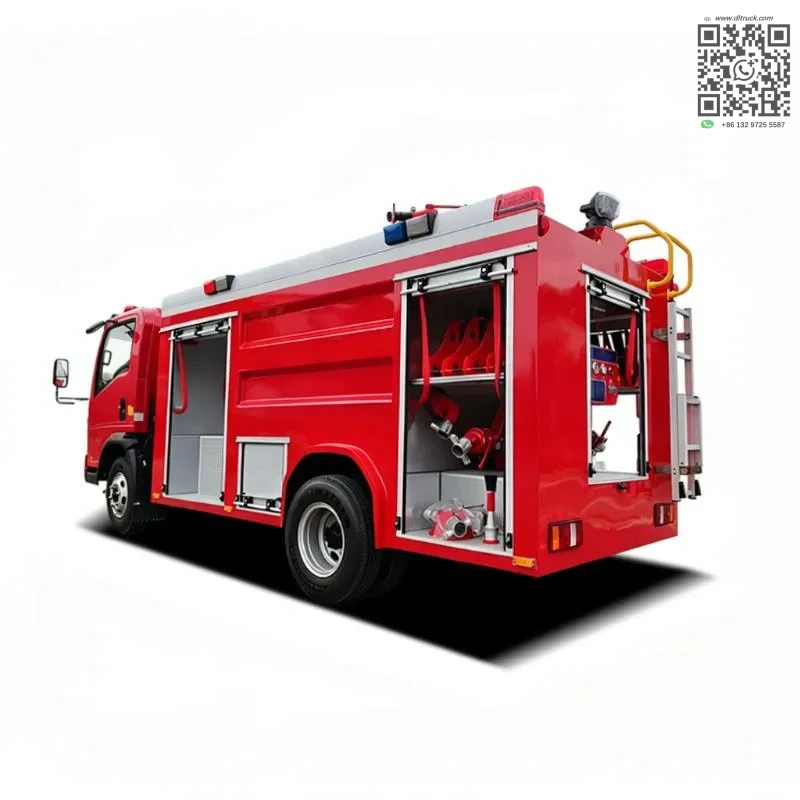

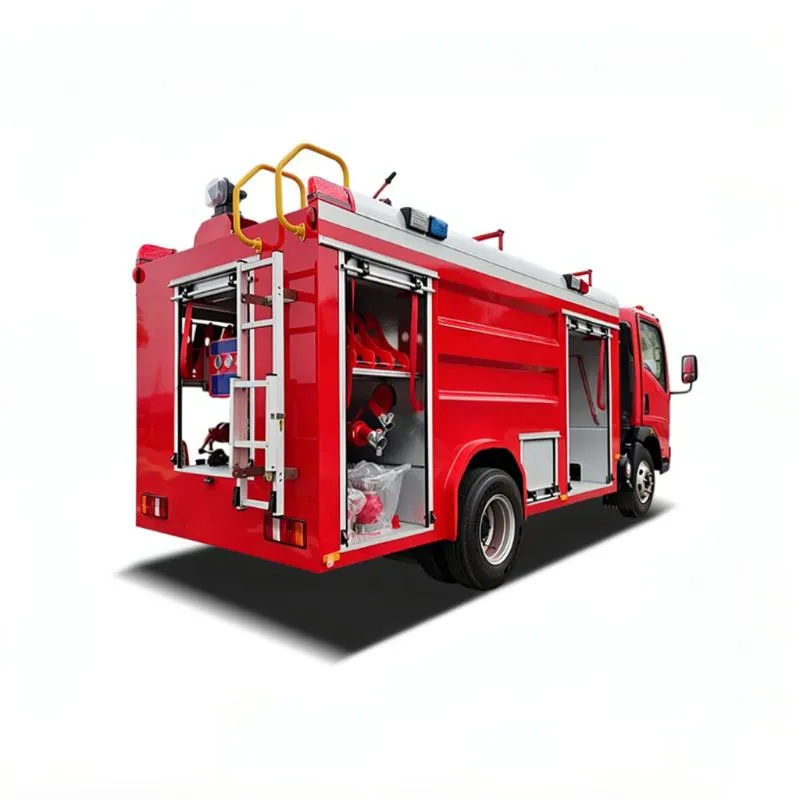

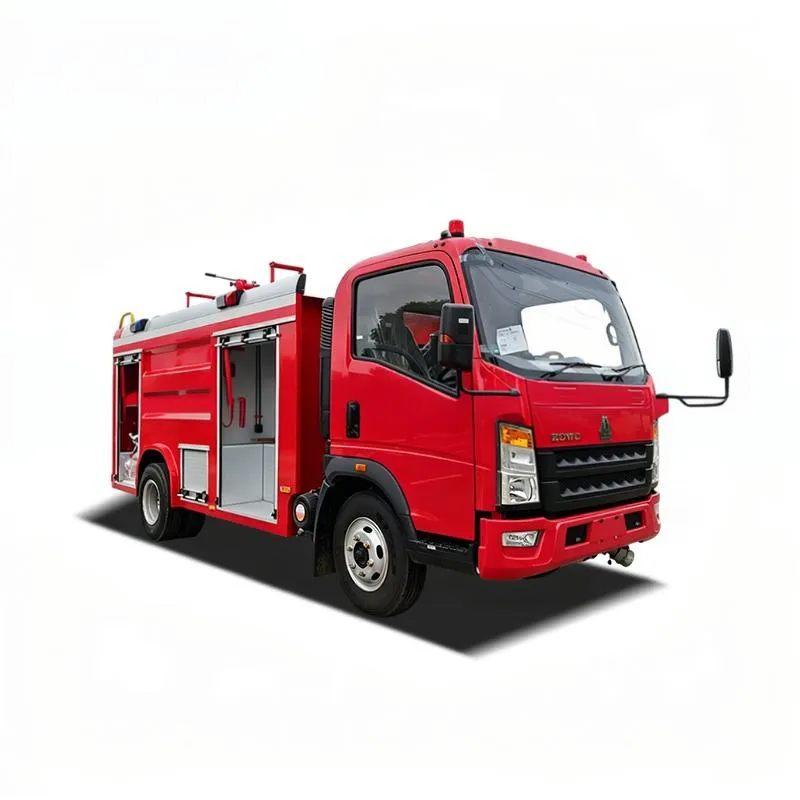

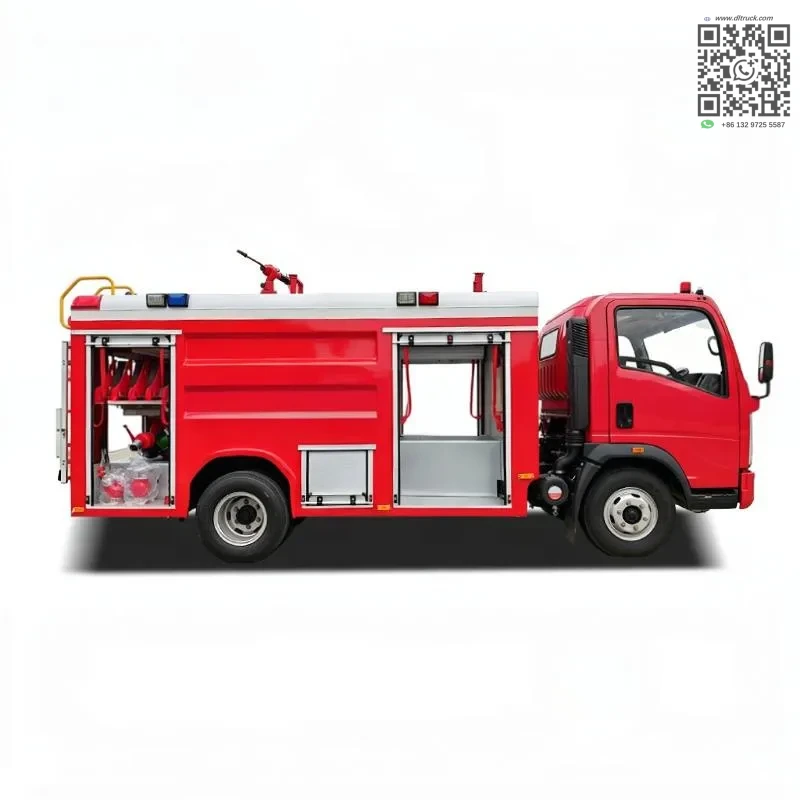

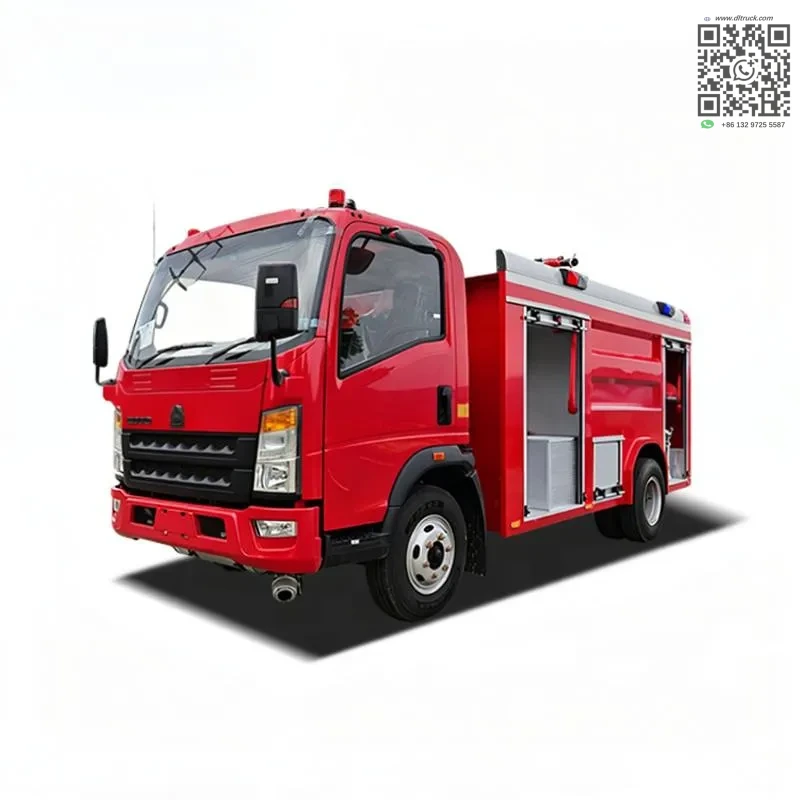

The CHENGLI HOWO 3 ton water tender fire truck is manufactured in China. This utility fire truck carries a 3000 liter water tank for emergency firefighting operations. The vehicle is built on a HOWO chassis with a Q235 carbon steel tank.

We are a professional manufacturer and supplier of HOWO water tender fire trucks. Our factory offers competitive pricing for international buyers seeking reliable fire fighting equipment. Each unit is built to meet operational standards for municipal and industrial fire services.

Key Features.

The truck integrates a complete water delivery system with a rear-mounted fire pump and a roof-mounted fire monitor. Both components are designed for rapid deployment and sustained water output during firefighting operations.

• 3000L water tank built from Q235 carbon steel.
• CB10/20 fire pump with 20 L/s rated flow and 1.0 MPa outlet pressure.
• Maximum suction depth of 7 meters for water extraction from open sources.
• Prim ing time of 35 seconds or less via electric piston pump.
• Automatic vacuum pumping system for water extraction.
• Rear-mounted pump with rear control panel for firefighter access.
• PS20 fire monitor with Not provided in source horizontal slewing rotation.
• Fire monitor shoot range of 45 to 50 meters.
• Elevation angle from -15 degrees to +70 degrees.
• Fog and straight stream modes selectable on the monitor.
• Manual operation with roof-mounted locking device.

Performance and Configuration.

The CB10/20 fire pump is the core component of this water tender. It delivers a rated flow of 20 liters per second at an outlet pressure of 1.0 MPa. The pump is rear-mounted with a control station positioned at the rear for easy access by firefighters. This layout allows crew members to connect hoses and operate the pump without entering the traffic zone.

The priming system uses an electric piston pump with automatic vacuum functionality. Water extraction from hydrants or open water sources begins within 35 seconds. The maximum suction depth rating is 7 meters, which covers standard urban and rural water supply scenarios.

The PS20 fire monitor is installed on the roof of the tank compartment. It rotates Not provided in source horizontally and tilts from -15 degrees to +70 degrees vertically. Operators select between fog mode for dispersion and protection and straight stream mode for long-range projection. The shoot range reaches 45 to 50 meters. A manual handwheel controls the monitor, and a locking device secures the position during transit.

Applications.

This water tender fire truck is used by municipal fire departments, industrial site fire teams, and construction project safety units. The 3000 liter tank capacity supports sustained attack operations on medium-scale fires.

Common deployment scenarios include urban road rescue, building fire response, warehouse and factory fire suppression, and highway incident management. The rear pump controls allow quick hose deployment at the scene without repositioning the vehicle.

Why Choose This Truck.

CHENGLI manufactures this HOWO water tender directly at the factory. Buyers receive competitive pricing without middleman markup. The truck combines a proven HOWO chassis with a Q235 carbon steel tank and a CB10/20 pump system.

Our factory supplies fire trucks to buyers across multiple regions. Each vehicle is inspected before shipment and packaged for export loading. Contact our sales team to request specifications and pricing for your order.
