China ISUZU 600P 3-Ton Water Tank Fire Fighting Truck | Chengli Factory
ISUZU 600P 3-ton water tank fire fighting truck from Chengli. Carbon steel tank with atmospheric centrifugal pump delivering 20L/s. 360° rotation and ≥48m range.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

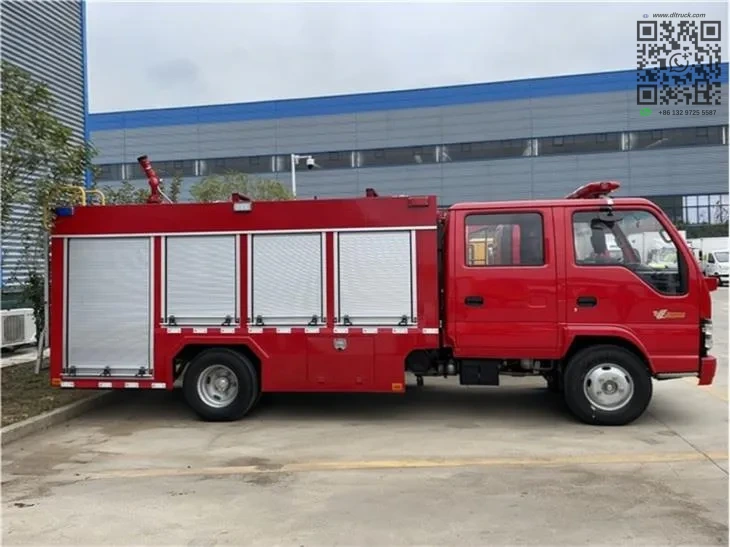

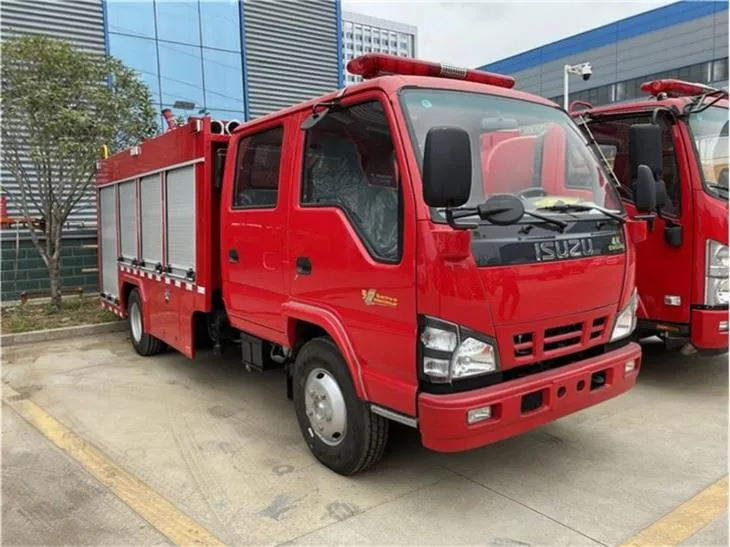

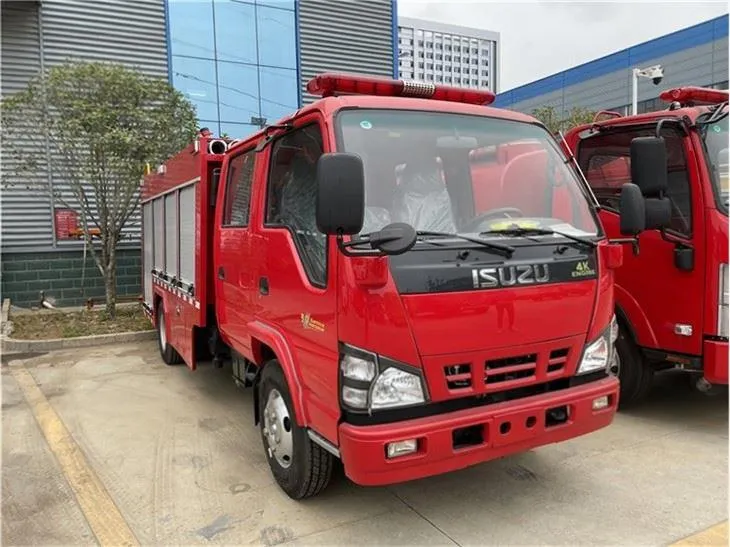

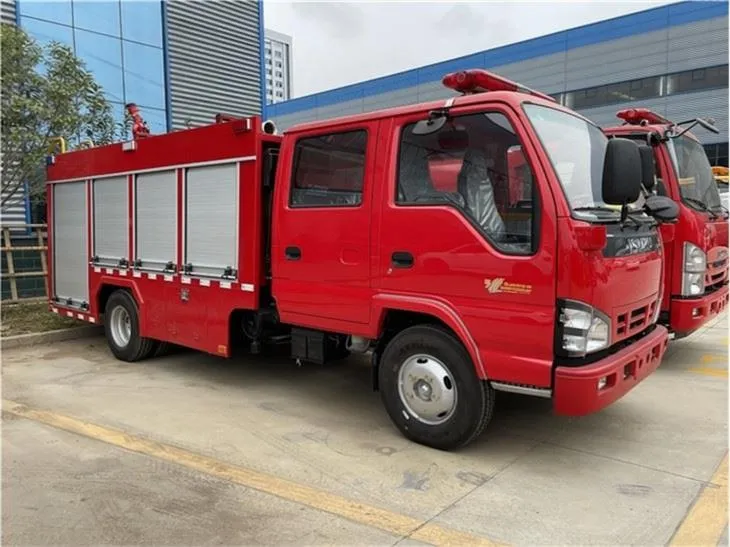

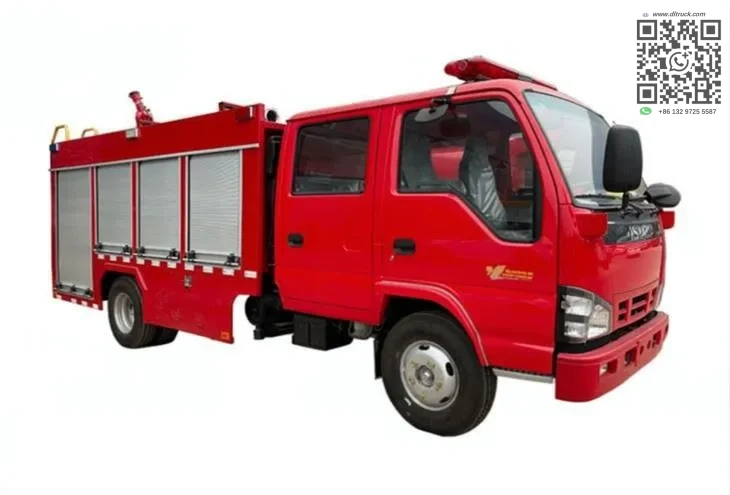

Chengli Factory produces the ISUZU 600P 3-ton water tank fire fighting truck for commercial export. The vehicle is built on the ISUZU 600P chassis with a carbon steel water tank. Stainless steel or PP material can be selected for the tank if required.
The fire truck integrates an atmospheric centrifugal pump rated at 20L/s flow and 1.0MPa outlet pressure. It features 360-degree horizontal rotation and a water stream range of at least 48 meters.
Key Features.
The truck combines multiple firefighting functions into one compact unit. Key equipment includes the following.
- 3-ton water tank with flexible chassis frame connection.
- DN460 manhole with quick lock and open device.
- DN65 water inlet ports on both sides of the tank.
- Atmospheric centrifugal pump with built-in sliding vane diversion.
- DN100 suction port on the rear of the pump room.
- DN80 water outlets on both sides with shut-off valves and caps.
- 360° horizontal rotation with ≥48m range.
- Red and blue strobe lights on both sides of the body.
- Long row red warning lights on the cab roof.
- Siren control box located in front of the driver’s cab.
- Independent electrical circuit throughout.
Performance and Configuration.
The pump delivers 20L/s at 1.0MPa outlet pressure. Maximum suction depth reaches 7 meters with a diversion time of no more than 35 seconds. The clutch is hand-controlled and uses splash lubrication.
The transmission system employs a cross shaft universal joint drive shaft. Cooling water is supplied through a dedicated pipeline with a control valve and cooling power take-off.
The equipment box sits behind the passenger compartment. Both sides feature aluminum alloy rolling doors with integrated lighting. The equipment room includes storage boxes as needed. Common tools can also be placed on both sides of the pump room.
The pump room is located at the rear of the vehicle. Aluminum alloy rolling doors are fitted on both sides and the back. Interior lighting is provided, and anti-skid round steel pipe handrails with grooved sprayed surfaces allow safe access.
Applications.
This fire fighting truck is suited for municipal fire departments and industrial site emergency response. The 3-ton water capacity and long discharge range make it effective for urban road firefighting and small-scale industrial incidents.
The compact ISUZU 600P chassis provides good maneuverability in confined areas. The built-in sliding vane pump allows rapid water diversion for continuous operations.
Why Choose This Truck.
Chengli Factory offers competitive pricing on this ISUZU 600P water tank fire fighting truck. The carbon steel tank construction is robust, and alternative materials are available on request.
Each unit is built to export standards with complete warning and lighting equipment. Contact Chengli Factory for detailed specifications and ordering information.
