China Dongfeng Tianjin 8tons LPG Tank Truck – Factory Good Price Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

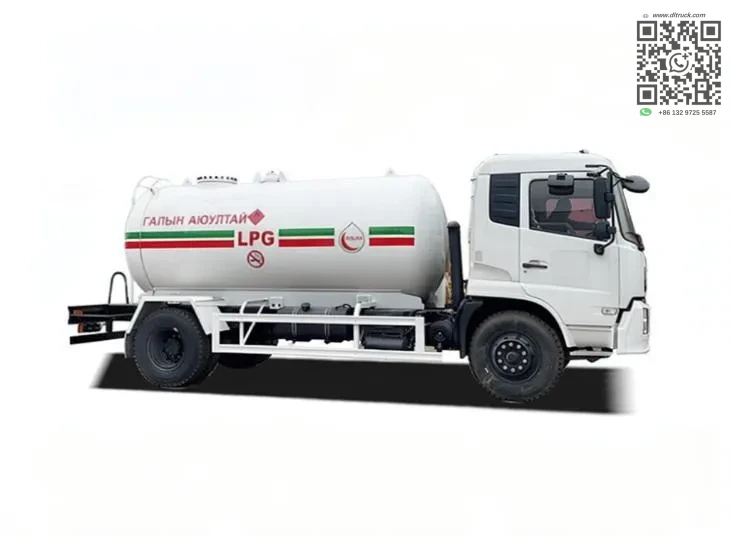

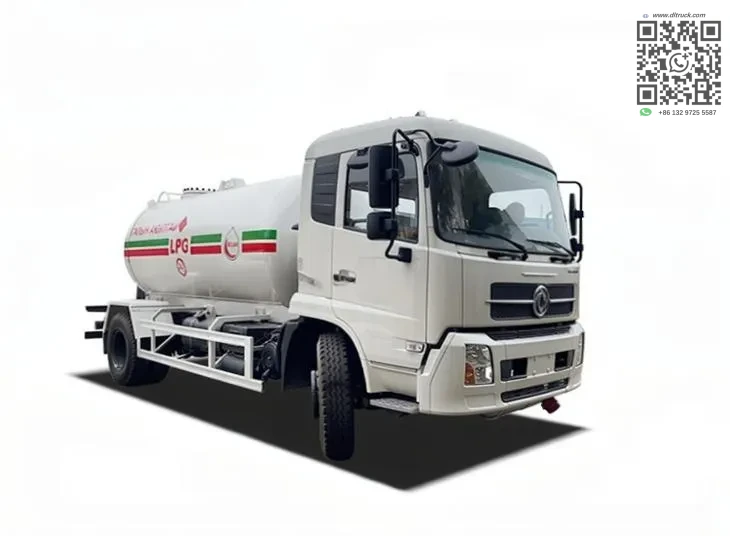

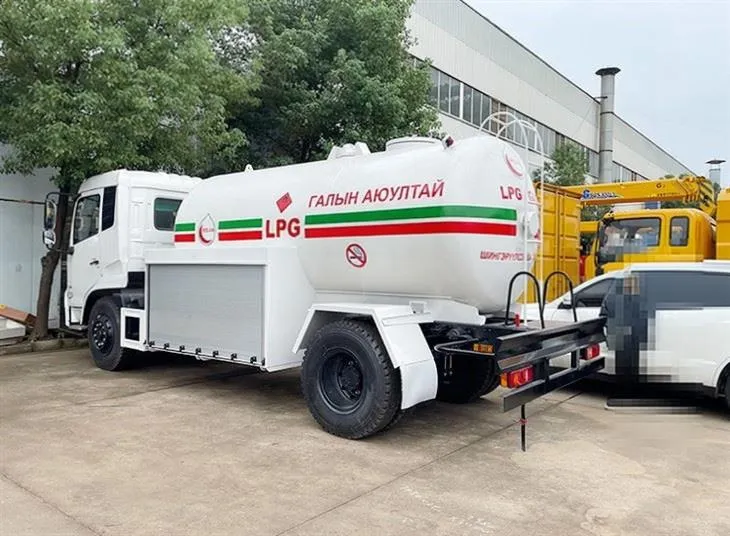

We manufacture the Dongfeng Tianjin 8tons LPG tank truck at our factory. This tanker carries 16000 liters of liquefied petroleum gas. The tank is built from Q345R steel plate.

Chengli supplies this vehicle at a competitive factory price. The truck suits gas distribution companies and transport operators.

Key Features.

• 16000 liter Q345R tank with 10mm thickness.
• 190Hp six-cylinder turbocharged engine.
• Tiltable cabin with air conditioning.
• Manual 8-speed forward, 1 reverse gearbox.
• TSC-50 flow meter with ticket printer.
• Emergency shut-off valves at valve box and rear.
• Retractable 15-30M filling hose with REGO adapter.
• Custom logo painting available.

Performance and Configuration.

The chassis is Dongfeng Tianjin with left-hand drive. The wheelbase measures 5000mm. Front axle loading is Not provided in source and rear axle loading is 10000 kg. Maximum driving speed reaches 95 km/h.

The engine is a 6-cylinder in-line type with turbocharging and inter-cooling. Displacement is 5.9 liters. Max output power is 140 kW. The emission standard is Euro 2. Tire specification is 10.00R20 with 6 pieces and 1 spare tire.

The LPG tank has a diameter of 2000mm and end plate thickness of 12mm. Working pressure is 1.61 Mpa and design pressure is 1.71 Mpa. Testing pressure is 2.21 Mpa. Corrosion allowance is 1.0 mm. The tank operates between -40 and + Celsius.

The filling connections use flange type DN50/2 inch for both gas phase and liquid phase. A Chinese brand CLW 15-5 LPG pump is installed. The TSC-50 flow meter shows filling volume with a maximum capacity of Not provided in source per minute. It includes a mechanical register, strainer, air eliminator, differential valve, back check valve, and ticket printer.

Safety equipment includes one safety return valve, one pipeline safety valve, a DN450 manhole. A WTQ-280 thermometer, two YN-100T pressure gauges, two emergency shut-off valves, a fire extinguisher holder, and one static conductive tape. The fenders are steel. Level gauge is Rochester or Chinese brand.

Applications.

This truck transports liquefied petroleum gas for urban and regional distribution. It serves gas stations, industrial plants, and commercial fuel suppliers.

The 16000 liter capacity allows multiple delivery stops per run. The tiltable cabin simplifies routine maintenance and engine access.

Why Choose This Truck.

Chengli builds this Dongfeng Tianjin LPG tanker at our own factory. We offer direct pricing without middleman markup. The Q345R tank material meets pressure vessel standards for LPG service.

Every truck ships with complete filling and safety equipment. Custom logo painting is available on request. Contact us for detailed specifications and ordering information.
