China Dongfeng LHD 10tons LPG Bobtail Truck – Good Price – Chengli

factory good price chengli Overview.

factory good price chengli is an important factor in commercial vehicle safety.

Introduction.

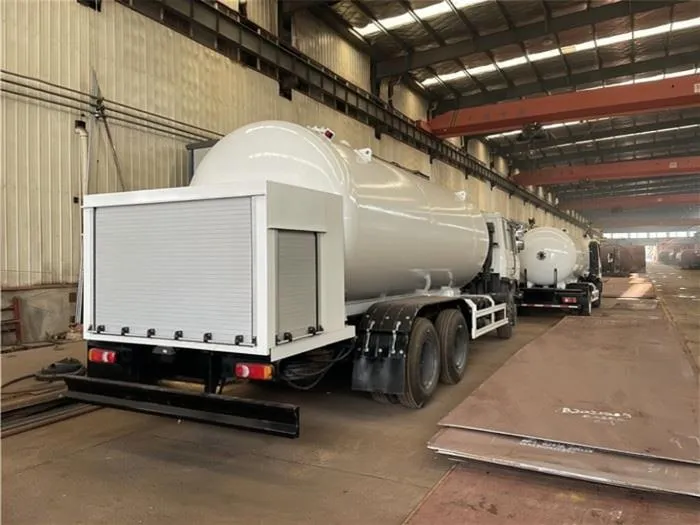

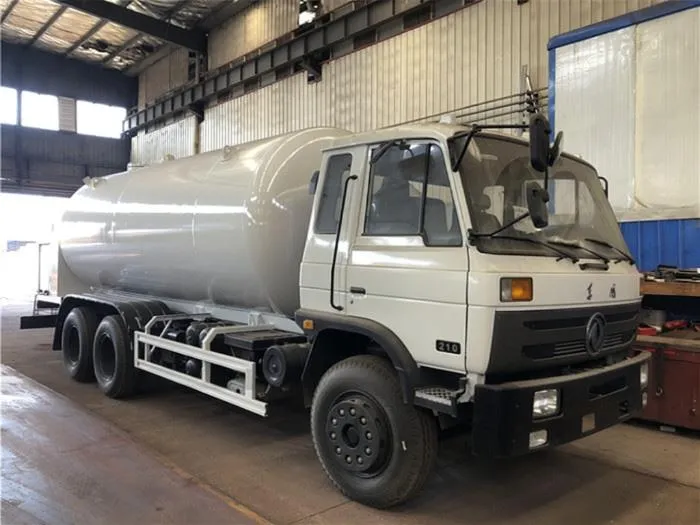

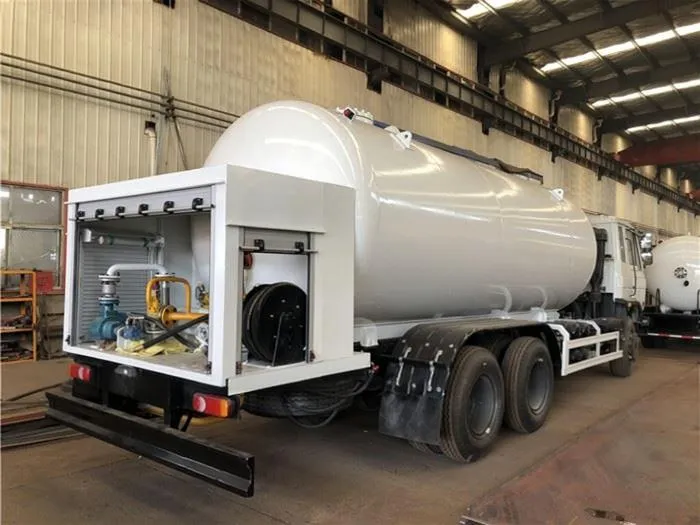

Chengli manufactures Dongfeng LHD 10tons LPG bobtail trucks for commercial propane transport. This vehicle carries liquefied petroleum gas in a certified pressure tank. The truck uses a Dongfeng chassis with a Yuchai diesel engine rated at 240 HP. Euro III emission standards apply. The overall dimensions measure 9510X2470x3450 mm. Wheel base is 4350+1300 mm.

Drive configuration is available in left hand drive or right hand drive models. The cabin seats two to three passengers and includes air conditioning. Maximum driving speed reaches 90 km/h. The gear box provides nine forward gears and one reverse gear. Tire specification is 11.00-20 with ten mounting pieces plus one spare tire.

Key Features.

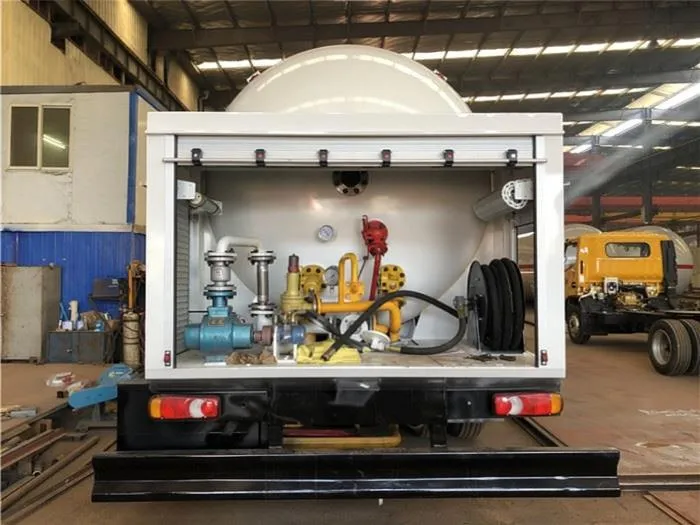

The LPG transport tank meets required design pressure standards. Key components include a manual level gauge and safety valve. The system is equipped for filling operations with a dedicated pump and metering device.

• 20cbm tank volume with Q345R material.
• 1800mm tank diameter and 10mm tank thickness.
• 12mm end plate construction.
• DN50 gas phase connection port.
• DN50 or DN80 liquid phase option.
• Design pressure of 1.61Mpa.
• DN80 safety valve unit.
• Manual rotation level gauge at rear.
• LPG pump and volume flow meter included.
• 15 meters filling hose provided.
• Standard nozzle for 12.5kg cylinder.
• Thermometer and pressure gauge installed.
• Emergency valve fitted.
• Steel fenders on all wheels.
• Two fire extinguisher holders mounted.
• Exhaust shaft positioned at front of truck.

Performance and Configuration.

The Dongfeng chassis supports a gross vehicle weight of 11460 kg. Front axle loading is rated at Not provided in source. Rear dual axle loading is rated at 2 times 10000 kg. The tank is constructed from Q345R pressure vessel steel. Tank thickness measures 10mm throughout. End plate thickness is 12mm.

Propane serves as the designated filling gas for this vehicle. The gas phase line uses DN50 connections. Liquid phase selection offers DN50 or DN80 configurations based on buyer requirements. The level gauge is a manual rotation type located at the rear of the tank for reading.

Operational equipment includes one LPG volume flow meter for tracking transfers. The filling hose extends 15 meters for ground connections. The standard filling nozzle matches 12.5kg cylinder requirements. Pressure and temperature monitoring is available through the installed gauge and thermometer. Emergency valve access is provided for safety response.

Applications.

This truck is designed for transporting propane in liquid form. It serves gas distribution companies and utility suppliers. The bobtail configuration enables direct delivery to retail outlets and industrial customers. The 20cbm tank capacity supports regional distribution routes.

The front-mounted exhaust shaft placement improves safety during loading and unloading operations. Fire extinguisher holders are positioned for quick access. Steel fenders protect the tank and piping from road debris.

Why Choose This Truck.

Chengli supplies this Dongfeng LPG bobtail truck at factory pricing. Buyers receive direct manufacturer support for specifications and customization. The Yuchai YC6A240-33 engine is a proven power unit for heavy duty transport. European emission compliance supports export to regulated markets.

Tank construction follows pressure vessel manufacturing standards. All valves, gauges, and safety devices are sourced as specified. Chengli provides documentation for international shipping and customs clearance. Contact the factory for current pricing and delivery schedules.
