50000L 20Ton Propane Gas Transport Tank Semi Trailer – Factory Good Price Chengli
50000L LPG transport tank semi trailer from Chengli factory. 20-ton payload capacity with 1.61 MPa design pressure. Q345 steel tank body with 100% flaw detection and full heat treatment.
factory good price chengli Overview.
factory good price chengli is an important factor in commercial vehicle safety.
Introduction.

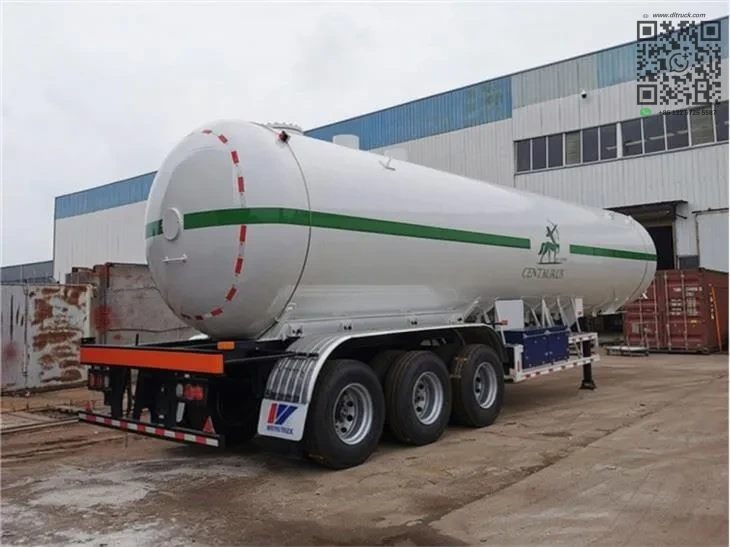

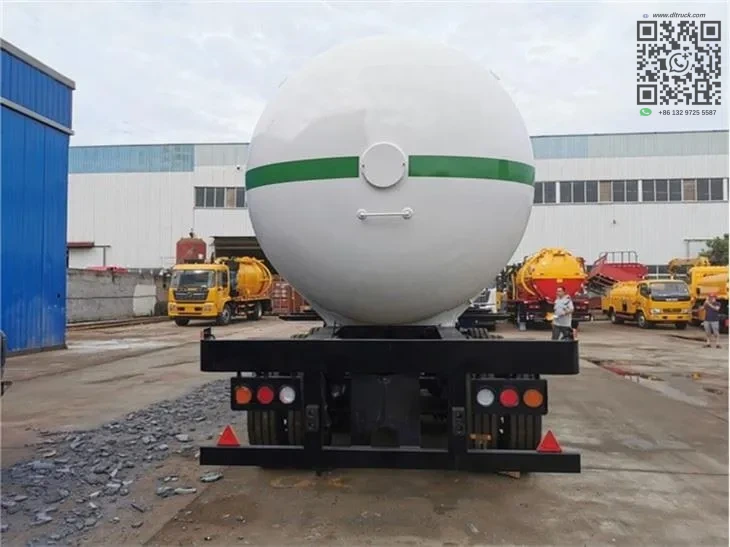

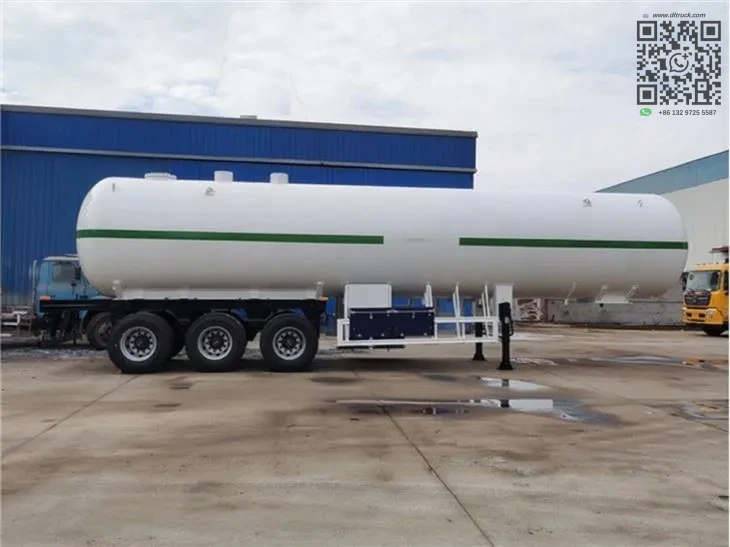

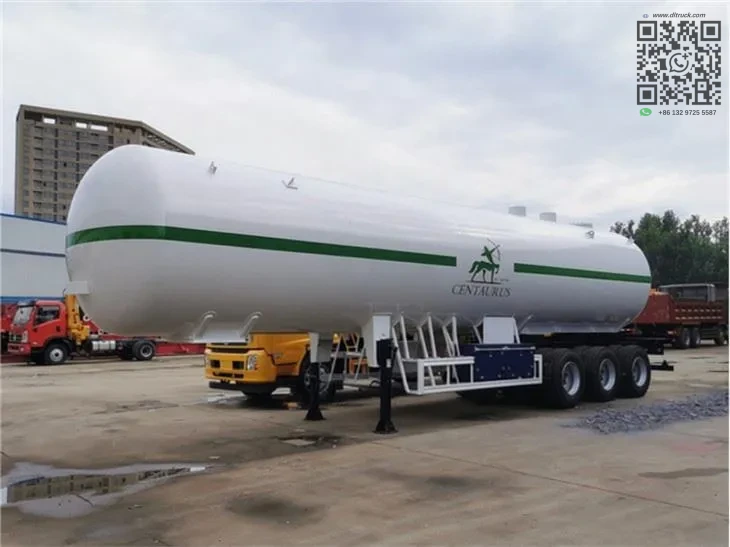

The 50000L propane gas transport tank semi trailer is manufactured by Chengli. This vehicle has a tank volume of 49.6 cubic meters. The payload reaches 20832 kilograms. We sell this LPG tanker directly from our factory at competitive pricing.
The tank body is made of Q345 steel with 12 mm wall thickness. Each trailer undergoes 100% flaw detection. Hydraulic test pressure is 2.1 MPa. Design pressure is rated at 1.61 MPa.
Key Features.
- Tank volume of 49.6 cubic meters.
- Q345 steel body, 12 mm thickness.
- Design pressure of 1.61 MPa.
- Design temperature rated at Not provided in source.
- 100% flaw detection on all welds.
- Three BPW axles rated at 13 tonnes each.
- JOST landing leg.
- 8 plus 1 spare tubeless tires in 12R22.5 size.

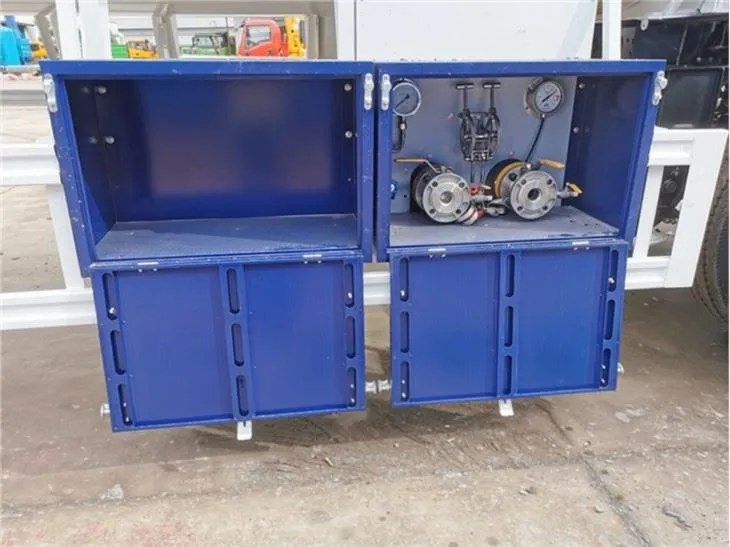

- 2 or 3 emergency cut-off valves.
- 4 or 6 ball valves.
- Liquid level gauge and pressure indicating thermometer.
- Top-mounted DN450 manual switch type manhole.
Performance and Configuration.
The overall dimensions are 12740 mm by 2480 mm by 3800 mm. The wheelbase measures 6800 plus 1320 plus 1320 millimeters. Tare weight is 15300 kilograms. Gross vehicle weight totals 36132 kilograms.
Heat treatment is performed at Not provided in source in a furnace. Corrosion allowance is set at 1.00 mm. Magnaflux inspection covers welding areas that flaw detection cannot reach. The weld joint factor is 1. The king pin is available in size 50 or 90.
Applications.
This semi trailer transports liquefied petroleum gas, which is a flammable fluid. It is used in gas distribution networks and industrial supply chains. Refill stations and bulk fuel depots rely on this equipment.
Why Choose This Truck.
Our factory offers this LPG tanker at a good price. Every tank body is built with Q345 steel and 12 mm thickness. We perform 100% flaw detection and full heat treatment on each unit. The product meets strict quality standards for safe propane gas transport.
