Introduction.

CHENGLI factory manufactures and exports ISUZU 30m aerial manlift trucks worldwide. We operate as direct factory suppliers offering competitive pricing on every unit.

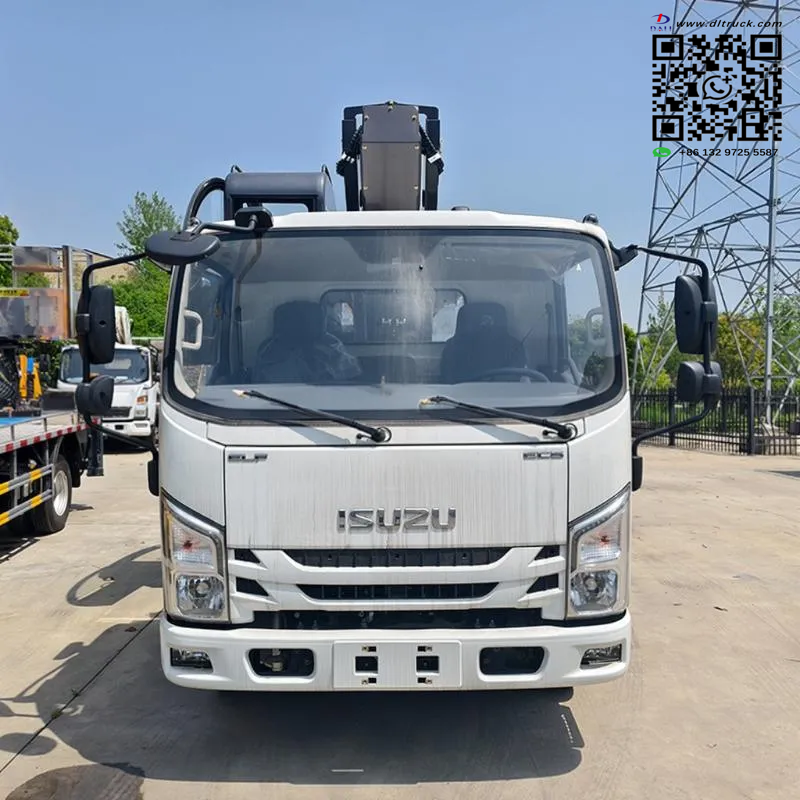

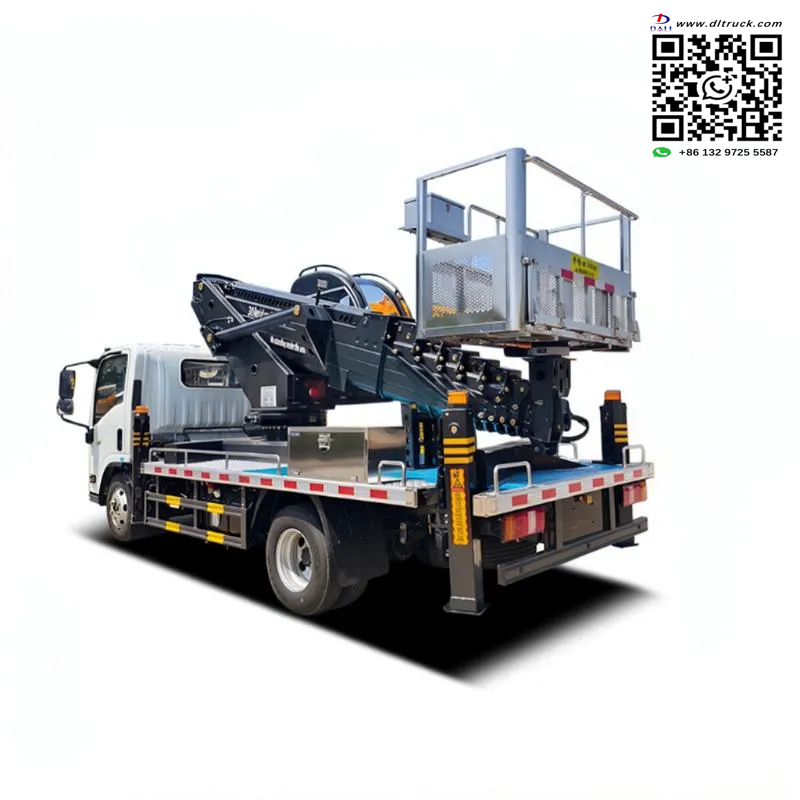

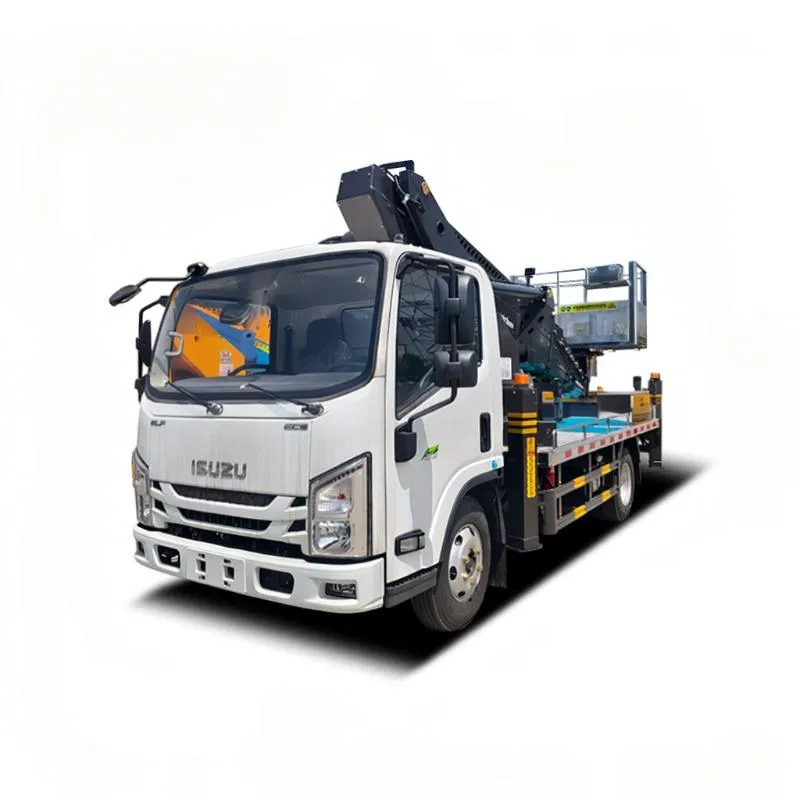

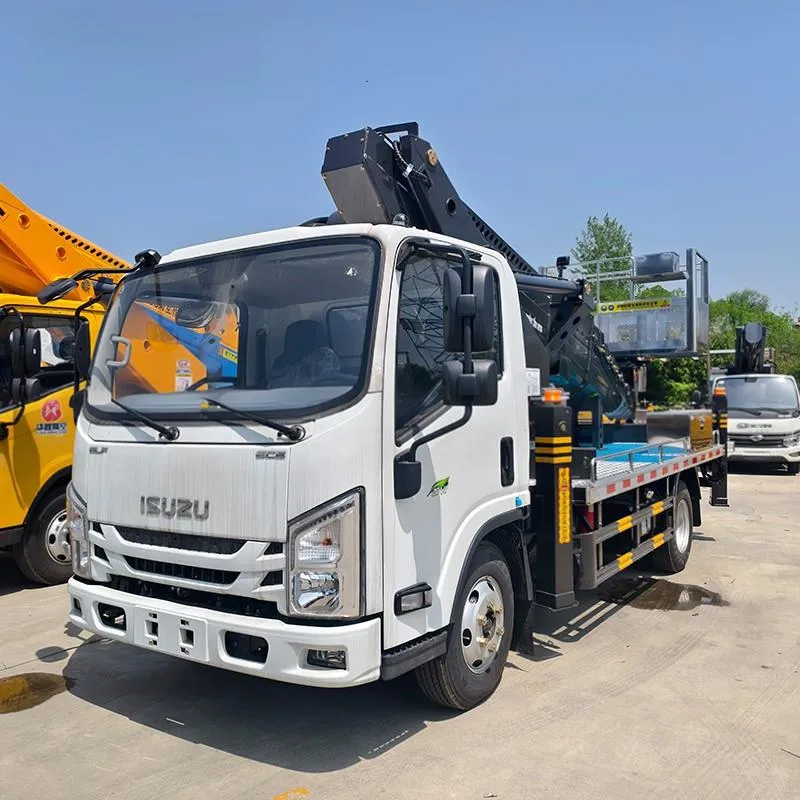

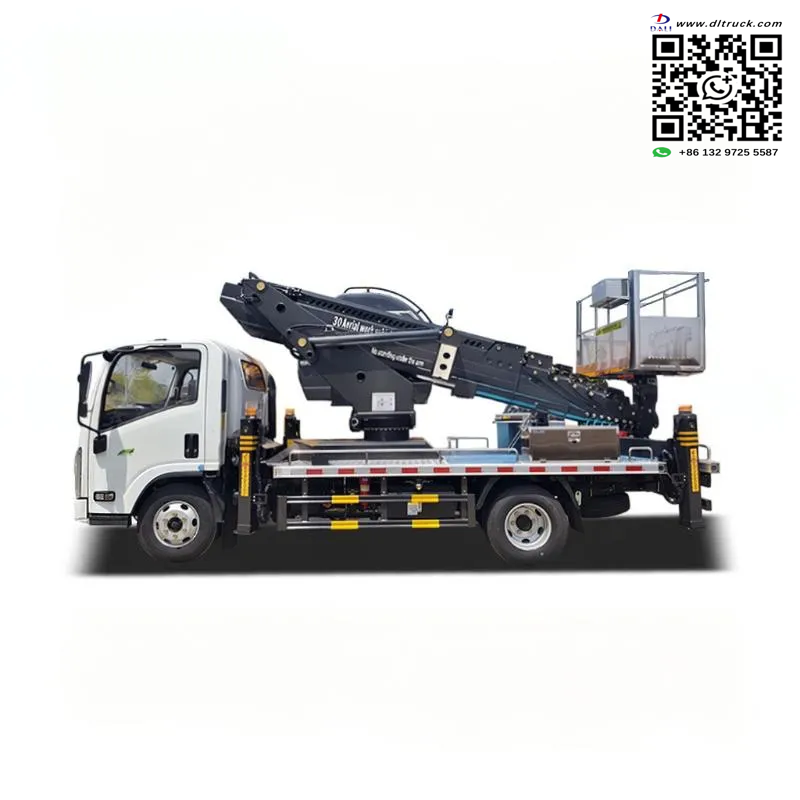

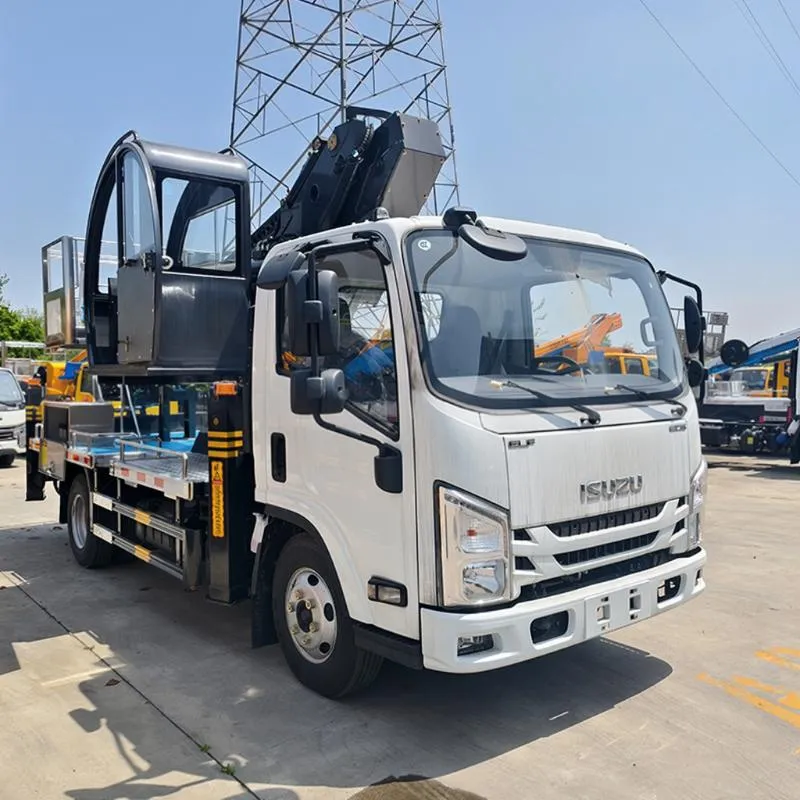

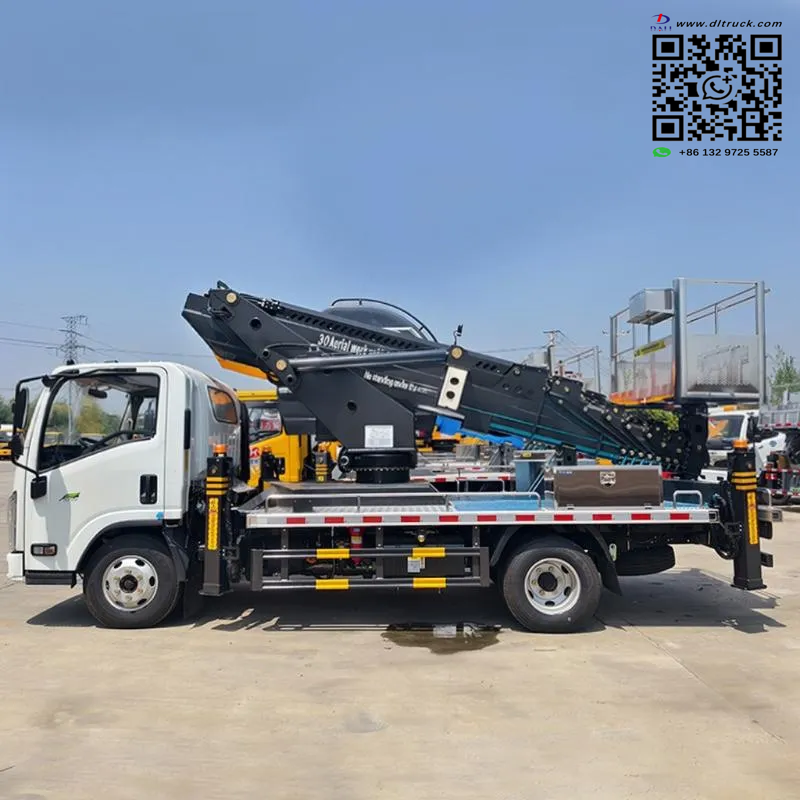

The truck is built on an ISUZU commercial chassis. The 30m telescopic boom raises operators to elevated work zones. It is widely exported to buyers across the globe.

Key Features.

The truck combines a robust mechanical boom with modern electronic controls for safe elevated operations.

• 7-section polygonal synchronous telescopic boom with external telescopic cylinder and steel wire rope mechanism.
• 360° continuous full rotation of the boom structure.

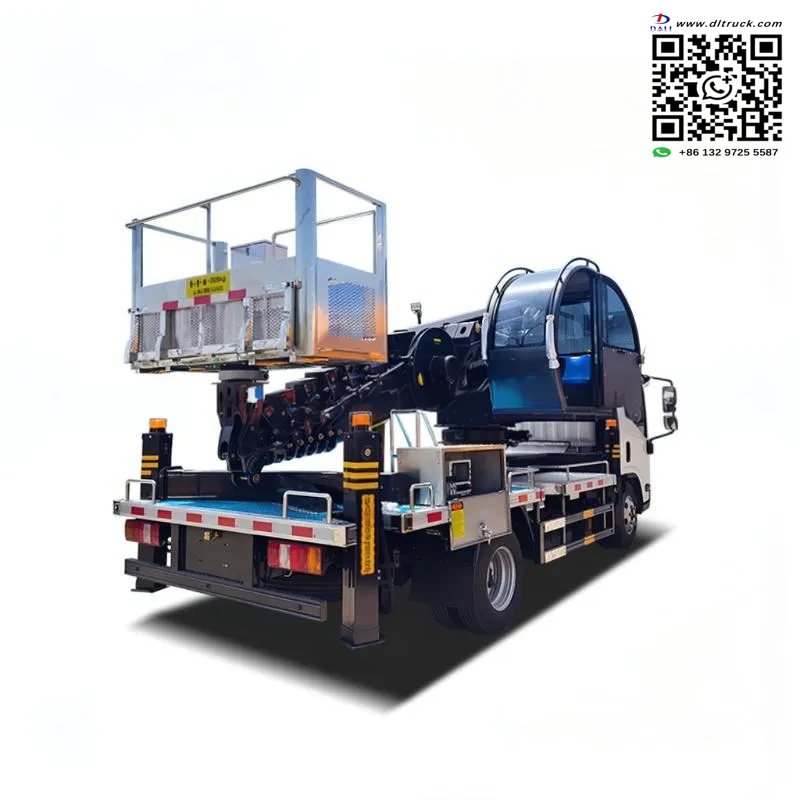

• High-strength stainless steel platform with 360° rotatable basket.
• Rated platform load of 200kg for up to 3 operators.
• Front V and Rear V three-section hydraulic outriggers with independent or synchronous control.
• CAN bus intelligent control system with electro-hydraulic proportional valve group.
• Ground 5-inch LCD electric control console.
• Standard wireless remote controller.
• Optional built-in basket operation panel.
• Standard safety devices including wind speed meter. Basket load sensor, soft leg protection, multi-position emergency stop button, and automatic amplitude limiting system.
• Optional 4000W DC-AC inverter providing 220V power supply for aerial tools.

Performance and Configuration.

The boom reaches a maximum working height of 30m. Its 7-section polygonal synchronous design provides structural rigidity during full extension. An external telescopic cylinder drives the primary extension. Steel wire rope assists the telescopic mechanism for reliable retraction.

The platform supports a rated load of 200kg. It accommodates a maximum of 3 operators at one time. The high-strength stainless steel basket rotates 360° for flexible positioning near work surfaces.

Stability is ensured by front V and rear V three-section hydraulic outriggers. Operators can control them independently or synchronously. The wider horizontal outrigger span delivers strong anti-tipping stability during elevated work.

The CAN bus intelligent control system manages all hydraulic functions. The electro-hydraulic proportional valve group responds precisely to operator inputs. Ground operators use the 5-inch LCD console for full control. A wireless remote controller is included as standard equipment.

The 5-inch LCD screen displays real-time data including boom length, elevation angle, platform height, and working height. Core hydraulic and electrical parts come from well-known brands. These include load-sensing proportional valves, balance valves, and the CAN bus controller.

Multiple safety devices protect operators during every lift cycle. The wind speed meter monitors ambient conditions. The basket load sensor prevents overloading. Soft leg protection safeguards the outrigger cylinders. Multi-position emergency stop buttons are placed at accessible locations. The automatic amplitude limiting system prevents unsafe boom angles.

Applications.

This aerial manlift truck is designed for elevated maintenance and construction tasks. It suits municipal road work, streetlight installation, and tree trimming. Telecom companies use it for antenna and cable work. Building maintenance crews rely on it for facade repair.

Why Choose This Truck.

CHENGLI sells directly from the factory. This eliminates middleman margins and keeps the price low. Buyers receive transparent pricing with no hidden costs.

The truck is built to meet international export standards. Components are sourced from recognized brand suppliers. Every unit undergoes factory quality inspection before shipment. Chengli has exported trucks to more than 50 countries across multiple continents.
